Summary of Contents for Ecoair SUMMIT-S

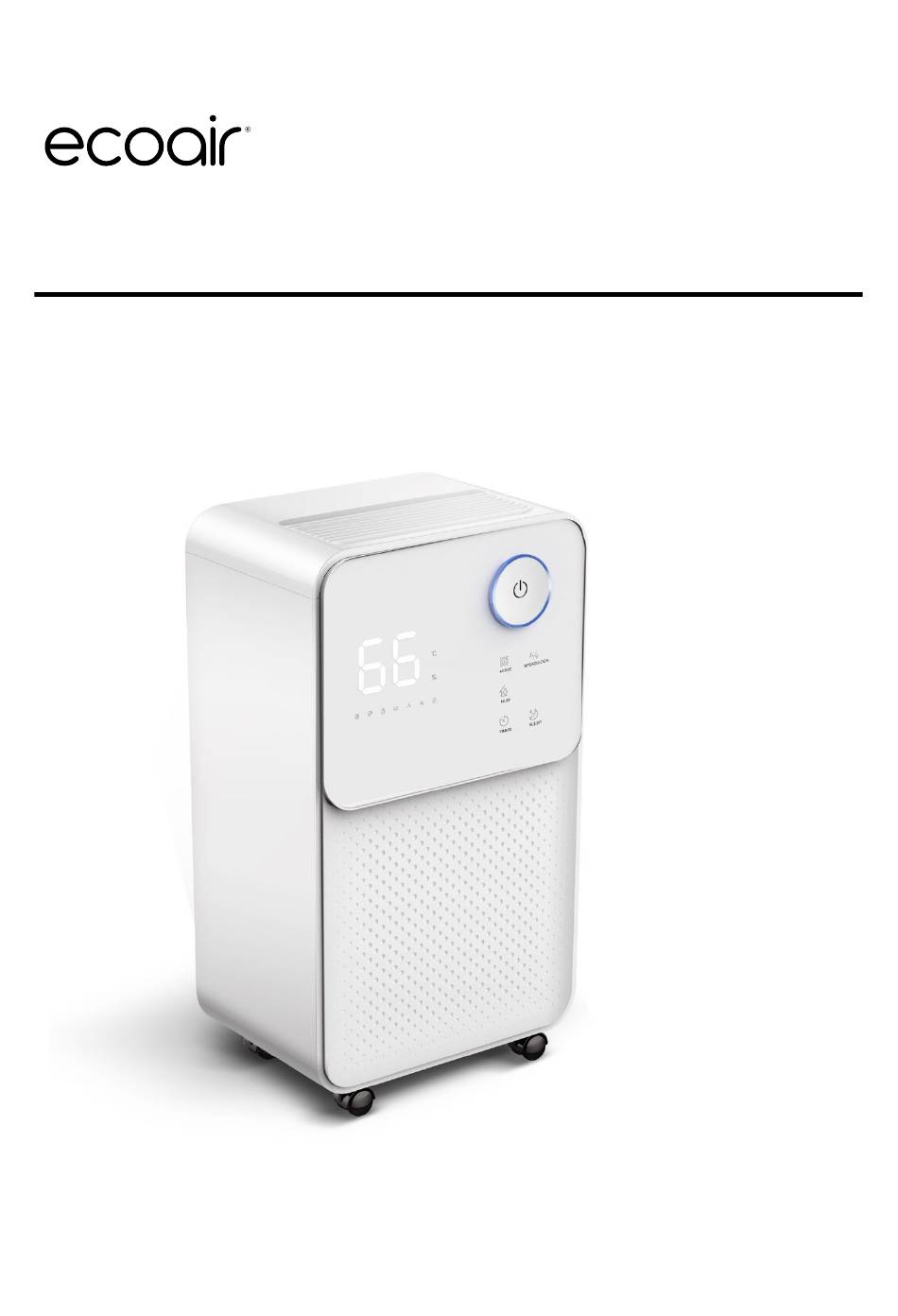

- Page 1 SUMMIT-S DC-100016 COMPRESSOR DEHUMIDIFIER USER MANUAL Please read instructions before use Keep for future reference Visit ecoair.org to register your product or terms and conditions @2021 EcoAir...
- Page 2 WELCOME Thank you and congratulations for choosing an EcoAir dehumidifier to help you improve the air quality within your environment. Inside you will find many helpful tips on how to use and maintain your dehumidifier efficiently. Just a little preventative care can save you money and prolong the life of your dehumidifier.
-
Page 3: Table Of Contents
Important Safety Instructions Refrigerant R290 BS Plug Wiring The Appliance and Accessories Important Safeguards Installation Setup Continuous Drainage Control Panel Operation 9 - 10 Emptying the Water Tank Cleaning, Maintenance and Storing the appliance Troubleshooting 13 - 14 @2021 EcoAir... -
Page 4: Important Safety Instructions
• Children and pets should be supervised to ensure they do not play with the appliance. • Do not use the appliance If the power cable, cord is damaged It must be replaced by an EcoAir’s Authorised Service Centre. -
Page 5: Refrigerant R290
Keep any required ventilation openings clear of obstructions. Never attempt to service or repair the appliances yourself, always ensure it is only serviced by a EcoAir approved engineer using original EcoAir parts. If these appliances are installed, operated or stored in a non-ventilated area, then the room must be designed to prevent the accumulation of refrigerant leaks. -
Page 6: Bs Plug Wiring
If a 10A (BS 1363) fused plug is used it must be fitted with a 10A or 13A -fuse. If in doubt consult a qualified electrician. Please note the Earth, Neutral and Live Terminals are marked as E , N and L respec- tively. Page 3 @2021 EcoAir - V1.4 All rights reserved (E&OE) -
Page 7: The Appliance And Accessories
BACK Accessories List DESCRIPTION Description Description Control Panel Continuous Drainage Hose Air Outlet Carbon Filter Castors User Manual Air Inlet / Air Filter Continuous Drainage Outlet Water Tank Tank Handle Page 4 @2021 EcoAir - V1.4 All rights reserved (E&OE) -
Page 8: Important Safeguards
• Dusty, building sites or an industrial environment where particles can clog up the filter or internal components. Page 5 @2021 EcoAir - V1.4 All rights reserved (E&OE) -
Page 9: Installation
If there is a problematic area or a room in a high humidity level, use a hygrometer to measure (available to purchase at ecoair.org) in the property, you may wish to place it in that area initially. Once the problem is settled you may wish to relocate to the location above. -
Page 10: Setup Continuous Drainage
1°C to avoid leakage. (When the outdoor temperature is at freezing point the water will not flow freely and this will cause a blockage consequently pushing the any condensation back to the dehumidifier and leakage will occur). Page 7 @2021 EcoAir - V1.4 All rights reserved (E&OE) -
Page 11: Control Panel
Flashing Blue: Auto Defrost / Protection. Constant: Above 40% and below 60% relative humidity. Constant: High humidity above 60% relative humidity Flashing Red: Indicates the water tank is almost full. Page 8 @2021 EcoAir - V1.4 All rights reserved (E&OE) -
Page 12: Operation
(%RH) in the environment when the dehumidifier is running. The display will show the actual humidity in the room a few seconds after the humidity level is set on the con- trol panel. Page 9 @2021 EcoAir - V1.4 All rights reserved (E&OE) - Page 13 3 minutes. This is to switch off when the tank is full or removed and protect the dehumidifier and is not a fault. Operation when humidity setting is reached. will automatically restart after 3 minutes. Page 10 @2021 EcoAir - V1.4 All rights reserved...
-
Page 14: Emptying The Water Tank
When cleaning the water tank, take caution to avoid damaging the float. • Do not tilt the dehumidifier when removing the water tank. This is to prevent water leaking which may cause electric shock. Page 11 @2021 EcoAir - V1.4 All rights reserved... -
Page 15: Cleaning, Maintenance And Storing The Appliance
6 months for optimal performance and hygiene standards. To purchase a replacement Note: If the filter is covered with dust, the airflow filter please visit: www.ecoair.org and the performance of the dehumidifier will be affected. STEP 3- CLEANING YOUR DEHUMIDIFIER STEP 4 - STORING YOUR DEHUMIDIFIER 1. -
Page 16: Troubleshooting
Room Temperature is too cold Increase heat in the room In the unlikely event of a problem with your product, please refer in the first instance to: ECOAIR TECHNICAL SUPPORT www.ecoair.org/support Page 13 @2021 EcoAir - V1.4 All rights reserved... - Page 17 Decreased the environmental temperature to play shows “CH” 38°C continue operation In the unlikely event of a problem with your product, please refer in the first instance to: ECOAIR TECHNICAL SUPPORT www.ecoair.org/support Page 14 @2021 EcoAir - V1.4 All rights reserved...
