- Page 1 KI TCHEN S ET M O D E L M K W 1 0 2 S CAN QR CODE FOR A S S EMBL Y V I DEO A s s e m b ly I n s t r u c t i o n s...
- Page 2 • Tenga cuidado de no apretar demasiado los tornillos o no mantendrán las piezas juntas de manera adecuada. • Para montaje permanente se recomienda cola para madera Please retain this information for future reference. 1 | Kiddery Toys - Kitchen Set Product Manual...

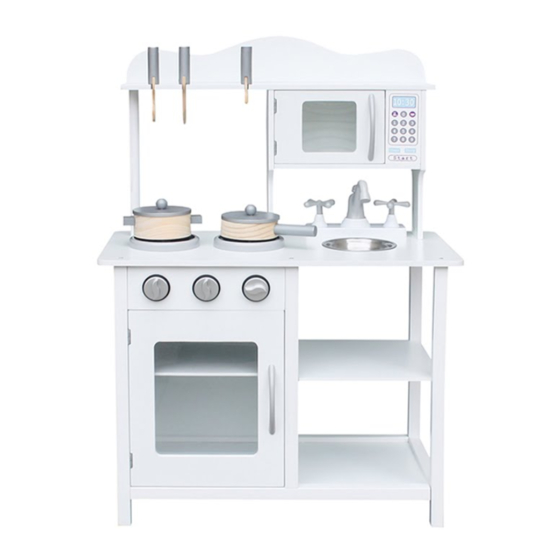

- Page 3 This wooden kitchen playset comes with various accessories included, for your little one to have countless hours of fun and play! Kiddery Toys - Kitchen Set Product Manual | 2...
- Page 4 3 | Kiddery Toys - Kitchen Set Product Manual...
- Page 5 Lock items 3 & 4 • Connect 6 & 7 • Screw item 2 using A • Kiddery Toys - Kitchen Set Product Manual | 4...
- Page 6 Place shelf 9 • • Connect stove knobs to item 10 using H screws. Insert E in the side • holes Connect handle to • item 11 using G screws 5 | Kiddery Toys - Kitchen Set Product Manual...
- Page 7 • Slide in item 12 and • place item 13 • Using screw B, connect item 14 to items 15 and 16 Screw item 20 to • item 16 using screw Kiddery Toys - Kitchen Set Product Manual | 6...
- Page 8 Using Screw B, • connect item 17 to base Slide item 21 to base • Connect item 22 to • 23 using screw B • Connect stove burner using screw C 7 | Kiddery Toys - Kitchen Set Product Manual...
- Page 9 22 to base using Connect F hinge to • item 18 using D screw Fasten item 18 to • base USING • Connect upper base to lower base using B screw KITCHEN SET Kiddery Toys - Kitchen Set Product Manual | 8...
