- Page 1 48 V Standalone Battery Module Installation Manual...
- Page 2 About this manual This manual describes how to install and use EM048063P3S and EM048126P3S series battery modules by LG Chem. Read this manual before you attempt to install the product, and follow the instructions throughout the installation process. If you are uncertain about any of the requirements, recommendations, or safety procedures described in this manual, contact LG Chem immediately for advice and clarification.
-
Page 3: Table Of Contents
Contents Contents 1 Safety 1.1 Symbols on product labels ......1.2 Safety instructions ....... 1.2.1 General safety precautions . - Page 4 Contents 4.3 Pre-installation checks ......24 4.3.1 Identifying model number ..... . 24 4.3.2 Measuring battery voltage .
-
Page 5: Safety
Chapter Safety NOTE To use rechargeable batteries, installers are required to comply with standard AS 4086.2 in Australia, VDE-AR-E2510-2 in Germany, and the domestic legislation in other countries. 1.1 Symbols on product labels The nameplate and the warning label are attached to the top of the battery module. The voltage of this battery module is strong enough to cause electric shock. -
Page 6: Safety Instructions
Safety Read the manual before installing and operating the battery module. The battery module may leak corrosive electrolyte. The battery module may explode. The battery module is heavy enough to cause severe injury. The battery module should not be disposed of with household waste at the end of its working life. -
Page 7: Battery Handling Guide
• Do not use cleaning solvents to clean the battery module. 1.3 Response to emergency situations While the battery module comprises multiple battery cells that are designed to prevent hazards resulting from failures, LG Chem cannot guarantee their absolute safety. 1.3.1 Leaking batteries If the battery module leaks electrolyte, avoid contact with the leaking liquid or gas. -
Page 8: Fire
Damaged batteries are dangerous and must be handled with extreme caution. They are not fit for use and may pose a danger to people or property. If the battery module seems to be damaged, pack it in its original container, and then return it to LG Chem or your distributor. -
Page 9: Safety Gear
Safety • Knowledge of and adherence to this manual and all safety precautions and best practices. 1.5 Safety gear Wear the following safety gear when dealing with the battery module. Installers must meet the relevant requirements of international standards, such as IEC 60364 or the domestic legislation. -
Page 10: Introduction
Chapter Introduction The EM048063P3S and EM048126P3S series battery modules are designed to be part of a small-scale electric energy storage system (ESS) for two purposes: • Telecommunication system backup • Residential photovoltaic system Inverter or rectifier NOTE Hereafter in this manual, ESS refers to a set consisting of EM048063P3S or EM048126P3S series battery modules. -
Page 11: Features
Introduction 2.1 Features The EM048063P3S and EM048126P3S series battery modules have the following fea- tures: Built-in battery management system (BMS): A battery module’s BMS monitors its operation and prevents the battery from operating outside design limitations. When a battery module enters an abnormal state, the BMS issues an alert and restricts or disables the battery’s operation. -

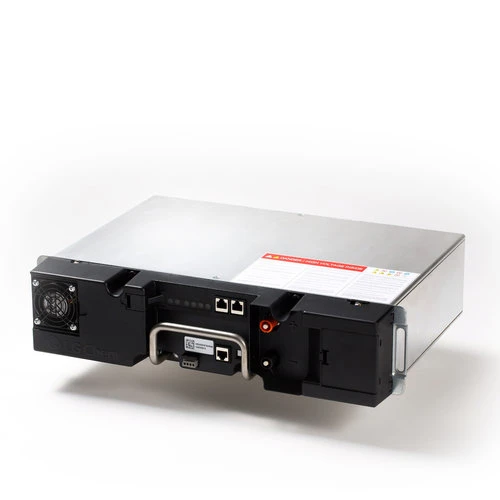

Page 12: Product Overview
RJ48 port for higher-level communication cable Positive connector (+) Power terminal compartment Negative connector (−) On/Off button Dry contact Handle 2.3.2 Model lineup There are four EM048063P3S series models and three EM048126P3S series models. Model Capacity Protocol C-rate Fan Application EM048063P3S1 63 A·h Modbus 485 1.0 C Equipped... -
Page 13: Status Indicators
Introduction 2.3.3 Status indicators The indicators on the front of a battery module show its operating state. Normal SOC ≥ 75% SOC ≥ 50% SOC ≥ 25% SOC < 25% Voltage imbalance Warning Fault 1 Fault 2 Green indicator: The first indicator on the left is on solid GREEN to show that the module is operating normally. -
Page 14: Dry Contact
Introduction Warning: When the module is in a warning state, the green indicator flashes GREEN. The blue indicators still shows the SOC. Fault 1: When the module is in a low-level fault state, the green indicator turns off and the second indicator from the left flashes RED. Moreover, the blue indica- tors show the fault number in binary form. - Page 15 Introduction Terminal Terminal Normal state Open Open Warning or Fault 1 state Closed Open Fault 2 state Open Closed NOTE The current through each terminal must not exceed 90 mA.
-
Page 16: Master And Slave Modules
Introduction 2.4 Master and slave modules One of battery modules installed in the ESS acts as the master module, and the others act as slave modules. As the representative of the ESS, the master module commu- nicates with the higher-level system. A module installed at the top or bottom of the rack must be the master module. -
Page 17: Specifications
Introduction 2.5 Specifications Performance EM048063P3Sx EM048063P3S5 EM048126P3Sx Nominal capacity 63 A·h 63 A·h 126 A·h Nominal energy 3.3 kW·h 3.3 kW·h 6.5 kW·h Nominal voltage 51.8 V 51.8 V 51.8 V Operating voltage 42 to 58.8 V 42 to 58.8 V 42 to 58.8 V Floating voltage 57.4 V Max. - Page 18 Introduction Communication interface Protocol CAN 2.0B (11-bit identifier) or Modbus 485 Port RJ48 500 kpbs 19200 bps Dry contact Warning or Fault 1 Terminal 1 and 2 closed Fault 2 Terminal 3 and 4 closed Operating conditions Available operating temperature −10 to 45°C (14 to 113°F) Optimal operating temperature 15 to 30°C (59 to 86°F)
-
Page 19: Installation Prerequisites
Chapter Installation Prerequisites 3.1 Installation location Make sure that the installation location meets the following conditions: • Never stack battery modules directly on each other but use an appropriate rack. • The building is designed to withstand earthquakes. • The location is far away from the sea, to avoid salt water and humidity. •... -
Page 20: Resistor For The Communication Interface Of The Higher-Level System
Installation Prerequisites 3.2 Resistor for the communication interface of the higher-level system 3.2.1 Modbus RTX+ RTX− RTX+ RTX− If the Modbus protocol is used between the ESS and the higher-level system, make sure to install a 120 Ω resistor between the RTX+ and RTX− channels on the inside of the connector to or of the higher-level system. -
Page 21: Tools
Installation Prerequisites 3.3 Tools These tools are required to install the battery module. Phillips-head screwdriver Torque screwdriver Phillips-screwdriver bit Voltmeter Use properly insulated tools to prevent accidental electric shock or short circuits. Use adjustable tools and measuring instruments that are certified for precision and accuracy. -
Page 22: Installation
Chapter Installation NOTE Use 10 or fewer battery modules that are the same model to construct an ESS. Never use more than 10 units, nor use different models together. 4.1 Installation clearance 10 mm 25 mm 60 mm 60 mm 25 mm 10 mm Make sure to leave a space as shown above around a battery module for proper cool-... -
Page 23: Arranging Battery Modules
Installation 4.2 Arranging battery modules WARNING A battery module weighs 26.5 kg or 44 kg. It is too heavy for a single person to carry. Make sure that two or more persons carry battery modules. Never stack battery modules directly on each other. CAUTION Make sure that battery modules are placed with the top up, or facing the same direction if they are arranged side by side, to prevent a short circuit due to wrong... -
Page 24: Pre-Installation Checks
Installation 3. On each battery module, fasten the brack- ets on both sides of the front using screws and cage nuts to secure it to the rack. Use a torque of 6 N·m. 4.3 Pre-installation checks 4.3.1 Identifying model number Verify the model number of each battery module to ensure that they are all the same model. -
Page 25: Measuring Battery Voltage
Installation 4.3.2 Measuring battery voltage Measure the voltage of each battery module. 1. Pull the groove to remove the cover from the power terminal compartment. 2. Measure the voltage at the terminal block us- ing a voltmeter. If the voltage is lower than 42 V, do not use the battery module. - Page 26 Installation 1. Connect each battery module to those adja- cent to it using an intra-rack communication cable. Insert one end of the cable into the RJ48 port on the lower part of each battery module, and insert the other end of the ca- ble into the RJ48 port on the upper part of the module positioned below it.
-
Page 27: Connecting Power Cables
Installation 4.5 Connecting power cables Connect power cables between the battery modules and the higher-level system via busbars. CAUTION When connecting power cables, pay attention to these precautions: • Never connect battery modules in series. They must be connected in parallel. •... - Page 28 Installation Repeat these steps for each battery module. 1. The positive cable (+) is red and the negative cable (−) is black. Connect the ring terminal of a positive cable to the positive busbar, and connect a negative cable to the negative bus- bar.
- Page 29 Installation 4. Connect appropriate power cables between the busbars and the higher-level system.
-
Page 30: Commissioning
Chapter Commissioning 5.1 Commissioning the ESS Follow the procedure described below to get the ESS ready for operation. If any step fails, see Troubleshooting commissioning failure on page 31 to solve the problem. 1. Press the On/Off button on the master battery module to activate the ESS. For each battery module, make sure that the green indicator is on. -
Page 31: Deactivating The Ess
Commissioning amount of current properly according to the battery status. 6. Commission the higher-level system to put the ESS in operation. 5.2 Deactivating the ESS There are two methods to turn off the battery modules. • To deactivate all the battery modules with their IDs kept, press the On/Off button of each battery module one by one. - Page 32 Commissioning Fault number 12 If the red indicator turned on together with the blue indicators showing fault number 12 in binary form, try these steps: 1. Make sure that the communication settings are properly configured on the higher level system. •...
-
Page 33: A Warranty
Appendix Warranty LG Chem protects this product under warranty when it is installed and used as de- tailed in this manual. Violating the installation procedure or using the product in any way not described in this manual immediately voids all warranties on the product. - Page 34 Keep this manual for later use. © 2017 LG Chem LG Twin Towers, 128 Yeoui-daero Yeongdeungpo-gu Seoul 07336, Korea...
