anko 43082353 Instruction Manual

anko 43082353 Instruction Manual

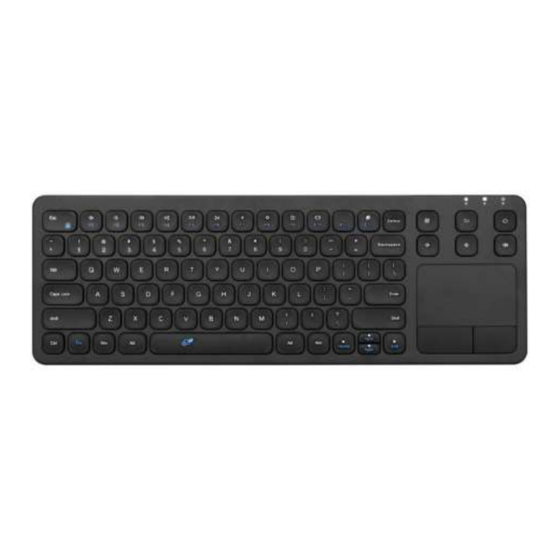

Multi-media keyboard

Advertisement

Quick Links

Package Contents

① 2.4GHz wireless keyboard
② USB receiver (inside the battery compartment)
③ User manual

Safety Instructions:

Please read the instruction manual before using this device and follow all the safety
instructions to avoid damage caused by improper usage.
Keep the instruction manual for future reference. Should this device be given to a third
party, then this instruction manual must also be handed over.
Use this device solely for its intended purpose.
Only use this appliance indoors.
Keep the appliance away from all hot surfaces and naked flames.
Always put the appliance on a level, stable, clean and dry surface. Protect the appliance
from extreme heat and cold, dust, direct sunlight, humidity and drops or jets of water.
Do not immerse the appliance in water or in other liquids.
Do not open the housing under any circumstances.
Do not introduce any objects into the interior of the housing.
Should the device malfunction due to electrostatic discharge or a short power surge,
disconnect it from your computer and then reconnect it again.

Specification

Connected by
Operating distance
Battery type
Power consumption
Material
Dimensions
Instruction Manual
Multi-Media Keyboard
Keycode: 43082353
2.4G Wireless (with dongle)
8 meters
2*AAA ( not included)
3.0V/10mA
Galvanized(front) + ABS(back)
374.98*129.38*17.60mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 43082353 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for anko 43082353

  • Page 1 Instruction Manual Multi-Media Keyboard Keycode: 43082353 Package Contents ① 2.4GHz wireless keyboard ② USB receiver (inside the battery compartment) ③ User manual Safety Instructions: Please read the instruction manual before using this device and follow all the safety instructions to avoid damage caused by improper usage.
  • Page 2 Supports: Windows 7, Windows 8, Windows 10 and later, Android 5.0 or later, and Chrome OS Indicator Light Description ① Fn lock indicator (Blue) ② Caps lock indicator (Green) ③ Power indicator (Green)/Low battery indicator (Green) Note: This indicator light will be on around 5 seconds, then go off, and will light up once the battery is low power.
  • Page 3 Key function Multimedia Key Function Windows Multimedia Key Function Windows system system Fn Lock Favorite Mute Active windows lists Volume down No short Key function Volume up Activate website Last track Touchpad On/Off Play/Pause Line head (in Word document) Next track Line end (in Word document)
  • Page 4 Touchpad Function Using in Windows system Gesture illustration & description Function Mouse left button one finger click Move the cursor one finger slide Select and move one finger hold click quickly and slide Mouse right button two fingers click Roll vertically two fingers move vertically Roll horizontally two fingers move horizontally...
  • Page 5 Using in Android system Power saving mode If the keyboard is not used for 30 minutes, it switches to power saving mode. Just press any key and wait for 3-5 seconds to reactivate it. 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where...
