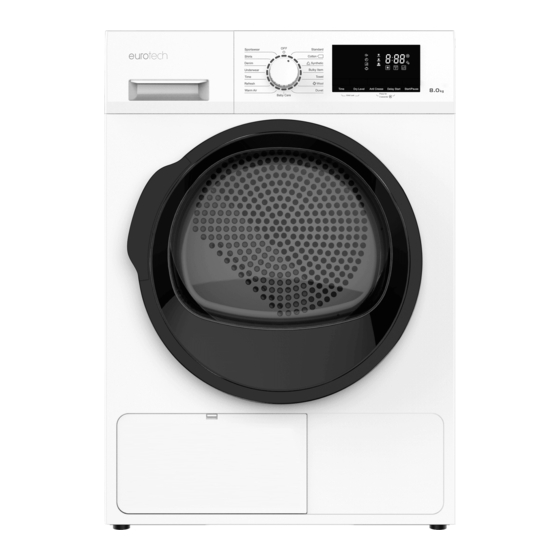

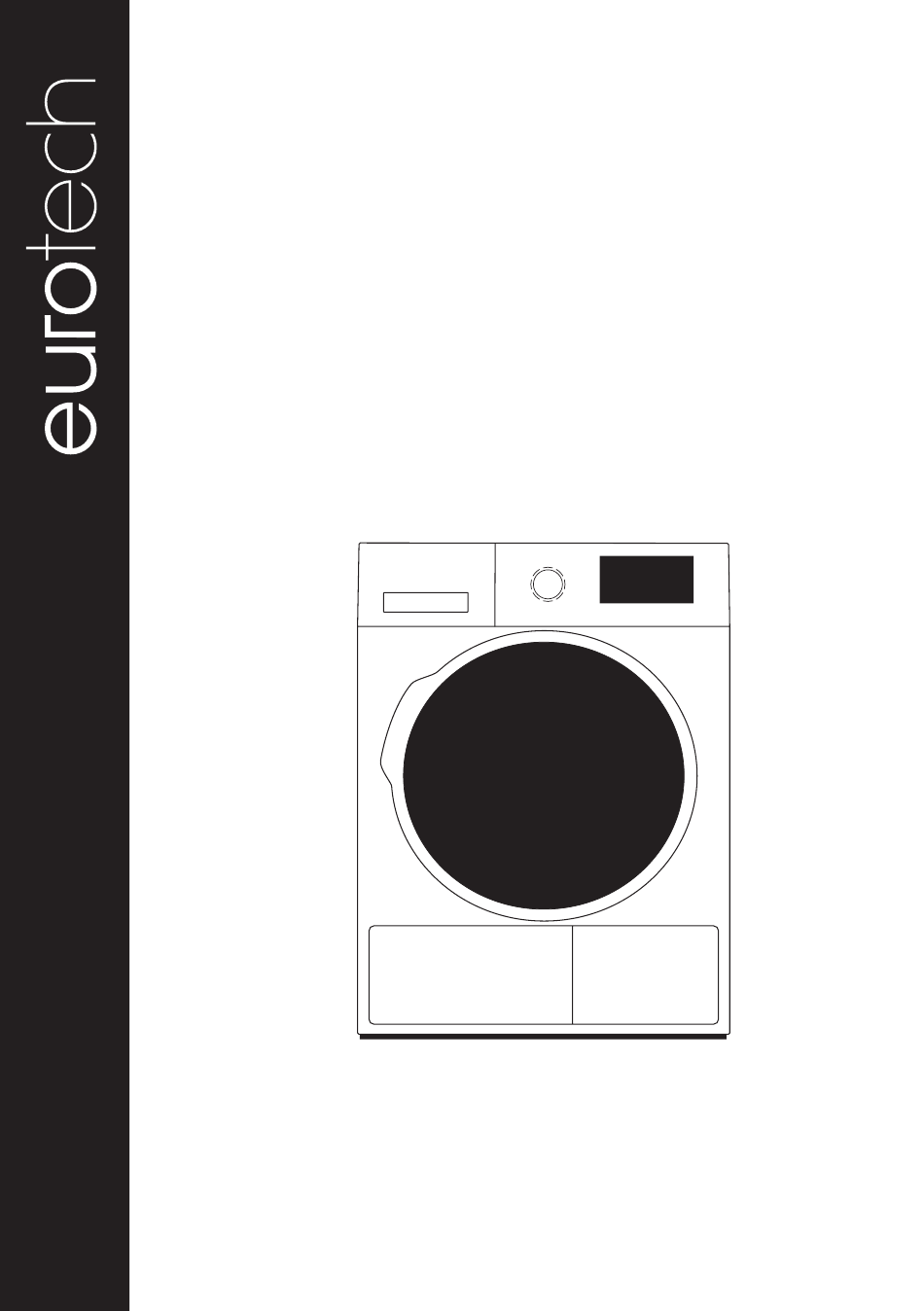

- Page 1 Eurotech 8kg Heat Pump Dryer ED-HPD8WH INSTRUCTION MANUAL Please read this manual carefully before using your dryer and keep it for future reference.
- Page 2 Read and understand thoroughly this safety instructions before use. The items indicated here are very important safety precautions, which must be followed. Any failure and losses caused by ignoring the above mentioned items and cautions mentioned in the operation and installation instruction are not covered by our warranty and any liability.
- Page 3 Do not install the appliance close to fire sources or heat sources. Do not rest any burning candles or cigarettes on the appliance. Do not install the appliance in places with dampness or suffer from rainfalls, lest igniting damages or other accidents occur easily due to gathered water drops on electrical components.
- Page 4 Garments which have been in contact with volatile petroleum products should not be machine dried. If volatilecleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine. Never use the tumble dryer if the power supply cable ,the control panel, the working surface or the base are damaged so that the inside of the tumble dryer is accessible.
-
Page 5: Control Panel
1.Control Panel 2.Water Tank 3.Fluff filter 4.Door 5.Condenser cover 6.Adjustment leg Control panel 1. Programme Selection Knob 2. Time 3. Child Lock 4. Dry Level 5. Anti Crease 6. Buzzer 7. Delay Start 8. Start/Pause 9. Indicator Lights: Drainage Container Fluff Filter Ensure that the electrical connections comply with the installation instructions. - Page 6 Turn the program selector dial to the required program. The corresponding function lights is on. The program will be switched off if you have not pressed any button for 10 minutes. Attention: Some thick clothes ( jeans, big towel ). Because of the material characteristics, some place hard to dry.
- Page 7 This button allows you to delay the starting of the program by 24 hours max. This option must be selected after having selected the program and before pressing Start/Pause to start the program. Every time the button is pressed, the time is increased by 1 hour. It can be selected in both cases before and after selecting option programme (Buzzer,Anti-creasing).
- Page 8 Child Lock light This light indicated the appliance is locked. Buzzer light This light is on when buzzer programme is selected. Delay Start light This light is on when delay start programme is selected. Drying Type light these lights will be on when Dry Level function is selected. When you choose different drying intensities, the corresponding indicator light turns on.
- Page 9 Never tumble dry the following: Particularly delicate items such as net curtains ,woolen, silk, fabrics with metal trim, nylon tights, bulky materials such as anoraks, blankets, eiderdowns, sleeping bags, feather quilts and any items containing rubber foam or materials similar to rubber foam. Always follow the instructions on garment labels: Close pillowcases and covers with fasteners to prevent small laundry items getting tangled inside them.
- Page 10 Drying programmes Blend materials usual clothes and so on. Standard It is possible to choose different drying strength Cotton clothes and so on. Cotton It is possible to choose different drying strength Chemical fiber products and so on. Synthetic It is possible to choose different drying strength To dry the larger clothes.
-
Page 11: Stainless Steel Tumbler
When cleaning the product, be sure to unplug the power cord. Durning the drying cycle, the control panel or the door may accumulate moisture. Clean with a soft, damp clothes. Do not use abrasive substances. Don’t spray cleaners directly on the panel. The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products. - Page 12 IMPORTANT : If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. Dryer Model ED-HPD8WH 220-240/50 Weight(kg±10%) 0.48...
-
Page 13: Water Discharge
IMPORTANT: The appliance must not bulit-in. Quantity Unpacking: All packing, must be removed before using the appliance. drainpipe Check accessory: Open the accessory bag and check the accessories. manual Should the appliance be moved, it must be transported vertically. Malfunction Possible Cause Solution Mains plug is not plugged in. -
Page 14: Packaging Materials
Check across the corner When press on the edge, the machine should not shake up and down. (please check two direction) when press on the top frame (across the corner), the dryer shakes, need to re-adjust the adjustable feet. Do not put stacks of blanket or a rope on the floor, which could generrate some heat and affect the machine running. -
Page 15: Ecological Hints
The Symbol mean: caution, risk of fire Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. - Page 16 DH-80S5C DH-80S5U/DH-80S5K PCB board operating panel Programme selector dial...
- Page 17 DH-80S5CW DH-80S5UW PCB board Programme selector dial operating panel...
