RTC GUARDIAN Series Installation Manual

After LED connectors have been created in all gray LED wires, make the following connections
using the connectors from the Guardian board J3 wiring harness:
• J3 wiring harness: (> symbol = connect to)
— LED1 (male) > LED 1 (female) coming from white Carmanah unit
— LED2 (male) > LED 2 (female) coming from white Carmanah unit
— LED3* (male) > LED 3 (female) coming from white Carmanah unit
*Some installations only feature two LEDs. If this is the case, disregard steps
mentioning LED3.
— LED1 (female) > LED 1 (male) coming from white Carmanah unit
— LED2 (female) > LED 2 (male) coming from white Carmanah unit
— LED3* (female) > LED 3 (male) coming from white Carmanah unit
Step 7 – Install Door Switch (optional)
Please Note: In order for the Guardian door-monitoring feature to work, a door switch must
be ordered and correctly installed. Door switches do not come standard with Guardian Series
Products, but can be purchased separately from RTC and shipped along with your order.
The door switch needs to be installed in a position and location that allows the cabinet door to
press in the switch "lever" when the cabinet door is closed and let off "lever" when the cabinet is
open. This will vary from cabinet to cabinet, but typically the side of the inside lip of the cabinet
works well.
Choose a location that follows the above guidelines and mount the door switch using a drill
and the provided mounting screws. The door switch for the GCR comes prewired to J4 of the
Guardian board, so no additional wiring is required.
Step 8 - Reconnect Power
After all components have been connected, restore power to the system by connecting the male
connectors from the wires on each battery to the female connectors on the wires coming from the
white Carmanah unit.
Step 9 - Setup Guardian Series Product in RTC Connect™
After the hardware installation is complete, the Guardian-Carmanah system must be set up in
RTC Connect. Detailed steps can be found in the Quick Start Guide in RTC Connect. To access the
guide, follow these steps:
1. Download and Open RTC Connect Software
2. Log In
3. Click on "Utilities" on the Left Toolbar
4. Select "Quick Start Guide"
5. Click on the "Adding A Guardian-Carmanah " title and follow directions

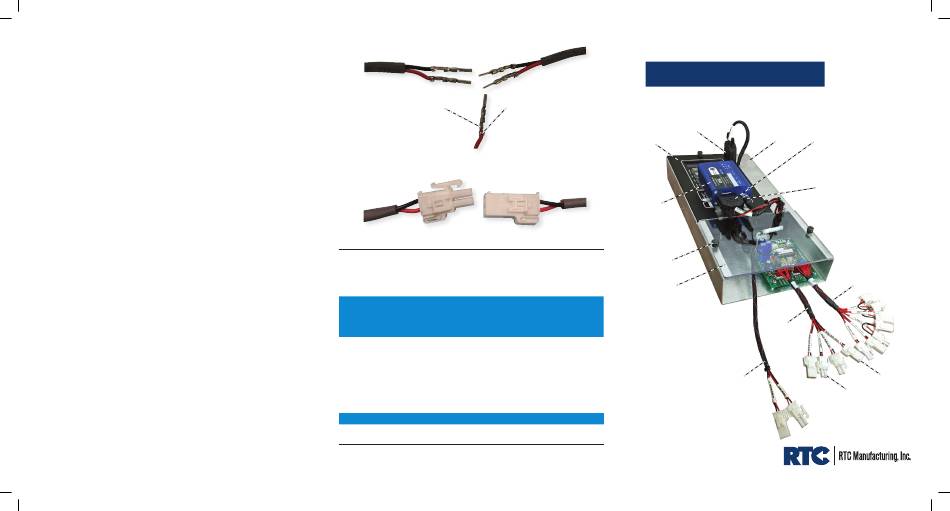

Step 6B / 5 and 6 Visual Reference
Open Pin Connectors
Female Pins On
Wires From Pole
For both male For both male
and female wires, and female wires,
strip the wire insulation crimp the end of the
3/16" and crimp the pin pin connector on the
connector on the wire. insulation ONLY.
Step 6B / 7 and 8 Visual Reference
Molex Connectors
Female Pins Insert Into
Male Molex Connector
Guardian-Carmanah Connection Guide
WIRE
ORIGINATION
LOCATION WIRE LABELED CONNECTS TO WIRE LABELED
J2 SOLAR LID > unlabeled Solar Wire from
J2 SOLAR PNL 1 > SOLAR PNL 1
J2 12V DC > 12V DC
J2 12V DC AP22 > 12V DC AP22
J3 J3 AP22 > J3 AP22
J3 SWITCH 2 > SWITCH 2
J3 LED1 > Gray LED Wire
(male connector) (female connector)
J3 LED2 > Gray LED Wire
(male connector) (female connector)
J3 LED3* > Gray LED Wire
(male connector) (female connector)
J3 LED1 > Gray LED Wire
(female connector) (male connector)
J3 LED2 > Gray LED Wire
(female connector) (male connector)
J3 LED3* > Gray LED Wire
(female connector) (male connector)
J4 Door Switch N/A prewired
(optional)
*Some installations only feature two LEDs.
RTC-Traffic.com | - 800.782.8721
toll free
|
RTC Manufacturing, Inc., 1016 Enterprise Place, Arlington, Texas 76001
©2017 RTC Manufacturing, Inc. All Rights Reserved.
GUARDIAN SERIES
Male Pins On Wires
From White Carmanah Unit
Installation Guide for Guardian-Carmanah
AP22
DB9 Connector
AP22
M2M
Modem
Male Pins Insert Into
Female Molex Connector
Thumb Screws
WIRE
TERMINATION
LOCATION
Plexiglass Cover
LidCabinet Lid
White Carmanah Unit
White Carmanah Unit
AP22 Wiring Harness
AP22 Wiring Harness
White Carmanah Unit
White Carmanah Unit
White Carmanah Unit
White Carmanah Unit
Inside of Pole
Inside of Pole
Inside of Pole
Door Switch
17165/030617
RTC-TRAFFIC.COM
Enclosure
Modem
DB9 Connector
Modem
Power Connector
J3
Wiring
Harness
J2
Wiring
Harness
Female
AP22
Molex
Wiring
Connector
Male
Harness
Molex
Connector
