Note1 :
Please make sure that the speaker's wire is not attached
the chassis.
Note 2: Because the location is relatively small, positive and
negative poles can not be in contact.
1

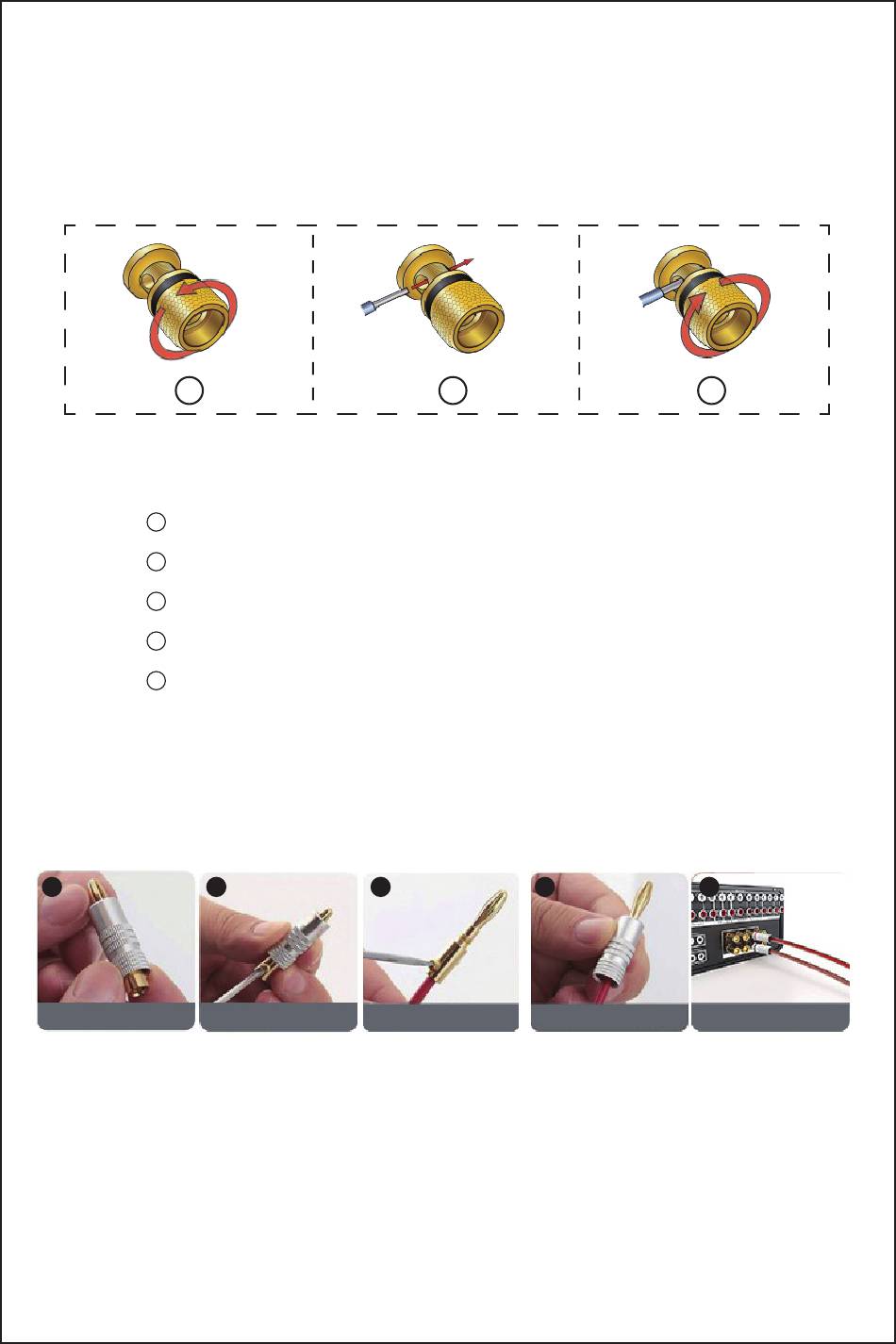

Method 2: Banana plugs connection illustration
: Release the banana jacket;
1
: Loosen the screw;
2
: Insertion speaker wire and tighten the screw;
3
: Tighten the banana jacket;
4
: Insert the banana plug into the horn terminals of the
5
speaker and amplifier.
Note:
Please take care to avoid contact between the two banana
plugs so that it will not cause a short circuit because some
of the banana plugs are metal-cased.
1
Release Jacket
2 3
Insertion speaker wire
Loosen Screw
2
4
Tighten Jacket
tighten screw
3
5
banana plug into
the horn terminals
