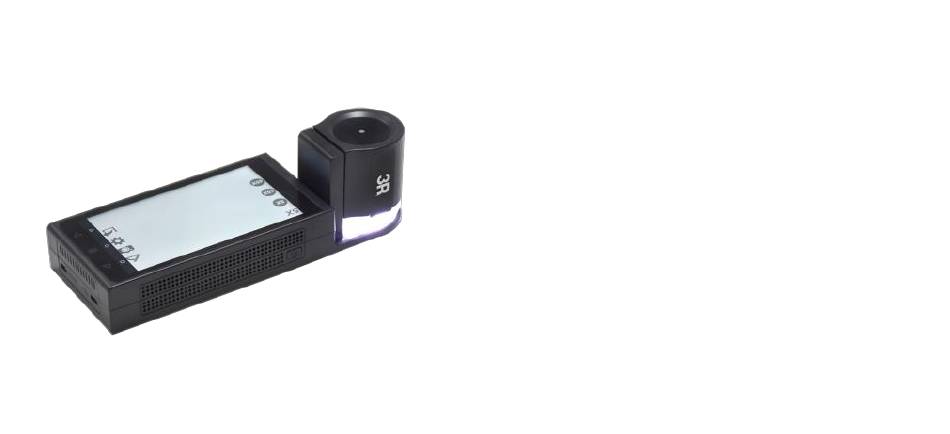

- Page 1 Vividia Portable Autofocus Video Microscope V:3.0 Model: 3R-600 Vividia Technologies www.vivdia-tech.com...
-
Page 2: Table Of Contents
Content I. Preface IV. Packing list VII. Operation directions X. Output data II. Product Information V. Instrument structure VIII. Introduction to measure function XI. Instrument Specification III. Information Source VI. Power On / Off and Charging directions IX. Introduction to setting menu XII. -
Page 3: Preface
I. Preface Portable Video Microscope Thank you for choosing . This guide will help you use this device properly. When storing or using our product, please comply with following items: Temperature: Do not use the instrument in the environment that lower than When not using the instrument: Please turn off the instrument 0°C or higher than 40°C of pull out the battery cord. -
Page 4: Product Information
II. Product Information Portable Autofocus Video Microscope Product name: Main features and function: ●Android OS, no need to connect with computer and power supply ●Precise measurement including length, degree of angle and surface for operation area etc. by microns ●handheld integrated design, portable and compact size ●Save by one button. -
Page 5: Information Source
III. Information Source Company name Vividia Technologies Postcode Oasis Scientific Inc. Address Greenville, SC. USA Website www.vividia-tech.com Tel. Email info@oasisscientific.com... - Page 6 IV. Packing list Name Quantity Name Quantity Name Quantity Core part of instrument Cleanroom wiper charger user's guide USB data cable Calibration board Please check whether the items inside and the packing list are the same after boxing. V. Instrument structure...
- Page 7 1: hole vent 2: Power On/Off 3: Lens module 4: hole 5: HDMI 6: USB Port 7: Battery bin 8: Connecting 9: Positioning film 10: mat 11 Charging indicator 12： screen...
-
Page 8: Power On / Off And Charging Directions
VI. Power On / Off and Charging directions Power on / off: Press on Power On / Off for 2 seconds (pic1), monitor will show the picture of launching, it will enter the interface of software after fully activation. Press on Power On / Off under ON condition for 2 seconds, monitor will show the picture of choosing OFF, choose OFF to finish the process of power OFF. - Page 9 Pic 1 After the instrument is on, you may choose function (pic 1) . Click the icon to open saved pictures. The icon represents the setting menu, includes language input, WLAN, blue tooth. Click the icon to enter measuring dot software. Click the icon to browse for installed applications.
-
Page 10: Operation Directions
Web browser: Link wifi through WLAN. Surf the internet when you connect to wifi successfully. VII. Operation directions “Portable Video Microscope” 1. After power is on, click application icon to enter measuring dotting program (pic 2). 2. Lift up the instrument like pic 3, target the cross line under the instrument board to the pic 2... - Page 11 dotting that need to be measured and press the instrument. Remark: In order to ensure different aluminum measure plates are prepared, please choose function in the setting when measuring. 3. Click the AF auto focus icon on the top right corner of the screen. The instrument will focus clear to dotting, or you may click the triangle icon on the right hand side of the screen to do focusing by moving the lens upward or downward.
-
Page 12: Introduction To Measure Function
turn into black and white display mode. The instrument will calculate the value of dotting at the same time, and it will be shown after DOT: in the bottom left corner of the screen like pic 6. After finish calculating the value of dotting, a quick double click on the screen randomly pic 4 may return the instrument into wait measuring condition. - Page 13 Click the triangle icon on the bottom right corner of the screen, the software will access to function menu like pic 7. The screen will show the icon of function menu in the top left corner, include: adding information icon, open saved images icon, setting icon, photo-taking icon, measuring function icon, pausing icon and auto focus icon.
- Page 14 Adding information icon: After clicking this icon, the screen will show dialog box for entering data. Double click Magnification icon: The icon is showing the on dialog box can enter basic information of measured magnification of the instrument. object, for example number of plate row, person in charge, remarks.
- Page 15 Open saved images icon: After clicking this icon, you Setting icon: Click the button to enter the instrument may open and browse the saved images. setting interface. Photo-taking icon: After clicking this icon, the display Measuring function icon: After clicking the icon, it shows screen will be photoshoot and save in the eight measuring function.
- Page 16 Pausing icon: This function can pause the screen Auto focus: After clicking the icon, it shows 15X and 40X immediately to prevent vibration of screen and icon onto screen. Click either one of the icon (15X/ increase the precision of measurement. After clicking 40), the screen will show a massage of “auto this icon, the icon will change to pause icon.
- Page 17 Click to enter menu of measure Measure straight line Measure degree of angle functions. function icon function icon Measure surface area Measure parallel line function function icon icon Measure cross mark icon Measure point to line function icon Pic 8...
- Page 18 Measure dot percentage Add number of net line icon Measure straight line function icon Remark: Please start measuring after the image is still. Click the icon to start measuring straight line. It shows the function of measuring distance from point to point. Randomly choose two points on the screen, it shows a straight line plotted by the two points.
- Page 19 Measure degree of angle function Click the icon to start measuring degree of angle. Randomly choose three points on the screen, it will show two straight line with the same endpoint and degree of angle at the bottom. Red endpoint can be moved and fine-tuned by the arrows at the bottom right corner. Bidirection button can change the endpoint.
- Page 20 Measure surface area function Click the icon to start measuring surface area. Randomly choose N points on the screen. Clicking the bidirection button, the screen will show a end-up area made by some straight line. Its surface area will be show at the bottom left corner. Red endpoint can be moved and fine-tuned by the arrows at the bottom right corner.
- Page 21 Measure parallel line function Click the icon to start measuring parallel line. The screen will show a pair of vertical parallel lines and a pair of horizontal parallel lines. After touching the screen, the vertical parallel line will move to the point which is touched before. Choosing the bidirection icon, another vertical line will become red, this line will be moved to the point touched on the screen.
- Page 22 Measuring marked scale function Measuring marked scale function: Click the icon to start measuring marked scale, the screen will show cross line on the screen. The intersection point of the cross line may move by random touch on the screen. Also, it can be moved by the arrow keys. The cross line is not in scale but just for reference.
- Page 23 Measure point to line function Click the icon to start measuring from point to line. Randomly choose two points on the screen, it shows a straight line plotted by the two points. Touch another point, the screen will show a T shape perpendicular line by those points touched. The perpendicular distance from the point to the line will be shown at the bottom left corner.
- Page 24 Measuring dotting percentage function Measuring dotting percentage function: Click the icon to start measuring dotting percentage which is the interface after power is on too.
- Page 25 Measuring net lines function Measuring net lines function: Click the icon to start measuring net lines function. After clicking AF auto focus, single press on the screen will calculate number of net lines automatically. Double press to return await measuring condition. Remark: The function can only be used in under 50% of dotting.
-
Page 26: Introduction To Setting Menu
IX. Introduction to setting menu Calibrating icon Light off function Click to enter the interface of measuring function Auto white balance Adjust exposure icon function Automatic exposure Software version icon icon... - Page 27 Calibration function Calibration: Clearly show the scale that carried with the instrument on the screen (pic 8). Choosing the calibrating function icon to enter the interface of the calibrating function setting menu (refer to left). Put the scale carried with the instrument under the instrument and clearly shown.
- Page 28 change the unit. finish calibration. Mind that every actual magnification need calibration. Light off function Light off function: Click the icon to turn off LED light of the instrument. The function is suitable for measuring lighting objects.
- Page 29 Auto white balance icon：Target a white paper to the instrument and adjust until it Auto white balance focuses clearly, click the button when you can see the paper texture. The instrument may show the auto white balance icon on the top of the instrument. The instrument will progress white balance calibration automatically.
- Page 30 Adjust exposure function Adjust exposure: Click the function icon after finish targeting the items. The instrument will show the interface of adjust exposure (refer to left). Choose auto focus icon with two different magnification from AF. Adjust the exposure when the image is clearly focused.
- Page 31 Automatic exposure Automatic exposure: Click the icon to adjust exposure of the screen automatically. Remark: In order to ensure different aluminum measure plates are prepared, please choose this function in the setting when measuring.
- Page 32 Software version Software version information: Click the icon the check the current version of the software.
-
Page 33: Output Data
X. Output data Output image: 1. Link the instrument and computer USB port with an USB data line. 2. Computer will show AOSP icon. 3. Double click to open AOSP icon to see instrument internal storage icon. 4. Double click the instrument internal storage icon to see the internal file. Find Pictures to browse... - Page 34 the saved images. You may copy to output the images to external storage.(refer to left) IX. Introduction to setting menu Sensor CMOS 1.3MB Colour Storage 16GB Magnification 5X to 200X for 17 inches monitor Image size 1280X720 Pixel Screen 720P Touch Screen Size 185*70*55mm Micro USB2.0 、HDMI...
-
Page 35: Information Of Repair Service
Battery Consumption At least 2 hours (continuously) Internet Port WIFI Operating System Android 5.0 Operating Temperature 5°C to 35°C Digital zoom Storage Temperature -20°C to 50°C Image Format Light Source High Brightness White Light LED x8 Weight Around 300g Memory Card Capacity 4GB ROM XII. - Page 36 Please do not dismantle the machine, or otherwise we treat that action as forgiving the right of having one year of free repair service Entity name Serial Contact person Date of purchase Contact number Dealer name Oasis Scientific Inc. Vividia Technologies...
