Quick Start Guide

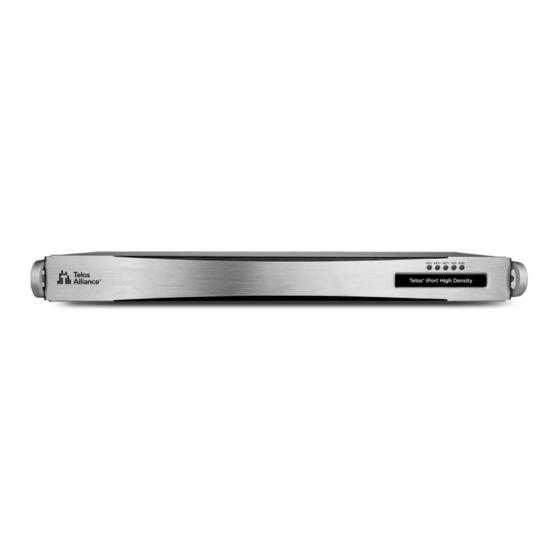

Telos® iPort High Density
Multi-Codec Gateway
Congratulations on your purchase of the Telos® iPort High Density Multi-Codec
Gateway. This Quick Start Guide is designed to provide an overview of the
hardware, walk you through the necessary steps to install and power up the
unit, get it connected to your network, and introduce you to the web-based
user interface.
2021 TLS Corp. Telos Alliance®. All Rights Reserved. 1490-00241-002 QUICK START GUIDE: iPort High Density
TelosAlliance.com
Advertisement
Table of Contents
Related Manuals for Telos Alliance iPort High Density
Summary of Contents for Telos Alliance iPort High Density
- Page 1 TelosAlliance.com 2021 TLS Corp. Telos Alliance®. All Rights Reserved. 1490-00241-002 QUICK START GUIDE: iPort High Density...
-
Page 2: Getting Started
Getting Started Registration We know you’re anxious to mount your new Telos iPort High Density and get it running, but please take a moment to register your product online to activate the warranty and ensure you will get quality support should you have questions regarding installation, operation, or troubleshooting. -
Page 3: Front Panel
The front panel gives basic status indications including power, SSD drive activity, and connectivity indicators for the NET 1 and NET 2 connections. There are no controls on the front panel. iPort High Density will power on automatically once connected to power. -
Page 4: Initial Configuration
Important - The NET 2 (the Livewire LAN) connection requires a 1000BT full-duplex connection. For the initial setup, you can connect iPort High Density to your switch or temporarily connect it directly to a PC using a standard Ethernet cable (a cross- over cable is not required). -
Page 5: Connecting To The Web Interface
Method for IP Addressing section of the User Manual (docs.telosalliance.com/ telos-iport-hd). Connecting to the Web Interface iPort High Density can be remotely accessed from a web browser on any PC on the network. 1. Connect the iPort High Density to your network using NET 2. - Page 6 Quick Start Guide After login, the Home screen is displayed: iPort High Density Home screen TelosAlliance.com 2021 Telos Alliance®. All Rights Reserved. 1490-00241-002 QUICK START GUIDE: iPort High Density...
- Page 7 • Click “Apply”, then answer “Yes” to allow the system to restart Note - Using the “B” network configuration is an advanced topic covered in detail in the User Manual. (docs.telosalliance.com/telos-iport-hd/). TelosAlliance.com 2021 Telos Alliance®. All Rights Reserved. 1490-00241-002 QUICK START GUIDE: iPort High Density...
- Page 8 Quick Start Guide Livewire (LAN) and WAN interface configuration TelosAlliance.com 2021 Telos Alliance®. All Rights Reserved. 1490-00241-002 QUICK START GUIDE: iPort High Density...
- Page 9 Additional licenses may include additional codecs, aptX encoding options, or Content Delay features. Congratulations! You have completed the initial setup. Please proceed to the User Manual (docs.telosalliance.com/telos-iport-hd/) for further instructions. TelosAlliance.com 2021 Telos Alliance®. All Rights Reserved. 1490-00241-002 QUICK START GUIDE: iPort High Density...
- Page 10 Quick Start Guide This page intentionally left blank TelosAlliance.com 2021 Telos Alliance®. All Rights Reserved. 1490-00241-002 QUICK START GUIDE: iPort High Density...
- Page 11 Quick Start Guide This page intentionally left blank TelosAlliance.com 2021 Telos Alliance®. All Rights Reserved. 1490-00241-002 QUICK START GUIDE: iPort High Density...
-
Page 12: Quick Links
TV: support@linearacoustic.com 1241 Superior Ave. • Cleveland, Ohio, 44114, USA • +1.216.241.7225 • TelosAlliance.com © 2021 Telos Alliance®. All Rights Reserved. C21/1/17074 1490-00241-002 QUICK START GUIDE: iPort High Density TelosAlliance.com 2021 Telos Alliance®. All Rights Reserved. 1490-00241-002 QUICK START GUIDE: iPort High Density...
