  • Page 1 MAVEN RF SERIES...
  • Page 2 Thank you for purchasing a Maven™ RF Series Laser Rangefinder. With this purchase you have told the world that quality, performance, and personality mean more to you than big-brand marketing. Included here are instructions for getting your rangefinder ready for your first adventure. Rig it up, get out there and have some fun, then let us know all about your journey.

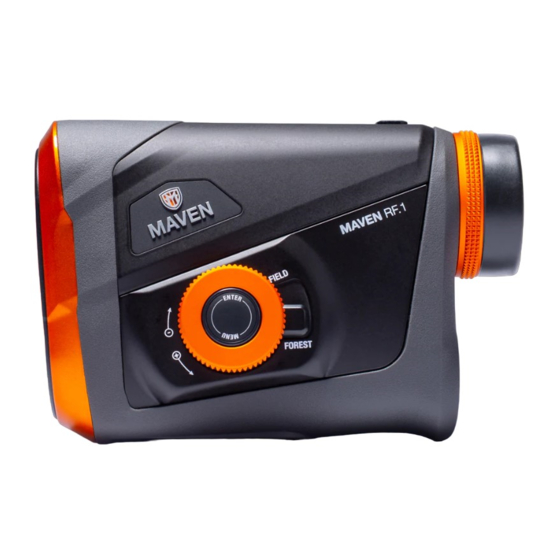

  • Page 3 PARTS OF THE RANGEFINDER: A. POWER / FIRE Button E. Laser Emission Aperture I. MENU / ENTER Button B. Twist-up Eyecup F. Laser Receiving Aperture J. Battery Compartment C. Ocular Lens G. Menu Dial K. Tripod Mount D. Diopter Focus H.

  • Page 4: Getting Started

    GETTING STARTED: Your RF.1 rangefinder comes with a battery already installed. Before using: 1. Open the battery cap by lifting the battery door tab and twisting the door counter clock-wise. 2. Remove and discard the plastic insert sitting on top of the battery.

  • Page 5: Replacing Battery

    ADJUSTING THE EYECUP: The eyecup on the RF.1 twists in and out so any user can see the full field of view and enjoy comfortable viewing and ranging with or without glasses. For best viewing without glasses we recommend twisting the eyecup such that it is fully extended. For best viewing with glasses, twist the eyecup down.
  • Page 6 RF.1 DISPLAY A. Angle Compensated/Line of Sight Indicator (Menu only) B. Angle Compensated/Line of Sight Indicator (Display) C. Degree of Angle (LOS only) D. Aiming Reticle E. Unit of Measure Indicator F. Field/Forest Indicator G. Scan Indicator H. Battery Life Indicator I.

  • Page 7: Adjusting Display Brightness

    ADJUSTING DISPLAY BRIGHTNESS: With the unit on, rotate the Menu Dial clockwise to decrease brightness and counterclockwise to increase brightness (in the menu this displays as BR1-5). ANGLE MODE: The RF.1 provides you the ability to measure and display either Line of Sight (LOS) or Angle Compensated distance (COMP).

  • Page 8: Unit Of Measure

    DEGREE OF ANGLE: Displays from -90 to +90 degrees. This indicator will only display angle in Line of Sight mode. AIMING RETICLE: Choose from four reticle options (Diamond, Crosshair, Dot, and Crosshair with Diamond). To change Reticle: With RF.1 on, press the MENU / ENTER button and continue doing so until the current reticle is displayed.

  • Page 9: Scan Indicator

    To change, rotate the Menu Dial until the desired unit of measure is displayed and then press the MENU / ENTER button. Exit by pressing the FIRE button. FIELD / FOREST LEVER: This lever allows you to easily and quickly select for your application and environmental setting.
  • Page 10 RANGEFINDING TIPS: 1. Unlike mankind, not all objects are created equal. a. Some objects are more reflective than others. b. Larger and more reflective objects are easier to detect. c. Objects that are lighter in color are generally easier to acquire than dark objects. 2.

  • Page 11: Fcc Requirements

    CLEANING YOUR RANGEFINDER: 1. Remove as much dust and dirt as possible from the lenses with a blower or bristled brush. 2. Apply a few drops of lens cleaning solution to a lens tissue or microfiber cleaning cloth. Ensure that the cleaning cloth is free from dirt and grit so as not to scratch the lenses.

  • Page 12: Disposal Of Electric And Electronic Equipment

    The device does not contain any user-serviceable parts. Repairs should only be made by Maven or Authorized Maven agent. Unauthorized repairs or modifications could result in permanent damage to the equipment and will void your warranty and your authority to operate this device under Part 15 regulations.

  • Page 13: Safety And Precautions

    free of charge. Further information about the subject is available at your community administration, your local waste collection company, or in the store where you purchased this equipment. SAFETY AND PRECAUTIONS Do not stare into beam or view directly without laser eye protection. Staring continuous- ly into beam for prolonged periods of time could cause harm to your eyes.
  • Page 15 UNCONDITIONAL LIFETIME WARRANTY Maven products are made with a commitment to you, our customer. All Maven laser rangefinders come with an unconditional lifetime warranty*. If your rangefinder becomes damaged or is at all defective, contact us immediately for repair or replacement.
  • Page 16 800-307-1109 / 160 South 4th St. Lander, WY 82520...
