Anritsu 3671V50-X Instructions For Connecting

ANRITSU 3671V50-X CABLES TO ANRITSU 37000 SERIES VNA
These cables (Figure 1) extend the VNA Port 1 and
Port 2 connectors such that the test port is effectively
moved to the ends of the 3671V50-X cable.

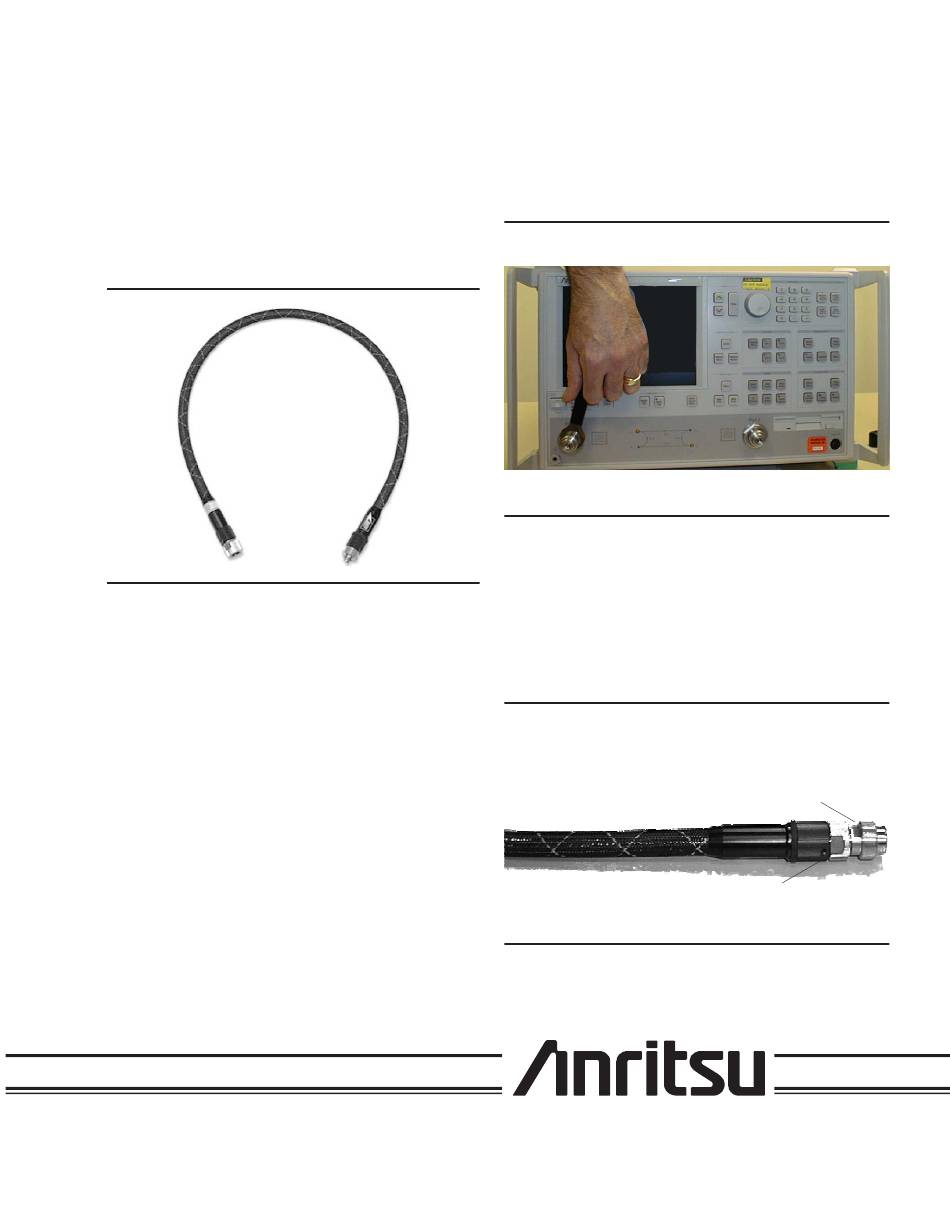

Figure 1. 3671V50-X Cables
Instructions for connecting these cable are provided
below.

Required Equipment

1/2 inch wrench (Anritsu 01-202 or equivalent
thin 1/2-inch open-end wrench)
3/4-inch open-end wrench

Step 1.

Using the 1/2-inch wrench, carefully re-
move the test ports from Port 1 and Port
2 (Figure 2). The ports are labeled
"34YV50."
490 JARVIS DRIVE l MORGAN HILL, CA 95037-2809
INSTRUCTIONS FOR CONNECTING
Figure 2. Removing Test Port

Step 2.

Very carefully install the 34YV50 ports to
the male end of the 3671V50 cable (no vis-
ible center conductor). Hold the cable us-
ing a 3/4-inch wrench, and tighten the the
34YV50 using the 1/2-inch wrench (Figure
3). Do not over-torque.
Figure 3. Installing Test Port on End of Cable
1/2" wrench
3/4" wrench
P/N: 10410-00239
REVISION A
PRINTED: FEBRUARY 2001
COPYRIGHT 2001 ANRITSU COMPANY
