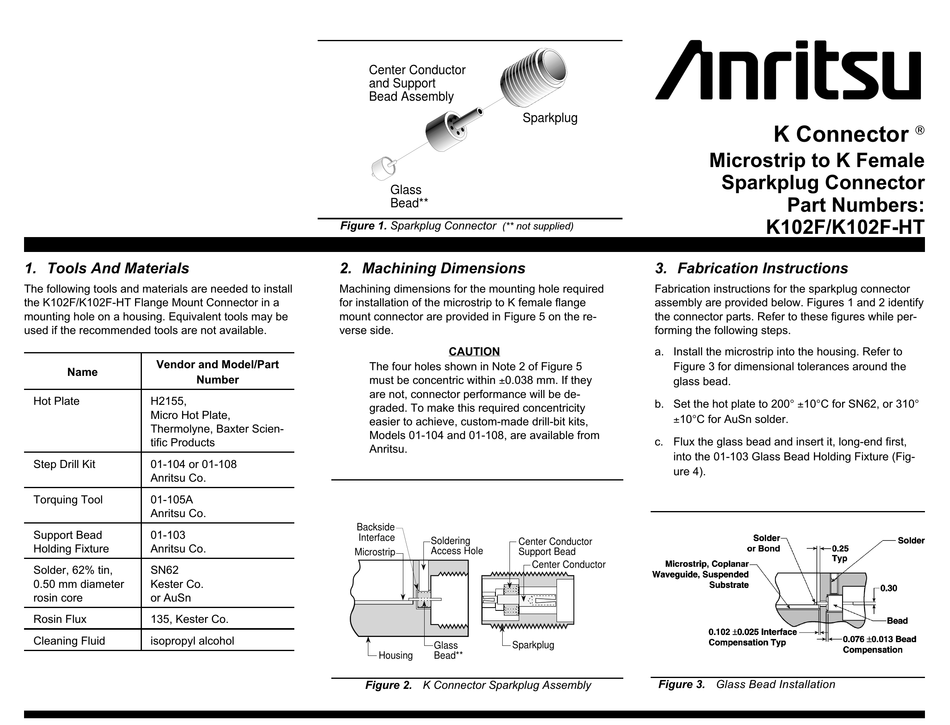

Anritsu K Connector K102F Manual

1. Tools And Materials

The following tools and materials are needed to install
the K102F/K102F-HT Flange Mount Connector in a
mounting hole on a housing. Equivalent tools may be
used if the recommended tools are not available.
Vendor and Model/Part
Name
Number
Hot Plate H2155,
Micro Hot Plate,
Thermolyne, Baxter Scien-
tific Products
Step Drill Kit 01-104 or 01-108
Anritsu Co.
Torquing Tool 01-105A
Anritsu Co.
Support Bead 01-103
Holding Fixture Anritsu Co.
Solder, 62% tin, SN62
0.50 mm diameter Kester Co.
rosin core or AuSn
Rosin Flux 135, Kester Co.
Cleaning Fluid isopropyl alcohol
Center Conductor
and Support
Bead Assembly
Glass
Bead**
Figure 1. Sparkplug Connector
(** not supplied)

2. Machining Dimensions

Machining dimensions for the mounting hole required
for installation of the microstrip to K female flange
mount connector are provided in Figure 5 on the re-
verse side.
CAUTION
The four holes shown in Note 2 of Figure 5
must be concentric within ±0.038 mm. If they
are not, connector performance will be de-
graded. To make this required concentricity
easier to achieve, custom-made drill-bit kits,
Models 01-104 and 01-108, are available from
Anritsu.
Backside
Interface
Soldering
Center Conductor
Access Hole
Microstrip Support Bead
Glass Sparkplug
Housing Bead**
Figure 2. K Connector Sparkplug Assembly
Sparkplug

3. Fabrication Instructions

Fabrication instructions for the sparkplug connector
assembly are provided below. Figures 1 and 2 identify
the connector parts. Refer to these figures while per-
forming the following steps.
a. Install the microstrip into the housing. Refer to
Figure 3 for dimensional tolerances around the
glass bead.
b. Set the hot plate to 200° ±10°C for SN62, or 310°
±10°C for AuSn solder.
c. Flux the glass bead and insert it, long-end first,
into the 01-103 Glass Bead Holding Fixture (Fig-
ure 4).
Center Conductor
Figure 3. Glass Bead Installation
K Connector
Microstrip to K Female
Sparkplug Connector
Part Numbers:
K102F/K102F-HT
