Super Deluxe

Setup and Operation

Service Manual

Software Version

1.20.00

This software is based in part on the work of the Independent JPEG Group.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)

This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)

Table of Contents

Need help?

Do you have a question about the Terminator Salvation Super Deluxe and is the answer not in the manual?

Questions and answers

Summary of Contents for PlayMechanix Terminator Salvation Super Deluxe

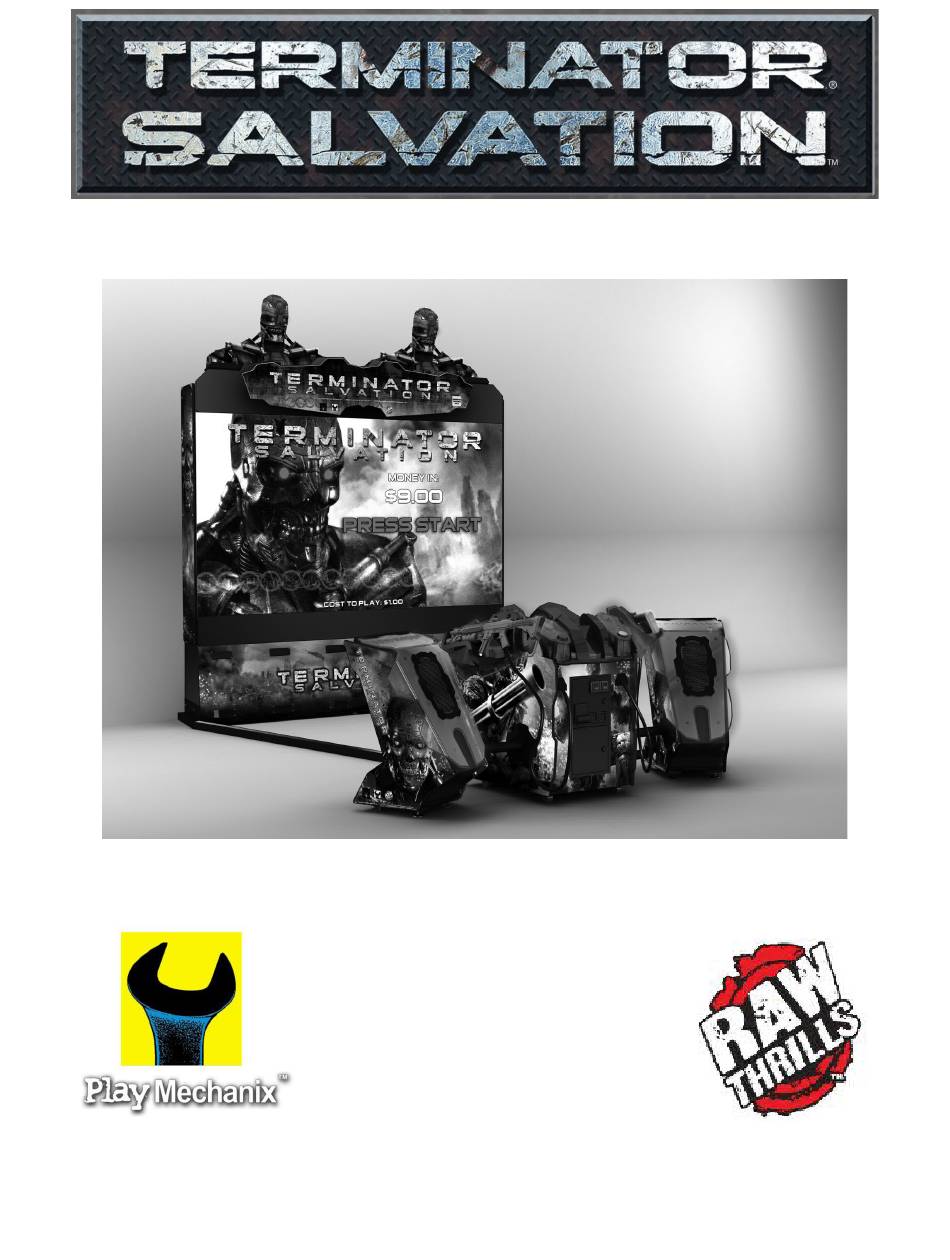

Page 1 1.20.00 Terminator Salvation™ Copyright © 2010 T Asset Acquisition Company, LLC Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved. This software is based in part on the work of the Independent JPEG Group. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
Page 2: Table Of Contents
Safety................................3 Product Specifications..........................5 Hardware..............................6 Setup and Assembly............................ 8 Diagnostic Menu System........................... 24 Maintenance.............................. 40 Wiring................................. 43 Parts................................49 Troubleshooting............................53 Contact Information............................ 56 Page 2 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 3: Safety
Service Manual Safety Safety OPERATION Before operating game, read this manual. Failure to properly install and operate this game could result in malfunction or accident. Operate the game in accordance with the manual. T RANSPORTING The cabinet is very heavy. Because the monitor is high, the cabinet is also very top-heavy. Use appropriate care when moving or transporting cabinet.
Page 4 For reasons such as performance, this product’s specifications may change without notice. Federal patent, copyright and other intellectual property laws protect the content, devices and design of the game and its equipment. Page 4 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 5: Product Specifications
Service Manual Product Specifications Product Specifications Electrical Power Domestic, international users and Japan 120 VAC @60 Hz, 5 amps 240 VAC @ 50 Hz, 2.5 amps 100 VAC @ 50 Hz, 5 amps DC Power Fuse Guide +5 VDC 2 amp Slow Blow +12 VDC 7 amp Slow Blow Temperature...
Page 6: Hardware
¼-20 x 1 ½” black  bolt pcs. ¼-20 x ¾” black  torx screw pcs. #8 x ½” machine  screw pcs. Page 6 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 8: Setup And Assembly
8. Adjust the six leg levelers beneath the screen base until it is level front to back as well as left to right. Turn the knobs at the base of the levelers to raise and lower the screen base. Page 8 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 9 Service Manual Setup and Assembly Arrange Front Screen Frame Posts 1. On the floor in front of the screen base, arrange and identify the front screen frame posts: • Top (stamped “A”), • Bottom (“B”), This post has four holes to accommodate bolts fastening it into the screen base. •...
Page 10 Tighten bolt. See Figure 3. 10. Repeat steps 8-9 with remaining cross joiner into a “B” corner bracket. Page 10 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 11 Service Manual Setup and Assembly Attach Front Screen Frame Assembly to Screen base USES HARDWARE KIT B 1. With an assistant, carefully insert the left and right posts of the front screen frame assembly into holes on top of screen base. Snaps face away from the wall; cross joiners point to the wall. See Figure 3.
Page 12 “A” bracket into posts. Do not tighten. 5. Repeat steps 3-4 for the remaining “B” corner bracket and top and right posts. 6. Tighten all bolts. Figure 4: Rear Screen Frame Assembly Page 12 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 13 Service Manual Setup and Assembly Attach Rear Screen Frame Assembly to Screen Base USES HARDWARE KIT B 1. Align holes at bottom of rear screen frame assembly posts with holes in rear of screen base. The perpendicular flaps on the rear screen frame assembly should be very near the cross joiners. See Figure 5.
Page 15 Service Manual Setup and Assembly Attach Marquee and Heads to Screen Frame Assembly Use Caution Climbing Ladders The marquee assembly and heads are heavy, bulky and fragile. Use extreme caution when you and a partner lift them to the top of the screen frame assembly while climbing ladders or step stools. Ensure ladders are stable and located on solid, flat ground.
Page 16 Take care to avoid the cables within the floor support. Do not tighten bolts. 8. Repeat steps 1-7 for right floor support. 9. Replace both screen base access doors. 10. Replace screws to secure access doors. Page 16 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 17 Service Manual Setup and Assembly Open Gun Pedestal Coin Door 1. Remove the coin door key from the coin return chute. 2. Open gun pedestal coin door. Note the position of the Service Button Panel. 3. Locate the keys for the projector access door and lower access door on the inside of the coin door.
Page 18 4. Adjust gun pedestal leg levelers to raise the wheels just above the floor to keep the pedestal stable. Leveling does not need to be perfect yet. 5. Adjust outrigger leg levelers to match gun pedestal. 6. Tighten all floor support bolts. Page 18 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 19 Service Manual Setup and Assembly Access the Screen Adjustment Grid 1. Check that the voltage switch is set properly. 2. Turn cabinet AC switch on rear of gun pedestal to ON. 3. Make sure all lights are on and projector is on. Projector may take a moment to turn on. See Troubleshooting if anything fails.
Page 20 12. Tighten bolts at front and rear flanges of floor supports into base and pedestal. Take care not to tilt base or pedestal. Figure 12: Projector on support tray Page 20 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 21 Service Manual Setup and Assembly Make Final Adjustments 1. Turn cabinet AC switch to ON. 2. If necessary, repeat Screen Adjustment as described previously to ensure grid is still parallel to screen after attaching outriggers. 3. Press the Menu button on the projector remote control. Refer to projector manual for details on adjusting the projector and using the remote.
Page 22 Note whether any of the dots disappear or flicker when near the center of the screen. This may indicate a dirty or poorly functioning gun camera. Page 22 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 23 Service Manual Setup and Assembly 11. Press the Start button to return to the System Tests menu 12. Scroll to highlight the Gun Electronics Test. 13. Press the Start button to begin the test. 14. Squeeze the trigger to see additional test results. 15.
Page 24: Diagnostic Menu System
At the bottom of each screen there is a brief description of the menu option’s function. A complete description is available here for all menu functions. Page 24 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 25 Service Manual Diagnostic Menu System Menu Screens and Descriptions Main Menu MAIN MENU EXIT OPERATOR ADJUSTMENTS AUDITS PROJECTOR MENU ONLINE MENU GUN CALIBRATION RESET MENU SYSTEM INFORMATION MENU SYSTEM TESTS MENU COLLECTIONS VIEW LOG For clarity, all menu screens exclude the header, footer, and background image. Main Menu Operator Adjustments Menu This menu controls gameplay, coinage and sound adjustments.
Page 26 Enables gun sight and tracer bullets for all guns Sight Only, Default Mode Tracer Only, Gun Sight & Tracer Training Shows extra training videos at start of game Off / On Mode Page 26 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 27 Service Manual Diagnostic Menu System Main Menu Operator Adjustments Menu Coin Settings Menu This menu does not set game price, but specifies how much game credit is given for money added to the machine. The smallest accepted coin is a quarter, the typical setting for both coin values in the U.S. The DBV value is also a multiple of 25¢.
Page 28 Determines the lowest setting possible for both 0 – 32 Volume Game and Attract Volumes This determines how often the game’s Attract Sounds Occasionally Off/Occasionally/Always “advertising” sounds will be heard. Page 28 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 29 Service Manual Diagnostic Menu System Main Menu Audits Menu Audit screens help assess game performance, find intermittent problems, decide whether to adjust game difficulty and free game award and help maximize game earnings. AUDITS EXIT GENERAL AUDITS SYSTEM AUDITS COIN AUDITS Main Menu Audits Menu General Audits...
Page 30 These menus are used by games connected to CoinUp®. Main Menu Gun Calibration Menu This is the same procedure described earlier in the First Calibration section. Page 30 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 31 Service Manual Diagnostic Menu System Main Menu Reset Menu RESET MENU EXIT RESET GAME AUDITS RESET ADVENTURE AUDITS RESET CREDITS RESET COIN COUNTERS RESET ADJUSTMENTS RESET HIGH SCORES FACTORY RESET Reset Game Audits - zeroes out game audits, system audits and game purchase audits Reset High Scores - zeroes out high score tables Reset Credits - zeroes out money in Reset Coin Counters - zeroes out coin audits, but leaves lifetime and service credits...
Page 32 The rest should read N/A. TELEMETRY DATA EXIT SYSTEM TEMPERATURE CORE TEMP1 CORE TEMP2 TEMPERATURE STATE CPU FAN SPEED CASE FAN SPEED +3.3V: +5.0V: +12V: -5.0V: -12.0v Page 32 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 33 Service Manual Diagnostic Menu System Main Menu System Information Menu Switch Telemetry Data This gives information on the time since a switch was last used in both number of games played since the switch was used and the clock time since last use. SWITCH TELEMETRY DATA EXIT GAMES NOT SEEN...
Page 34 AUTO CLICK ON TRIGGER PULL.” Main Menu System Tests Menu Online Tests Menu These tests verify components of the online system. ONLINE TESTS EXIT ETHERNET PORT TEST CARD TEST Page 34 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 35 Service Manual Diagnostic Menu System Main Menu System Tests Menu Ethernet Port Test If Ethernet is used, this test sends attempts to send data packets to the server and reports on how many were received and how many were dropped. Note that running this test requires a loopback adapter. Main Menu System Tests Menu Card Test...
Page 36 Check purity problems (color contamination) • Compensate for barrel or pincushion distortion • Adjust size controls • Test for video noise sources (such as bad cables) Page 36 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 37 Service Manual Diagnostic Menu System Main Menu System Tests Menu Screen Tests Menu Screen Adjustment Menu This crosshatch screen helps adjust width and height, static convergence and purity, brightness and focus. This test is the best way to align the projector image with the screen assembly. See projector manual for information on making adjustments.
Page 38 This test turns the various cabinet light lines on and off, cycling through left and right start buttons, the left and right holsters, the T-600 eyes and outriggers, and the gun butt lights. Page 38 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 39 Service Manual Diagnostic Menu System Main Menu System Tests Menu Watchdog Test This tests the Watchdog circuit, which protects the game against screen freezes (infinite loops). After a countdown, the game resets. To exit before the reset, press either Start or Volume button, squeeze a trigger or pump a gun.
Page 40: Maintenance
Following These Procedures Is Critical To Maintaining Guns and Maximizing Revenue. Perform regular gun maintenance to keep your game in top working order. Page 40 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 41 Service Manual Maintenance Hard Drive Recovery Symptoms requiring hard drive recovery include • File Test reports bad or missing files. • Game fails to finish loading during startup. • After resetting the AC power, an error is reported. • You are prompted to insert a boot DVD. •...
Page 42 Advanced Chipset Features > PMU > CPU Frequency..[200.0] Power Management Setup > PWRON After PWR-Fail..[On] 6. Follow instructions on screen to save and exit. 7. PC will reset and load the game. Page 42 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 43: Wiring
Service Manual Wiring Wiring I/O Board Connector Table JAMMA Edge Connector JAMMA Edge Connector Component Side Solder Side Function Wire Color Wire Color Function Ground Black Black Ground Ground Black Black Ground 5 Volts 5 Volts 5 Volts 5 Volts 12 Volts Orange Orange...
Page 49: Parts
Service Manual Parts Parts Guns and Holsters Item # Description Part No. Qty. Item # Description Part No. Qty. 820-00011-00 Gun LED Strip 500-00045-01 Plastic Holster Left 603-00060-01 Holster Edge Glow Left 600-00180-01 Plastic Holster Right 603-00061-01 Holster Edge Glow Right 500-00180-01 Plywood Holster Left 601-00078-01-L Gun Bracket...
Page 50 Screw 4-40 x 11/16 Torx Black Oxide 43-1322-10 Nut Nylock, 4-40 Hex Black Oxide 500-00083-01 LED PCB F/T4 Rifle 96-0019-00 Right Side Decal 96-0019-10 Left Side Decal 96-1074-00 Shoulder Strap Page 50 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 53: Troubleshooting
Service Manual Troubleshooting Troubleshooting Warning: Review safety chapter before making any adjustments to game. General Problem Possible Cause Solution Game will not power up Game not plugged in. Plug game into outlet. Game not turned on. Turn on main power switch. Game fuse is blown.
Page 54 Reset PCB to motherboard reset pin input Violet or black wire from Reset Check reset wire connection to PCB disconnected or faulty JAMMA connector. Page 54 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
Page 55 Service Manual Troubleshooting Gun Troubleshooting Note: Do not replace or swap guns while power is on. Shut AC power off before connecting or disconnecting any components. If, for some reason, guns are changed while power is on, shut off AC power and reboot after the guns are connected again. Failure to do so may confuse the system so it does not recognize the guns.
Page 56: Contact Information
303 Paterson Plank Rd. 800 Roosevelt Road, Suite D-103 Carlstadt, NJ 07072 Glen Ellyn, IL 60137 (800) 524-2343 or (201) 438-1300 (866) 646-1975 fax (630) 942-1073 fax (201) 438-4837 Page 56 Terminator Salvation™ Game Software Copyright © 2010 PlayMechanix™ Inc. All rights reserved.
