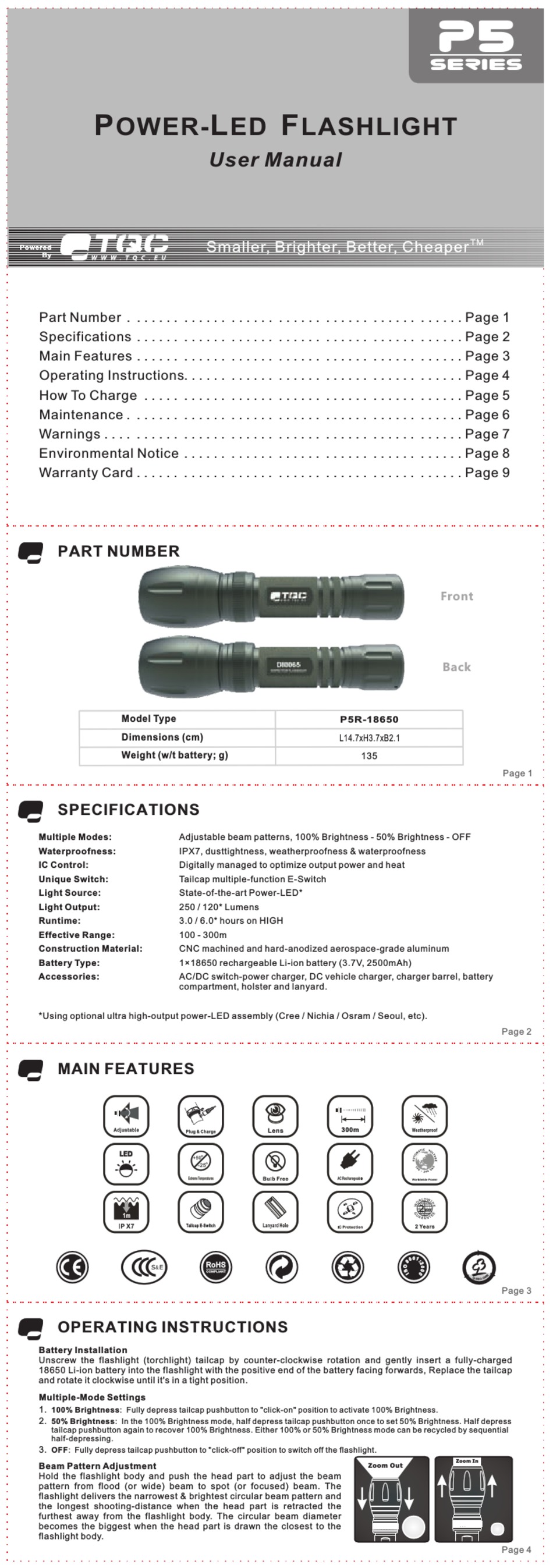

TQC P5 Series User Manual

P
OWER-
Powered
By
Part Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Main Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
How To Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Environmental Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
Warranty Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

PART NUMBER

Model Type
Dimensions (cm)
Weight (w/t battery; g)
SPECIFICATIONS
Multiple Modes:
Waterproofness:
IC Control:
Unique Switch:
Light Source:
Light Output:
Runtime:
Effective Range:
Construction Material:
Battery Type:
Accessories:
*Using optional ultra high-output power-LED assembly (Cree / Nichia / Osram / Seoul, etc).
MAIN FEATURES
OPERATING INSTRUCTIONS
Battery Installation
Unscrew the flashlight (torchlight) tailcap by counter-clockwise rotation and gently insert a fully-charged
18650 Li-ion battery into the flashlight with the positive end of the battery facing forwards, Replace the tailcap
and rotate it clockwise until it's in a tight position.
Multiple-Mode Settings
1.
100% Brightness: Fully depress tailcap pushbutton to "click-on" position to activate 100% Brightness.
2.
50% Brightness: In the 100% Brightness mode, half depress tailcap pushbutton once to set 50% Brightness. Half depress
tailcap pushbutton again to recover 100% Brightness. Either 100% or 50% Brightness mode can be recycled by sequential
half-depressing.
3.
OFF: Fully depress tailcap pushbutton to "click-off" position to switch off the flashlight.
Beam Pattern Adjustment
Hold the flashlight body and push the head part to adjust the beam
pattern from flood (or wide) beam to spot (or focused) beam. The
flashlight delivers the narrowest & brightest circular beam pattern and
the longest shooting-distance when the head part is retracted the
furthest away from the flashlight body. The circular beam diameter
becomes the biggest when the head part is drawn the closest to the
flashlight body.
L F
ED
User Manual
Adjustable beam patterns, 100% Brightness - 50% Brightness - OFF
IPX7, dusttightness, weatherproofness & waterproofness
Digitally managed to optimize output power and heat
Tailcap multiple-function E-Switch
State-of-the-art Power-LED*
250 / 120* Lumens
3.0 / 6.0* hours on HIGH
100 - 300m
CNC machined and hard-anodized aerospace-grade aluminum
1×18650 rechargeable Li-ion battery (3.7V, 2500mAh)
AC/DC switch-power charger, DC vehicle charger, charger barrel, battery
compartment, holster and lanyard.
Tailcap E-Switch
LASHLIGHT
P5R-18650
L14.7xH3.7xB2.1
135
300m
Zoom Out
P5
SERIES
Front
Back
Page 1
Page 2
Page 3
Zoom In
Page 4
