PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON.
THIS DEVICE IS INTENDED FOR ADJUNCTIVE USE WITH OTHER CLINICAL DIAGNOSTIC
PROCEDURES TO MEASURE HUMAN BODY TEMPERATURE VIA NON-CONTACT SKIN
MEASUREMENTS VISUALIZED FROM THE HUMAN FACE. NOT MEANT FOR STANDALONE
CLINICAL DIAGNOSTIC PROCEDURES OR TO TREAT OR DIAGNOSE PATIENTS.
For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com

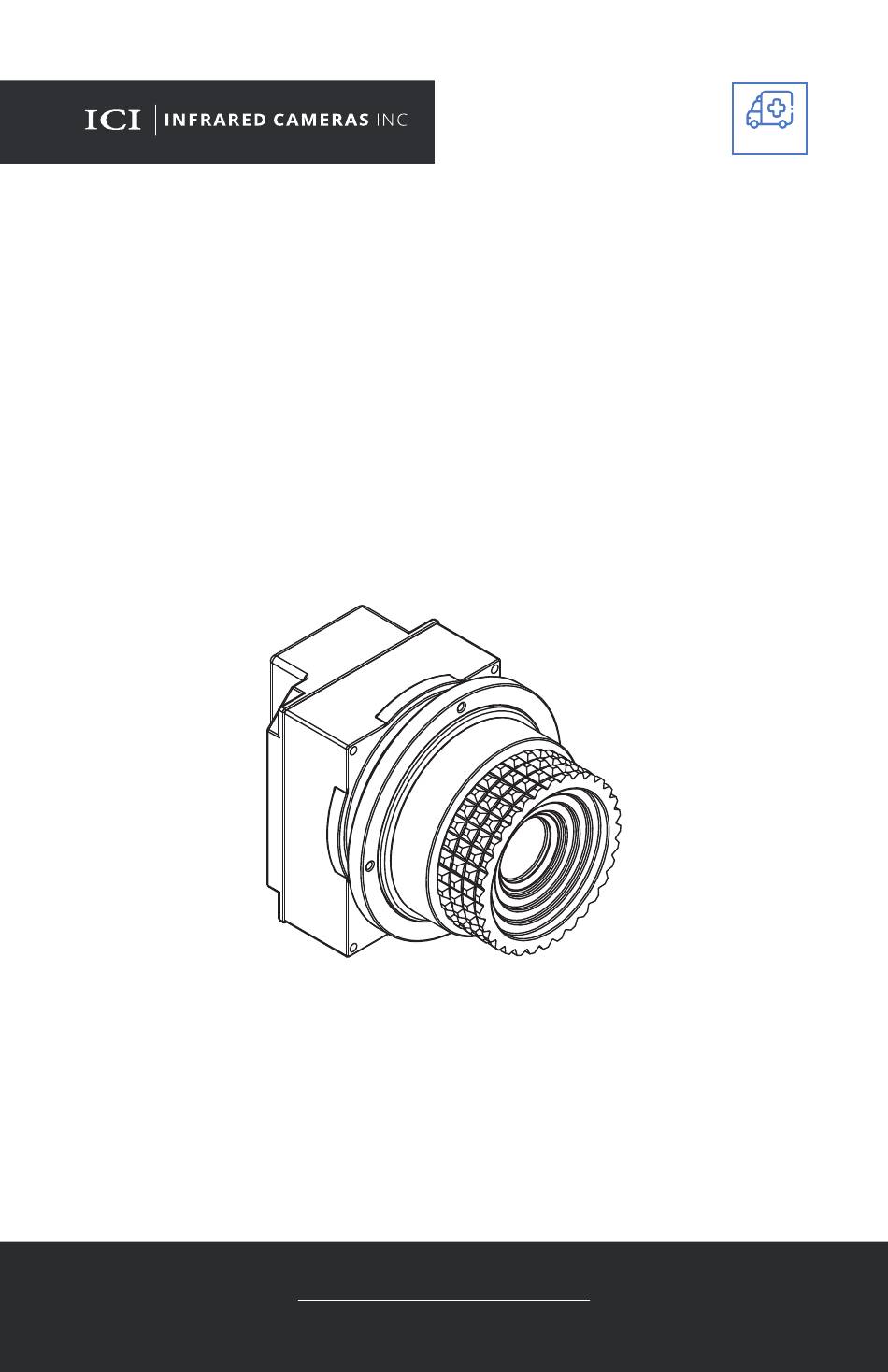

9640 SERIES IR CAMERA
USER MANUAL
IMPORTANT SAFETY INFORMATION INSIDE.
ICI cameras fall under US Federal Law and Export Control.
2105 W. Cardinal Dr. Beaumont, TX 77705
Edit Text
Outli
Medical
Medical
Advertisement
Table of Contents
Related Manuals for INFRARED CAMERAS 9640 Series
Summary of Contents for INFRARED CAMERAS 9640 Series
- Page 1 Edit Text Outli Medical Medical 9640 SERIES IR CAMERA USER MANUAL PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON. IMPORTANT SAFETY INFORMATION INSIDE. THIS DEVICE IS INTENDED FOR ADJUNCTIVE USE WITH OTHER CLINICAL DIAGNOSTIC PROCEDURES TO MEASURE HUMAN BODY TEMPERATURE VIA NON-CONTACT SKIN MEASUREMENTS VISUALIZED FROM THE HUMAN FACE.
- Page 2 9640 SERIES IR CAMERA USER MANUAL ©Copyright 2021, Infrared Cameras, Inc. - All rights reserved. The contents of this document may not be reproduced in whole or in parts without the written consent of the copyright owner. Printed in the United States of America.
-
Page 3: Table Of Contents
9640 SERIES IR CAMERA USER MANUAL Contents General Description Safety Information Intended Use Technical Specifications Structure Package Contents Installation Instructions Computer Setup Cleaning and Maintenance Site and System Validation Checklist Troubleshooting About ICI... -
Page 4: General Description
If the device operates abnormally, please contact the supplier and do not dismantle the device on your own. 3. Intended Use 9640 Series IR Cameras are used as an adjunct to other clinical diagnostic procedures for elevated body temperature screening based on the skin surface temperature visualized from the human face. -
Page 5: Technical Specifications
9640 SERIES IR CAMERA USER MANUAL 4. Technical Specifications 9640 P 9640 S Detector Array UFPA (VOx) Pixel Pitch 17 μm Lens dependent Measurement Distance Lens dependent Pixel Resolution 640 x 512 Spectral Band 7 μm to 14 μm Thermal Sensitivity (NETD) <... -
Page 6: Structure
9640 SERIES IR CAMERA USER MANUAL 5. Structure 5-1 Appearance and Definitions of Housing Interface 5-1 Appearance and Definitions of Housing Interface Mini-USB interface... -
Page 7: Package Contents
9640 SERIES IR CAMERA USER MANUAL 6. Package Contents Temperature Reference AC Power Cord Mounting Bracket Laptop Laptop AC Power Adapter Laptop AC Power Cord 9640 Series IR Camera Mini-USB to USB Cable Software USB Drive ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE... -
Page 8: Installation Instructions
9640 SERIES IR CAMERA USER MANUAL 7. Installation Instructions 7-1 Tripod Setup SELECT AN APPROPRIATE AREA FREE OF IMMEDIATE AIRFLOW FROM DOORWAYS CONDITIONING/VENTILATION SYSTEMS. THE SELECTED AREA SHOULD HAVE A STABLE AMBIENT TEMPERATURE BETWEEN 20 °C AND 24 °C (68 °F TO 75.2 °F)AND RELATIVE HUMIDITY RANGE FROM 10% TO 50%. - Page 9 9640 SERIES IR CAMERA USER MANUAL Mount the mounting bracket to a Tighten mounting bracket by tripod using the ¼-20 mount. turning the dial to the right. If you did not purchase tripod accessories place the laptop on a stable desk or table...
- Page 10 9640 SERIES IR CAMERA USER MANUAL Plug laptop power cord into Plug laptop power adapter laptop power adapter. into laptop computer. Plug power cord into a 110/120V electrical outlet.
- Page 11 9640 SERIES IR CAMERA USER MANUAL Mount the Temperature Reference to Plug power cord a tripod using the ¼-20 mount. into Temperature Reference. MAKE SURE TRIPODS DO NOT BLOCK THE DIRECT PATH OF PERSON(S) TO BE IMAGED TO ENSURE THE EQUIPMENT WILL NOT BE MOVED OR KNOCKED DOWN.
- Page 12 9640 SERIES IR CAMERA USER MANUAL Plug power cord into a Mount the 9640 Series IR Camera to a 110/120V electrical outlet. tripod mount using the ¼-20 mount. ENSURE THE CAMERA LENS AND TEMPERATURE REFERENCE SOURCE ARE FACING EACH OTHER ON PARALLEL PLANES. MAKE SURE CAMERA TARGET AREA IS FACING A NON-REFLECTIVE BACKGROUND.
- Page 13 9640 SERIES IR CAMERA USER MANUAL Plug the Mini-USB end of the USB Plug the other end of the USB cable into the back of the 9640 cable into the laptop computer. Series IR Camera. Power on devices. ALLOW AT LEAST 45 MINUTES FOR THE TEMPERATURE REFERENCE SOURCE TO WARM UP.
- Page 14 9640 SERIES IR CAMERA USER MANUAL 7-2 Charging Instructions Plug the power cord into Plug power adapter into laptop the power adapter. Plug power cord into a 110/120V electrical outlet. THE DEVICE TAKES BETWEEN TWO AND THREE HOURS TO CHARGE COMPLETELY. IT MAY CHARGE IN LESS TIME, DEPENDING ON HOW LOW ITS BATTERY HAS DRAINED.
- Page 15 9640 SERIES IR CAMERA USER MANUAL 9640 SERIES IR CAMERA 7-4 Full Assembly Diagram SETUP GUIDE GRAPHIC FOR ILLUSTRATION PURPOSES ONLY 2105 W. Cardinal Dr. Beaumont, TX 77705 Phone: (409) 861-0788 Toll Free: (866) 861-0788 infraredcamerasinc.com sales@infraredcamerasinc.com We Are IR ™...
-
Page 16: Computer Setup
System. IR Flash STM software preinstalled and the system has been checked for viruses and malware prior to shipping. To further decrease the possibility of introducing malware, Infrared Cameras Inc. recommends you take steps to reduce the likelihood that the system be compromised, which include: •... -
Page 17: Cleaning And Maintenance
9640 SERIES IR CAMERA USER MANUAL 9. Cleaning and Maintenance 9-1 Cleaning the Germanium Lens Do not use corrosive chemicals on the optical glass components. The germanium window surface is coated with anti-reflection coating. Dust, grease, and fingerprints will produce harmful substances and lead to a decline in performance, or cause scratches. -
Page 18: Site And System Validation Checklist
9640 SERIES IR CAMERA USER MANUAL Site and System Setup Validation Checklist Site: _______________________________ System: ___________________________ Contact Person: __________________ Date: ______________________________ **All those tasked with the initial setup of the temperature screening equipment must be present during this training. ***This portion of the validation requires a live video feed with the instructors. - Page 19 9640 SERIES IR CAMERA USER MANUAL 10-4 Typical traffic flow illustration: 10-5 IR Camera Placement □ Perpendicular to floor and individual being screened □ Height of camera □ Average male 70 ± 4 inches; Average female 65 ± 4 inches □...
-
Page 20: Troubleshooting
9640 SERIES IR CAMERA USER MANUAL 11. Troubleshooting If the user encounters any problems while using the imager, refer to the following known issues. If the problem persists, disconnect the power and contact customer support. 11-1 Camera(s) not showing, camera(s) lagging, or software crashing •... - Page 21 9640 SERIES IR CAMERA USER MANUAL 11-3 No thermal image • Take off the lens cover • Ensure device is receiving power 11-4 Thermal imager shuts down or device will not start • Charge the device • Ensure device is within the safe operating temperature range...
-
Page 22: About Ici
You can see our products and services used in industrial, commercial, and government applications worldwide. Originally named Texas Infrared (still DBA), Infrared Cameras, Inc. has been in business since March, 1995. Thank you for your dedicated and continued support.
