INSTRUCTIONS FOR USE
Sintering furnace
Rév. 251121

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e.on sinter base and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ugin e.on sinter base

Summary of Contents for Ugin e.on sinter base

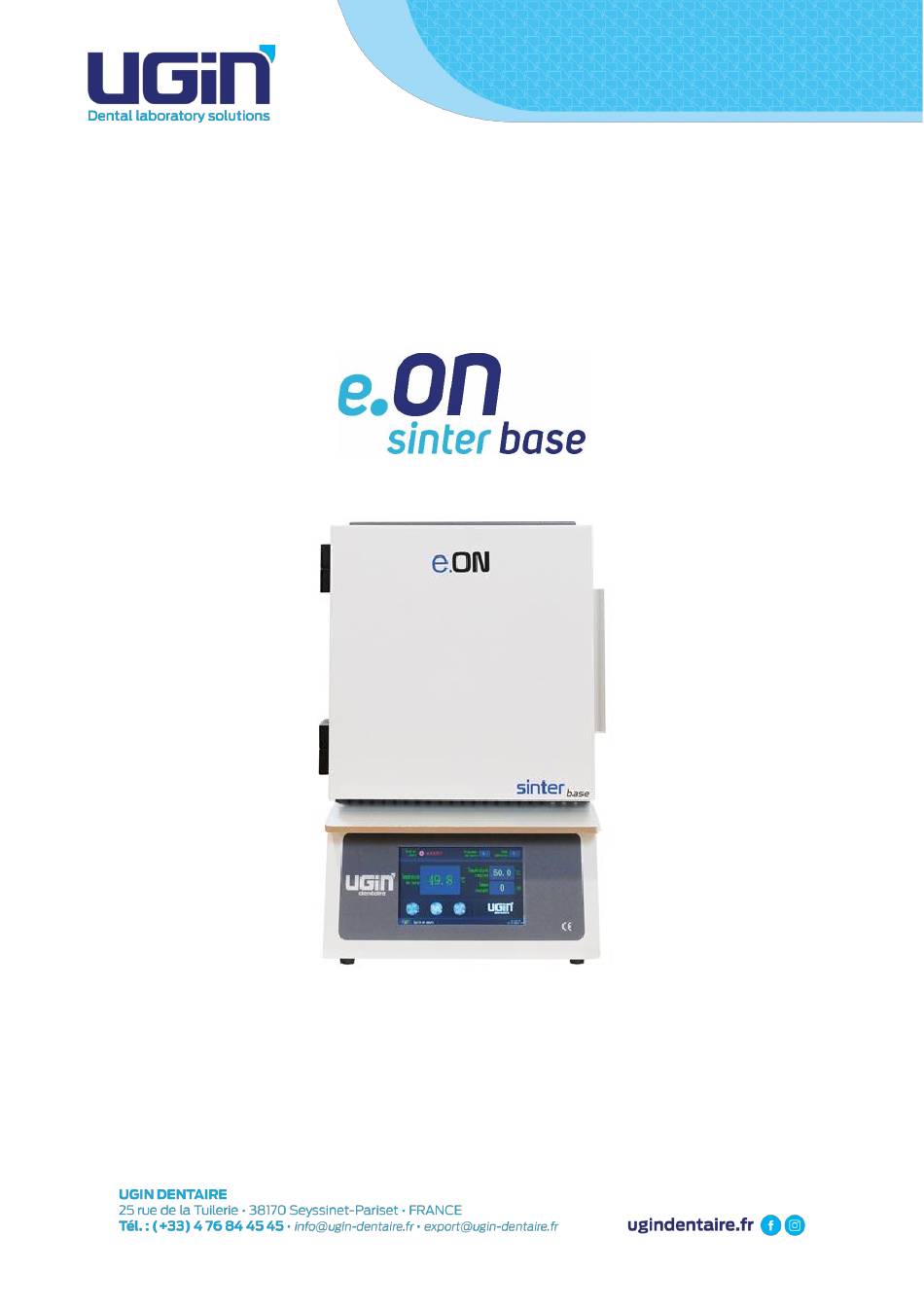

  • Page 1 INSTRUCTIONS FOR USE Sintering furnace Rév. 251121...

  • Page 2: Table Of Contents

    Instructions for use (rev 251121) e.ON sinter base e.ON sinter base EQUIPEMENT DESCRIPTION ......................... 2 WIRING DIAGRAM ..........................3 INSTRUCTIONS FOR USE ........................4 SAFETY INSTRUCTIONS ........................4 1.1. USE ..............................4 1.2. SAFETY INSTRUCTIONS ........................4 1.3. WASTE DISPOSAL ..........................6 EC DECLARATION OF CONFORMITY .....................

  • Page 3: Equipement Description

    Instructions for use (rev 251121) e.ON sinter base EQUIPEMENT DESCRIPTION N° DESCRIPTION Door of the chamber Magnetic tablet Touch screen Power switch ON/OFF (lateral side) Sole (2 units) Insulating plate Tray for sinterizing cover Tray for sinterizing UGIN DENTAIRE...

  • Page 4: Wiring Diagram

    Instructions for use (rev 251121) e.ON sinter base WIRING DIAGRAM UGIN DENTAIRE...

  • Page 5: Instructions For Use

    ) dental prostheses. This furnace has to be operated only by dental professionals. e.ON sinter base have to use in the conditions and for the uses described in this manual. Any other use that will be made of it is considered inappropriate. In this case, the manufacturer declines all liability and immediately cancels the equipment warranty.
  • Page 6 - the furnace must remain in an upright position: NOT HORIZONTAL POSITION - Never use the furnace without sole and insulating plate. - Use only the sole, insulating plate, tray for sinterizing and cover provided by UGIN DENTAIRE. Before use, check it (no dirt or damage). If damage: do not use.

  • Page 7: Waste Disposal

    UGIN DENTAIRE 25 rue de la Tuilerie 38170 SEYSSINET-PARISET – FRANCE ▪ UGIN DENTAIRE declares, on its own exclusive responsibility, that the product: - Sintering furnace e.ON sinter base - Serial number: see the equipment’s EC declaration of conformity ▪...

  • Page 8: Technical Information

    3. TECHNICAL INFORMATION 3.1. TECHNICAL DATA e.ON sinter base is a sintering furnace to Zirconium oxide dental prostheses. This furnace must be operated only by dental professionals and in the conditions described in this manual (see chapter 1.1 and 3.2). TECHNICAL DATA Maximum temperature 1 600°C...

  • Page 9: Conditions Of Use, Transport And Storage

    Instructions for use (rev 251121) e.ON sinter base 3.2. CONDITIONS OF USE, TRANSPORT AND STORAGE ▪ Authorised conditions of use - Ambient temperature: +10°C to +40°C. - Humidity range: maximum relative humidity 80% for temperatures until 31°C, without condensation and decrease linear until 50% to 40°C, without condensation.

  • Page 10: Installation

    4. INSTALLATION 4.1. UNPACK - Unpack e.ON sinter base and check that it is in perfect order (furnace and accessories). - Any defects can be reported to the carrier. - Remember to get the carrier to sign the delivery note.

  • Page 11: Start-Up

    Instructions for use (rev 251121) e.ON sinter base 5. START-UP After checking that the mains voltage matches that noted on the rating plate, plug the cord into a standard 20A socket with a ground terminal. NOTE: If not used for a long time, switch off the power supply.

  • Page 12: Use And Configuration

    Program editor Program settings. Parameter setting Software settings. Only access with technician code (reserved for technicians customer’s service UGIN DENTAIRE). Language selection Available languages: English, French, Spanish and Italian. Date setting Setting the date, time and day of the week.

  • Page 13: Interface Program Editor

    Instructions for use (rev 251121) e.ON sinter base 6.4. INTERFACE PROGRAM EDITOR A total of 40 programs, composed of 40 temperature/time pairs, can be edited and saved by selecting a different program number, each program and pairs of can be edited.

  • Page 14: Programming Instructions

    Instructions for use (rev 251121) e.ON sinter base 6.4.2. PROGRAMMING INSTRUCTIONS C: Temperature in degrees Celsius (°C) T: Time in minutes (min) Temperature 1 Used as the temperature start value (usually set to 50). Time 1 Total duration of first stage (0 to 9999 minutes).

  • Page 15: Examples Of Calculation

    The modification of the parameters is therefore reserved for technicians of customer’s service UGIN DENTAIRE. NOTE: even if changes are made to the settings, when saving them, a screen is displayed to insert the password.

  • Page 16: Programs

    If use different types of zirconia, zirconia of different brands or zirconia with different sintering temperatures (even during separate sintering cycles) it may be necessary to carry out regular decontamination of the furnace e.ON sinter base using the cycle recorded in number 40. Decontamination before the 10 cycle following the previous one is highly recommended.

  • Page 17: Positioning The Elements And Starting The Cycle

    - Clean with brush if necessary (see chapter 8 - Maintenance) - If the component is damaged or cracked, do not use and replace it. Use only the original tray, cover, sole and insulating plate e.ON SINTER UGIN DENTAIRE POSITIONING OF ELEMENTS AND TRAY FOR SINTERIZING 6.7.1.

  • Page 18: Closing The Chamber

    Instructions for use (rev 251121) e.ON sinter base CLOSING THE CHAMBER 6.7.2. Check if the heating chamber is in - Place the sole in the chamber (both units: a & b) perfect condition: presence of dirt - Place the tray for sinterizing (see chapter 6.7.1) at the or damage, any object.

  • Page 19: Advices - Precautions For Use

    Instructions for use (rev 251121) e.ON sinter base 7. ADVICES - PRECAUTIONS FOR USE GENERAL During operation and after use, the surface of eON sinter base is equipped with heat the furnace head may become very hot: avoid extractors to control the temperature of the direct contact with the skin (risk of burns).
  • Page 20 Instructions for use (rev 251121) e.ON sinter base ELEMENTS - CHAMBER (see chapter 6.7.1 – 6.7.2) Place the sole (2 units) and insulating plate Always place the elements in the tray for while the furnace is working. sinterizing, with the zirconia beads inside, and place the cover.

  • Page 21: Maintenance

    Instructions for use (rev 251121) e.ON sinter base 8. MAINTENANCE Before to carry out the maintenance work and/or cleaning: - disconnected from the main power supply (switch OFF and unplug to mains socket), - at room temperature: wait the cooling after use (risk of burns and/or damage).

  • Page 22: Heating Element Replacement

    Instructions for use (rev 251121) e.ON sinter base 8.1. HEATING ELEMENT REPLACEMENT Observe these conditions for replacing heating elements: - preferably, be at room temperature (+15°C/+25°C): the heating elements are very sensitive to temperature; - handle them carefully; - keep all elements of heating elements: heating elements and cushioning foam pad protecting.

  • Page 23: Trouble-Shooting

    Instructions for use (rev 251121) e.ON sinter base 8.2. TROUBLE-SHOOTING Problem Cause Procedure to followed The 1818.3 Defective thermocouple, Do not use the furnace: risk of material temperature is (broken or not properly damage. displayed on the connected) Turn off furnace (switch ON/OFF).
