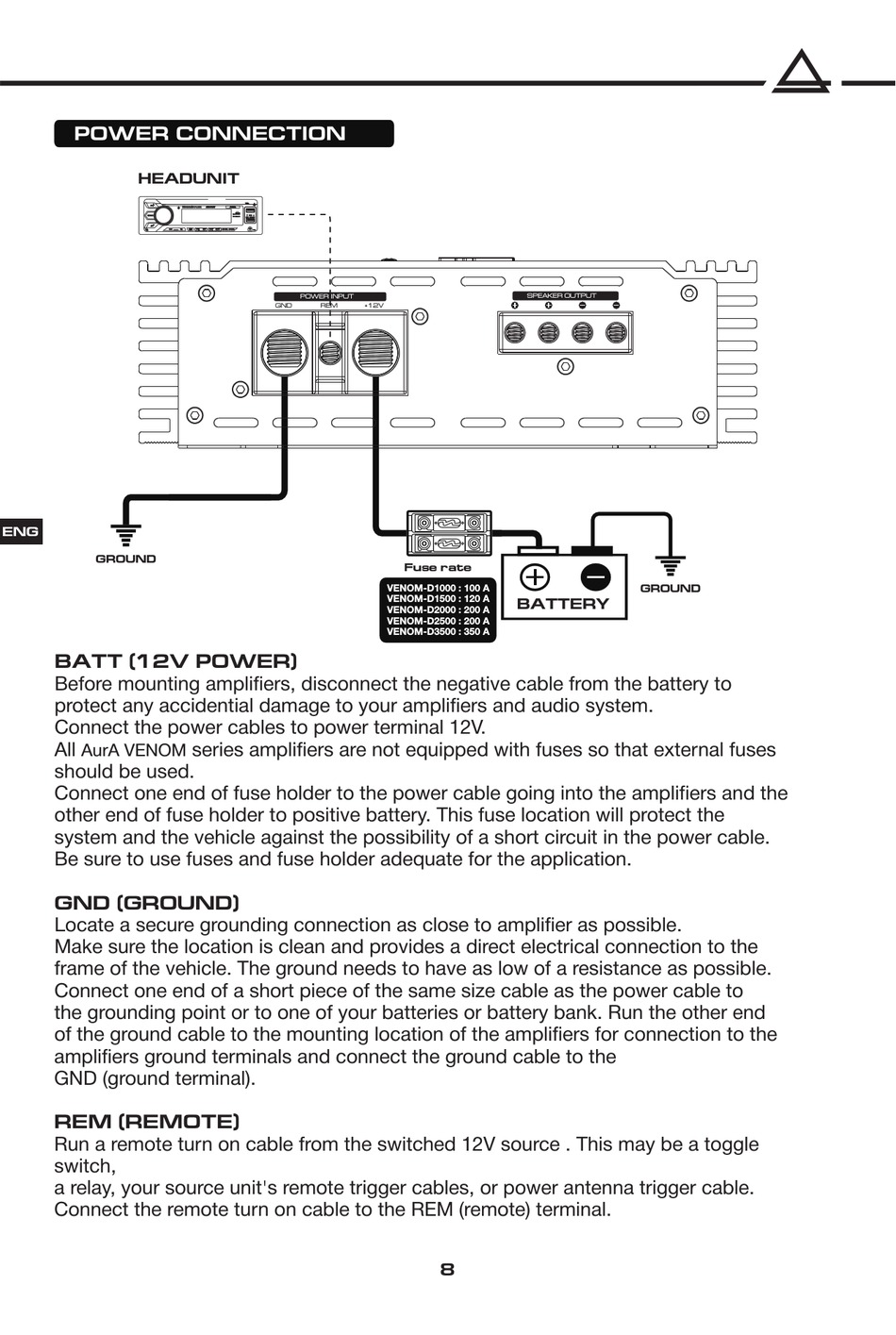

POWER CONNECTION

HEADUNIT
MODE
ENG
GROUND
BATT (12V POWER)
Before mounting amplifiers, disconnect the negative cable from the battery to
protect any accidential damage to your amplifiers and audio system.
Connect the power cables to power terminal 12V.
All
AurA VENOM
should be used.
Connect one end of fuse holder to the power cable going into the amplifiers and the
other end of fuse holder to positive battery. This fuse location will protect the
system and the vehicle against the possibility of a short circuit in the power cable.
Be sure to use fuses and fuse holder adequate for the application.
GND (GROUND)
Locate a secure grounding connection as close to amplifier as possible.
Make sure the location is clean and provides a direct electrical connection to the
frame of the vehicle. The ground needs to have as low of a resistance as possible.
Connect one end of a short piece of the same size cable as the power cable to
the grounding point or to one of your batteries or battery bank. Run the other end
of the ground cable to the mounting location of the amplifiers for connection to the
amplifiers ground terminals and connect the ground cable to the
GND (ground terminal).
REM (REMOTE)
Run a remote turn on cable from the switched 12V source . This may be a toggle
switch,
a relay, your source unit's remote trigger cables, or power antenna trigger cable.
Connect the remote turn on cable to the REM (remote) terminal.
MIC
AMH-510BT
POWER INPUT
GND REM
series amplifiers are not equipped with fuses so that external fuses
SPEAKER OUTPUT
+12V
Fuse rate
VENOM-D1000 : 100 A
VENOM-D1500 : 120 A
BATTERY
VENOM-D2000 : 200 A
VENOM-D2500 : 200 A
VENOM-D3500 : 350 A
8
GROUND
