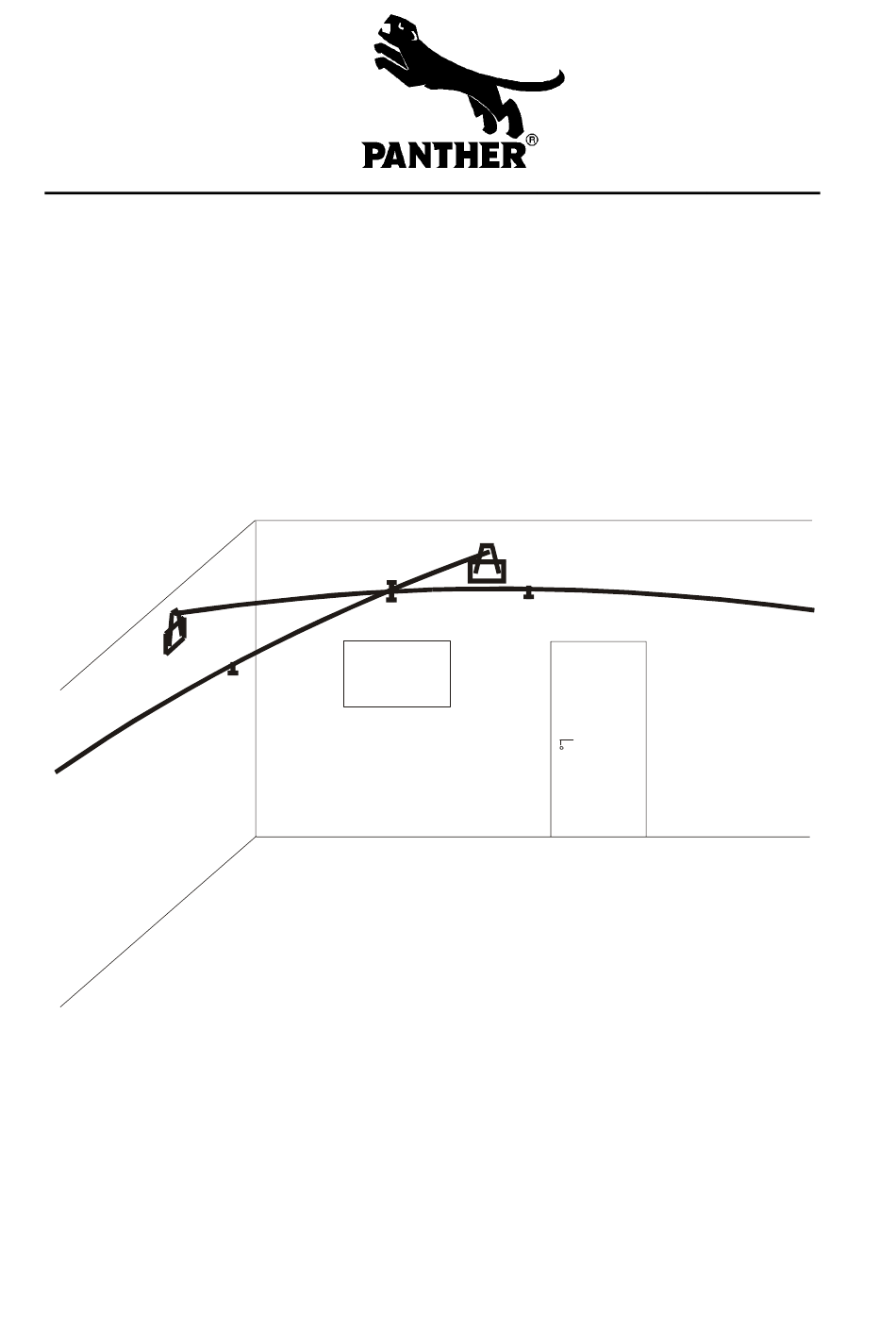

- Page 1 W a l l S p r e a d e r Instruction Manual The Panther Telescopic-Spanning-System...
- Page 2 Spreader to do a professional job, which you will really enjoy when doing your responsible work at the set. We hope that you will have a lot of pleasure with your Wall Spreader. In order to guarantee the highest security and reliability in our product at the set, please...
- Page 3 Note Before using the Wall Spreader it is essential that the stability and the capacity of the wall or pillar to withstand pressure be tested! The system is not to be used on plaster board, insulating or hollow walls. Only limited use on smooth...
- Page 4 Should extra length be required, an outside tube can be fixed onto the pulled out end of the inside tube using a second clamping ring. The red marking should be observed here too! clamping ring inside tube outside tube Another method of spanning across larger distances is using an extension sleeve which joins the inside tubes of two telescopic poles.
- Page 5 1ft. A = 6 m/20ft. 6. The resulting arch on the Wall Spreader has to be braced. The struts are arranged using the double clamping ring. To support the struts on the wall, buffers are attached to the ends of the tubes. To be able to attach the struts free from play, the rubber buffers are unscrewed.
- Page 6 Panther accessories (e.g. bowl adapter). Complete set existing of: 2 pc. telescopic pole 1,40 – 2,50 m 4 pc.
