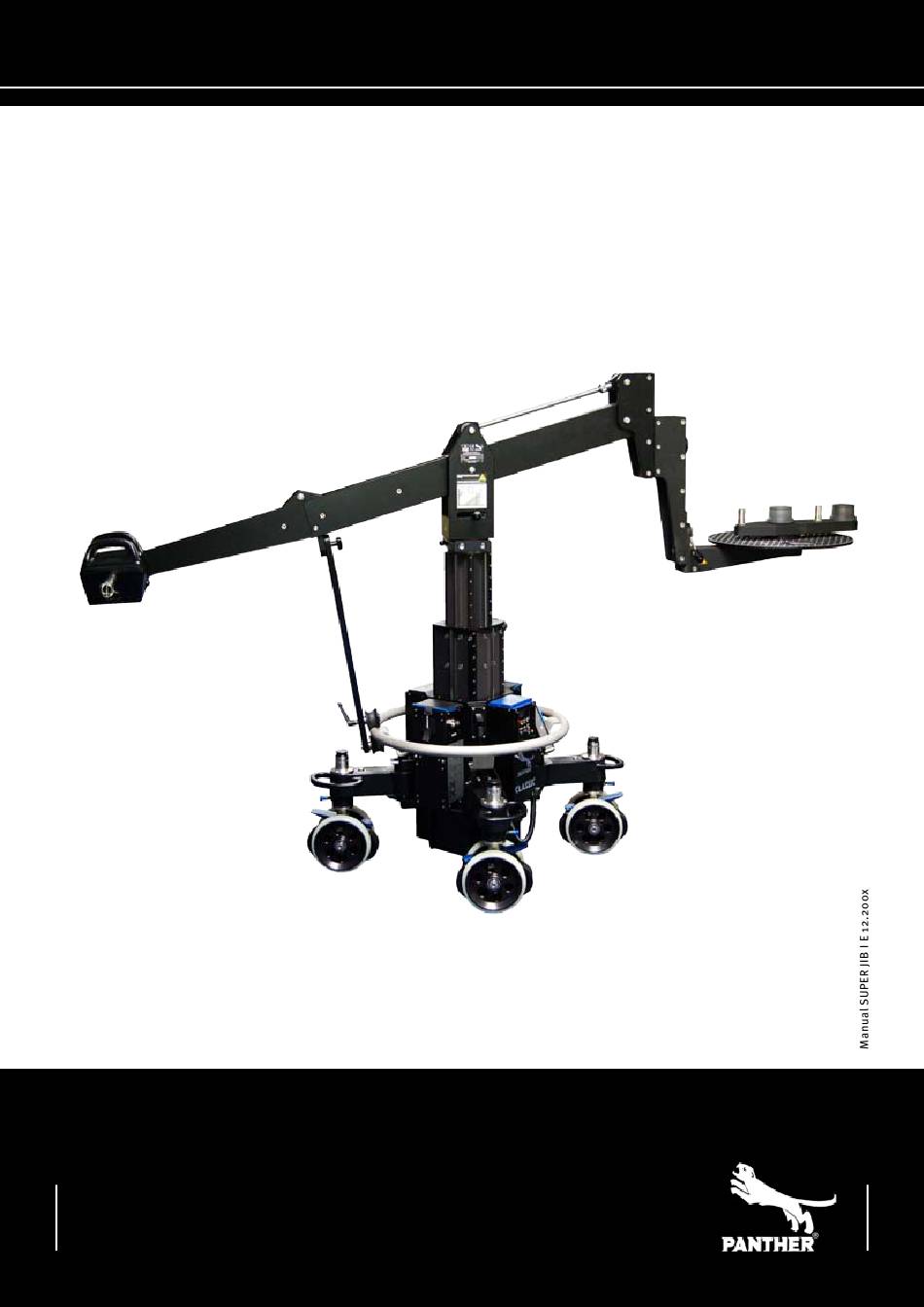

- Page 1 Super Jib I Manual PANTHER GmbH Raiffeisenallee 3 | 82041 Oberhaching‑Munich | Germany T +49.89.61 39 00 01 | F +49.89.61 31 00 0 www.panther.tv | contact@panther.tv...
-
Page 2: Table Of Contents
Table of Content General remarks: Special riscs: Check-List for assemby Information on load (payload) Loading Components Optionales Accessories Setup instructions Preparation Assembly Start of operation Technical specifications 10. Service and Maintenance Warranty 12. Inspection Book 12.1 EU - Declaration of Conformity 12.2 Recurrent inspection 12.3 Maintenance Booklet... -
Page 3: General Remarks
• The horizontal and vertical field of traverse of SUPER JIB I must in any case be kept free. • Use of the Panther Steer out Extention (Code no. 123915 for Evolution/Classic or Code no. -
Page 4: Special Riscs
Manual | English Special riscs: DANGER OF PINCHING ! During Operation In the area of these yellow signs, no persons and / or body parts (for in‑ tance hands, arms...) may be situated. ATTENTION ! In no case may persons be below the platform and the counterweights. -
Page 5: Check-List For Assemby
Manual | English Check-List for assemby Please check which konfiguration is best for your shooting. The following criteria have to be considered: • height • limits in weight • working distance • payload required • spatial limits • access to shooting place Take your time to securely assemble, to check and to test the system before use. -
Page 6: Information On Load (Payload)
Also, the camera • The SUPER JIB I may only be assembled according to the assembly options shown in this operating manual. Assembly variations not shown in the manual are not allowed! •... -
Page 7: Loading
If the motor is constantly overloaded, then this may lead to motor damage. SUPER JIB I may not be operated manually in connection with dolly (not without connecting rod. This could lead to motor damage. Page ‑ 7... -
Page 8: Components
Components The SUPER JIB I is conceptualized for individualized build respective to use and requirement. In the following list, all components comprising the SUPER JIB I system (code no. 100504) are listed. For following orders, the single components are shown with their code numbers. -
Page 9: Setup Instructions
Track operation Please heed the information in the operating manual respective to the track system used. Use only original Panther track systems. During the track build, the dolly brakes must be activated. Should the dolly have no brakes, it should be blocked in place with clamps set on the tracks, in order to avert uncontrolled or runaway rolling. -
Page 10: Assembly
INFORMATION ! The SUPER JIB I can be used with Super Panther 3, Classic or Evolu‑ tion Dollies. Step 2 – Switch electronics • Switch dolly to SUPER JIB operating mode. - Page 11 Manual | English Step 3 – Remove seat arms from seat turret. • Remove stop screw from bottom of threaded shaft • Loosen seat arm by lifting it and sliding it off shaft • Do not reattach the stop screw, as it can collide with the SUPER JIB ring...
- Page 12 Manual | English Step 5 – Build SUPER JIB I • Mount the SUPER JIB I to the Euro mount on the dolly column. The dolly seat turret should be positioned perpendicular to the jib arm. • Screw the SUPER JIB’s knurled screw tightly ino the Euro mount •...
- Page 13 Manual | English Step 7 – Fold out arm rear • Open the snap‑lock. • Fold out the arm segment towards the rear. PINCH POINT WARNING ! There is a pinch point at the folding junction of the arm segments! Step 8 –...
- Page 14 Manual | English Step 9 a – Build Platform • Hang the platform onto the appropriate locating pin and lock it into place with the knurled screw. • After screwing the knurled screw tight, lock it into place using the screw lock lever. •...
- Page 15 Manual | English Step 10 – Build counterweight rod • Push the counterweight rod through the hole in the rear arm segment and lock with the screw. necessary parts Counterweightrod for Vario Jib, SJ I 114094 (6 weights) Step 11 – Build counterweights •...
-
Page 16: Start Of Operation
(screws, hooks etc.) must again be checked that they are correctly secured. IMPORTANT ! The SUPER JIB I must be balanced at all times. For this purpose, observe the information on the load diagram and section 5. IMPORTANT ! Observe the special safety instructions in section 2. -
Page 17: Technical Specifications
Jibarm 121 cm / 2‘12“ max. counterbalance: 90 kg ( 6 x 15 kg) / 198 lb (6 x 33 ) Dolly compatibility: Super Panther, Panther Classic, Panther Evolution Jib mount required: Euro Mount Camera head mount: Euro Mount without High Low Rig... -
Page 18: Service And Maintenance
Manual | English 10. Service and Maintenance The SUPER JIB I is a very solid piece of equipment that guarantees reliable work without a lot of maintenance work. To guarantee a long life and stable quality, it is advisable to treat all elements of the crane very carefully. -
Page 19: Warranty
Manual | English Warranty We warrant that the products are free of manufacturing defects in material. Both for mechanical and for electronic parts, the warranty period is 12 months. The warranty period begins with the date of delivery. Any warranty shall, however, expire if our operating and maintenance instructions are not com‑ plied with, if changes are made to the products, or if parts of our equipment are replaced with parts that do not correspond to the original specifications;... -
Page 20: Inspection Book
Manual | English 12. Inspection Book Product: Panther SUPER JIB I Manufacturer: Panther GmbH Raiffeisenallee 3 82041 Oberhaching Payload: 130 kg / 286 lb Year of construction: Serial no.: User: company: address: city: country: 12.1 EU - Declaration of Conformity The product has been developed, designed and manufactured... -
Page 21: Recurrent Inspection
Ref. safety‑related and und maschine‑related equipment on stages and in studios. Certification of recurrent inspection according to §34 UVV Veranstaltungs‑ und Produktionsstätten für sze‑ nische Darstellung (VBG 70). Product : Panther SUPER JIB I Manufacturer: Panther GmbH Raiffeisenallee 3 82041 Oberhaching... -
Page 22: Maintenance Booklet
Manual | English 12.3 Maintenance Booklet Product: Panther SUPER JIB I Manufacturer: Panther GmbH Raiffeisenallee 3 82041 Oberhaching Payload: 130 kg / 286 lb Year of construction: Serial ‑ no.: Following maintenance has been effected: Date: Description of maintenance: Name:... - Page 23 Manual | English Date: Description of maintenance: Name: Date: Description of maintenance: Name: Date: Description of maintenance: Name: Date: Description of maintenance: Name: Date: Description of maintenance: Name: 10. Date: Description of maintenance: Name: Page ‑ 23...
