RAK-APX I
Rackmounting kit for APx series audio analyzers

Introduction

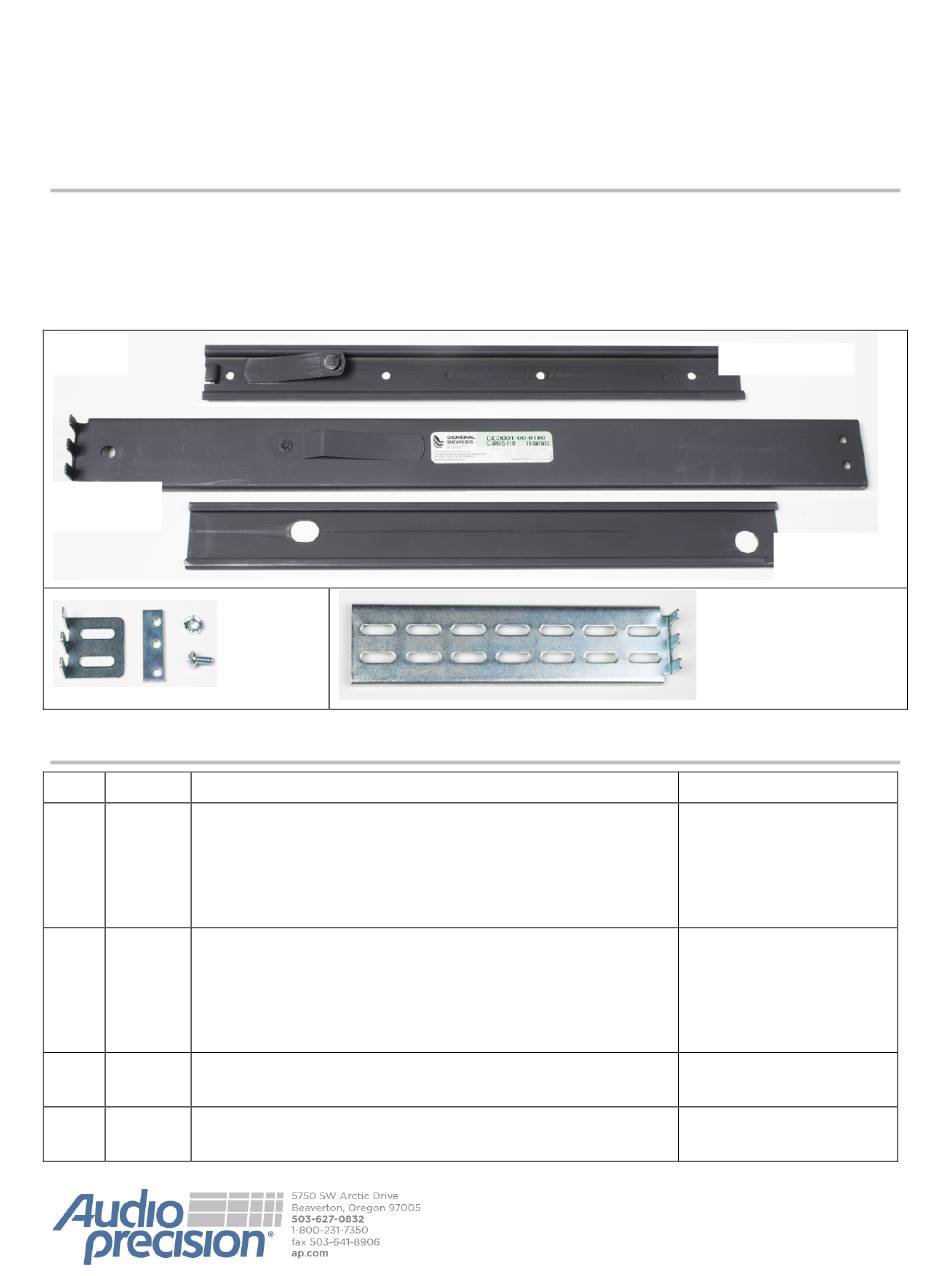

The hardware included in this kit allows Audio Precision APx Series analyzers to be rack mounted using
telescoping, slide-out rackmount adapters. The larger box contains A, B and C. The smaller box contains D.
WHEN RACK MOUNTED, THIS EQUIPMENT MUST BE MOUNTED IN A RACK WITH BOTH FRONT AND REAR
MOUNTING RAILS. Front rails alone will not support this equipment.
A
Stationary
section

Parts List

Quantity
Description
Chassis Trak telescoping rackmount assemblies. Each
assembly has three components: the chassis section, the
stationary section, and the intermediate section. (The
(A)
2
illustration above shows the three components for one
assembly only.)
Mounting hardware packet, containing two end brackets, six
bar nuts, twelve 10-32 x 5/16" truss head screws, four
(B)
1
10-32 x 5/16" CS head screws, and four 10-32 Kep nuts.
(The illustration above shows one end bracket, one bar nut,
one truss head screw and one Kep nut.)
Mounting hardware packet, containing eight 10-32 x 5/16"
(C)
1
truss head screws, and eight 10-32 Kep nuts.
Chassis Trak B-308 extension end brackets. (The illustration
(D)
2
above shows one extension end bracket.)
NSTRUCTIONS
B
Chassis section
Intermediate
section
D
7171.0001
(packaged with above)
(packaged with above)
7310.0014
8211.0240 r2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAK-APX and is the answer not in the manual?

Questions and answers

Summary of Contents for Audio Precision RAK-APX

  • Page 1 Rackmounting kit for APx series audio analyzers Introduction The hardware included in this kit allows Audio Precision APx Series analyzers to be rack mounted using telescoping, slide-out rackmount adapters. The larger box contains A, B and C. The smaller box contains D.
  • Page 2 Mounting the chassis sections on the analyzer chassis The two chassis sections (A, upper photograph) of the rackmount assemblies (7171.0001) are interchangeable. Mount one on the left-hand side of the analyzer chassis using four 10-32 5/16" truss head screws as shown in Figure 1. Invert the second chassis section and mount it on the right-hand side of the analyzer in the same way.
  • Page 3 5. Install the rack mounting assemblies, (the assembled stationary sections, intermediate sections and end brackets) in the desired position in the rack. The top of the front and rear mounting brackets should be approximately 2-1/4" (5.7 cm) below the intended top of the instrument when installed. Figure 3.
