Audio Precision RAK-515 Instructions

Audio Precision
RAK-515 Instructions
Rackmounting kit for the APx515 audio analyzer
Introduction
The hardware included in this kit allows the Audio Precision
APx515 analyzer to be rack mounted using a shelf rackmount
adapter.
Three mounting methods are described below. In all cases,
the APx515 Aux control connectors, PC connection, and
mains power connection are made from the rear of the rack.
The mains power switch and fuse module are also accessible
from the rear.
B
B

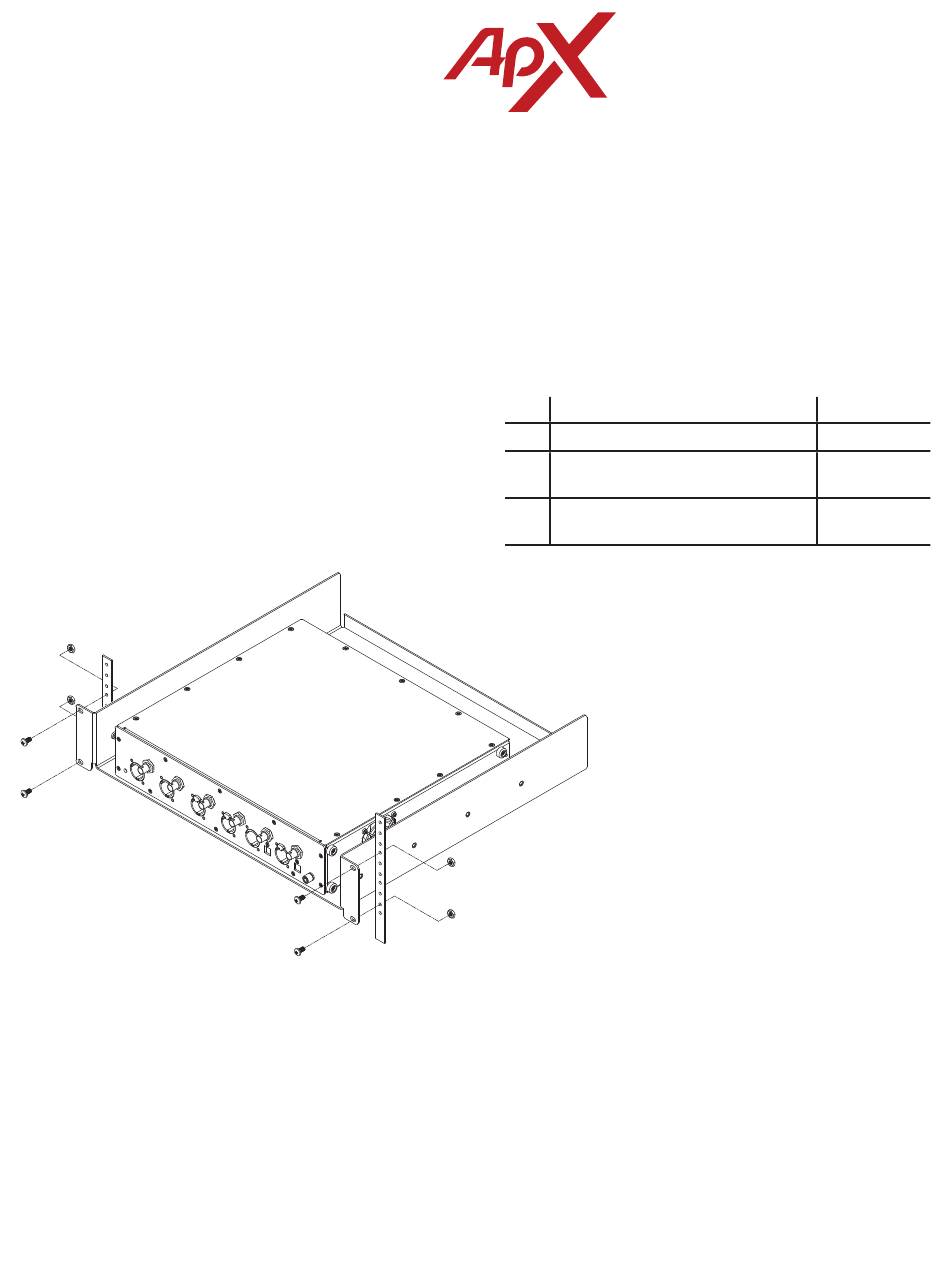

Figure 1. APx515 and rackmount shelf adapter, mounted in 19" rack.
Mounting Option I: Unsecured shelf mounting
Step 1. Using the 4 10-32 5/16" screws (B), mount the shelf in a standard 19" equipment rack.
Step 2. Set the APx515 instrument on the shelf, being sure that the rubber feet sit in the indentations in the shelf. See
Figure 2. Use indentations (D) for flush mounting, or indentations (E) for recessed mounting.
Caution: Instrument is unsecured when using Mounting Option I, and under certain circumstances may shift or fall. Use
Mounting Option II or Mounting Option III for secure rack mounting.
B
B
Parts List:
Ref. Description
A 1 each rack shelf
B 4 each 10-32 x 5/16" Phillips truss
head screw, painted dark gray
C 4 each 6-32 x 9/16" Phillips flat
head screw, painted dark gray
(Figure 1)
AP Part No.
7171.0515
5115.4116.6
5113.1118.6
