Purelogic THC1-M Connection And Set Up Manual

Torch height controller
Hide thumbs

Advertisement

Quick Links

Download this manual
THC1
TORCH HEIGHT CONTROLLER
THC1
CONTENTS:
------------------------------------------------------------------------------
----------------------------------------------------------------------
CONNECTION AND SETUP
MANUAL
------------------------------------------------------------------
--------------------------------------------------------------
-----------------------------------------------------
--------------------------------------------------------
--------------------------------
---------------------------
2
2
3
6
6
7
12
13

Advertisement

loading
Need help?

Need help?

Do you have a question about the THC1-M and is the answer not in the manual?

Questions and answers

Related Manuals for Purelogic THC1-M

Summary of Contents for Purelogic THC1-M

  • Page 1: Table Of Contents

    CONNECTION AND SETUP MANUAL THC1 TORCH HEIGHT CONTROLLER THC1 CONTENTS: 01. Introduction ------------------------------------------------------------------ 02. Set of Deliver y -------------------------------------------------------------- 03. Product Features and Specifications -------------------------------- 04. Differences between LV and HV inputs of THC1-DV1 module ----------------------------------------------------- 05. Operating principle -------------------------------------------------------- 06.

  • Page 2: Introduction

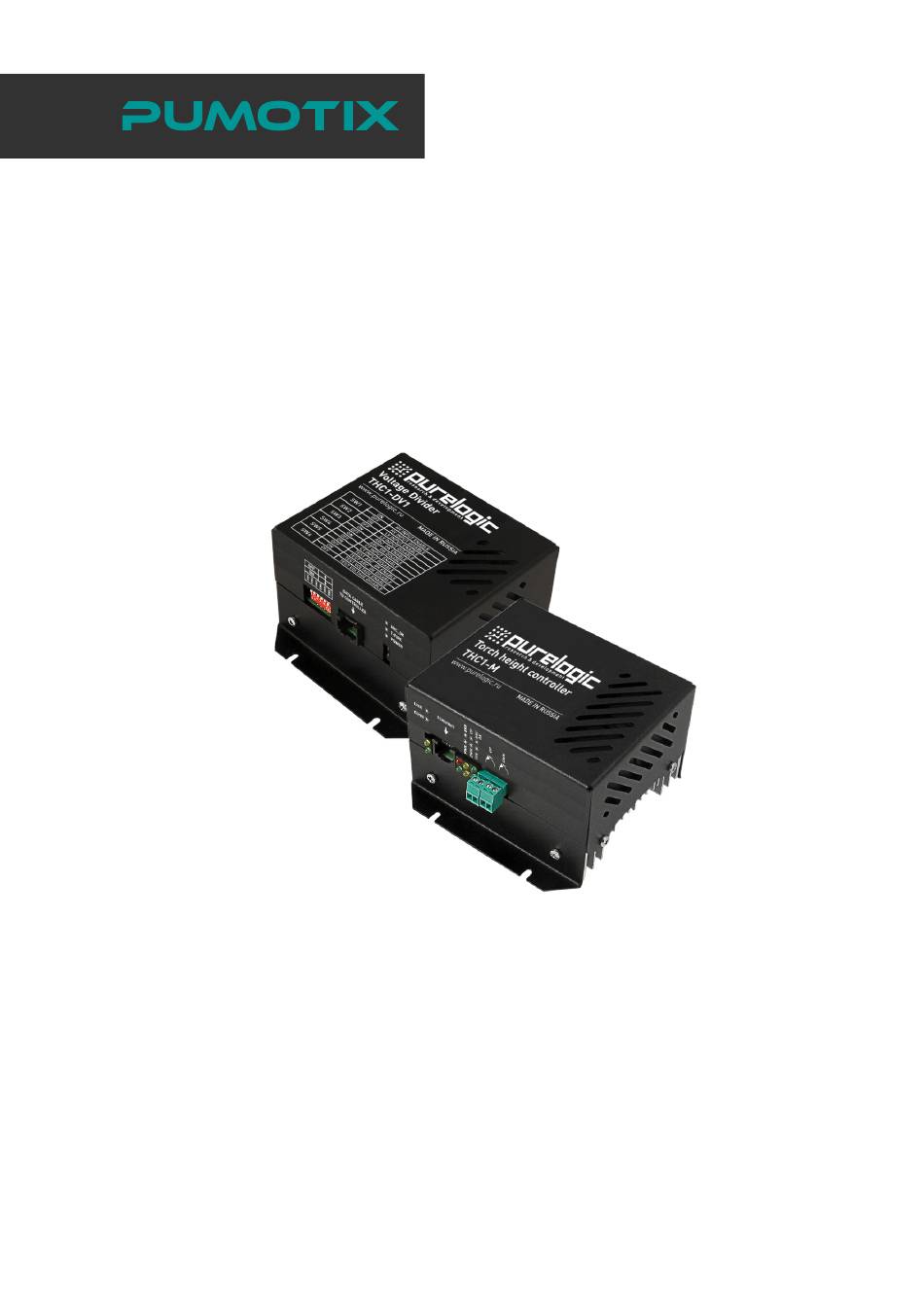

    The THC1 set is designed for cutting height automatic control of CNC plasma cutting devices. The set consists of two devices: control module THC1-M and voltage divider module THC1-DV1. The both devices are powered by mains voltage ~220 V. It allows to install the divider module in close proximity to plasma source and to preclude the use of any additional power supply sources.

  • Page 3: Product Features And Specifications

    Control program with UP/DOWN protocol support Insulation resistance 500 MOhm Overall dimensions of THC1-M (W х H х D) 120 х 112 х 67 mm Overall dimensions of THC1-DV1 (W х H х D) 120 х 107 х 67 mm...
  • Page 4 Check pumotix.com for more information 4 grooves Fig. 1. Dimensions of the THC1-DV1 module THC1...
  • Page 5 PrOduCT FE aTurE S aNd SPECiFiCaTiONS 4 grooves Fig. 2. Dimensions of the THC1-M module Edition of 09.12.2020...

  • Page 6: Differences Between Lv And Hv Inputs Of Thc1-Dv1 Module

    Check pumotix.com for more information Differences between LV and HV inputs of THC1-DV1 module Almost all currently known plasma systems provide an interface for connecting a sensor for measuring current arc voltage. Some of them provide with a low voltage signal with a division ratio.

  • Page 7: Outputs, Display And Connection Purpose

    LV – low voltage input (0...8 V); ARC OK – input of ARC OK signal; ETHERNET – connection to a router or PC network card; DATA CABLE – connection to THC1-M module; POWER – (green) indicator of applied supply voltage; Edition of 09.12.2020...
  • Page 8 TORCH FIRE (red) – it returns TORCH FIRE output status. It is ON, if the contacts are closed and it is OFF, if they are opened. THC1-M module: 220 VAC – connection to ~220 V AC mains; ETHERNET – connection to a router or PC network card;...
  • Page 9 OuTPuTS, diSPl ay aNd CONNECTiON PurPOSE Position of DIP switches of ТНС1-DV1 module Plasma source Twisted pair Arc voltage (connector 8Р8С) Arc transfer Arc transfer Control board Torch ("-") Product ("+") NC control console Fig. 5. Connection of modules to a plasma source without a voltage divider Position of DIP switches of ТНС1-DV1 Measuring...
  • Page 10 Check pumotix.com for more information Fig. 7. Connection of modules without a PLCM controller THC1...
  • Page 11 The THC1-M module is installed in a CNC cabinet and connected to PC via a network switch (in case the PLCM controller is used) or directly to the PC network card (if the PLCM is unavailable).

  • Page 12: Faq

    L AN. Set 10 Mbit/Full Duplex connection mode in the network card settings. 2. When Ethernet cable is connected to THC1-M the «Link» LED blinks, but the 192.168.10.12 address device is not pinged. Possible causes: 1) The controller’s IP address is not the default setting.

  • Page 13: Warranty

    Warr aNT y 3. The Ethernet PLCM is pinged, but is not available from the configuration window. Possible causes: a firewall or some other program blocks traffic between a PLCM controller and a computer. Explanations: to detect all PLCM devices in L AN, the UDP broadcast queries are used. Some programs in OS Windows, for example, a firewall or anti-virus software, can block such network queries.
  • Page 14 Check pumotix.com for more information 4.2. Goods with traces of effect and (or) ingress of foreign objects, substances (including dust), liquids, insects and those with extraneous texts. 4.3. Goods with traces of unauthorized tampering and (or) repair (tampering signs, primitive soldering, traces of component replacement, etc.).

This manual is also suitable for:

Thc1-dv1
