N
Sony notebook user guide
P C G - Q R 1 0

Advertisement

Table of Contents
loading

Related Manuals for Sony VAIO PCG-QR10

Summary of Contents for Sony VAIO PCG-QR10

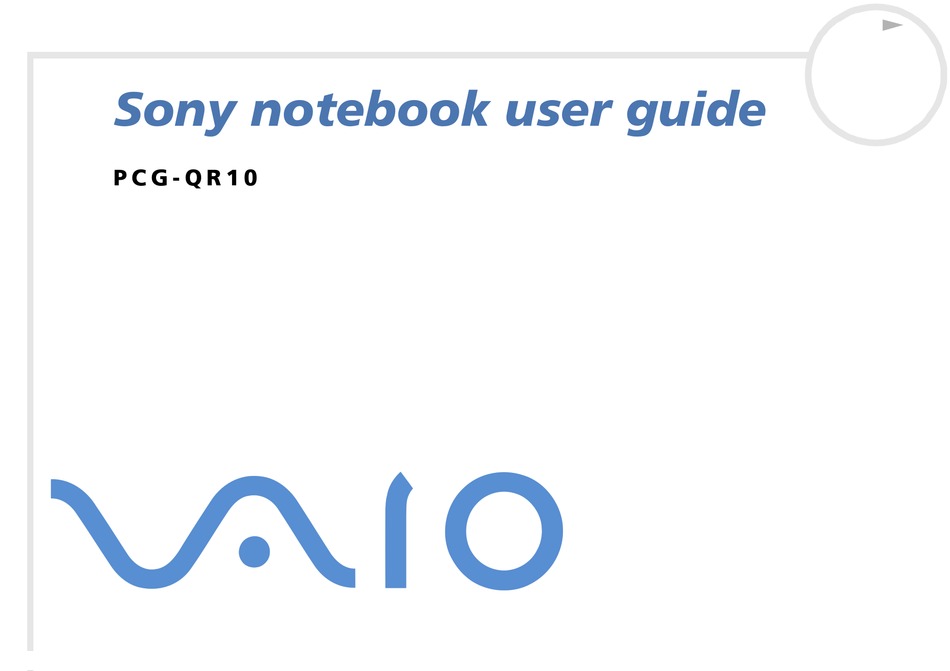

  • Page 1 Sony notebook user guide P C G - Q R 1 0...

  • Page 2: Read This First

    Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.

  • Page 3: Safety Information

    Safety information Owner's record The model number and serial number are located on the bottom of your Sony notebook. Record the serial number in the space provided here. Refer to the model and serial number when you call VAIO-Link. Serial number: ________________________...
  • Page 4 Avoid using the modem during a storm. Do not use the modem or a telephone to report a gas leak in the vicinity of the leak. To change the backup battery, please contact your nearest SONY Service Center. Audio/video Audio and picture distortion may occur if this equipment is positioned in close proximity to any equipment emitting electromagnetic radiation.

  • Page 5: Regulatory Information

    3 metres (9.8 feet). The CD-ROM is classified as a CLASS 1 LASER PRODUCT and complies with the Laser Product Safety Standard EN 60825-1. Repair and maintenance only by authorized Sony technicians. Improper repairs and use can create safety hazards. CLASS 1...
  • Page 6 Read this first Disposing of lithium ion batteries Do not handle damaged or leaking lithium ion batteries. Dispose of promptly and properly at end-of-life. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
  • Page 7 Exceptional performance - Your PC includes a fast processor, a fast CD-ROM and an internal modem. Portability - The rechargeable battery pack provides hours of use without AC power. Sony audio and video quality - A high-resolution LCD screen enables you to take advantage of today’s advanced multimedia applications, games, and entertainment software.

  • Page 8: Documentation Pack

    Your Sony Guarantee conditions. Online documentation The Sony Notebook User Guide: Using Your Sony Notebook shows you how to use the standard components of your system. Connecting Peripheral Devices explains how you can add functionality by connecting various peripherals. Getting Help explains the support options available to you, and offers basic troubleshooting tips.
  • Page 9 Welcome Consult the Online Help files of the software you are using for detailed information on features and troubleshooting. Refer to the Microsoft Quick Start manual for more information on Windows. Your notebook and its accessories Following items should be in the box: main unit product recovery CD-ROMs documentation pack...

  • Page 10: Ergonomic Considerations

    Welcome Ergonomic considerations You will be using your notebook as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments: Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touchpad, or external mouse.
  • Page 11 Welcome Viewing angle of the computer’s display – Use the display’s tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well. Lighting –...

  • Page 12: Using Your Notebook

    Using your notebook Using your notebook This section describes how to start using your computer and how to use your computer’s internal and external devices. Locating controls and connectors Right PC Card slot battery bay i.LINK™ connector (page 33) USB connector (page 18) headphone connector (page 49)
  • Page 13 Using your notebook Left power button Jog Dial back button There is a ventilation slot located near the CD-ROM drive. (page 21) LCD lock lever (page 30) manual eject hole (page 30) CD-ROM drive (page 21) (page 32) (page 32)
  • Page 14 Using your notebook Front LCD screen speakers ID label keyboard touchpad left and right buttons (page 28) power indicator (page 28) battery indicator hard disk drive indicator (page 24) Num Lock indicator (page 29) Caps Lock indicator (page 29) Scroll Lock indicator (page 27) (page 27) (page 27)
  • Page 15 Using your notebook Back phone line jack reset switch ethernet connector monitor connector USB connector DC In connector AC adapter mains connector and power cord: hazardous voltage, according to EN 60950. All other connectors for this notebook are SELV (Safety Extra Low Voltage), according to EN 60950. Phone cables and connectors are TNV (Telecommunication Network Voltage), according to EN 60950.
  • Page 16 Using your notebook Bottom battery pack release lever ventilation slot handle (page 18) (page 70) (page 22)

  • Page 17: Connecting A Power Source

    Using your notebook Connecting a power source You can use either an AC adapter or a rechargeable battery pack as a power source. Using the AC adapter To use the AC adapter, proceed as follows: Make sure the handle is folded into the back of your notebook. Plug the cable attached to the AC adapter (1) into the DC In connector (2) on the computer.

  • Page 18: Using The Battery Pack

    Using your notebook Using the battery pack You can use a battery pack as a source of power. The battery pack supplied with your computer is not fully charged at the time of purchase. Inserting the battery pack To insert the battery pack, proceed as follows: Open the cover of the battery bay (1).
  • Page 19 Using your notebook Charging the battery pack To charge the battery pack, proceed as follows: Connect the AC adapter to the computer. Insert the battery pack. The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery charges).

  • Page 20: Removing The Battery Pack

    Using your notebook When the battery is running out of power, both the battery and power indicators blink. Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

  • Page 21: Starting Your Notebook

    Using your notebook Starting your notebook To start your computer, proceed as follows: Make sure the handle is folded into the back of the notebook. Slide the LCD lock lever (1) in the direction of the arrow, and lift the cover. Press the power button (2) of the computer until the power indicator (3) light turns on.

  • Page 22: Shutting Down Your Notebook

    Using your notebook If necessary, press <Fn>+<F5> to adjust the brightness controls for the LCD display. To increase the brightness, use the up or right arrow keys. To decrease, use the down or left arrow keys. If you press the power button for more than four seconds, the computer will turn off. Keep magnetic objects away from your notebook.

  • Page 23: Registering Your Notebook

    During a period of inactivity, you can conserve battery life by using Standby mode. Registering your notebook You can take advantage of Sony’s commitment to quality customer support and receive the following benefits by registering your computer: VAIO-Link – If you are experiencing any problems with your computer, you can check the VAIO-Link web site for a possible solution: http://www.vaio-link.com...

  • Page 24: Using The Keyboard

    Using your notebook Using the keyboard Your keyboard is very similar to a desktop computer’s, but the keyboard has additional keys that perform specific notebook-related tasks. Keys Escape key (1) Function keys (2) Print Screen key (3) Correction keys (4) Descriptions The <Esc>...
  • Page 25 Using your notebook Keys Navigation keys (5) Application key (6) Numeric keypad area (7) Operator keys (8-11-12) ® Windows key (9) Fn key (10) Descriptions These keys enable you to move the cursor on the screen. The Application key displays a shortcut menu; pressing this key is equivalent to clicking the right mouse button.

  • Page 26: Combinations And Functions With The Windows Key

    Using your notebook Combinations and functions with the Windows key Combinations Functions Displays Windows Help. + F1 Switches the selected button on the taskbar. + Tab Displays Windows Explorer. Displays the Search Results window to find a file or folder. This is equivalent to selecting Search and then For files or Folders from the Start menu.
  • Page 27 Using your notebook Indicators Indicator Functions Power on: lights green. Power Standby mode: flashes umber. Hibernate mode: turns off Indicates the status of the battery inserted in your notebook. Battery Light Data is read from or written to the hard drive.

  • Page 28: Combinations And Functions With The Fn Key

    Using your notebook Combinations and functions with the Fn key Combinations/ Feature (ESC): Standby (F3): speaker switch (F4): speaker volume (F5): brightness control (F7): switch to the external display (F12): Hibernate Fn+ D: Video Standby Some functions are not available until Windows is launched. Functions Puts the system into Standby mode, a power management state.

  • Page 29: Using The Touchpad

    Using your notebook Using the touchpad The keyboard contains a cursor-pointing device, your touchpad (1). You can point to, select, drag, and scroll objects on the screen using the built-in touchpad. Action Description point Slide one finger on the touchpad to place the pointer (2) on an item or object. click Press the left button (3) once.
  • Page 30 Using your notebook Using your Jog Dial Your computer is equipped with a Jog Dial on the right side of your computer. You can turn or / and press the Jog Dial to scroll the window, select a software, adjust the internal speaker volume, etc. The Jog Dial window is always displayed on the screen.
  • Page 31 Using your notebook To use the Jog Dial in Launcher mode, proceed as follows: Click the Jog Dial window or press the Jog Dial while pressing the <Ctrl> key to switch to Launcher mode. Turn the Jog Dial to select an item, then press the Jog Dial. The Jog Dial window switches to Guide mode, and shows the Jog Dial function.

  • Page 32: Using The Cd-Rom

    Using your notebook Using the CD-ROM Your computer is equipped with a CD-ROM drive. To insert a CD-ROM drive, proceed as follows: Turn on the computer. Press the Eject button to open the CD-ROM. The tray slides out. Place a CD-ROM disk in the tray with the label side facing up. Close the tray by pushing it gently.

  • Page 33: Using Pc Cards

    Using your notebook Using PC Cards Your computer includes two PC Card slots. PC Cards allow you to connect portable external devices. Inserting a PC Card To insert a PC Card, proceed as follows: Push the Release button. The Release button (1) pops out. Push the Release button.

  • Page 34: Removing A Pc Card

    The computer will return to its original state if you restart it. Some PC Cards may require you to disable idle devices when using the PC Card. You can use Sony Notebook Setup to disable devices. Be sure to use the most recent software driver provided by the PC Card manufacturer.

  • Page 35: Using Memory Stick

    Using your notebook Press the PC Card release button so that it pops out. Push the PC Card release button to eject the card. Gently grasp the card and pull it out. If the PC Card release button is still out, push the PC Card release button on the notebook. If you unplug the PC Card from the computer when this is still turned on, your system might crash and you might lose data that you didn't save before.

  • Page 36: Inserting A Memory Stick

    Using your notebook - Do not bend, drop, or apply strong shock to Memory Sticks™. - Do not disassemble or modify Memory Sticks™. - Do not allow Memory Sticks™ to get wet. - Do not use or store Memory Sticks™ in a location that is subject to extremely high temperatures, such as in a car parked in the sun, direct sunlight. To prolong the life of Memory Sticks™, use the supplied storage case.

  • Page 37: Removing A Memory Stick

    Using your notebook Removing a Memory Stick To remove a Memory Stick™, proceed as follows: Double-click the Unplug or Eject Hardware icon in the taskbar. The dialog box Unplug or Eject Hardware appears. Select the hardware you want to unplug. Click Stop.

  • Page 38: Using Power Saving Modes

    Using your notebook Plug the other end into the wall jack (3). A country-specific phone plug is supplied with your VAIO notebook, allowing you to plug the phone line into the wall jack. Your computer cannot be connected to a coin-operated telephone, and may not work with multiple phone lines or a private branch exchange (PBX). If you connect the modem to a parallel connected phone line, the modem or the other connected device may not function properly.

  • Page 39: Using Normal Mode

    Using your notebook Using Normal mode This is the normal state of your computer when it is in use. The green power indicator light is on in this mode. To save power, you can turn off a specific device such as the LCD or the hard disk. Using Standby mode The computer saves the current state of the system in RAM and switches off power to the CPU.
  • Page 40 Using your notebook Press the Power button. Use the PowerPanel utility. To return to Normal mode, proceed as follows: Turn on the computer by pressing the power button. The computer returns to its previous state. When the computer is in Hibernate mode, you cannot insert a disk. Hibernate mode requires more time than Standby mode to be activated or to return to normal mode.

  • Page 41: Connecting Peripheral Devices

    Connecting peripheral devices Connecting peripheral devices You can add functionality to your computer by connecting or using any of these peripherals. Connecting an external display Connecting external speakers Connecting an external microphone Connecting a Universal Serial Bus (USB) device Connecting a printer Connecting an i.LINK device Connecting to a network (LAN) Before you connect peripherals, turn off the computer and all peripherals.
  • Page 42 Connecting peripheral devices Connecting a computer display To connect a computer display, proceed as follows: Make sure the handle is folded into the back of the computer. Plug the display cable (1) into the monitor connector (2) on the computer. . If necessary, plug one end of the display’s power cord (3) into the display, and the other end into an AC outlet.

  • Page 43: Connecting A Projector

    Connecting peripheral devices Connecting a projector You can use a projector as an external display, such as the Sony LCD Projector. To connect a projector, proceed as follows: Make sure the handle is folded into the back of the computer.

  • Page 44: Connecting External Speakers

    Connecting peripheral devices Connecting external speakers You can enhance the sound quality of your computer by connecting external speakers. To connect external speakers, proceed as follows: Plug the speaker cable (1) into the earphone connector (2). Plug the other end of the speaker cable into the external speaker. Turn down the volume of the speakers before you turn them on.

  • Page 45: Connecting An External Microphone

    Connecting peripheral devices Connecting an external microphone Your VAIO notebook does not contain an internal microphone. If you need to use a sound input device, for example to chat on the Internet, you need to plug in an external microphone. To connect an external microphone, proceed as follows: Locate the microphone connector identified by the Plug the microphone cable (1) into the microphone connector (2).

  • Page 46: Connecting A Universal Serial Bus (Usb) Device

    Connecting peripheral devices Connecting a Universal Serial Bus (USB) device Connecting a USB mouse You can connect a USB device (e.g. mouse, floppy disk drive…) to your computer. To connect a USB mouse, proceed as follows: Plug the USB mouse cable into the USB connector. You can use your USB mouse .

  • Page 47: Inserting A Diskette

    Connecting peripheral devices Inserting a diskette To insert a disk, proceed as follows: Hold the diskette with the label side facing up. Gently push the diskette into the drive until it clicks into place. Removing a diskette To remove a diskette, proceed as follows: When you finish using the diskette, wait until the LED indicator turns off and then press the Eject button to remove the diskette.

  • Page 48: Connecting A Printer

    Connecting peripheral devices Connecting a printer You can connect a USB printer compatible with your version of Windows to your computer. To connect a printer using the USB connector, proceed as follows: Make sure the handle is folded into the back of the notebook. Plug an optional USB printer cable (1) into the USB connector (2) identified by the computer and printer.

  • Page 49: Connecting An I.link Device

    Connecting peripheral devices Connecting an i.LINK device Your computer includes an i.LINK™ (IEEE1394) connector, which you can use to connect to an i.LINK™ device such as a digital video camera recorder or to connect two VAIO notebooks in order to copy, delete or edit files.

  • Page 50: Connecting A Digital Video Camera Recorder

    On Sony digital video cameras, connectors labeled DV Out, DV In/Out or i.LINK™ are i.LINK™-compatible. The Sony digital video camera recorder is an example; your digital video camera recorder may need to be connected differently. If your digital video camera recorder includes a Memory Stick simply copy images on the Memory Stick slot of your computer.

  • Page 51: Connecting To A Network (Lan)

    Connecting peripheral devices Connecting two VAIO-notebooks You can connect your notebook to another VAIO notebook using an i.LINK™ cable (not supplied). Your notebook includes Windows VAIO computer that also has Windows can then use your computer to copy, edit or delete files from another VAIO computer. You can also print a document on a printer connected to another VAIO computer.

  • Page 52: Getting Help

    Getting help Getting help This section describes how to get help and support from Sony, as well as troubleshooting tips for your computer. Sony support options Sony provides several support options for your computer. Printed documentation supplied with your notebook The Customer Guide explains how to start your computer and use the basic functions.

  • Page 53: Troubleshooting

    Getting help VAIO-Link website: if you have any problem with your computer, you can access the VAIO-Link web site. Go to: http://www.vaio-link.com VAIO-Link Response Centre: Before contacting VAIO-Link Response Centre, try to solve the problem by reading the User Guides and help files for the peripherals or software. You need to plug in the phone line and configure your modem for use before using the communication features described in this manual.
  • Page 54 If the floppy disk drive is empty, proceed as follows to initialize the BIOS: Turn off the computer. Remove any peripheral devices connected to the computer. Turn on the computer and press <F2> when the Sony logo appears. The BIOS setup menu screen appears. Press the arrow keys to select the Exit menu.
  • Page 55 Getting help If this does not work, press the power button and hold it for at least four seconds. This turns off the power. Unplug the computer from the AC adapter and remove the battery pack from your computer. My computer locks up If you suspect one application is locking your system, you can try to stop it.

  • Page 56: About The Display

    Getting help About the display My LCD does not display anything Check that the computer is plugged into a power source and that it is turned on. Check that the power indicator on the front panel of the computer is on. Check that the battery pack is inserted properly and that it is charged.
  • Page 57 Getting help I cannot play a CD-ROM disk Make sure the label of the disk is facing up. If the disk requires software, make sure the software is installed according to the instructions of the program. Check the volume of your speakers. Clean the disk.

  • Page 58: About Sound

    Getting help The disk may be scratched. Place another disk to see if that is the reason. There may be condensation in the drive. Remove the disk and leave the drive open for approximately one hour. About sound My speakers are not producing sound The built-in speakers may be turned off.

  • Page 59: About The Modem

    Getting help About the modem My internal modem does not work Check that the phone line is plugged into your computer. Check that the phone line is working. You can check the line by plugging in an ordinary phone and listening for a dial tone.

  • Page 60: About Peripherals

    My PC Card is not working Make sure the PC card is compatible with your version of Windows If you are using two PC cards, use the Sony Notebook Setup utility to disable the devices you are not currently using.

  • Page 61: Adding And Removing Memory

    Precautions Precautions This section describes safety guidelines and precautions to help you protect your computer from potential damage. Your notebook and memory modules use high precision components and electronic connectors technology. To avoid the invalidation of your guarantee by mishandling, it is recommended that: You contact your dealer to install a new memory module.

  • Page 62: Removing A Memory Module

    Precautions Disconnect the system from its power source and from any telecommunication links, networks, or modems before you open the system. Failure to do so may result in personal injury or equipment damage. Electrostatic Discharge (ESD) can damage memory modules and other components. Install the memory Module only at an ESD workstation.
  • Page 63 Precautions Wait until the computer cools down. The inside of a notebook becomes extremely hot during operation. Wait for about one hour for the computer to cool down before you remove the screws. Push the LCD screen away from you until it is completely flat. Remove the thin plastic strip containing the Num Lock, Caps Lock and Scroll Lock indicators by sliding it toward the keyboard and pulling it up gently.
  • Page 64 Precautions Lift the speaker cover toward the LCD screen. Lift the keyboard toward the LCD display and turn over the keyboard. Be careful not to pull the cables of the display. Before you remove the memory module , touch a metal part of the computer to discharge any static electricity accumulated on your body.

  • Page 65: Adding A Memory Module

    Precautions Remove the memory module: Carefully pull the release tabs (1) on both ends of the memory module at the same time in the direction of the arrow. Pull out the memory module in the direction of the arrow (2). Adding a memory module If you are not familiar with upgrading memory on a notebook, we highly recommend you to contact your dealer.
  • Page 66 Precautions Lift the keyboard toward the LCD screen and turn over the keyboard. Be careful not to pull the display cables. Before you remove the memory module, touch a metal part of the computer to discharge any static electricity accumulated on your body. Remove the old memory module (for more info see Removing a memory module).
  • Page 67 Precautions Tighten the two screws to fix the keyboard. Replace the thin plastic strip by inserting the ends first, then slide the center toward the LCD panel. Put the LCD back to its normal position. Turn on your notebook.

  • Page 68: Viewing The Amount Of Memory

    To view the amount of memory, proceed as follows: Turn on the computer. Click the Start button, point to VAIO, and click Sony Notebook Setup. The Sony Notebook Setup screen appears. Click the About this Computer tab to view the amount of system memory. If the additional memory does not appear, repeat the whole procedure.

  • Page 69: On Handling The Lcd Screen

    Precautions On handling the LCD screen Do not leave the LCD facing the sun as it can damage the LCD. Be careful when using the computer near a window. Do not scratch the LCD or exert pressure on it. This could cause malfunction. Using the computer in low temperature conditions may produce a residual image on the screen.
  • Page 70 Precautions On handling your notebook Clean the cabinet with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.
  • Page 71 Precautions Do not use cut or damaged connection cables. Your computer cannot be connected to a coin-operated telephone, and may not work with a private branch exchange (PBX). If the computer is brought directly from a cold location to a warm one, moisture may condense inside your computer.

  • Page 72: On Using The Battery Pack

    Precautions On using the battery pack Never leave the battery pack in temperatures above 60° C, such as in a car parked in the sun or under direct sunlight. Battery life is shorter in a cold environment. This is due to decreased battery efficiency at low temperatures.
  • Page 73 Precautions Preventing hearing damage – Avoid using earphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use. On handling Memory Stick Do not touch the connector with your finger or metallic objects. Use only the label supplied with the Memory Stick™...

  • Page 74: Specifications

    Specifications Specifications Model Number Operating system Processor Hard disk drive Standard RAM Maximum RAM LCD screen L2 cache memory MPEG Graphics Sound capabilities CD-ROM drive Internal modem PCG-QR10 ® ® ® Microsoft Windows Millennium Edition ® Mobile Intel Celeron™ processor 650 MHz 10 GB 64 MB SDRAM (in slot) 512 MB...
  • Page 75 Specifications Model Number Telecommunication capabilities Expansion capabilities Built-in capabilities Connection capabilities on notebook Supplied accessories Service Guarantee Power requirement Power management Battery Dimensions Width Height Depth Weight PCG-QR10 ethernet network, PSTN data connectivity Two type I/II or one type III cards, Cardbus compatible stereo speakers, touchpad, Jog Dial with back button Monitor, external speakers, headphone, external microphone, 2 USB, modem, i.LINK™...
  • Page 76 Specifications Model Number Operating temperature Storage temperature Operating humidity Storage humidity ‡ See our special Guarantee extension conditions. Specifications are subject to change without notice. PCG-QR10 +5°C to +35°C (temperature gradient less than 10°C/hour) -20°C to +60°C (temperature gradient less than 10°C/hour) 20% to 80% (not condensed), provided that humidity is less than 65% at +35°C (hygrometer reading of less than 29°C) 10% to 90% (not condensed), provided that humidity is less than 20%...
  • Page 77 INDEX AC adapter accessory air circulation Alt key application key battery charging status charging the indicator pack battery indicator battery pack brightness control built-in capability button back power cable display ethernet network i.LINK microphone phone printer speaker camera Caps Lock indicator CD-ROM drive charging status combination controls...

  • Page 78: Lcd Lock Lever

    speaker floppy disk drive connecting a USB removing a USB Fn key function key graphic guarantee hard disk drive hard disk drive indicator headphone connector help Help key Hibernate mode humidity operating storage i.LINK cable device indicator battery Caps Lock hard disk drive Num Lock power...

  • Page 79: Power Indicator

    mode Hibernate Standby model number modem moisture condensation monitor monitor connector MPEG navigation key network Normal mode Num Lock Num Lock indicator numeric keypad operating system operator key PC Card adapter inserting a removing a slot peripherals phone cable line jack plug power button power cord...

  • Page 80: Usb Connector

    troubleshooting connector mouse USB connector USB floppy disk drive VAIO-Link VAIO-Link Response Centre ventilation ventilation slot video camera warnings weight Windows key...
