- Page 1 QUICK START GUIDE Faster, Whole-Home Wi-Fi ™ MODEL: AFi-HD...
-
Page 2: Package Contents

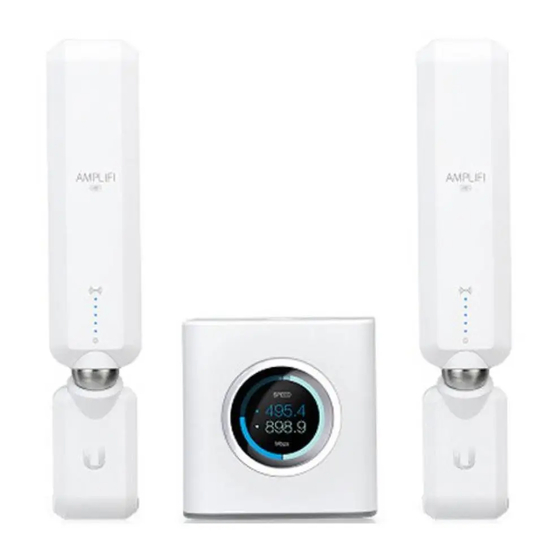

Introduction ™ Thank you for purchasing the AmpliFi HD Home Wi-Fi System. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents Router MeshPoints (Qty. 2) Power Adapter Ethernet Cable Quick Start Guide... -
Page 3: Hardware Overview
Hardware Overview Router Front The front of the AmpliFi Router features an adjustable, full-color touchscreen display. The bottom of the AmpliFi Router features an adjustable LED that is fully lit by default when the Router is configured and ready for use. - Page 4 Router Back Four Gigabit Ethernet ports available to connect 10/100/1000 Mbps wired network devices to the internet. Connects to the broadband modem provided by your ISP (Internet Service Provider). Reserved for future use. The Power Adapter connects to this port.
- Page 5 MeshPoint Adjustable Antenna Signal LEDs Magnetic Connector MeshPoint Base...
-
Page 6: Installation
Installation The AmpliFi Router can be installed using one of the following methods: • AmpliFi app for iPhone® ™ • AmpliFi app for Android • Connecting to the default AmpliFi wireless network (SSID) from a computer or tablet. App Users Download and install the AmpliFi app from the ™... - Page 7 If you are not using the app to install the AmpliFi Router, please skip step 1 and proceed to the following page. Launch the AmpliFi app. iPhone Users: Ensure that Bluetooth is enabled. Android Users: Ensure that Wi-Fi is enabled.
- Page 8 Power off your broadband modem.
- Page 9 Connect one end of the Ethernet Cable to your broadband modem and the other end to the internet port on the AmpliFi Router.
- Page 10 Connect the Power Adapter to the power port on the AmpliFi Router.
- Page 11 Connect the Power Adapter to a power outlet.
- Page 12 Power on your broadband modem.
- Page 13 App Users Follow the on-screen instructions to configure your AmpliFi Router.
- Page 14 Non-App Users Perform the following steps: • Tap the touchscreen on the AmpliFi Router. • Use a computer or tablet to connect to the unique wireless network (SSID) displayed on the screen of your AmpliFi Router. Please connect to this...
- Page 15 • Launch a web browser and a portal will appear. Enter a new name for your wireless network and create a wireless password. Click Save & Continue. • Connect to the new wireless network that you’ve created from your computer or tablet.
-
Page 16: Installing The Meshpoints
Installing the MeshPoints For best performance, the MeshPoints should be placed in different directions between the Router and the areas farthest from the Router. Mesh multi-hop should only be used when necessary as performance will degrade with each hop. Best Performance Mesh Multi-Hop MeshPoint installation is optional and may not be necessary in smaller homes. - Page 17 Plug the MeshPoint into a power outlet. After about a minute, LEDs will reflect signal strength once the MeshPoint is connected to the Router.
- Page 18 The MeshPoint antenna can be adjusted to provide optimal signal coverage for your location. Tip: If a MeshPoint is powered on and has been configured with the app but does not appear online, try relocating the MeshPoint closer to the Router.
-
Page 19: App Features
Google account. To enable remote access, go to the side menu as shown on page 20. The system dashboard is displayed in the Overview window. It provides an overview of the AmpliFi Wi-Fi system Overview including network status, number of connected clients, and active download/upload speeds. - Page 20 To provide guest access, determine the number of guests, select a time limit for their access, and tap Start. Guest Guests simply connect to your wireless network named with the -guest label. No password is required. As guests connect, the number of users connected will be displayed in the app.
- Page 21 Tap Live Support for 24/7 live chat support. Remote Access can also be enabled from this menu. Live chat is also available at help.amplifi.com by selecting Chat with us in the bottom right.
-
Page 22: Resetting To Factory Defaults
Use an Reset object such as a straightened paper clip or pin to press the Reset located on the bottom of the AmpliFi Router for approximately 10 seconds until the LED turns off. If the AmpliFi Router is reset, all MeshPoints should also be reset using the same method. -
Page 23: System Specifications
System Specifications Max. TX Power 26 dBm Radios MIMO Chains Speed 5.25 Gbps Range 20,000 sq. ft ESD/EMP Protection ± 24kV Air/Contact Buttons Reset Antennas (3) Dual-Band Antennas Display 1.6" (40.6 mm) Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color Wi-Fi Standard 802.11ac Power Save...
