Always visually inspect parts before assembling. This guide presumes that filters are new,
batteries are charged, and that parts are clean and dry.
1. Remove filter casing by
pressing one of the side latches.
4. Pinch/push airflow adaptor
into place - short tabs face up.
7. Adjust frame to head size
using the rachet.
Do not enter the contaminated area until your PureFlo
For more information call 01933 672180 email: info@fullsupportgroup.com

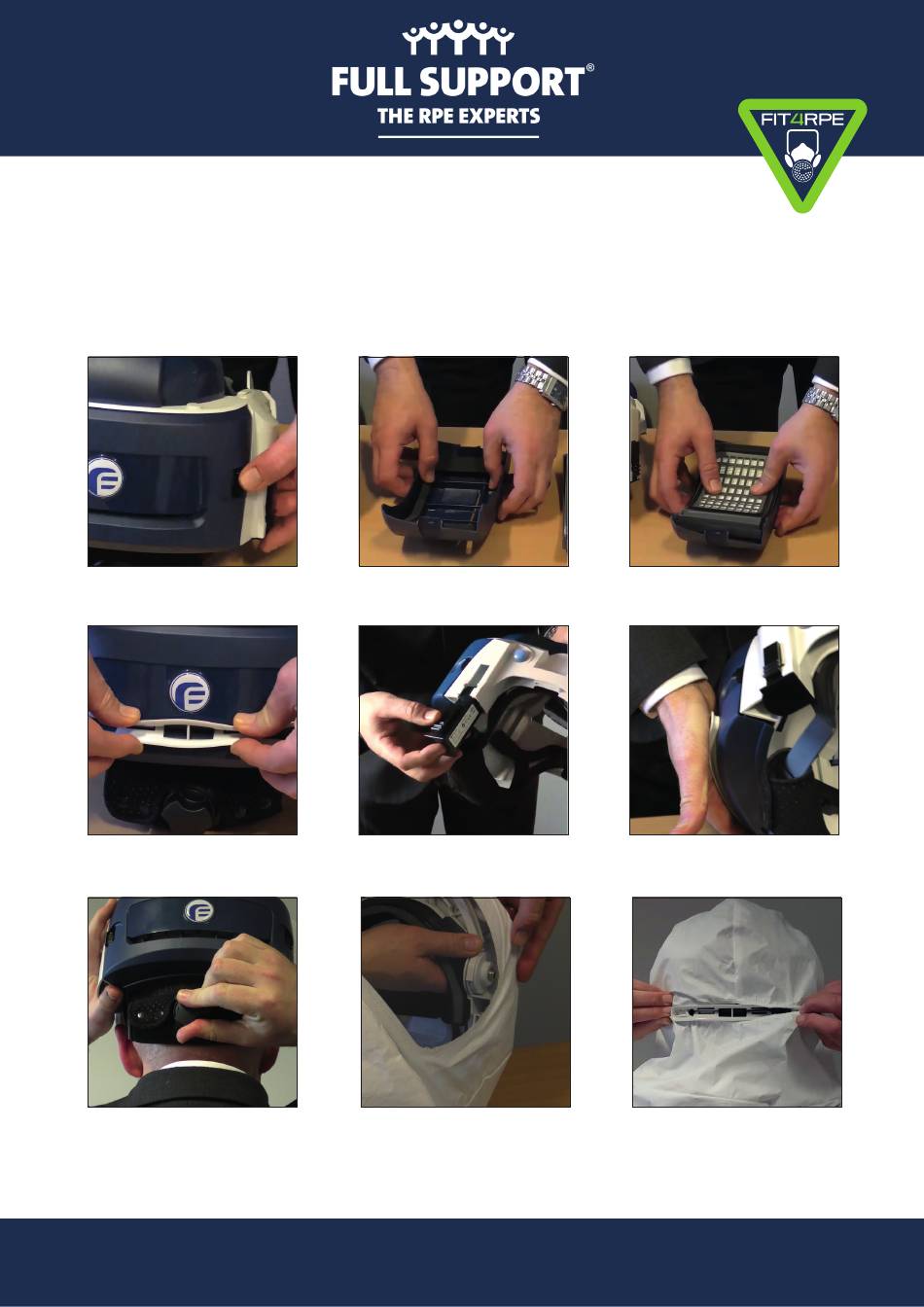

Assembly guide for
PureFlo
2. Insert foam gasket into
the filter case lining.
5. Insert a fully charged battery.
It should 'click' into place.
8. Clip fasteners on frame
to those inside hood.
www.fullsupportgroup.com
3000P
®
3. Press filter into place (label
face up) and reattach to frame.
6. Turn on and cover the air inlet
until light turns red to test.
3000P has been donned.
®
9. Stretch elastic around
the airflow adaptor.
© Copyright 2017
Advertisement
Table of Contents
Related Manuals for Full Support PureFlo 3000P
Summary of Contents for Full Support PureFlo 3000P
- Page 1 Assembly guide for PureFlo 3000P ® Always visually inspect parts before assembling. This guide presumes that filters are new, batteries are charged, and that parts are clean and dry. 1. Remove filter casing by 2. Insert foam gasket into 3. Press filter into place (label pressing one of the side latches.
- Page 2 Donning guide for PureFlo 3000P ® Ensure the respirator is assembled correctly and donned BEFORE entering the contaminated area. Long hair should be worn loose and down, behind your shoulders. 1. Locate the power button and 2. Don the frame with the turn on the device.
- Page 3 Doffing guide for PureFlo 3000P ® This guide was written in conjunction with The Princess Alexandra Hospital NHS Trust in line with current PHE guidance on PPE and RPE. Do not remove the respirator until you have vacated the contaminated area. You will need a doffing buddy wearing an apron and gloves to help you with this process.
- Page 4 GENTEX Gentex Europe 3-5 Commerce Road CORPORATION Stranraer Scotland DG97DX United Kingdom Phone: +44 (0) 1776 704421 Fax: +44 (0) 1776 706342 Appendix 1: Protocol for cleaning of PureFlo 3000-P Hood - Powered Air Respirator ® with chlorine solution. Always consult the manufacturer's instructions for decontaminating equipment. 1.
- Page 5 HEPA filter fitting and checking the respirator Ensure that the high efficiency particulate (HEPA) filter is installed correctly as shown in Figure 6 When fitting the filter element into the filter housing, observe that the filter label faces upwards as worn. Then applying firm pressure, click to engage the filter housing with the two filter latches.
