  • Page 1 INSTRUCTIONS M A N U A L 90915...

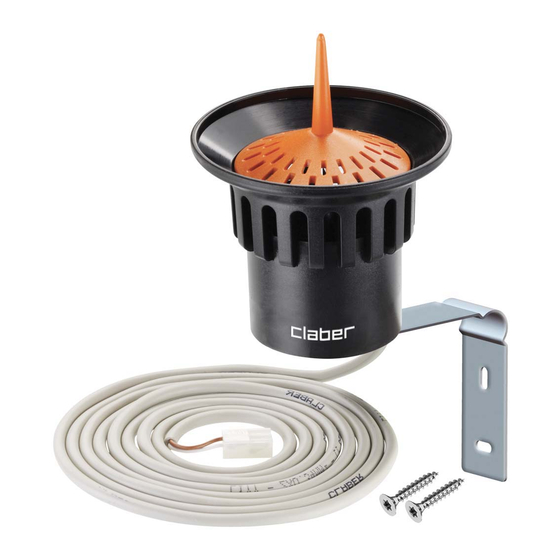

  • Page 2 RAIN SENSOR THANK YOU FOR CHOOSING OUR RAIN SENSOR. CAREFULLY READ THIS INSTRUCTIONS MANUAL BEFORE PROGRAMMING. EACH SECTION CON- TAINS ALL THE INFORMATION REQUIRED FOR THE CORRECT EXECUTION OF EACH OPERATION. KEY: TOP COVER FLOAT UPPER RECIPIENT SENSOR CABLES STAINLESS STEEL BRACKET BRACKET SCREWS...
  • Page 4 RAIN SENSOR RAIN SENSOR STOPS TIMED WATERING PROGRAMS IN THE EVENT OF RAIN, THEN RESUMES THEM AUTOMATICALLY WHEN IT STOPS RAINING: ABSOLUTELY RELIABLE, EVEN WHEN YOU’RE AWAY. HOW IT WORKS: THE RAIN WATER COLLECTED IN THE UPPER RECIPIENT POURS DOWN AND LIFTS THE FLOAT.
  • Page 5 HOW TO INSTALL THE RAIN SENSOR CUT THE COMMON SOLENOID VALVE CABLE, THEN CONNECT THE TWO ENDS TO THE SENSOR LEADS (SEE FIGURE 1). FIGURE 1 IMPORTANT: INSTALL THE RAIN SENSOR IN A CLEAR AREA OF THE GARDEN, WITHOUT VEGE- TA TION COVERAGE, AWAY FROM THE SPRINKLERS.
  • Page 6 IMPORTANT: TO ENSURE COR- RECT SENSOR OPERATION, PO- SITION THE FLOAT INSIDE THE CONTAINER WITH THE RADIAL WINGS UPWARDS AND THE ORANGE BOTTOM DOWN - WARDS (FIGURE 3). FIGURE 3 IMPORTANT: KEEP THE COVER IN PLACE TO PREVENT LEAVES OR IMPURITIES FROM IMPAIR- ING CORRECT OPERATION OF THE RAIN SENSOR.
  • Page 7 THE SYMBOL IN QUESTION, APPLIED TO THE PRODUCT OR TO THE PACKAGE, INDICATES THAT THE PRODUCT SHOULD NOT BE CONSIDERED NORMAL DOMESTIC WASTE, BUT MUST BE TAKEN TO THE APPROPRIATE COLLECTION POINT FOR THE RECYCLING OF ELECTRIC AND ELECTRONIC DEVICES. ENSURING THAT YOU DISPOSE OF THE PRODUCT IN THE APPROPRIATE WAY CONTRIBUTES TO AVOID POTENTIAL NEGATIVE...
  • Page 8 EMPLOYED IN NORMAL WORKING CONDITIONS, IF MAINTENANCE HAS BEEN CARRIED OUT BY AUTHORIZED PERSONNEL AND IF IT HAS NOT BEEN MODIFIED IN ANY WAY. CLABER SHALL NOT BE LIABLE FOR DAMAGE DUE TO THE CUSTOMER’S MISUSE OR TO ERRORS OCCURED DURING INSTALLATION.
