N

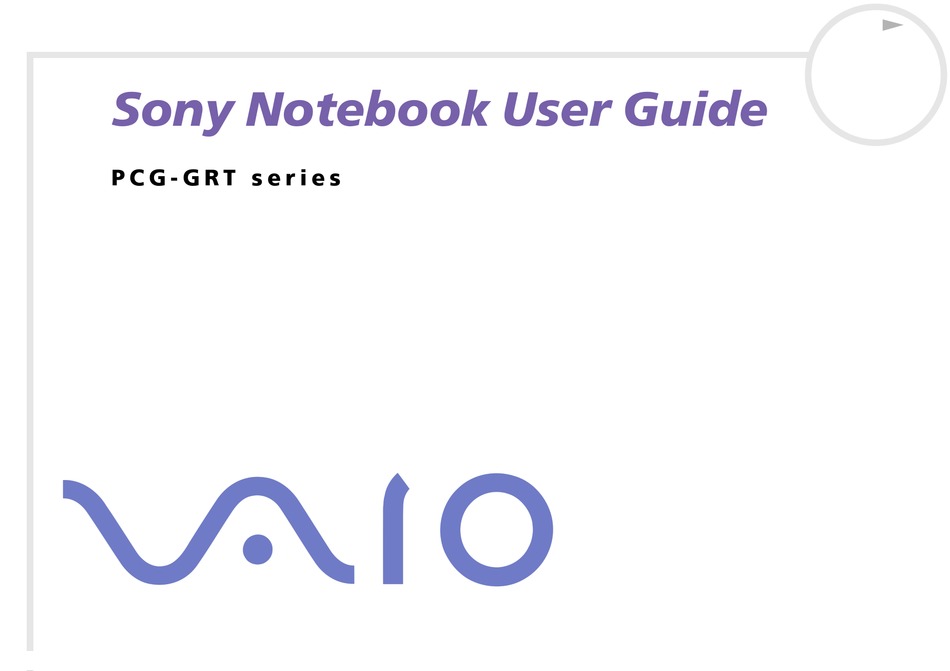

Sony Notebook User Guide
P C G - G R T s e r i e s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCG-GRT715E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sony PCG-GRT715E

  • Page 1 Sony Notebook User Guide P C G - G R T s e r i e s...
  • Page 2: Read This First

    Macrovision Corporation. Reverse engineering or disassembly is prohibited. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user licence agreement.
  • Page 3 Read this first ® NERGY ® ® As an E Partner, Sony has determined that this product meets the E guidelines for energy efficiency. NERGY NERGY ® The International E Office Equipment Program is an international program that promotes energy saving through the use NERGY of computers and their office equipment.
  • Page 4: Safety Information

    Owner's record The serial number and model number are located on the bottom of your Sony notebook. Record the serial number and the model number and refer to them if you call VAIO-Link. Read the printed Specifications document for more information.
  • Page 5 Read this first Audio/video Audio and picture distortion may occur if this equipment is positioned in close proximity to any equipment emitting electromagnetic radiation. Connectivity Never install modem or telephone wiring during a severe lightning storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Be cautious when installing or modifying telephone lines.
  • Page 6: Regulatory Information

    Read this first Regulatory information Sony hereby declares that this product is in compliance with the essential requirements and other relevant provisions of European Directive 1999/5/EC (radio equipment and telecommunications terminal equipment Directive). Declaration of Conformity The European Union is targeting the free movement of goods for the internal market and to prevent technical barriers to trade. This effort has resulted in several EU Directives asking that manufacturers make their products comply with essential standards.
  • Page 7 Read this first Before activating the built-in modem, please read the Modem Regulations leaflet. Depending on the country, usage of the Wireless LAN functionality may be restricted. For country-specific details, please refer to the Wireless LAN Regulations leaflet. The Wireless LAN PC functionality which is incorporated into this unit has passed Wi-Fi certification, and complies with the interoperability specifications established by WECA (Wireless Ethernet Compatibility Alliance).
  • Page 8 Read this first Disposing of lithium ion batteries Do not handle damaged or leaking lithium ion batteries. Dispose of promptly and properly at end-of-life. Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
  • Page 9 Portability - The rechargeable battery pack provides hours of use without AC power. Sony audio and video quality - A high-resolution LCD screen enables you to take advantage of today’s advanced multimedia applications, games, and entertainment software.
  • Page 10: Documentation Pack

    VAIO-Link information and an explanation of the purpose and use of the VAIO Recovery and Documentation Disc. A Dual Language Operating System leaflet*; Your Sony Guarantee conditions; A Safety Regulations leaflet; A Wireless Lan Regulations leaflet**;...
  • Page 11 * Depending on your model. Read the printed Specifications document for more information. Refer to your Software Guide for information on the software and the Sony applications. About the Software delivered with your computer is a short description of the features of the software delivered with your system.
  • Page 12: Online Documentation

    Welcome Using VAIO Media explains how to enjoy music, video and photos through your home networking environment. Customizing your computer explains how to configure your modem, set a wallpaper or select a screensaver. Installing and updating applications explains how to install, run or uninstall a software application.
  • Page 13 Welcome Your notebook and its accessories The following items are in the box: Main unit VAIO Recovery and Documentation Disc Documentation pack AC adapter Rechargeable battery pack * See the printed Guide to Troubleshooting and Using the VAIO Recovery and Documentation Disc for details. ** Not available with models sold in Belgium or Spain.
  • Page 14: Ergonomic Considerations

    Welcome Ergonomic considerations You will be using your notebook as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments: Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touchpad, or external mouse.
  • Page 15 Welcome Viewing angle of the computer’s display – Use the display’s tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well. Lighting –...
  • Page 16: Table Of Contents

    This section describes how to start using your computer and how to use your computer’s internal and external devices. Locating controls and connectors Connecting a power source Starting your notebook Setting up your notebook with Sony Notebook Setup Shutting down your notebook Using the keyboard Using the touchpad Using the disc drive...
  • Page 17: Locating Controls And Connectors

    Using your notebook Locating controls and connectors Right Battery bay (page 22) Ventilation slot (page 19) LCD lock lever (page 28) Do not cover the ventilation slot when the computer is on.
  • Page 18 Using your notebook Left MagicGate Memory Stick™ slot i.LINK™ (IEEE1394) S400 port PC Card slots Multipurpose bay (for weight saver or second battery with weight saver or removable DVD±RW drive or a CD-RW/DVD-ROM combined drive)* * Depending on your model. Read the printed Specifications document for more information. (page 45) (page 96) (page 42)
  • Page 19 Using your notebook Front ** Depending on your model. Read the printed Specifications document for more information. LCD screen (page 35) Speakers (page 35) Keyboard (page 32) Touchpad (page 37) Left/right buttons (page 37) Power indicator (page 36) Battery 1 and 2 indicators (page 36) Hard disk drive indicator (page 36)
  • Page 20 Using your notebook Back * This USB connector supports USB 2.0 standard. USB 2.0 is a new USB (Universal Serial Bus) standard which supports higher data transfer speed than USB 1.1. Connectors which support USB 2.0 support products with USB 1.1. There are 3 transfer modes: - High-speed: 480 Mbps, this is the highest speed.
  • Page 21 Using your notebook Bottom Port replicator connector cover Modem module Multi-purpose bay release lever Reset button Memory module (page 73) (page 56) (page 24) (page 41) (page 38) (page 125)
  • Page 22: Connecting A Power Source

    Using your notebook Connecting a power source You can use either an AC adapter or a rechargeable battery pack as a power source. Using the AC adapter To use the AC adapter, proceed as follows: Plug the cable attached to the AC adapter (1) into the DC In connector (2) on the computer. Plug one end of the power cord (3) into the AC adapter.
  • Page 23: Using The Battery Pack

    Using your notebook Using the battery pack You can use one or two batteries as a source of power. You can insert the second battery into the multi- purpose bay on the left side of the computer. Additional battery packs are available as a separate option. The battery pack supplied with your computer is not fully charged at the time of purchase.
  • Page 24 Using your notebook Charging the battery pack To charge the battery pack, proceed as follows: Connect the AC adapter to the computer. Insert the battery pack. The computer automatically charges the battery (1) (the battery indicator (2) light flashes in a double blink pattern as the battery charges).
  • Page 25 Using your notebook The battery pack supplied with your computer is a lithium ion battery and can be recharged any time. Charging a partially discharged battery does not affect battery life. The battery indicator light is on while you use the battery pack as a power source. When the battery life is nearly depleted, both the battery and power indicators start flashing.
  • Page 26 Using your notebook Inserting the second battery pack To insert a second battery pack, proceed as follows: If the weight saver or the optical disc drive is in the multi-purpose bay (1), remove it. Insert the battery (2) into the multi- purpose bay.
  • Page 27 Using your notebook Charging the second battery pack To charge the second battery pack, proceed as follows: Keep the battery pack (1-3) in the computer while it is connected to AC power. The battery indicator (2) flashes while the battery is charging. When the battery indicator stops flashing, the battery is 85% charged.
  • Page 28 Using your notebook Removing the second battery pack To remove the second battery pack, proceed as follows: Slide the multi-purpose bay release lever on the bottom of the computer in the direction of the arrow. Remove the weight saver. Pull out the battery pack. Reinsert the weight saver.
  • Page 29: Starting Your Notebook

    Using your notebook Starting your notebook To start your computer, proceed as follows: Slide the LCD lock lever (1) in the direction of the arrow, and lift the cover. Press the power button (2) of the computer until the green power indicator (3) light turns on.
  • Page 30: Setting Up Your Notebook With Sony Notebook Setup

    Using your notebook Setting up your notebook with Sony Notebook Setup The Sony Notebook Setup utility allows you to consult system information, specify preferences for system behaviour, and set up password protection for your VAIO notebook. To use Sony Notebook Setup, proceed as follows: Click the Start button on the Windows In All Programs, select Sony Notebook Setup and then click Sony Notebook Setup.
  • Page 31 For more information about each option, click Help on the Sony Notebook Setup screen to display the help file. If you open Sony Notebook Setup as a limited user, then only the About This Computer tab will be visible. Description Selects the drive and device order you wish to use for loading the operating system.
  • Page 32: Shutting Down Your Notebook

    Using your notebook Shutting down your notebook It is important that you shut down your computer properly so you do not lose unsaved data. To shut down your computer, proceed as follows: Click the Start button. Click Turn Off Computer. The Turn off computer screen appears.
  • Page 33: Using The Keyboard

    Using your notebook Using the keyboard Your keyboard is very similar to a desktop computer’s, but has additional keys that perform specific notebook-related tasks.
  • Page 34 Using your notebook Keys Escape key (1) Function keys (2) Print Screen key (3) Correction keys (4) Navigation keys (5) Application key (6) Numeric keypad area (7) Operator keys (8-11-12) ® Windows key (9) <Fn> key (10) Descriptions The <Esc> (Escape) key is used to cancel commands. The twelve function keys along the top of the keyboard are used to perform designated tasks.
  • Page 35 Using your notebook Combinations and functions with the Windows Combinations + <F1> + <Tab> + <D> + <E> + <F> + <Ctrl> + <F> + <M> <Shift> + + <M> + <R> <Fn> + + <Insert> Functions Displays Help and Support Center. Switches the selected button on the taskbar.
  • Page 36 Using your notebook Combinations and functions with the <Fn> key Combinations/ Feature <Fn> + <Esc> : Standby <Fn> + (F3): speaker switch <Fn> + (F4): speaker volume <Fn> + (F5): brightness control <Fn> + (F7)*: switch to the external display <Fn>...
  • Page 37 Using your notebook Indicators Indicator Power Battery 1 Battery 2 Wireless LAN MagicGate Memory Stick™ Light Hard disk Num Lock Caps Lock Scroll Lock Functions Power on: lights green. Standby mode: flashes umber. Indicates the status of the battery inserted in the battery bay on the left side of the computer.
  • Page 38: Using The Touchpad

    Using your notebook Using the touchpad The keyboard contains a cursor-pointing device, your touchpad (1). You can point to, select, drag, and scroll objects on the screen using the built-in touchpad. Action Description Point Slide one finger on the touchpad to place the pointer (2) on an item or object.
  • Page 39: Using The Disc Drive

    Using your notebook Using the disc drive Your computer is equipped with either a DVD printed Specifications sheet for details on your model. See the glossary for more information on CD To insert a disc, proceed as follows: Turn on the computer. Press the eject button (1) to open the drive.
  • Page 40 Using your notebook Using the disc recording function* To burn CDs, you can use DVD/CD-RW and/or DVD/CD-Rs**: ± RW (-ReWriteable) disc is a data memory medium that can be used to write, erase and rewrite a program or other data. The -R (-Recordable) disc is a data memory medium that can be used to write a program or other data, but once only.
  • Page 41 Using your notebook Using the DVD function To achieve optimum performance when playing DVD-ROM discs, you should follow these recommendations. You can play DVDs using the optical drive and the WinDVD for VAIO software. See the help file on the WinDVD for VAIO software for details.
  • Page 42: Using The Weight Saver

    Using your notebook Using the weight saver The weight saver protects the multi-purpose bay when it is empty, and secures the second battery or the optical drive when they are installed in the multi-purpose bay. To attach the weight saver, proceed as follows: If another device is in the multi-purpose bay, remove the device.
  • Page 43: Using Pc Cards

    Use the lower slot for PC Type III cards. Some PC Cards may require you to disable idle devices when using the PC Card. You can use Sony Notebook Setup to disable devices. Make sure you use the most recent software driver provided by the PC Card manufacturer.
  • Page 44 Using your notebook If an “!” mark appears on the Device Manager tab in the System Properties dialog box, remove the software driver and then reinstall it. You do not need to shut down the computer before inserting or removing a PC Card. Do not force a PC Card into the slot.
  • Page 45: Removing A Pc Card

    Using your notebook Removing a PC Card Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not work properly. If you want to remove a PC Card when your computer is off, skip steps 1 to 7. To remove a PC Card, proceed as follows: Double-click the Safely Remove Hardware icon in the system tray.
  • Page 46: Using Memory Stick

    There are currently three different types of Memory Stick™ supported by your VAIO: The generic Memory Stick™, coloured blue. The MagicGate Memory Stick™, coloured white. The Memory Stick PRO™. You can purchase Memory Sticks™ from the Sony Style website (http://www.sonystyle-europe.com), or from your local Sony dealer.
  • Page 47 Using your notebook Why Memory Stick™? Sony's vision is to expand the world of communication, promoting the portability of digital data. The Memory Stick™ is the resulting medium, through which digital devices can be instantly connected. With it, you can download data from any compatible device, then transfer it to another in a single and instant transfer.
  • Page 48 Using your notebook Generic Memory Stick™ The original Memory Stick™, blue in colour, can be used to record image data taken with digital still cameras, etc. or data from the PC. With it, you can record, play back and transfer various kinds of data at any given time.
  • Page 49 Using your notebook MagicGate Memory Stick™ The MagicGate Memory Stick™, white in colour, records PC and image data just like its blue counterpart; the difference is it uses the MagicGate copyright protection technology. With this type of Memory Stick™, also called the MG Memory Stick™, you can enjoy the following features: 32, 64 and 128 MB capacity versions.
  • Page 50 In the music world, however, illegal acts of distributing music without the permission of the artist, logo indicates the copyright protection system devised by Sony. It is not meant to guarantee compatibility with other media.
  • Page 51 (SDMI) to study technology for protecting copyrights during the electronic distribution of music. Sony offers the MagicGate Memory Stick™ and Memory Stick™ Walkman with a copyright protection function that complies with SDMI standards, thereby providing an environment where individuals can record and enjoy third-party music data without worrying about copyright infringement.
  • Page 52 Using your notebook Other: VAIO notebooks VAIO desktops CLIE Handheld Entertainment Organiser Sony mobile phones Digital printers AIBO the Sony Entertainment Robot To find out more about the products available in your country, go to: http://www.sonystyle-europe.com...
  • Page 53 MB per CD, or 360 JPEG images in 5.0 Megapixel quality, more than ten rolls of 24/36 film. Compatible devices You can currently use the Memory Stick PRO™ with the following Sony products: Visual: Cyber-shot DSC-F717, -F77 and FX77 digital camera...
  • Page 54 Using your notebook Write-protecting a Memory Stick™ Memory Sticks™ are designed with an erasure prevention switch to protect valuable data from accidental erasure or overwriting. Move the tab to the right or left* to set or release write-protection. When the erasure prevention switch is off, data can be saved on the Memory Stick™.
  • Page 55: Inserting A Memory Stick

    Using your notebook Inserting a Memory Stick™ There are 2 ways you can insert a Memory Stick™ in your notebook: Using the Memory Stick™ slot; Using one of the PC Card slots. To do this, you need an optional PC Card adapter. You can only insert one Memory Stick™...
  • Page 56: Removing A Memory Stick

    Using your notebook Removing a Memory Stick™ To remove a Memory Stick™ using the Memory Stick™ slot, proceed as follows: Check that the access light is off. Push the Memory Stick™ in towards the notebook. The Memory Stick™ ejects. Pull the Memory Stick™ out of the slot. Always remove the Memory Stick™...
  • Page 57: Using The Modem

    Using your notebook Using the modem Your notebook is equipped with an internal modem. You need to connect to a phone line to take advantage of online services and the Internet, as well as to register your computer and software online, and to contact VAIO-Link. To connect a phone line, proceed as follows: Plug one end of the phone cable (1) into the phone line jack on the computer.
  • Page 58: Using The Correct Phone Plug

    Using your notebook Using the correct phone plug If there are two phone plugs in the box, make sure you use the correct one for the country you are in, as follows: UK: The connector can be identified by its cuboid shape and flat pins.
  • Page 59: Using Wireless Lan (Wlan)

    The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still access information, internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.
  • Page 60 Using your notebook Communicating without Access Point (ad-hoc) An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or Access Point. Each device communicates directly with other devices in the network.
  • Page 61 Using your notebook Deselect the The key is provided for me automatically option button. Some information becomes visible. Fill in the Network key*. The network key should be 5 or 13 ASCII characters or 10 or 26 hexadecimal characters long. You can choose whatever you want**.
  • Page 62 Type the Network Key. If you are using the Sony Access Point PCWA-A220, by default, you don’t need to enter any wep key. To be able to communicate, you must select the box Allow me to connect to the selected wireless network, even though it is not secure.
  • Page 63 Using your notebook Click Connect. After 30 seconds, the connection is established. For more information about setting up an access point, see the documentation supplied with your Access Point. In France, only channels 10 and 11 are legally allowed when using WLAN. For more information on channel selection, see the Wireless LAN Regulations leaflet.
  • Page 64 (1 to 14). But in France, you have to use channels 10 or 11 (indoor and outdoor). If you use a non-Sony Access Point, read the manual of the Access Point to be sure which channel to use. For more information on Wireless LAN, read the Wireless LAN Regulations leaflet.
  • Page 65: Using Power Saving Modes

    Using your notebook Using power saving modes When you use a battery as the source of power for your computer, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate.
  • Page 66: Using Hibernate Mode

    Using your notebook If the notebook is not used for 25 minutes, it will enter System Standby mode when running on AC power. When running on batteries, the notebook will enter System Standby mode after 5 minutes if unused. To avoid this, you can change the settings either in PowerPanel (right-click on the PowerPanel icon and select Edit/Create Profile) or in the Control Panel.
  • Page 67: Managing Power With Powerpanel

    Using your notebook Managing power with PowerPanel The PowerPanel utility controls the power management of your notebook and provides key information about system activity and battery life. The automatic power management selects the most advantageous profiles, or lets you customise the profiles you choose, according to your own needs, with the goal of extended battery life.
  • Page 68 Using your notebook Activating PowerPanel When you start the computer, the PowerPanel icon appears in the system tray by default. To see the current power profile, simply point to the icon. The current power profile will be displayed in a tooltip.
  • Page 69 Using your notebook Running on batteries Icon Description Automatic Profile Selection - Analyses the performance of each application you choose and matches the profiles to its needs. Maximum Battery Life – Provides power saving features to give you maximum battery life and good performance.
  • Page 70 Using your notebook Icon Description Games – Disables the display and the Hard Disk timer. DVD – Optimises performance and power requirements for DVD usage. Camera – Optimises performance and power requirements for camera usage. Power Management Off (Running on batteries) – Turns off all power management features such as Standby and Hibernate modes.
  • Page 71: Displaying Detailed Battery Information

    Using your notebook Displaying detailed battery information You can display detailed information of your computer's battery. There are 3 ways in which you can display battery information: Right-click the PowerPanel icon in the taskbar and select Battery Information from the menu. Double-click the PowerPanel icon in the taskbar and select the Battery tab.
  • Page 72 Using your notebook Editing a power profile To edit the power management settings of a power profile, proceed as follows: Right-click the PowerPanel icon in the taskbar and select Edit/Create Profiles from the menu. The Profile Editor window appears. Click the profile you want to edit on the left of the screen. Double-click the power profile property (Hibernate, Standby…) you want to modify on the right of the screen.
  • Page 73: Connecting Peripheral Devices

    Connecting peripheral devices Connecting peripheral devices You can add functionality to your computer by connecting or using any of these peripherals. Before you connect peripherals, turn off the computer and all peripherals. Connect the power cord only after connecting all cables. Turn on the computer only after turning on all peripherals.
  • Page 74: Connecting A Port Replicator

    Connecting peripheral devices Connecting a port replicator Your notebook supports the use of an optional port replicator. Attaching a port replicator enables you to connect additional peripherals to your computer, such as a printer or an external display. USB port Serial port Audio in connector (R - L) DC In port...
  • Page 75 Connecting peripheral devices Attaching your computer to the port replicator To attach your computer to the port replicator, proceed as follows: Disconnect all peripherals from the computer. Plug the cable attached to the AC adapter (1) into the DC In port (2) on the port replicator (3). Plug the power cord (4) into the AC adapter and an AC outlet.
  • Page 76 When attaching your computer to the port replicator, do not attempt to insert or remove the battery pack. Lifting and turning the computer with the attached port replicator may cause a temporary loss of power. Use the AC adapter that comes with your notebook or the optional Sony adapter.
  • Page 77: Disconnecting Your Computer From The Port Replicator

    Connecting peripheral devices Disconnecting your computer from the port replicator To disconnect your computer from the port replicator, proceed as follows: Stop the connected peripherals. Close the cover and pull the levers on each side of the port replicator to disconnect the computer from the port replicator.
  • Page 78: Connecting An External Display

    Connecting peripheral devices Connecting an external display You can connect an external display to your notebook. For example, you can use your notebook with the following devices: Computer display (monitor); Multimedia computer display; Projector. Turn off your computer and the peripherals, unplug the AC adapter and the power cord before connecting the external display. Connect the power cord after connecting all other cables.
  • Page 79 Connecting peripheral devices Connecting a computer display You can connect a computer display (monitor) either directly to your notebook or via the (optional) port replicator. To connect a computer display, proceed as follows: Plug the display cable (1) (not supplied) into the monitor/VGA connector (2) If necessary, plug one end of the display’s power cord (3) into the display, and the other end into an AC outlet.
  • Page 80 Connecting peripheral devices Connecting a multimedia computer display You can connect the notebook to a multimedia computer display that includes built-in speakers and a microphone. To connect a multimedia computer display, proceed as follows: Plug the display cable (1) into the monitor/VGA connector (2) Plug the speaker cable (3) into the headphone connector (4) Plug the microphone cable (5) into the microphone connector (6) on the computer.
  • Page 81: Connecting A Tv

    Connecting peripheral devices Connecting a TV You can connect a TV to the notebook or to the optional port replicator. To connect a TV to the notebook, proceed as follows: Plug one end of the audio/video cable (1) (optional) into the AV Out connector (2) (yellow) and the other end into the TV.
  • Page 82 Connecting peripheral devices To connect a TV to the port replicator, proceed as follows: Attach the port replicator to your notebook. Plug one end of the audio/video cable (1) (optional) into the Audio out (R - L) and Video out connectors (2) on your notebook and the other end into the Audio (R - L) and Video connectors on your TV.
  • Page 83: Connecting A Projector

    Connecting peripheral devices Connecting a projector You can connect a projector (such as the Sony LCD projector) directly to your notebook or via the port replicator. To connect a projector, proceed as follows: Plug the RGB signal cable (1) into the monitor/...
  • Page 84: Selecting Display Modes

    Connecting peripheral devices Selecting display modes When the computer is connected to an external display (desktop monitor, TV, ...), you can select which display is used as the primary monitor. If you want to work on the notebook display and the external display at the same time, see Using the Dual Display function To change the primary monitor, proceed as follows: Click the Start button, and then Control Panel.
  • Page 85: Using The Dual Display Function

    Connecting peripheral devices Using the Dual Display function The dual display function allows you to distribute portions of your desktop across separate displays. For example, if you have an external monitor attached to the monitor connector, your LCD display and the monitor can function as a single desktop.
  • Page 86 Connecting peripheral devices Selecting the Dual Display mode To select the Dual Display mode, proceed as follows: Click the Start button on the Windows Click Control Panel. Click Appearance and Themes. Click the Display icon. Select the Settings tab. Click the display marked 2. Select the Extend my Windows desktop onto this monitor check box.
  • Page 87 Connecting peripheral devices Customizing the virtual desktop You can customize the Dual Display mode by changing the position of the two monitors comprising the virtual desktop. To customize Dual Display mode, proceed as follows: Click the Start button on the Windows Click Control Panel.
  • Page 88: Connecting External Speakers

    Connecting peripheral devices Connecting external speakers You can enhance the sound quality of your computer by connecting external speakers. To connect external speakers, proceed as follows: Plug the speaker cable (1) into the headphone connector (2). Plug the other end of the speaker cable into the external speaker (3). Turn down the volume of the speakers before you turn them on.
  • Page 89: Connecting An External Microphone

    Connecting peripheral devices Connecting an external microphone Your VAIO notebook does not contain an internal microphone. If you need to use a sound input device, for example to chat on the Internet, you need to plug in an external microphone. To connect an external microphone, proceed as follows: Plug the microphone cable (1) into the microphone connector (2) identified by the symbol.
  • Page 90: Connecting An External Mouse Or Keyboard

    Connecting peripheral devices Connecting an external mouse or keyboard You can connect an external mouse or keyboard to the optional port replicator using the PS/2 mouse/ keyboard connector. There is only one PS/2 connector, so you can only connect one external device at the same time.
  • Page 91: Connecting A Universal Serial Bus (Usb) Device

    Connecting peripheral devices Connecting a Universal Serial Bus (USB) device You can connect a USB device (for example, a mouse, floppy disk drive, keyboard, printer) to your computer. Before connecting or disconnecting a USB peripheral, you do not need to shut down the computer. You may need to install software (device drivers) supplied with your USB device before using the USB device.
  • Page 92: Connecting A Usb Mouse

    Connecting peripheral devices Connecting a USB mouse To connect a USB mouse, proceed as follows: Choose the USB connector you prefer to use (at the back of the notebook (1) or the optional port replicator). Plug the USB mouse cable (2) into the USB connector. You can use your USB mouse (3).
  • Page 93 Connecting peripheral devices Connecting a USB floppy disk drive As an optional extra, you can purchase a USB floppy disk drive and connect it to your computer. To connect a USB floppy disk drive, proceed as follows: Choose the USB connector you prefer to use. Plug the USB floppy disk drive cable into the USB connector.
  • Page 94 Connecting peripheral devices Inserting a floppy disk To insert a floppy disk, proceed as follows: Hold the disk (1) with the label side facing up. Gently push the disk into the drive (2) until it clicks into place. Removing a floppy disk To remove a floppy disk, proceed as follows: When you have finished using the floppy disk, wait until the LED indicator (1) turns off and then press the eject button (2) to remove the disk.
  • Page 95: Connecting A Printer

    Connecting peripheral devices Connecting a printer You can connect a Windows Connecting a printer using the USB connector You can connect a USB printer compatible with your version of Windows To connect a printer using the USB connector, proceed as follows: Plug a USB printer cable (1) into one of the USB connectors (2) on your notebook.
  • Page 96 Plug the printer power cord (3) into an AC outlet. Before using the printer, you may need to change the Printer settings in the Sony Notebook Setup software. Turn off your computer and the printer, unplug the AC adapter and the power cord before connecting the printer.
  • Page 97: Connecting An I.link™ Device

    Connecting peripheral devices Connecting an i.LINK™ device Your computer includes an i.LINK™ (IEEE1394) connector, which you can use to connect to an i.LINK™ device such as a digital video camera recorder or to connect two VAIO notebooks in order to copy, delete or edit files.
  • Page 98: Connecting A Digital Video Camera Recorder

    On Sony digital video cameras, connectors labelled DV Out, DV In/Out or i.LINK™ are i.LINK™-compatible. The Sony digital video camera recorder is an example; your digital video camera recorder may need to be connected differently. If your digital video camera recorder includes a Memory Stick™ slot, you can copy images from it to your computer via a Memory Stick™. To do so, simply copy images on the Memory Stick™, then use a special PC Card adapter to insert it into your computer.
  • Page 99 Connecting peripheral devices Connecting two VAIO notebooks You can copy, edit or delete files on another VAIO computer to your computer with an optional i.LINK™ cable. You can also print a document on a printer connected to another VAIO computer.
  • Page 100: Connecting To A Network (Lan)

    Connecting peripheral devices Connecting to a network (LAN) You can connect your computer to 10BASE-T/100BASE-TX-type networks via an Ethernet network cable. For the detailed settings and devices needed to connect to the network, consult your Network Administrator. The default settings make your computer able to connect to the network. If the main unit is docked, you can only use the Ethernet network connector on the port replicator.
  • Page 101: Getting Help

    Getting help Getting help This section describes how to get help and support from Sony, as well as troubleshooting tips for your computer. Sony support options Sony provides several support options for your computer. Please see the section Documentation pack delivered with your computer, as well as further sources of reference.
  • Page 102 Getting help e-Support What is e-Support? You have searched our user guides and website (www.vaio-link.com) but have not found an answer to your question/issue? e-Support is the ideal solution for you! Our e-Support Web Portal is an interactive website on which you can submit any technical query you may have regarding your VAIO and receive answers from our dedicated support team.
  • Page 103 Getting help Can I submit my questions at any time? Yes, you can submit your questions 24/7, but please keep in mind that our e-Support Team can only treat your queries from Monday till Friday between 8am and 6pm. Is there a cost involved for using e-Support? No, this is a complete free of charge service offered to all registered VAIO customers! How do I know when the e-Support Team has handled my query/case? As soon as your case has been dealt with by our e-Support Team, you will receive an email, notifying you...
  • Page 104: Troubleshooting

    Getting help Troubleshooting This section describes how to solve common problems you might encounter when using your notebook. Many problems have simple solutions. Please, try these suggestions before contacting VAIO-Link. About the computer and software About the display About discs (page 110) About floppy disks About sound...
  • Page 105: About The Computer And Software

    Check that the power indicator on the front panel of the computer indicates that the power is on. Check that you are using the supplied Sony AC adapter. Check cables for signs of wear and tear (which can occur if the cable is twisted around the AC adapter during transport).
  • Page 106 If the floppy disk drive is empty, proceed as follows to initialise the BIOS: Turn off the computer. Remove any peripheral devices connected to the computer. Turn on the computer and press <F2> when the Sony logo appears. The BIOS setup menu screen appears. Set the date (month/day/year).
  • Page 107 Getting help My computer does not shut down It is recommended that you shut down your computer using the Turn Off Computer command on the ® Windows Start menu. Using other methods, including those listed here, may result in loss of unsaved data. If the Turn Off command does not work properly, proceed as follows: Turn off the computer by pressing <Ctrl>+<Alt>+<Delete>.
  • Page 108 If you are using an external serial PS/2 mouse, check that the mouse is plugged into the mouse connector of your optional port replicator. If you are using an optional Sony USB mouse, check that the appropriate driver and software are properly installed.
  • Page 109 Maximum Battery Life (when running on batteries). Can I install the SonicStage software on other (non-Sony) computers? You cannot install SonicStage from the VAIO Recovery and Documentation Disc onto a non-Sony computer. If you have any other problems regarding SonicStage, you can check the VAIO-Link website for a SonicStage update: http://www.vaio-link.com.
  • Page 110: About The Display

    Getting help About the display My screen does not display anything Check that the power indicator on the front panel of the computer is on. Check that the battery pack(s) are inserted properly and that they are charged. If using AC power, check that the connection to the mains is secure.
  • Page 111: About Discs

    Getting help About discs My disc drive tray does not open Make sure the computer is turned on and press the eject button on the drive. Click Start, and select My Computer. Right-click the optical disc drive and select Eject. Make sure the computer is not in Standby or Hibernate mode.
  • Page 112 Getting help Change the resolution under Control Panel - Display to a lower resolution. If you see video but cannot hear sound, check all of the following: Make sure the mute setting is off on your DVD player. Check the Master Volume settings of the Sounds and Audio Device Properties. If you have connected speakers externally, check the volume settings of your computer speakers and check the connections between your speakers and the computer.
  • Page 113 Getting help You will not have a problem in the following situations: When you use a CRT or an LCD display on its own. When you play MPEG files which are recorded on the hard drive with Windows Media Player 9 or RealOne Player.
  • Page 114 Getting help The disc tray does not eject even when the eject button is pressed Check that the notebook is turned on. The CD-writing application software may be stopping the disk from being ejected. Make sure the computer is not in Standby or Hibernate mode. The disc tray ejects even when it has been locked into place Ensure that the disc is placed with the label side facing up.
  • Page 115: About Floppy Disks

    Getting help About floppy disks My USB floppy disk drive cannot write to a floppy disk The floppy disk is write-protected. Disable the write-protect feature or use a floppy disk that is not write-protected. Check that the disk is properly inserted into the floppy disk drive. Your disk may be corrupt.
  • Page 116: About Sound

    Getting help About sound My speakers are not producing sound The built-in speakers may be turned off. Press <Fn>+<F3> to turn on the speakers. The speaker volume may be turned to the minimum. Press <Fn>+<F4> and then volume. You can also use the Volume up and Volume down keys below the touchpad of your notebook. If your computer is powered by battery, check that the battery is inserted properly and that it is charged.
  • Page 117: About The Modem

    Getting help About the modem My internal modem does not work or cannot establish a connection Check that the phone line is plugged into your computer. Make sure that the modem is the only device connected to your phone line. Check that the phone line is working.
  • Page 118: About Peripherals

    Use manual import/export in DVgate Motion if problems occur with third party cameras. You are strongly advised to use only Sony i.LINK™ cables, as using other brands may cause problems with the i.LINK™ devices.
  • Page 119 The default setting for the printer port mode is correct for most printers. If you cannot print, try changing the printer port mode, as follows: Restart your computer. When you see the Sony logo, press <F2>. The BIOS setup menu screen appears. Use the keyboard’s arrow keys to select the Advanced menu.
  • Page 120: About Digital Video Captures And Dvgate

    Getting help About digital video captures and DVgate While I am recording images to a digital video device using DVgate, my system displays the message 'Recording to DV device failed. Check the power and cable connections to the DV device and try the operation again...' Close all open applications and restart your computer.
  • Page 121: About Power Management

    Getting help About power management The power management setting is not responding Your notebook’s operating system may become unstable if a lower power state, such as Hibernate is initiated, and then changed before the notebook completely enters the lower power state. To restore the notebook to its normal operating stability, proceed as follows: Close all open applications.
  • Page 122: About I.link™ Devices

    Getting help About i.LINK™ devices I cannot establish an i.LINK™ connection between two VAIO computers Disconnect then reconnect the i.LINK™ cable. If you still have no connection after waiting for a while, restart both computers. If either computer has just returned from a power saving mode, the connection may be affected. In this case, make sure you perform a full restart before connecting them.
  • Page 123: About Wireless Lan

    Getting help About Wireless LAN I cannot use the Wireless LAN function Check if the Wireless switch on the front side of the machine is turned on. The Wireless LAN Access Point and your computer cannot communicate Check if the Wireless LAN switch on the front side of the computer is turned on. Check if the power of the Access Point is turned on.
  • Page 124 Getting help I cannot access the Internet Check the settings of the Access Point. See the manual of the Access Point. Check if your computer and the Access Point are communicating. Make the distance between the Access Point and your machine smaller. The maximum communication speed is not reached The maximum communication speed is 11 Mbps, but this can never be reached.
  • Page 125 Precautions Precautions This section describes safety guidelines and precautions to help you protect your computer from potential damage. Your notebook and memory modules use high precision components and electronic connectors technology. To avoid the invalidation of your guarantee by mishandling, it is recommended that: You contact your dealer to install a new memory module.
  • Page 126: Adding And Removing Memory

    Precautions Adding and removing memory* In the future you may want to change or add memory modules in order to expand the functionality of your computer. You can increase the memory by installing optional memory modules. Be careful when changing memory. Mistakes on installation or removal of the memory module may cause a malfunction.
  • Page 127 Precautions Do not place the memory module in places subject to: - Heat sources such as radiators or air ducts, - Direct sunlight, - Excessive dust, - Mechanical vibration or shock, - Strong magnets or speakers that are not magnetically shielded, - Ambient temperature of more than +35°C or less than +5°C, - High humidity.
  • Page 128 Precautions Removing and installing a memory module To change or add a memory module, proceed as follows: Shut down your computer and disconnect all peripheral devices. Unplug the computer and remove the battery packs. Wait until the computer cools down. Turn your computer upside down.
  • Page 129 Precautions Remove the new memory module from its packaging. Install the memory module by sliding it into the memory module slot, as shown. Press the module into place until it clicks. Close the computer cover. Tighten the screw on the bottom of the notebook. Turn on the computer.
  • Page 130 To view the amount of memory, proceed as follows: Turn on the computer. Go to Sony Notebook Setup via the Start menu. The Sony Notebook Setup dialog box appears. In the About this Computer tab you can view the amount of system memory. If the additional memory...
  • Page 131: Other Precautions

    Precautions Other precautions On handling the hard disk (page 131) On handling the LCD screen (page 131) On using power source (page 132) On handling your notebook (page 132) On handling floppy disks (page 134) On handling discs (page 134) On using the battery pack (page 134) On using headphones...
  • Page 132: On Handling The Hard Disk

    Precautions On handling the hard disk The hard disk has a high storage density and reads or writes data in a short time. On the other hand, it may be easily damaged by mechanical vibration, shock or dust. Although the hard disk has the safety device in itself to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling your computer.
  • Page 133: On Using Power Source

    Precautions The LCD is manufactured using high-precision technology. You may, however, see tiny black points and/ or bright points (red, blue, or green) that continuously appear on the LCD. This is a normal result of the manufacturing process and does not indicate a malfunction. Avoid rubbing the LCD screen, as this can damage the screen.
  • Page 134 Precautions Do not place your computer in a location subject to: Heat sources, such as radiators or air ducts, Direct sunlight, Excessive dust, Moisture or rain, Mechanical vibration or shock, Strong magnets or speakers that are not magnetically shielded, Ambient temperature of more than 35ºC or less than 10ºC, High humidity.
  • Page 135: On Handling Floppy Disks

    Precautions As you may lose important data once your computer is damaged, you should back up your data regularly. Restore the original application programs from the VAIO Recovery and Documentation Disc. On handling floppy disks Do not open the shutter manually or touch the surface of the floppy disk. Keep floppy disks away from magnets.
  • Page 136 Precautions Charge the batteries at temperatures between 10°C to 30°C. Lower temperatures require a longer charging time. While the battery is in use or being discharged, the battery pack heats up. This is normal and is not cause for concern. Keep the battery pack away from all sources of heat.
  • Page 137: On Using Headphones

    Precautions On using headphones Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.
  • Page 138 Glossary Glossary This section refers to terms used in this manual and elsewhere in the VAIO world. These terms and definitions have been compiled to provide you with a better understanding of your VAIO computer. Term <F1> key 10BASE-T/100BASE-TX ACPI BIOS CardBus CD-ROM...
  • Page 139 DVD-RW. The DVD+RW is a slightly different rewritable DVD format, backed by a group of companies known as the DVD+RW Consortium, which includes Sony. Its advantages include high- compatibility, high capacity and easy-to-use functionality. Like the DVD-RW, it can be rewritten about 1,000 times.
  • Page 140 The EULA can be found in the Read this first section at the beginning of the software guide or directly on the VAIO desktop. i.LINK™ is Sony’s version of the IEEE 1394 standard for high-speed digital serial interface. The standard is regarded in the audio/video and IT industries as the most suitable interface for connecting computers and digital audio/video devices (such as digital cameras etc.).
  • Page 141 Glossary Term Lithium-ion battery MAPI Maximum RAM Motherboard MPEG Operating system Partition Definition A lithium-ion battery uses lithium cobalt oxide and carbon as electrodes and ions move from one electrode to the other during charge and discharge. Lithium-ion batteries are the first choice for notebooks because of their light weight, high energy density and because they have no memory effect.
  • Page 142 Glossary Term PC Card PCMCIA Pixel Processor PS/2 PSTN Definition A PBX (Private Branch Exchange) is a private telephone network within an enterprise. Under this system, the calls between the enterprise members are local and the phone numbers are made up of 3 or 4 digits. Companies generally choose this phone system for internal communication because it is less expensive than the regular network.
  • Page 143 Glossary Term Resolution RGB signal cable SDRAM Standard RAM System recovery Definition Short for Random Access Memory, the memory used to run programs and store data in current use. RAM is the fastest kind of memory to read from and write to. Information stored in RAM is lost when you turn off the computer.
  • Page 144 You can connect up to 127 devices to a USB port. The USB standard is Hot Plug and Play. Short for Video Audio Integrated Operation. Brand name covering Sony's PC products, peripherals, accessories and software. VAIO-branded items are all designed to make the best use of Sony's Audio-Video (AV) and Information Technology (IT) skills.
  • Page 145 Sony, BlueSpace NE, DVgate, Giga Pocket, HotKey Utility, Memory Stick Formatter, PicoPlayer, PictureGear Studio, Network Smart Capture, SonicStage, Sony Notebook Setup, Sony Style Imaging, UI Design Selector, VAIO Action Setup, VAIO Edit Components, VAIO Media, VAIO System Information, VAIO Web Phone, Memory Stick, the Memory Stick logo, VAIO and the VAIO logo are trademarks of Sony Corporation.
