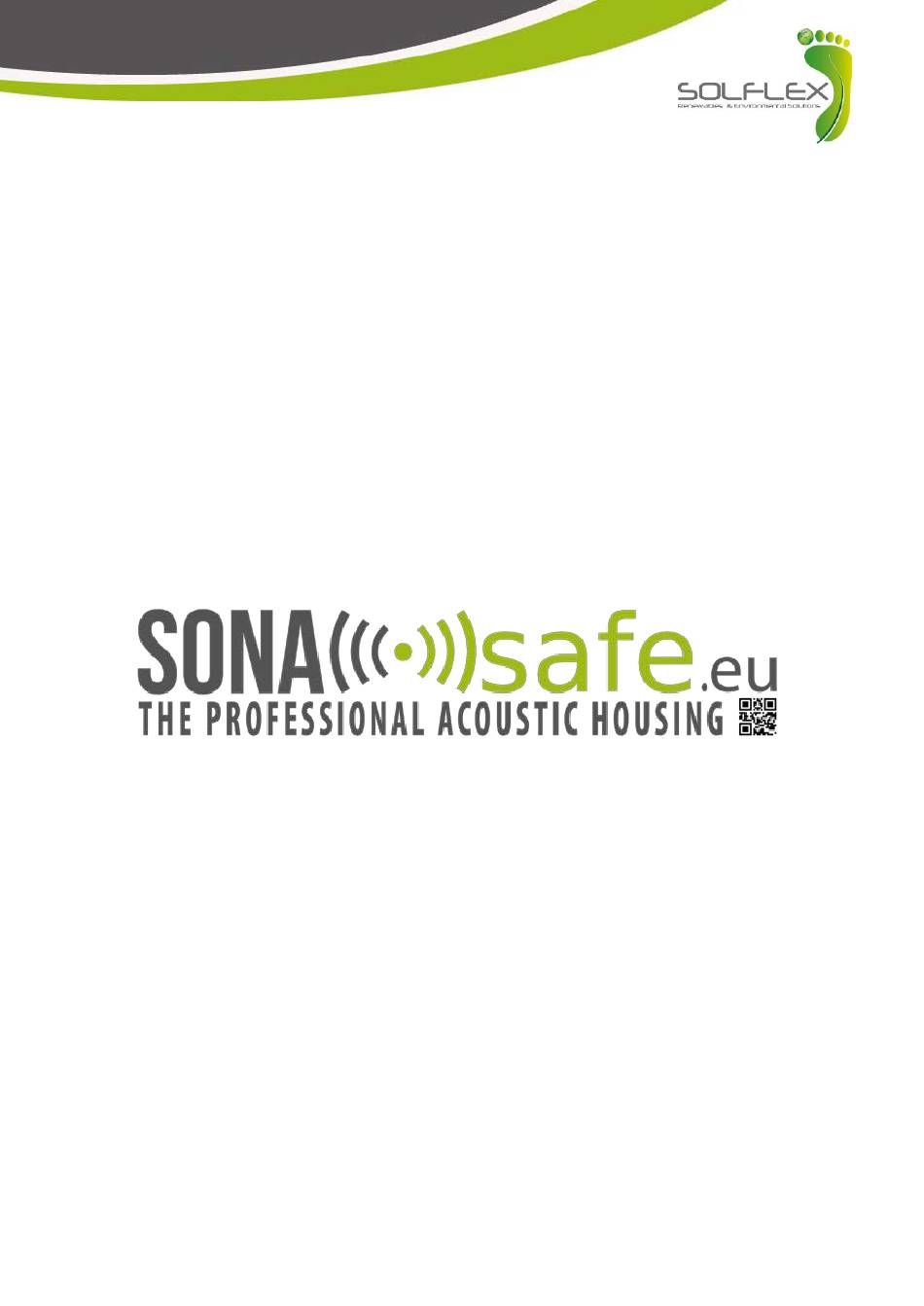

- Page 1 MANUAL SQV SERIE ENGLISH Version: 08/2018 Please read carefully and keep for future reference.
- Page 2 Solflex GmbH Am Feuerstein 282 2392 Wienerwald Austria T: +43223820336 E: office@solflex.eu www.solflex.eu ATU 65324348 FN 337206t Always observe all relevant standards and statutory regulations Subject to change without prior notice. All business transactions based on our Terms and Conditions, available at...
-
Page 3: Table Of Contents
Table of Content General Information ............4 Technical Description ............ 4 Sound level reduction ............ 6 Warranty ..............7 Safety ................. 7 Intended use ..............7 Safety instructions ............7 5.2.1 Risks during unloading and transportation ....... 7 5.2.2 Risks from electric power ..........7 5.2.3 Risk of damage to property and the environment ..... -
Page 4: General Information
General Information Solflex produces SonaSafe acoustic housing for a wide range of Heat Pump, Air Conditioning and Refrigeration systems. SonaSafe SQV* Serie Technical Description Professional sound reduction by double-walled enclosure in attractive, straight design. The housing serves mainly as a problem solution for all noise disturbances and compliance with all legal regulations (including statutory night rest). - Page 5 For units with horizontal air discharge Housing Max. Unit Dimensions Dimension SonaSafe Weight Principle [mm] [mm] [kg]520 Type SQV100NP 3400 1600 1600 2375 SQV200NP 3400 1600 3150 SQV210NP 3400 1600 On Demand 3925 1060 SQV220NP 3400 1600 SQV221NP 3400 4700 1600 1240 SQV222NP...
-
Page 6: Sound Level Reduction
Class 2 according to DIN EN ISO 3744, as third octave spectrum and octave spectrum. • Sound power measurement (MP2) of the Solflex SonaSafe acoustic enclosure with reference sound source inside the acoustic housing over a spherical envelope with 12 microphones. Acoustic data: Class 2 according to DIN EN ISO 3744, as third octave spectrum and octave spectrum. -
Page 7: Warranty
Warranty Risk of electric shock from electrostatic charge of housing: 24 month date of delivery Earth the device. Safety 5.2.3 Risk of damage to property In the event of improper operation or and the environment operation for a purpose other than the intended, there is however a risk of serious or even fatal injury to persons and a risk of damage to the unit and... -
Page 8: Product Delivery
Product delivery Upon delivery, inspect the product for damage caused during transport and ensure that the delivery is complete. Record any damage or missing parts on the transport documents. Complaints regarding obvious transport damage or incomplete deliveries cannot be considered if made too late. -
Page 9: Mounting
Mounting The silencer is placed on the device with at least 3 people or using an assembly lift and firmly screwed. (Self-adhesive foam tape and sheet metal screws are to be provided by the customer.) Please pay attention to a correct installation of the silencer on the outdoor unit, to ensure the functionality of the acoustic housing. - Page 10 The second step is to mount the base frame. After this the aluminium grille is placed with the white sound insulation panels, thereby guaranteeing the stability of the base frame for the next steps. Manual SQV Acoustic Housing Page 10 Version: 08/2018...
- Page 11 Manual SQV Acoustic Housing Page 11 Version: 08/2018...
- Page 12 The upper frame is manufactured precisely and can be screwed with the base frame with little effort. Manual SQV Acoustic Housing Page 12 Version: 08/2018...
- Page 13 Manual SQV Acoustic Housing Page 13 Version: 08/2018...
- Page 14 The doors are fitted with a rotary latch closure and are lockable. The panels are fastened with a rotating latch, which makes the system reversible from all sides. The build-up time for the sound and vandal protection per built-in device is about 1.5 hours with 2 men.
- Page 15 Manual SQV Acoustic Housing Page 15 Version: 08/2018...
-
Page 16: Foundation
Foundation The foundation must meet the relevant static and sound propagation requirements and must feature a proper drain for water. It must be level and smooth. The resonance frequency of the support structure must be distinctly different from the excitation frequency of the rotating machine components (Heat Pump, Air Conditioning and Refrigeration system). - Page 17 Notiz 1: The bottom side of the outdoor unit and the upper side of the foundation must be at the same level, whereupon the acoustic housing is placed. false The upper edge of the silencer will thus be at the same level as the upper edge of the sound-absorbing wall, and the connection between the outdoor unit and the silencer will be less stressed under extreme wind loads Manual SQV Acoustic Housing...
- Page 18 Housing Weight Dimensions Fundament Total Dimensions wall / Weight SonaSafe [mm] Weight [mm] Type Meter [kg] [kg] [kg] SQVY100NP 3800 1600 1600 1800 1800 SQVY200NP 3800 2375 1600 1800 2575 SQVY210NP 3800 3150 1600 1800 3350 SQVY220NP 3800 3925 1600 1140 1800 4125...
-
Page 19: Installation Of Heat Pump
Installation of Heat show signs of corrosion, with repair paint. Pump, Air Conditioning and Clean the unit thoroughly to • Refrigeration outdoor unit remove all construction dust and other dirt. The correct installation position of the Prior to shipping, each unit is •... - Page 20 Then you can contact us at any time.We endeavor to process your request quickly and will immediately contact you. www.sonasafe.eu www.solflex.eu Solflex GmbH, Am Feuerstein 282, UID ATU65324348, FN 337206t, 2392 Wienerwald, Austria, Gerichtsstand Wiener Neustadt, +43223820336, office@solflex.eu, www.solflex.eu Austria All business transactions based on our Terms Erste Bank AG, IBAN AT702011129323600200, and Conditions, available at www.solflex.eu.
