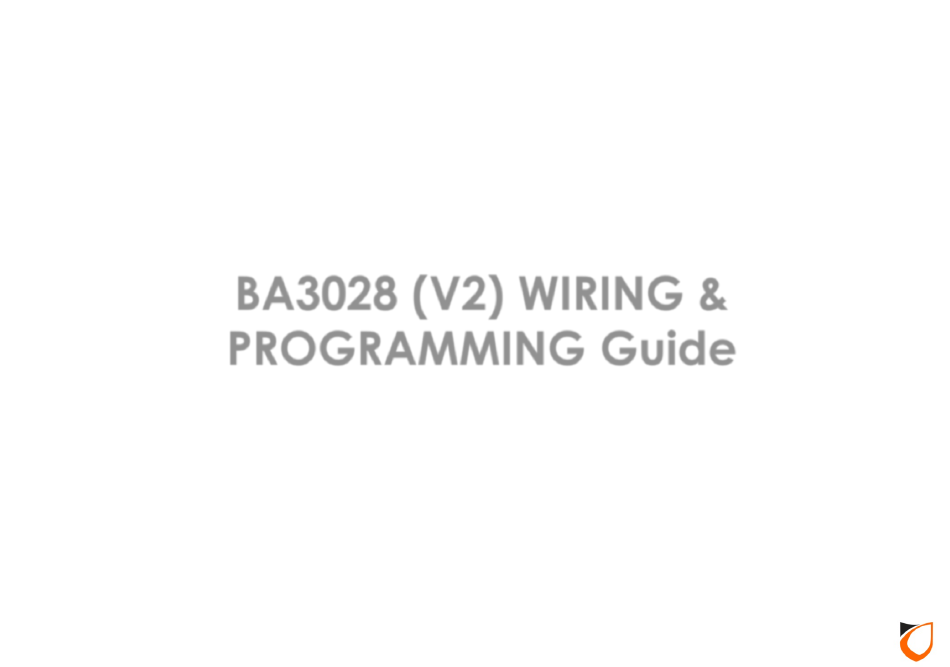

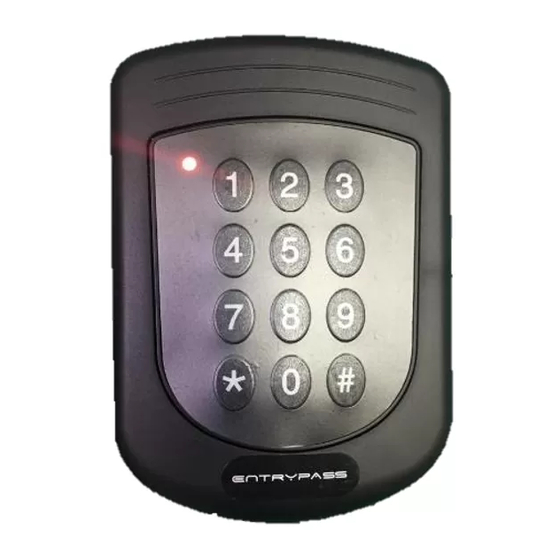

- Page 1 BA3028 (V2) WIRING & PROGRAMMING Guide Version: 1.02 Last Updated: 29-05-2017 ENTRYPASS TECHNICAL – WIRING GUIDE Copyright © Entrypass Corporation...
-
Page 2: Before You Begin
Should you need additional information, please call our Technical Support Help desk, Monday to Friday 9:00 AM to 6:00 PM (GMT +8:00) Method Details Phone + 60 (3) - 8068 1929 Fax + 60 (3) - 8068 1922 Internet www.entrypass.net Email support@entrypass.net ENTRYPASS TECHNICAL – WIRING GUIDE Copyright © Entrypass Corporation... -
Page 3: Considerations Prior To Installation
Considerations Prior to Installation Preparing Your EntryPass Controllers EntryPass controller contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please follow the instruction below: •Observe precautions while handling the circuit board assembly by using proper grounding straps and handling precautions at all •Visually ensure no onboard parts is broken, damage or contains burn mark... - Page 4 Power Supply Unit Specification ENTRYPASS Power Supply Unit Specification: • Switching Power Supply • 12V DC • 3 Amp (Minimum) ENTRYPASS TECHNICAL – WIRING GUIDE Copyright © Entrypass Corporation...
- Page 5 BA3028 Wiring Diagram HB0312 ENTRYPASS TECHNICAL – WIRING GUIDE Copyright © Entrypass Corporation...
- Page 6 Reader Mode Access Control Mode Wiegand 26/21 Bits Wiegand 44/41 Bits Wiegand 6 Bits Wiegand 8 Bits If you want to connect this reader to any Entrypass controllers, please remove jumper JP1 ENTRYPASS TECHNICAL – WIRING GUIDE Copyright © Entrypass Corporation...
- Page 7 BA3028 Programming Mode BA3028 (V2) QUICK PROGRAMMING GUIDE (Default Master Code: 111111) 1000 Card Users 01. Cold Start (Reset) 04. Install Card (Following Enroll) - Off Power - Enter Master Code (6 digits) - Press * and # (hold together)
- Page 8 - Enter new PIN number (4 digits) - Scan any user card - Press # x 2 (to exit operation) - Press * + 2 - Press # x 2 (to exit operation) ENTRYPASS TECHNICAL – WIRING GUIDE Copyright © Entrypass Corporation...
- Page 9 - Enter [01-99 sec] (2 digits, 00-non - Press 3 stop) - Enter [01-99 sec] (2 digits) - Press # x 2 (to exit operation) - Press # x 2 (to exit operation) ENTRYPASS TECHNICAL – WIRING GUIDE Copyright © Entrypass Corporation...
- Page 10 - Key in 8 digits card number + # x 2 (continuous this step if more than one card. The leading number is ‘zero’ can be omitted) - Press # x 2 (to exit operation) ENTRYPASS TECHNICAL – WIRING GUIDE Copyright © Entrypass Corporation...
-
Page 11: Cabling Information
1 memory for the MINI controller HB0312 to Door Contact 22AWG, 1 Pair first time you turn Sensor (100 ft) connected to the PC on the power communicator ENTRYPASS TECHNICAL – WIRING GUIDE Copyright © Entrypass Corporation...
