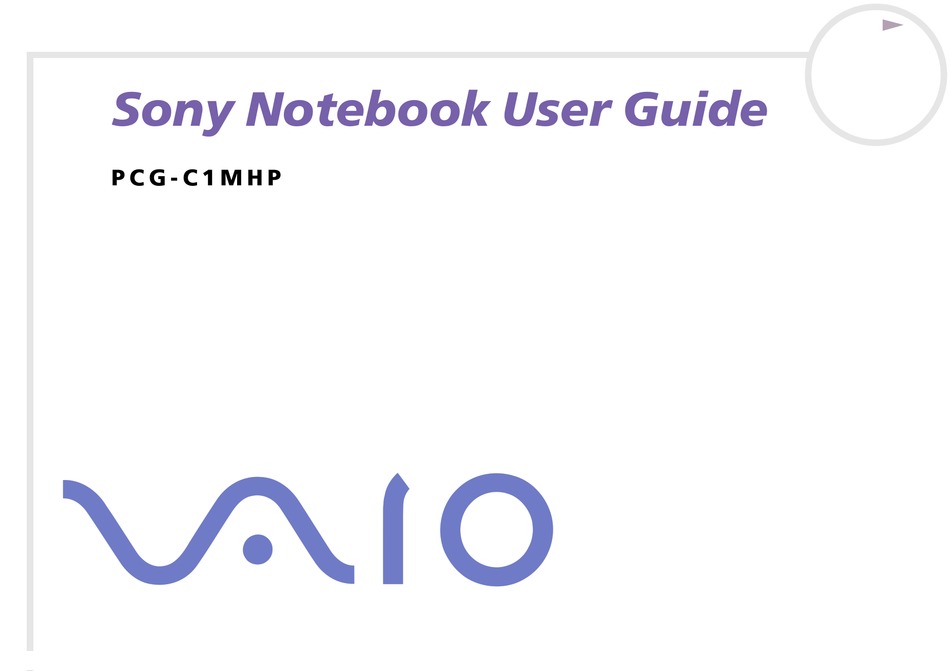

  • Page 1 Sony Notebook User Guide P C G - C 1 M H P...

  • Page 2: Read This First

    Macrovision Corporation. Reverse engineering or disassembly is prohibited. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.
  • Page 3 Read this first Trademarks Sony, BlueSpace, DigitalPrint, DVgate, i.LINK, Jog Dial Navigator, MovieShaker, Smart Capture Premium, SonicStage, Sony Notebook Setup, UI Design Selector, VAIO Edit Components, Memory Stick, the Memory Stick logo, VAIO and the VAIO logo are trademarks of Sony Corporation.

  • Page 4: Safety Information

    Owner's record The serial number and model number are located on the bottom of your Sony notebook. Record the serial number and the model number in the spaces provided here. Refer to the model number and serial number if you call VAIO-Link.
  • Page 5 Do not use the modem or a telephone to report a gas leak in the vicinity of the leak. To change the backup battery, please contact your nearest Sony Service Center. Before you connect peripherals, turn off the computer and all peripherals.
  • Page 6 Read this first Connectivity Never install modem or telephone wiring during a severe lightning storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Be cautious when installing or modifying telephone lines. Use your notebook only with the supplied AC adapter. To disconnect your notebook completely from mains voltage, unplug the AC adapter.

  • Page 7: Regulatory Information

    Read this first Regulatory information Sony hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the European Directive 1999/5/EC (radio equipment and telecommunication terminal equipment Directive). This product complies with EN 55022 Class B and EN 55024 for use in following areas: residential, commercial and light-industrial.
  • Page 8 Read this first Disposing of lithium ion batteries Do not handle damaged or leaking lithium ion batteries. Dispose of promptly and properly at end-of-life. Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
  • Page 9 Portability - The rechargeable battery pack provides hours of use without AC power. Sony audio and video quality - A high-resolution LCD screen enables you to take advantage of today’s advanced multimedia applications, games, and entertainment software. Multimedia features – Enjoy audio and video CDs.

  • Page 10: Documentation Pack

    A Bluetooth Safety flyer applying to the Bluetooth™ function. Online documentation The Sony Notebook User Guide: Using your notebook shows you how to use the standard components of your system. In this part of the manual you will also find out what you can do with a Memory Stick™.
  • Page 11 Welcome Refer to your Software Guide for information on the bundled software and the Sony applications. About the Software is a short description of the features of the software pre-installed on your system. Using Video software explains how to use Sony video software: DVgate, MovieShaker and Smart Capture Premium.
  • Page 12 Welcome Your notebook and its accessories The following hardware items* are in the box : Main unit Rechargeable battery pack AC adapter Power cord Product recovery CD-ROMs Documentation pack * See the Specifications online document. Port replicator AV cable i.LINK™ CD-RW/DVD-ROM drive Phone cable Phone plug Pointing stick covers...

  • Page 13: Ergonomic Considerations

    Welcome Ergonomic considerations You will be using your notebook as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments: Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touchpad, or external mouse.
  • Page 14 Welcome Viewing angle of the computer’s display – Use the display’s tilting feature to find the best position. You can reduce eyestrain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well. Lighting –...

  • Page 15: Table Of Contents

    Using your notebook Using your notebook This section describes how to start using your computer and how to use your computer’s internal and external devices. Locating controls and connectors Connecting a power source Starting your notebook Shutting down your notebook Using the keyboard Using the pointing device Using Jog Dial™...

  • Page 16: Locating Controls And Connectors

    Using your notebook Locating controls and connectors Right Headphone connector (page 65) Microphone connector (page 66) Port replicator connector (page 58) USB connector (page 67) DC In (page 19) Phone line jack (page 51)
  • Page 17 Using your notebook Left S400 i.LINK™ connector VAIO peripheral original DC connector PC Card slot Release button Ventilation slot There is a ventilation slot located near the PC Card slot. Do not cover the ventilation slot when the notebook is in use. (page 72) (page 74) (page 40)
  • Page 18 Using your notebook Front Built-in camera (Motion Eye) Microphone Bluetooth™ switch Pointing device Speakers Touchpad buttons MagicGate Memory Stick™ slot window MagicGate Memory Stick™ indicator Num Lock indicator Caps Lock indicator Scroll Lock indicator Power button Jog Dial™ Capture button (Smart Capture Premium) / Power indicator Battery indicator Hard disk drive indicator...
  • Page 19 Using your notebook Bottom Battery release lever Battery connector Battery lock lever Reset switch (page 22) (page 20) (page 20)

  • Page 20: Connecting A Power Source

    Using your notebook Connecting a power source You can use either an AC adapter or a rechargeable battery pack as a power source. Using the AC adapter To use the AC adapter, proceed as follows: Plug the cable attached to the AC adapter (1) into the DC In connector (2) on the computer. Plug one end of the power cord (3) into the AC adapter.

  • Page 21: Using The Battery Pack

    Using your notebook Using the battery pack You can use a battery as a source of power. Additional battery packs are available as a separate option. The battery pack supplied with your computer is not fully charged at the time of purchase. Inserting the battery pack To insert the battery, proceed as follows: Move the lock lever (1) on the bottom of the...
  • Page 22 Using your notebook Charging the battery pack To charge the battery pack, proceed as follows: Connect the AC adapter to the computer. Insert the battery pack. The computer automatically charges the battery (the battery indicator (1) light flashes in a double blink pattern as the battery charges).

  • Page 23: Removing The Battery Pack

    Using your notebook The battery pack supplied with your computer is a lithium ion battery and can be recharged any time. Charging a partially discharged battery does not affect battery life. The battery indicator light is on while you use the battery pack as a power source. When the battery life is nearly depleted, both the battery and power indicator start flashing.

  • Page 24: Starting Your Notebook

    Using your notebook Starting your notebook To start your computer, proceed as follows: Hold the bottom of the computer firmly and open the cover. Press the power button (1) of the computer until the green power indicator light (2) turns on. If necessary, press <Fn>+<F5>...

  • Page 25: Shutting Down Your Notebook

    Using your notebook Shutting down your notebook It is important that you shut down your computer properly so you do not lose unsaved data. To shut down your computer, proceed as follows: Click the Start button. Click Turn Off Computer. The Turn off computer screen appears.

  • Page 26: Using The Keyboard

    Using your notebook Using the keyboard Your keyboard is very similar to a desktop computer’s, but has additional keys that perform specific notebook-related tasks. Enter...
  • Page 27 Using your notebook Keys Escape key (1) Function keys (2) Print Screen key (3) Correction keys (4) Navigation keys (5) Operator keys (6) Application key (7) Numeric keypad area (8) ® Windows key (9) <Fn> key (10) Descriptions The <Esc> (Escape) key is used to cancel commands. The twelve function keys along the top of the keyboard are used to perform designated tasks.
  • Page 28 Using your notebook Combinations and functions with the <Windows> key Combinations + F1 + Tab + Ctrl + F Shift + <Fn> + + Insert Functions Displays Help and Support Center. Switches the selected button on the taskbar. Displays My Computer. Displays the Search Results window to find a file or folder.
  • Page 29 Using your notebook Indicators Indicator Power Battery Memory Stick™ Bluetooth™ Light hard disk Num Lock Caps Lock Scroll Lock Functions Power on: lights green. Standby mode: flashes umber. Hibernate mode: turns off. Indicates the status of the battery inserted in the battery bay.

  • Page 30: Speakers

    Using your notebook Combinations and functions with the <Fn> key Combinations/Feature <Fn>+ (ESC): Standby <Fn>+ (F3): speaker switch <Fn> + (F4): speaker volume <Fn> + (F5): brightness control <Fn>+ (F7)*: switch to the external display <Fn> + (F8)* <Fn>+ (F12): Hibernate * These functions can only be used by the first user to log in.

  • Page 31: Using The Pointing Device

    Using your notebook Using the pointing device The stick on the keyboard is a cursor-pointing device. You can point to, select, drag, and scroll objects on the screen using the stick. Action Description Point Press the stick (1) in the appropriate direction to position the pointer (2) on an item or object.

  • Page 32: Using Jog Dial

    Using your notebook Using Jog Dial™ Your computer is equipped with a Jog Dial™ (1). You can turn (2) and press (3) the Jog Dial™ to scroll the window, select software, adjust the internal speaker volume, and so on.
  • Page 33 Using your notebook To get to the Jog Dial Navigator software, click Start, All Programs, then Jog Dial Navigator, and choose the feature you want. The Jog Dial Navigator software includes the following features: Dial Up Tool Folder Browser Jog Dial Setting PowerPanel VAIO Setting Window Switcher...
  • Page 34 Using your notebook Starting Jog Dial Navigator To launch Jog Dial Navigator, proceed as follows: Press the Jog Dial™. Double-click the Jog Dial Navigator icon The Jog Dial Indicator window appears at the top of the screen Right-clicking the Jog Dial Navigator icon in the taskbar will give you additional options. Using the Indicator window This window is the initial window of Jog Dial Navigator and can be displayed on the desktop at all times.
  • Page 35 Using your notebook LCD area Close button Jog Dial Navigator icon Switching modes When you are working in an application supporting the Jog Dial Navigator functions, you can use either Scroll mode or Application mode. By switching modes, you change the functions that can be performed using the Jog Dial™.
  • Page 36 Using your notebook Application mode To switch from Scroll mode to Application mode, proceed as follows: Press the Jog Dial™. Click APPS in the Indicator window. This mode is used for operations other than scrolling. Depending on the application you are working in, you will see either the Jog Dial Navigator or the Jog Dial Guide displayed on the right-hand side.
  • Page 37 Using your notebook Software not supporting Jog Dial Navigator Even if the software in use does not support the Jog Dial Navigator functions, you can scroll the window or adjust the window size. Action Turn the Jog Dial™ Press the Jog Dial™ Press <Alt>...
  • Page 38 Using your notebook Using the Jog Dial Launcher To start the Jog Dial Launcher, proceed as follows: In the Indicator window, click the arrow icon on the left Click the Jog Dial Navigator symbol on the right The Jog Dial Launcher window appears. Rotate the Jog Dial™...
  • Page 39 Using your notebook Changing Jog Dial Navigator settings You can change the operation and display of the Jog Dial Navigator with the options in Jog Dial Setting. To display the Jog Dial Setting dialog box, proceed as follows: Right-click the Indicator window or the Jog Dial Navigator icon Setting from the menu.
  • Page 40 Using your notebook Click on a tab to display the setting items. Activity mode tab Activity setting tab Display/Sound tab Activity mode settings are enabled after you reboot your computer. Using both scroll and application function (normal activities): This is the normal activity mode setting for Jog Dial Navigator.

  • Page 41: Using Pc Cards

    Using your notebook Using PC Cards Your computer includes a PC Card slot. PC Cards allow you to connect portable external devices. Inserting a PC Card To insert a PC Card, proceed as follows: Insert the PC Card into the PC Card slot with the front label facing up (1). Gently push the PC Card into the slot until the PC Card is fixed into the connector.

  • Page 42: Release Button

    Using your notebook Removing a PC Card If you unplug this device from the computer when turned on, your system might crash and you might lose unsaved data. If your computer is turned off, you do not have to follow these instructions. To remove a PC Card, proceed as follows: Double-click the Safely Remove Hardware icon in the taskbar.

  • Page 43: Using Memory Stick

    The generic Memory Stick™, coloured blue. The MagicGate Memory Stick™, coloured white. You can purchase Memory Sticks™ from the Sony Style website (http://www.sonystyle-europe.com), or from your local Sony dealer. Why Memory Stick™? Sony's vision is to expand the world of communication, promoting the portability of digital data. The Memory Stick™...
  • Page 44 Using your notebook The main advantages of the Memory Stick™ are its: Compactness: with dimensions of just 21.5 mm (W) x 2.8 mm (H) x 50 mm (D), compatible products can also be small, lightweight and attractive in their design. Capacity: Its data capacity far exceeds that of a floppy disk.
  • Page 45 Using your notebook Generic Memory Stick™ The original Memory Stick™, blue in colour, can be used to record image data taken with digital still cameras, etc. or data from the PC. With it, you can record, play back and transfer various kinds of data at any given time.
  • Page 46 MagicGate is a copyright protection technology that complies with the standards set by SDMI (Secure Digital Music Initiative, an organization working to draw up industry standard specifications in order to protect copyrights of digital music). logo indicates the copyright protection system devised by Sony. It is not meant to guarantee compatibility with other media.
  • Page 47 (SDMI) to study technology for protecting copyrights during the electronic distribution of music. Sony offers the MagicGate Memory Stick™ and Memory Stick™ Walkman with a copyright protection function that complies with SDMI standards, thereby providing an environment where individuals can record and enjoy third-party music data without worrying about copyright infringement.
  • Page 48 There are nearly 80 Memory Stick™-enabled products on the market or announced for introduction world- wide, ranging from camcorders and portable music players to voice recorders and many other electronic devices. You can currently use Memory Sticks™ with the following Sony products: Visual: Cybershot digital camera...
  • Page 49 Using your notebook Write-protecting a Memory Stick™ Memory Sticks™ are designed with an erasure prevention switch to protect valuable data from accidental erasure or overwriting. Move the tab to the right or left* to set or release write-protection. When the erasure prevention switch is off, data can be saved on the Memory Stick™.
  • Page 50 Using your notebook Inserting a Memory Stick™ To insert a Memory Stick™, proceed as follows: Gently insert your Memory Stick™ (1) until it clicks into place. When the Memory Stick™ is connected properly, you can see its contents by clicking the Removable Disk icon in My Computer.

  • Page 51: Removing A Memory Stick

    Using your notebook Hold the Memory Stick™ with the arrow pointing in the correct direction when you insert it into the slot. To avoid damaging the computer or the Memory Stick, do not force the Memory Stick into the slot if it does not insert smoothly. If your computer is in Ultimate Battery Life mode, Memory Stick™...

  • Page 52: Using The Modem

    Using your notebook Using the modem Your notebook is equipped with an internal modem. You need to connect to a phone line to take advantage of online services and the Internet, as well as to register your computer and software online, and to contact VAIO-Link. To connect a phone line, proceed as follows: Plug one end of the phone cable (1) into the phone line jack on the computer.

  • Page 53: Using The Correct Phone Plug

    Using your notebook Using the correct phone plug If there are two phone plugs in the box, make sure you use the correct one for the country you are in, as follows: UK: The connector can be identified by its cuboid shape and flat pins.

  • Page 54: Using Power Saving Modes

    Using your notebook Using power saving modes When you use a battery as the source of power for your computer, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate mode.

  • Page 55: Using Hibernate Mode

    Using your notebook To return to Normal mode, proceed as follows: Press any key. Using Hibernate mode The state of the system is saved on the hard disk and power is turned off. The power indicator light is off in this mode.

  • Page 56: Using The Bluetooth™ Functionality

    Using your notebook Using the Bluetooth™ functionality The Bluetooth™ wireless technology enables you to establish a wireless communication between your notebook and other Bluetooth™ devices such as a notebook, a mobile phone or a modem station without any cable within a 10 to 100 metres range in open space. All Bluetooth™...
  • Page 57 Using your notebook Bluetooth™ security The Bluetooth™ wireless technology has an authentification function which allows you to make sure with whom you communicate. With the authentification function, you can prevent any anonymous Bluetooth™ device from accessing your notebook. The first time two Bluetooth™ devices communicate, a common Passkey should be determined for both devices to be registered.

  • Page 58: Connecting Peripheral Devices

    Connecting peripheral devices Connecting peripheral devices You can add functionality to your computer by connecting or using any of these peripherals. Before you connect peripherals, turn off the computer and all peripherals. Connect the power cord only after connecting all cables. Turn on the computer only after turning on all peripherals.

  • Page 59: Connecting A Port Replicator

    Connecting peripheral devices Connecting a port replicator Your notebook supports the use of a bundled port replicator. Attaching a port replicator enables you to connect additional peripherals to your computer, such as an external display. A/V IN connector (page 63) A/V OUT connector (page 63) USB port...
  • Page 60 Connecting peripheral devices Attaching your computer to the port replicator To attach your computer to the port replicator, proceed as follows: Open the port replicator connector (1). Connect the port replicator plug into the port replicator connector. If you cannot use the connectors on the port replicator, shut down the computer and restart it.
  • Page 61 Connecting peripheral devices Disconnecting your computer from the port replicator To disconnect your computer from the port replicator, proceed as follows: Disconnect the port replicator plug (1) from the port replicator connector by pressing its sides. Close the port replicator connector cover.

  • Page 62: Connecting An External Display

    Connecting peripheral devices Connecting an external display You can connect an external display to your notebook. For example, you can use your computer with the following devices: Computer display; Projector. Turn off your computer and the peripherals, unplug the AC adapter and the power cord before connecting the external display. Connect the power cord after connecting all other cables.
  • Page 63 Connecting peripheral devices Connecting a computer display You can connect a computer display (monitor) directly to your notebook. To connect a computer display (monitor), proceed as follows: Plug the supplied port replicator into the notebook’s port replicator connector (1). Plug the display cable into the port replicator’s monitor/VGA connector (2). If necessary, plug one end of the display power cord (3) into the display, and the other end (4) into an AC outlet.

  • Page 64: Connecting A Tv

    Connecting peripheral devices Connecting a TV You can connect a TV to your notebook. To connect a TV to your notebook, proceed as follows: Plug the supplied port replicator into the notebook’s port replicator connector. Plug the supplied AV cable (1) into the port replicator’s AV out connector (yellow). Plug the three-pin jack of the AV cable to the TV as shown below.

  • Page 65: Connecting A Projector

    Connecting peripheral devices Connecting a projector You can connect a projector (such as the Sony LCD projector) directly to your notebook. To connect a projector, proceed as follows: Plug the supplied port replicator into the notebook’s port replicator connector. Plug the display signal cable (1) into the VGA Out connector of the port replicator.

  • Page 66: Headphone Connector

    Connecting peripheral devices Connecting external speakers You can enhance the sound quality of your computer by connecting external speakers. To connect external speakers, proceed as follows: Plug the speaker cable (1) into the earphone connector (2). Plug the other end of the speaker cable into the external speaker. Turn down the volume of the speakers before you turn them on.

  • Page 67: Microphone Connector

    Connecting peripheral devices Connecting an external microphone Your VAIO notebook contains an internal microphone. If you need to use a sound input device, for example to chat on the Internet, you can also plug in an external microphone. To connect an external microphone, proceed as follows: Plug the microphone cable (1) into the microphone connector (2) identified by the symbol.

  • Page 68: Usb Connector

    To connect a USB mouse, proceed as follows: Plug the USB cable (1) into the USB connector (2) identified by the symbol. You can connect the optional Sony USB mouse (PCGA-UMS1 series). As the driver for this mouse is preinstalled on your computer, you can use the mouse by just connecting it.
  • Page 69 Connecting peripheral devices Connecting a USB floppy disk drive You can connect a floppy disk drive to the USB connector on your computer. Connecting a floppy disk drive To connect a USB floppy disk drive, proceed as follows: Plug the floppy disk drive cable (1) into the USB connector (2) identified by the symbol.
  • Page 70 Connecting peripheral devices Inserting a floppy disk To insert a floppy disk, proceed as follows: Hold the disk (1) with the label side facing up. Gently push the disk into the drive (2) until it clicks into place. Removing a floppy disk To remove a floppy disk, proceed as follows: When you have finished using the floppy disk, wait until the LED indicator (1) turns off and then press the eject button (2) to remove the disk.
  • Page 71 Connecting peripheral devices Removing a floppy disk drive If the floppy disk drive is not removed properly, your system may crash and you may lose data that you did not save before. To remove the floppy disk drive, proceed as follows: If your computer is off, you can directly unplug the USB cable from the computer.

  • Page 72: Connecting A Printer

    Connecting peripheral devices Connecting a printer You can connect a Windows Connecting a printer using the USB connector You can connect a USB printer compatible with your version of Windows To connect a printer using the USB connector, proceed as follows: Plug an optional USB printer cable (1) into the USB connector on your notebook.

  • Page 73: Connecting An I.link™ Device

    Connecting peripheral devices Connecting an i.LINK™ device Your computer includes an i.LINK™ (IEEE1394) connector, which you can use to connect to an i.LINK™ device such as a digital video camera recorder or to connect two VAIO notebooks in order to copy, delete or edit files.

  • Page 74: Connecting A Digital Video Camera Recorder

    On Sony digital video cameras, connectors labeled DV Out, DV In/Out or i.LINK™ are i.LINK™-compatible. The Sony digital video camera recorder is an example; your digital video camera recorder may need to be connected differently. If your digital video camera recorder includes a Memory Stick™ slot, you can copy images from it to your computer via a Memory Stick™. To do so,...

  • Page 75: S400 I.link™ Connector

    Connecting peripheral devices Connecting two VAIO notebooks You can copy, edit or delete files on another VAIO computer to your computer with an optional i.LINK™ cable. If the second computer has the Windows the second computer has a different operating system (e.g., Windows application such as Smart Connect.
  • Page 76 Connecting peripheral devices Using the DVD function To achieve optimum performance when playing DVD-ROM discs, you should follow these recommendations. You can play DVDs using the DVD-ROM drive and the WinDVD software. See the help file on the WinDVD software for details. Close all open applications before playing a DVD-ROM movie.
  • Page 77 Connecting peripheral devices Using the CD-RW function To burn CDs, you can use CD-RW and CD-R discs: The CD-RW (CD-ReWritable) disc is a data memory medium that can be used to write, erase and rewrite a program or other data. The CD-R (CD-Recordable) disc is a data memory medium that can be used to write a program or other data, but once only.

  • Page 78: Connecting To A Network (Lan)

    Connecting peripheral devices Connecting to a network (LAN) Your port replicator contains an Ethernet connector. You can connect your computer to 10BASE-T/100BASE- TX-type networks via an Ethernet network cable. For the detailed settings and devices needed to connect to the network, consult your Network Administrator. For more information about connecting your notebook to the network, please consult the Hardware troubleshooting section of the Vaio-Link website: How to troubleshoot network problems Do not plug a phone cable into the Ethernet network connector.

  • Page 79: Getting Help

    Getting help Getting help This section describes how to get help and support from Sony, and provides troubleshooting tips for your computer. Sony support options Sony provides several support options for your computer. Printed documentation supplied with your notebook The printed part of your documentation contains: A Getting Started brochure, where you will find a brief description of the items in your box, some specifications of your notebook, and how to setup your notebook;...
  • Page 80 Precautions provides facts and advice about using your notebook. Glossary refers to terms used in this manual. Refer to your Software Guide for information on the bundled software and the Sony applications. About the Software is a short description of the features of the software pre-installed on your system.

  • Page 81: Other Sources Of Information

    Getting help Refer to the Microsoft Quick Start manual for more information on Windows Go to http://www.club-vaio.sony-europe.com Other sources of information The Online help files that accompany your pre-installed software contain instructions on using the software. VAIO-Link website: if you have any problem with your computer, you can access the VAIO-Link web site.

  • Page 82: Troubleshooting

    Getting help Troubleshooting This section describes how to solve common problems you might encounter when using your notebook. Many problems have simple solutions. Please, try these suggestions before contacting VAIO-Link. About the computer and software About the Bluetooth™ technology About the display About CD-ROMs and diskettes About the MOTION EYE camera About sound...

  • Page 83: About The Computer And Software

    If the floppy disk drive is empty, proceed as follows to initialize the BIOS: Turn off the computer. Remove any peripheral devices connected to the computer. Turn on the computer and press <F2> when the Sony logo appears. The BIOS setup menu screen appears. Set the date (month/day/year).
  • Page 84 Getting help Press the arrow keys to select System Time. Set the time (hour:minute:second). Press Enter. Press the arrow keys to select the Exit menu. Press the arrow keys to select Get Default Values and then press <Enter>. The message Load default configuration now? appears.
  • Page 85 A « drift » has occurred. This is not a malfunction. The pointer will stabilize if you do not touch the stick for a few seconds. My mouse does not work If you are using an optional Sony USB mouse, check that the appropriate driver and software are properly installed. Check that the USB mouse is plugged into the USB connector.
  • Page 86 Getting help The key top comes off Put it back where it was and press it until it clicks. If you take off the key top intentionally or press it excessively when you replace it, it may cause a malfunction. Handle it with care.

  • Page 87: Bluetooth™ Switch

    Getting help About the Bluetooth™ technology I cannot use the Bluetooth™ function If the Bluetooth™ LED is off, turn on the Bluetooth™ switch located on the front of your notebook (just above the <F6> key). You cannot use the Bluetooth™ function when the computer is in a power saving mode. Return to normal mode, then turn on the Bluetooth™...
  • Page 88 Getting help To check if your device role is Master, proceed as follows: In the BlueSpace window, click the Setup button displayed above your unit. The Bluetooth Setup window appears. In the Properties tab, check that the role is Master. If the role is Slave, you will have to disconnect and restart the connection or it will not be possible to communicate with other devices.
  • Page 89 Getting help I cannot stop the Bluetooth™ function Turn on the Bluetooth™ switch located on the front of your notebook (just above the <F6> key). If the above method does not work, press the power button and hold it for at least four seconds. This turns off the power.

  • Page 90: About The Display

    Getting help About the display My LCD does not display anything Check that the computer and display are both plugged into a power source and that they are turned on. Check that the power indicator on the front panel of the computer is on. Check that the battery packs are inserted properly and that they are charged.

  • Page 91: About Cd-Roms And Diskettes

    Getting help About CD-ROMs and diskettes My CD-RW/DVD-ROM drive tray does not open Make sure the computer is turned on. Press the eject button on the disc drive. If the eject button does not work, you can open the tray by inserting a sharp, pointed object into the hole to the right of the eject button.
  • Page 92 Getting help Make sure the mute setting is off on your DVD player. Check the master volume setting of the Volume Control. If you have connected speakers externally, check the volume settings of your computer speakers and check the connections between your speakers and the computer.
  • Page 93 Getting help When I double-click an application icon a message such as 'You must insert the application CD into your CD- ROM drive' appears and the software does not start. Some titles require specific files that are located on the application CD-ROM. Insert the disc and try starting the program again.

  • Page 94: About The Motion Eye Camera

    Getting help About the MOTION EYE camera There is a vertical line when shooting a bright subject with a dark background using MOTION EYE This is a phenomenon called “smear”. It is not a malfunction. The image in the view finder of Smart Capture is rough If you are shooting a subject in rapid movement, there may be a gap.

  • Page 95: About Sound

    Getting help About sound My speakers are not producing sound The built-in speakers may be turned off. Press <Fn>+<F3> to turn on the speakers. The speaker volume may be turned to the minimum. Press <Fn>+<F4>, and then press the volume. If your computer is powered by battery, check that the battery is inserted properly and that it is charged.
  • Page 96 Getting help I hear noise when I am listening to music through USB speakers/headphones You have to set the CPU monitoring tool to Performance or Battery Life by using the PowerPanel software available on your notebook. To set the CPU Control to Performance, proceed as follows: Right-click the CPU icon in the tasktray and click Edit/Create Profiles…...

  • Page 97: About The Modem

    Getting help About the modem My internal modem does not work Check that the phone line is plugged into your computer. Check that the phone line is working. You can check the line by plugging in an ordinary phone and listening for a dial tone.

  • Page 98: About Peripherals

    Use manual import/export in DVgate motion if problems occur with third party cameras. You are strongly advised to use only Sony i.LINK™ cables, as using other brands may cause problems with the i.LINK™ devices.
  • Page 99 Getting help I cannot print Check that the printer cables are correctly connected. Check that your printer is correctly configured and that you have up-to-date drivers. If needed, contact your dealer. The default setting for the printer port mode is correct for most printers. If you cannot print, try changing the printer port mode in the Device Manager.

  • Page 100: About Usb Devices

    Getting help About USB devices There is noise when I am listening to music through USB speakers/headphones To stop the noise, proceed as follows: Right-click the CPU icon in the system tray and click Edit/Create Profiles… from the menu. The Profile Editor window appears. Double-click CPU Control –...

  • Page 101: About Digital Video Captures And Dvgate

    Getting help About digital video captures and DVgate While I am recording images to a digital video device using DVgate, my system displays the message 'Recording to DV device failed. Check the power and cable connections to the DV device and try the operation again...' Close all open applications and restart your computer.

  • Page 102: About I.link™ Devices

    Getting help About i.LINK™ devices I cannot establish an i.LINK™ connection between two VAIO computers Disconnect then reconnect the i.LINK™ cable. If you still have no connection after waiting for a while, restart both computers. If either computer has just returned from a power saving mode, the connection may be affected. In this case, make sure you perform a full restart before connecting them.

  • Page 103: Adding And Removing Memory

    Precautions Precautions This section describes safety guidelines and precautions to help you protect your computer from potential damage. Your notebook and memory modules use high precision components and electronic connectors technology. To avoid the invalidation of your guarantee by mishandling, it is recommended that: You contact your dealer to install a new memory module.

  • Page 104: Removing A Memory Module

    Precautions Electrostatic Discharge (ESD) can damage memory modules and other components. Install the memory module only at an ESD workstation. If such a station is not available, do not work in a carpeted area, and do not handle materials that produce or hold static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with an unpainted metal portion of the chassis while performing the procedure.
  • Page 105 Precautions Unscrew the screw at the bottom of your computer, as shown. Use a precision Phillips screwdriver that matches the size of the screw heads. Before you remove the memory module, touch a metal part of the computer to discharge any static electricity accumulated on your body.
  • Page 106 Precautions Adding a memory module To add a memory module, proceed as follows: Shut down your computer and disconnect all peripheral devices. Unplug the computer and remove the battery packs. Wait until the computer cools down. The inside of a notebook becomes extremely hot during operation. Wait at least one hour for the computer to cool down before you remove the screws.
  • Page 107 To view the amount of memory, proceed as follows: Turn on the computer. Go to Sony Notebook Setup via the Start menu. The Sony Notebook Setup dialog box appears. In the About this Computer tab you can view the amount of system memory. If the additional memory...

  • Page 108: Placing A Key Top

    Precautions Placing a key top If the enter or the space key comes off, replace the key top as shown below. If another key top comes off, put it where it was and push until it clicks into place. To replace a key top, proceed as follows: Remove the wire (1) under the key top if necessary.

  • Page 109: Other Precautions

    Precautions Other precautions On handling the hard disk (page 109) On handling the LCD screen (page 109) On using power source (page 110) On handling your notebook (page 110) On handling diskettes (page 112) On handling CD-ROMs (page 112) On using the battery pack (page 113) On using earphones (page 113)

  • Page 110: On Handling The Hard Disk

    Precautions On handling the hard disk The hard disk has a high storage density and reads or writes data in a short time. On the other hand, it may be easily damaged by mechanical vibration, shock or dust. Although the hard disk has the safety device in itself to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling your computer.

  • Page 111: On Using Power Source

    Precautions The LCD is manufactured using high-precision technology. You may, however, see tiny black points and/ or bright points (red, blue, or green) that continuously appear on the LCD. This is a normal result of the manufacturing process and does not indicate a malfunction. Avoid rubbing the LCD screen, as this can damage the screen.
  • Page 112 Precautions Direct sunlight, Excessive dust, Moisture or rain, Mechanical vibration or shock, Strong magnets or speakers that are not magnetically shielded, Ambient temperature of more than 35°C or less than 10°C, High humidity. Do not place electronic equipment near your computer. The electromagnetic field of your computer may cause a malfunction.

  • Page 113: On Handling Diskettes

    Precautions On handling diskettes Do not open the shutter manually and touch the surface of the diskette. Keep diskettes away from magnets. Keep diskettes away from direct sunlight and other heat sources. On handling CD-ROMs Do not touch the surface of the disc. Do not drop or bend the disc.

  • Page 114: On Using The Battery Pack

    Precautions On using the battery pack Never leave the battery pack in temperatures above 60°C, such as in a car parked in the sun or under direct sunlight. Battery life is shorter in a cold environment. This is due to decreased battery efficiency at low temperatures.

  • Page 115: On Handling The Memory Stick

    Precautions Preventing hearing damage – Avoid using headphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use. On handling the Memory Stick™ Do not touch the Memory Stick™ connector with your finger or metallic objects. Use only the label supplied with the Memory Stick™...
  • Page 116 Glossary Glossary This section refers to terms used in this manual. These terms and definitions have been compiled to provide you with a better understanding of your VAIO computer. Term <F1> key 10BASE-T/100BASE-TX ACPI Application recovery Application recovery CD-ROM BIOS CardBus Definition The <F1>...
  • Page 117 Glossary Term CD-ROM CD-RW DC In Docking station Driver DVD-ROM Ethernet EULA Definition Abbreviation for Compact Disc Read-Only Memory. A high-capacity optical disc, usually 650 MB in size, capable of being read from but not written to. Short for Compact Disc-ReWriteable. Compact Disc that can be used to write or rewrite data to it.
  • Page 118 MAPI Definition i.LINK™ is Sony’s version of the IEEE 1394 standard for high-speed digital serial interface. The standard is regarded in the audio/video and IT industries as the most suitable interface for connecting computers and digital audio/video devices (such as digital cameras etc.).
  • Page 119 Glossary Term maximum RAM Motherboard MPEG Operating system Partition PC Card Definition The maximum amount of RAM that your computer can contain. Once this amount is reached, you can no longer add additional RAM to your computer. The motherboard is the main circuit board inside your computer. It holds the CPU, the BIOS, the memory and so on.
  • Page 120 Glossary Term PCMCIA Pixel Port replicator Processor Product recovery CD-ROM PS/2 PSTN Definition PCMCIA (Personal Computer Memory Card International Association) is the name of the group that produced the specification for the credit card-sized plug-in boards for laptop computers. The cards used to be called PCMCIA cards, but as this was rather unpronounceable, these cards are now termed PC cards.
  • Page 121 Glossary Term Resolution RGB signal cable SDRAM Standard RAM System recovery System recovery CD-ROM Definition The degree of sharpness and clarity of an image. Resolution is expressed in pixels. Frequent computer screen resolutions are 640 x 480 pixels (VGA resolution; appropriate for a 14-inch screen), 800 x 600 (appropriate for a 15-inch screen), 1,024 by 768 (appropriate for a 17-inch screen), and 1,280 by 1,024.
  • Page 122 Term VAIO Definition Short for Video Audio Integrated Operation. Brand name covering Sony's PC products, peripherals, accessories and software. VAIO-branded items are all designed to make the best use of Sony's Audio-Video (AV) and Information Technology (IT) skills. WAN (Wide Area Network) is a computer network connected together and covering a relatively large geographical area.

Table of Contents
