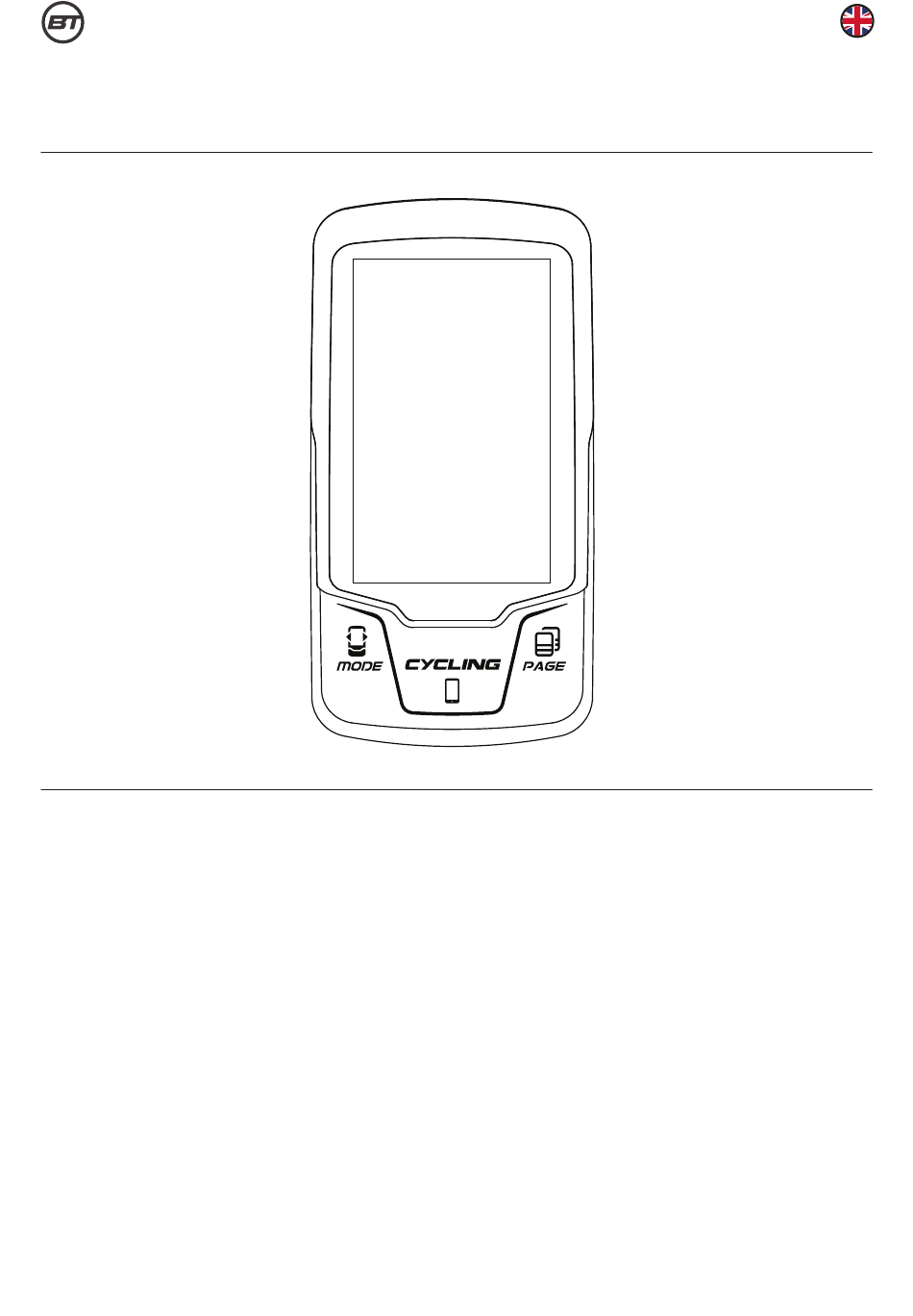

M20X · CONSOLE INSTRUCTION MANUAL

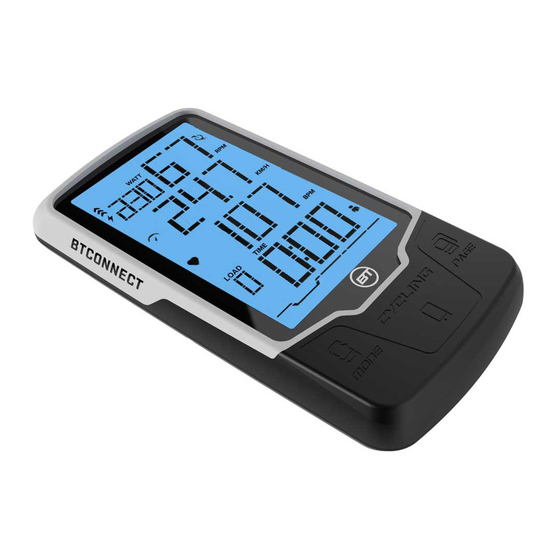

CICLO INDOOR BIKE CONSOLE SPECIFICATION
CADENCE BAR GRAPHIC
0~199rpm
RPM
0 ~ 199 RPM
SPD (km/h)
0 ~ 99 KM/H
DST (km)
Displays the distance traveled. Display range.
PULSE
30 ~ 240 BPM (need chest belt)
TIME
Count down setting range 1~99 minutes Count up setting range 00:01~99:59
PROTOCOL
BLE4.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M20X and is the answer not in the manual?

Questions and answers

Related Manuals for BODYTONE M20X

Summary of Contents for BODYTONE M20X

  • Page 1 M20X · CONSOLE INSTRUCTION MANUAL CICLO INDOOR BIKE CONSOLE SPECIFICATION CADENCE BAR GRAPHIC 0~199rpm 0 ~ 199 RPM SPD (km/h) 0 ~ 99 KM/H DST (km) Displays the distance traveled. Display range. PULSE 30 ~ 240 BPM (need chest belt)

  • Page 2: Item Checklist

    M20X · CONSOLE INSTRUCTION MANUAL ITEM CHECK LIST Sensor Cable Transmitter AAA Batteries & Holder Sponge Double-sided tape Velcro Magnet Circular magnet Cable stripes Clamp bracket set...

  • Page 3: Important Safety Instructions Warning

    OR CHEST PAINS, OR SEVER SHORTNESS OF BREATH, STOP EXERCISING IMMEDIATLELY AND CONSULT A PHYSICAN. The M20X Console assembly consists of a computer console, a magnet, one chest belt, and a speed sensor transmitter. The sensor in the transmitter counts the number of times the magnet (mounted on the crank or flywheel) passes the sensor.
  • Page 4 M20X · CONSOLE INSTRUCTION MANUAL SPEED SENSOR TRANSMITTER BATTERY INSTALLATION 1. Remove battery cover from the transmitter. 2. Install 2 AAA batteries in battery compartment and reinstall the battery cover. TRANSMITTER Speed sensor transmitter can be installed nearby the drive belt cover. The transmission...
  • Page 5 M20X · CONSOLE INSTRUCTION MANUAL MAGNET The placement of the magnet and the sensor will depend on the model of the bike. In the case of a bike with a magnet incorporated in the flywheel (models MT2 and MT3), the sensor must only be placed at a maximum distance of 8 mm from that magnet, no need extra magnet (FIG.1).
  • Page 6 M20X · CONSOLE INSTRUCTION MANUAL SPEED PAIR STAGE Note: All models will be paired right after production. For commercial and maintenance purpose – press and hold both ‘MODE’ and ‘PAGE’ key for 3 seconds to go into setting. Wake up speed sensor by stepping on the bike, the speed transmitter will send signals to the console for pair stage.
  • Page 7 M20X · CONSOLE INSTRUCTION MANUAL M20 console use AAA batteries, remove console from handlebar to change the batteries. Low battery icon will disappear when fully charged batteries are installed. Display window Smart connect Speed Heart rate Time Distance Low battery...

  • Page 8: Heart Rate

    CONNECT TO APP Press the button to connect the M20X console to APPS by bluetooth. HEART RATE This is the approximation of heart rate detect from bluetooh chest belt during work out.

  • Page 9: Mode Select

    M20X · CONSOLE INSTRUCTION MANUAL MODE SELECT Press ‘MODE’ key to select TIME, DIST, KCAL,LOAD display. RESETTING ALL MEASURED VALUE To clear all measured values, press and hold Page key under TIME Mode for 3 seconds. All measured value AVG SPEED, AVG PULSE, TIME, DIST, KCAL will reset.

  • Page 10: Troubleshooting

    M20X · CONSOLE INSTRUCTION MANUAL PERSONAL DATA SETTING Accurate personal data will make your estimated calories burned more accurate. Under KCAL or DISTANCE MODE, Hold Page key for 3 seconds to go into setting, continuously’ key to get to heart rate windows.
  • Page 11 THE RADIO FREQUENCY SIGNAL, SUCH AS A DVD PLAYER OR TELEVISION, ETC. NOTE 1. The M20X console are designed as sealed units and not meant to be opened other than for the sole purpose of installing batteries. Any opened units will void the warranty.
  • Page 12 M20X · CONSOLE INSTRUCTION MANUAL 3. The M20X console is NOT waterproof, only water resistant. Any excessive exposure to water will void the warranty. APPENDIX This equipment has been tested and found to comply with the limits for a Class C Low Power Communication Device Transmitter, pursuant to Part 15 of the FCC rules.
