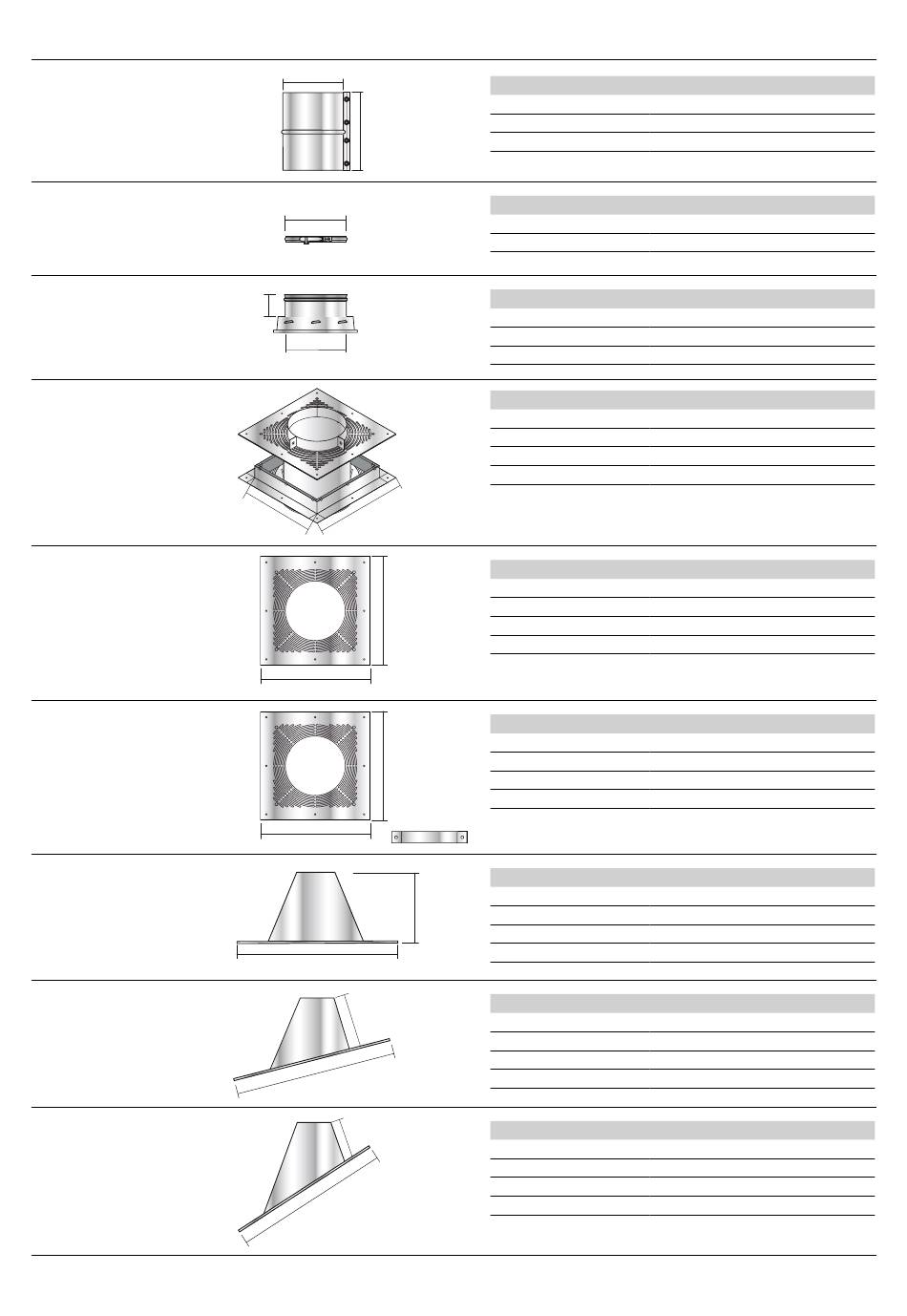

docherty Excelsior Manual page 7

Structural
Locking Band
Standard
Locking Band
Adaptor
to Flex
Ventilated
Fire Stop Kit
Ventilated
Fire Stop
Fire Stop with
Clamp
Flat Flasing
5° to 30°
Flashing
30° to 45°
Flashing
For matt black option add a 'P' to the end of product code to get priced in black
Ø
L
Ø
L
Ø
A B
B
C
B
C
L
A
L
A
L
A
Diameter (Ø) 125mm (5") 150mm (6")
Height (L) 250mm 250mm
Code EXSLB13 EXSLB15
Diameter (Ø) 125mm (5") 150mm (6")
Code EXLB13 EXLB15
Diameter (Ø) 125mm (5") 150mm (6")
Height (L) 70mm 70mm
Code EXAF13 EXAF15
Diameter (Ø) 125mm (5") 150mm (6")
A 300mm 350mm
B 330mm 430mm
EXVFSK13 EXVFSK15
Code
Diameter (Ø) 125mm (5") 150mm (6")
B 380mm 380mm
C 380mm 380mm
Code EXFSP13 EXFSP15
Diameter (Ø) 125mm (5") 150mm (6")
B 380mm 380mm
C 380mm 380mm
Code EXFSPC13 EXFSPC15
Diameter (Ø) 125mm (5") 150mm (6")
L 315mm 315mm
A 470mm 490mm
EXFF13 EXFF15
Code
Diameter (Ø) 125mm (5") 150mm (6")
L 160mm 160mm
A 550mm 550mm
EXSF13 EXSF15
Code
Diameter (Ø) 125mm (5") 150mm (6")
L 120mm 120mm
A 1000mm 1000mm
Code EXLF13 EXLF15
7
180mm (7") 200mm (8")
EXSLB18 EXSLB20
180mm (7") 200mm (8")
EXLB18 EXLB20
180mm (7") 200mm (8")
EXAF18 EXAF20
180mm (7") 200mm (8")
EXVFSK18 EXVFSK20
180mm (7") 200mm (8")
EXFSP18 EXFSP20
180mm (7") 200mm (8")
EXFSPC18 EXFSPC20
180mm (7") 200mm (8")
EXFF18 EXFF20
180mm (7") 200mm (8")
EXSF18 EXSF20
180mm (7") 200mm (8")
EXLF18 EXLF20
