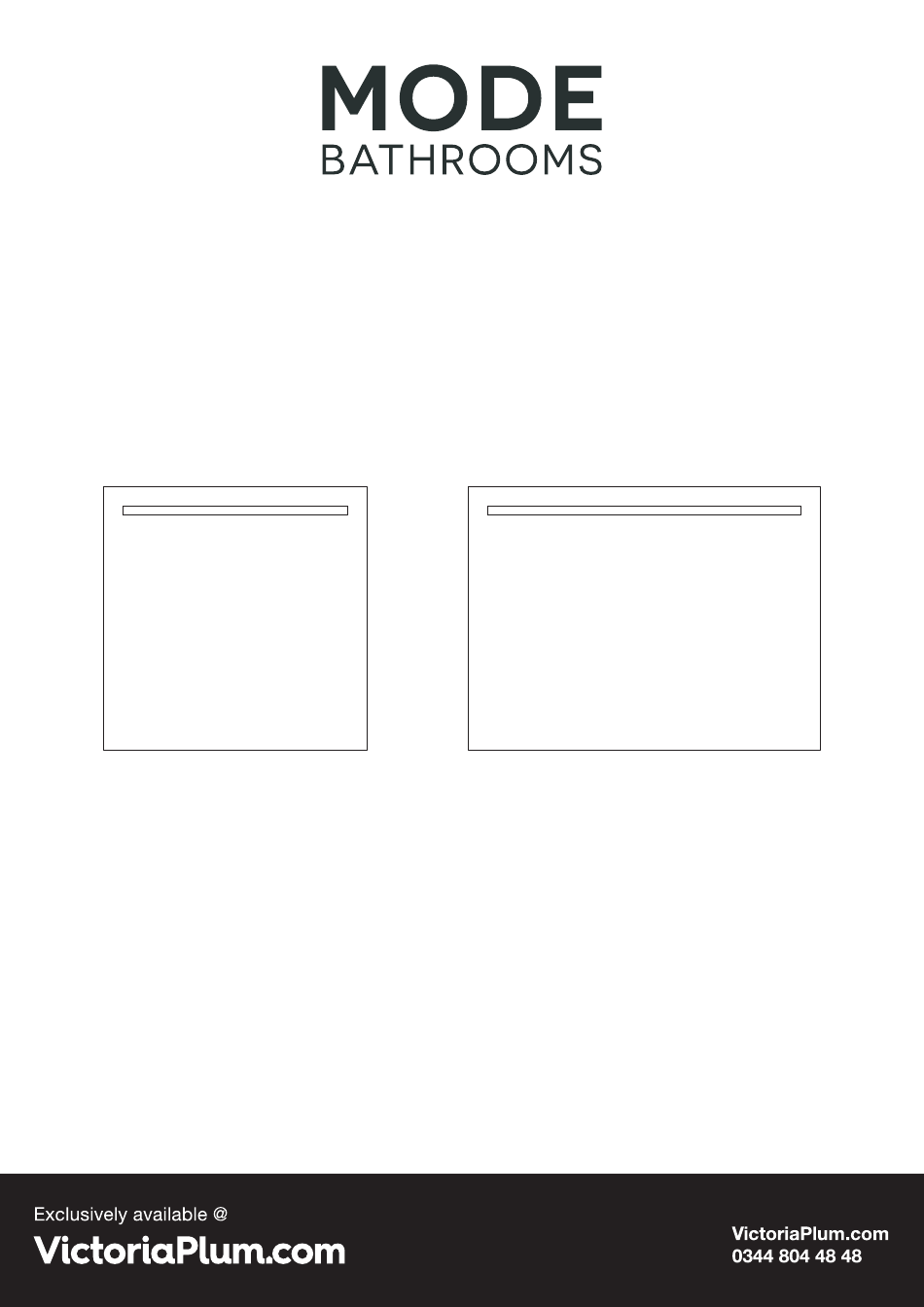

- Page 1 RECTANGULAR MIRRORS 3100-L-6060 3100-L-8060...
- Page 2 BEFORE YOU START, HERE IS SOME IMPORTANT INFORMATION. 1) General Information Please inspect this product upon delivery. Any missing parts or manufacturing defects must be reported immediately to the supplier. Damage or defects reported later will not be accepted. TAKE CARE WHEN HANDING GLASS PARTS- AVOID HEAVY CONTACT BETWEEN THE GLASS EDGES AND ANY HARD SURFACE.
- Page 3 TOOLS REQUIRED Description Parts Image Description Parts Image Tape Measure Drill Cross Head Spirit Level Screwdriver Ø8mm Drill Bit Pencil ASSEMBLY DRAWING 3100-L-6060 / 3100-L-8060 Demister pad 2 IR motion sensor 3 LED driver 4 IP44 terminal box...
- Page 4 INSTALLATION STEPS STEP 1 ISOLATE THE MAINS POWER SUPPLY TO THE ELECTRICAL FEED THAT WILL POWER YOUR MIRROR. STEP 2 Do not stand the mirror upright on hard surfaces whilst fitting, as this will damage the corners. Measure the distances of the four screw fixing slot centers at back of chassis. STEP 3 Decide on position on the wall and mark the four centers, ensuring your power supply cable will...
- Page 5 STEP 5 Wire the main power supply to the IP44 terminal block at back of mirror as belows. RED OR BROWN --- TERMINAL MARKED L (LIVE) BLACK OR BLUE --- TERMINAL MARKED N (NEUTRAL) GREEN & YELLOW --- TERMINAL MARKED E OR WARNING: This appliance must be earthed.
- Page 6 CARE AND MAINTENANCE 1) AFTER CARE INSTRUCTIONS It is recommended that mirrors are cleaned with a soft, dry, non-abrasive cloth. Do not use abrasive cleaning materials, or chemical cleaners as this will damage the mirror surface and edges. 2) MAINTENANCE The supplier accepts no liability for any type of use of care other than those contained in this instruction.
