Polytron PXU 848 IP User Manual

Ip-streamer with multiplexing
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PXU 848 IP
IP-Streamer with multiplexing
User manual
MADE IN GERMANY
0902481 V1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXU 848 IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Polytron PXU 848 IP

Summary of Contents for Polytron PXU 848 IP

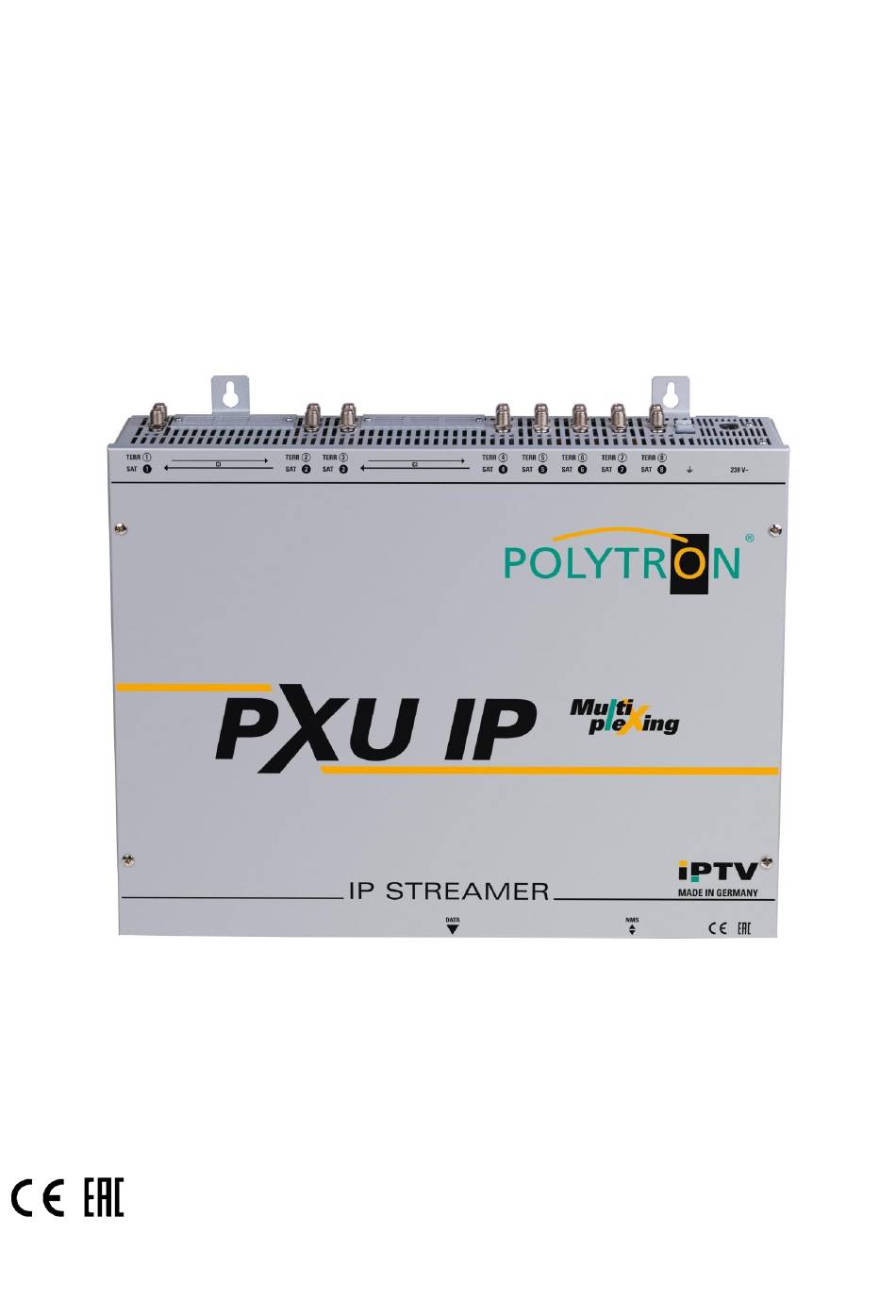

  • Page 1 PXU 848 IP IP-Streamer with multiplexing User manual MADE IN GERMANY 0902481 V1...

  • Page 2: Table Of Contents

    Contents Mounting and safety instructions General information Description Scope of delivery 5. Input circuit Mounting Grounding 7. Installation Pre-programming Input level LAN connectors and status LED General programming Initial setup 8.1.1 Establishing a connection via the browser Programming of the device parameters 8.2.1 Input parameters for SAT reception 8.2.2 Input parameters for terrestrial range 8.2.3 Output parameters MPTS (Multiple Program Transport Streams)

  • Page 3: Mounting And Safety Instructions

    Save the operating instructions for later use. All operating instructions can be found on our website at: https://polytron.de/index.php/en/services/operating-manuals Approved use Use the device only at the permissible operating locations, under the permissible environmental conditions and for the purpose described in the operating instructions.
  • Page 4 WEEE-Reg.-Nr. DE 51035844 § Guarantee conditions The general terms and conditions of Polytron-Vertrieb GmbH apply. The general terms and conditions can be found on our website at: https://polytron.de/index.php/en/company/general-terms-and-conditions GENERAL INFORMATION ON THE OPERATING INSTRUCTIONS ...

  • Page 5: General Information

    Internet protocol, it is also possible to transmit DVB signals via a network infrastructure. The ability to use IP networks as transmission paths for television programs, the DVB signals received in the PXU 848 IP are converted into IP streams and thus made available throughout the network. The PXU 848 IP enables the combined processing of encrypted and open channels.

  • Page 6: Input Circuit

    5. Input circuit In the PXU 848 IP, signals are directly fed to the input tuners. Due to the triple tuners, there are eight inputs each for SAT and eight for terrestrial signals (DVB-T/T2 or DVB-C). In the ‘factory settings’ condition, there is a 12 VDC voltage for LNB supply on SAT input tuners 1, 2, 5 and 6.

  • Page 7: Grounding

    6.1 Grounding The device must be grounded according to EN 60728-11. - Strip approximately 15 mm of the cable insulation of the grounding cable (4mm - Slide the stripped end under the earth screw and tighten the screw. 7. Installation Connection of the input signals Connect the SAT signals directly or via splitter(s) to the SAT tuner inputs.

  • Page 8: Pre-Programming

    Insertion of the CI modules To insert the CI modules, the covers must be removed. The picture shows the assignment of the CI slots to the inputs. For wall mounting as shown in the picture, the double ridge guide of the CAMs must always be on the left side.

  • Page 9: Input Level

    IP parameters of the factory pre-programmed TV channels: Service Name IP-Address Port CH No Protocol IP-Out Das Erste 28106 239.1.1.100 10001 BR Fernsehen Süd 28107 239.1.1.101 10001 hr-fernsehen 28108 239.1.1.102 10001 28006 239.1.1.103 10001 3sat 28007 239.1.1.104 10001 KiKa 28008 239.1.1.105 10001 SAT.1...

  • Page 10: General Programming

    After connection, the device runs through an internal routine and all channels are set up according to the previously stored data. During this time, the Status LED flashes green. A connection between the PXU 848 IP and the PC/notebook is only possible after the Status LED permanently lights up green or orange.

  • Page 11: Programming Of The Device Parameters

    8.2 Programming of the device parameters After successful network access, the following overview window is displayed: Via this menu, all settings of the input and output parameters can be done. The status display is automatically updated every 3 seconds. The upper part of the menu shows the device data such as type, serial number, hardware version and the software versions for CPU, IP-, CI-ASI controller und MUX.

  • Page 12: Input Parameters For Sat Reception

    8.2.1 Input parameters for SAT reception DVB > Input signal TP > Transponder frequency Choose the kind of signal Enter transponder frequency -> If DVB-T/T2 or DVB-C selected, please skip to section 8.2.2 Input parameters for the terrestrial range Auto > LO frequency >...

  • Page 13: Input Parameters For Terrestrial Range

    8.2.2 Input parameters for the terrestrial range TP > Frequency BW > Channel bandwidth The kind of input signal will be Select 7 or 8 MHz defined automatically. Enter input frequency PLP > Select service DVB-T2 Search > Searching Select PLP value After pressing button Search (only for DVB-T2)

  • Page 14: Output Parameters Mpts (Multiple Program Transport Streams)

    8.2.3 Output parameters MPTS (Multiple Program Transport Streams)  Click on Menu * Input & MPTS Settings MPTS Taking over the settings for each channel strip MPTS can be switched on or off separately for each channel strip  Factory setting: Off MPTS and SPTS can switch on and off independently and operated in parallel.

  • Page 15: Multiplexing Function

    To optimize the capacities of the smart cards or/and to provide new program selections at the output of the compact headend, the PXU 848 IP offers a multiplexing function. Also certain services within a transponder can be deleted at the output if they are not desired. Furthermore, encrypted services can be selected for decryption via this function.

  • Page 16: Output Parameters Spts (Single Program Transport Streams)

    The assignment is as follows: 1 = MUX 1 via CI 1 5 = MUX 5 2 = MUX 2 via CI 2 6 = MUX 6 3 = MUX 3 via CI 3 7 = MUX 7 4 = MUX 4 via CI 4 8 = MUX 8 Press the button Save after finishing assignment of the desired programs to output channels and selection of the programs to be decrypted.
  • Page 17  Allocation of program numbers via the M3U list and create an M3U list In SPTS mode, it is possible to create an M3U list as follows: In the column CH No, the desired program number can be entered. These programs will then be sorted in the M3U list in numerical order.
  • Page 18  Identification of incorrect data entries In the case of an error (e.g. double assignment of the IP address), the corresponding input fields are highlighted in as following:  After correcting and re-entering all data, they must be saved again by clicking on Save.

  • Page 19: Ci Menu

    8.2.6. CI menu A precondition of this operation is that the CAM module with corresponding smart card has been inserted into the CI slot while the headend is disconnected from mains. After reconnecting to power the CAM is recognized and initialized.
  • Page 20 8.2.7 Device NIT  Click on NIT * Device NIT After selecting Device NIT, the following screen appears, where further entries are possible. Switch device NIT on or off as required (switched on by default) eingeschaltet) The pairing of ONID and TSID identifies the transponder.

  • Page 21: Storage Of Programming / Restart Ip Streamer

    8.3 Storage of programming / Restart IP streamer It is possible to save an existing programming dataset on a PC / notebook or to load it from the same device. In this way it is possible to archive device constellations. If required, the IP Streamer can be restarted.
  • Page 22 „Öffnen“. Via the menu item Load Settings, the upload of an existing programming dataset from the PC / notebook to IP Streamer PXU 848 IP is possible. The data will then be loaded automatically within about 45 - 60 seconds.

  • Page 23: Network Settings

     Restart the device  Click on Settings * Restart Headend, to restart the streamer. After selection of Restart Headend an information window will be opened and a restart of the device occurs. This takes approx..50 seconds. After the restart, the system data is loaded and the window Overview opens automatically.

  • Page 24: Diagnostic

    If this information isn’t known, the responsible IT specialist should be contacted. By default the IP Streamer PXU 848 IP have the following IP address: 192.168.1.129 If the system is used in a network with a different network address, the IP address must be adapted accordingly.
  • Page 25 The "Diagnostic" menu is used for service purposes and can be helpful for telephone error analysis via the Hotline +49 (0) 7081 / 1702-0 In the menu header, the operating data of the device will be displayed. Actual Operating Temperature: approx.

  • Page 26: Led Analysis

    8.6 LED analysis green: 12V voltage on off: no voltage Tuner green continuous: Tuner locked green flashing: Tuner not locked FPGA green: configured, ready to operate off: error 12 V green: 12 V voltage okay off: power supply error green: CAM 1-4 detected and initialized off: no CAM detected...
  • Page 27 The Software Update menu is used to update the controller software of the device. A prerequisite is that the latest programming software is installed on the PC/Laptop. This is available for download at the following web address: https://polytron.de/index.php/de/service/download. All set parameters are retained after the update.

  • Page 28: Extras/Additional Adjustments

    The serial number can also be found on the label on the outside of the device housing. The general password reset can only be done by POLYTRON. For this process we generate a new password with which the device can be unlocked again.

  • Page 29: Function „Teletext Settings

    8.8.2 Function „Teletext Settings“ The menu Teletext Settings allows the activation and deactivation of teletext data.  Click on Extras * Teletext Settings The following input window will be opened: By selecting the required setting, the teletext is switched on or off. This applies to all services that are processed by the IP streamer.

  • Page 30: Application Example

    9. Application 8x MPTS / 128x SPTS...

  • Page 31: Technical Data

    10. Technical data Type PXU 848 IP Article no. 5552340 Inputs CI slots Multiplexing 8 x 8 (service based) Input connector A Connector F female 950 … 2150 MHz (1 MHz steps) Input frequency 50 … 80 dBµV Input level...
  • Page 32 Technische Hotline Technical hotline + 49 (0) 70 81 / 1702 - 0 Telefax + 49 (0) 70 81 / 1702 - 50 Internet http://www.polytron.de Email info@polytron.de Technische Änderungen vorbehalten Subject to change without prior notice Copyright © Polytron-Vertrieb GmbH...
