DEMO9RS08KB12 QUICK START GUIDE

Introduction and Default Settings

The DEMO9RS08KB12 features the MC9RS08KB12 microcontroller, a low-cost, small pin count, high
performance device for home appliances and medical equipment applications. This device consists of
standard on-chip modules including a highly efficient, version 2, RS08 CPU core of which supports a single global
interrupt vector, up to 254 bytes RAM, up to 12 KB flash, two 8-bit modulo timers (MTIM), one 12-channel 10-bit
analog-to-digital converter (ADC), one 2-channel 16-bit timer/PWM (TPM), one inter-integrated circuit bus module
(IIC), one keyboard interrupt (KBI), one analog comparator (ACMP), and one serial communication interface
(SCI).
The board is pre-loaded with a demonstration application to ensure proper functionality and to aid the end-user in
application development.
Default jumper positions for the DEMO9S08LH64 and DEMMO9S08LL64 are shown below.

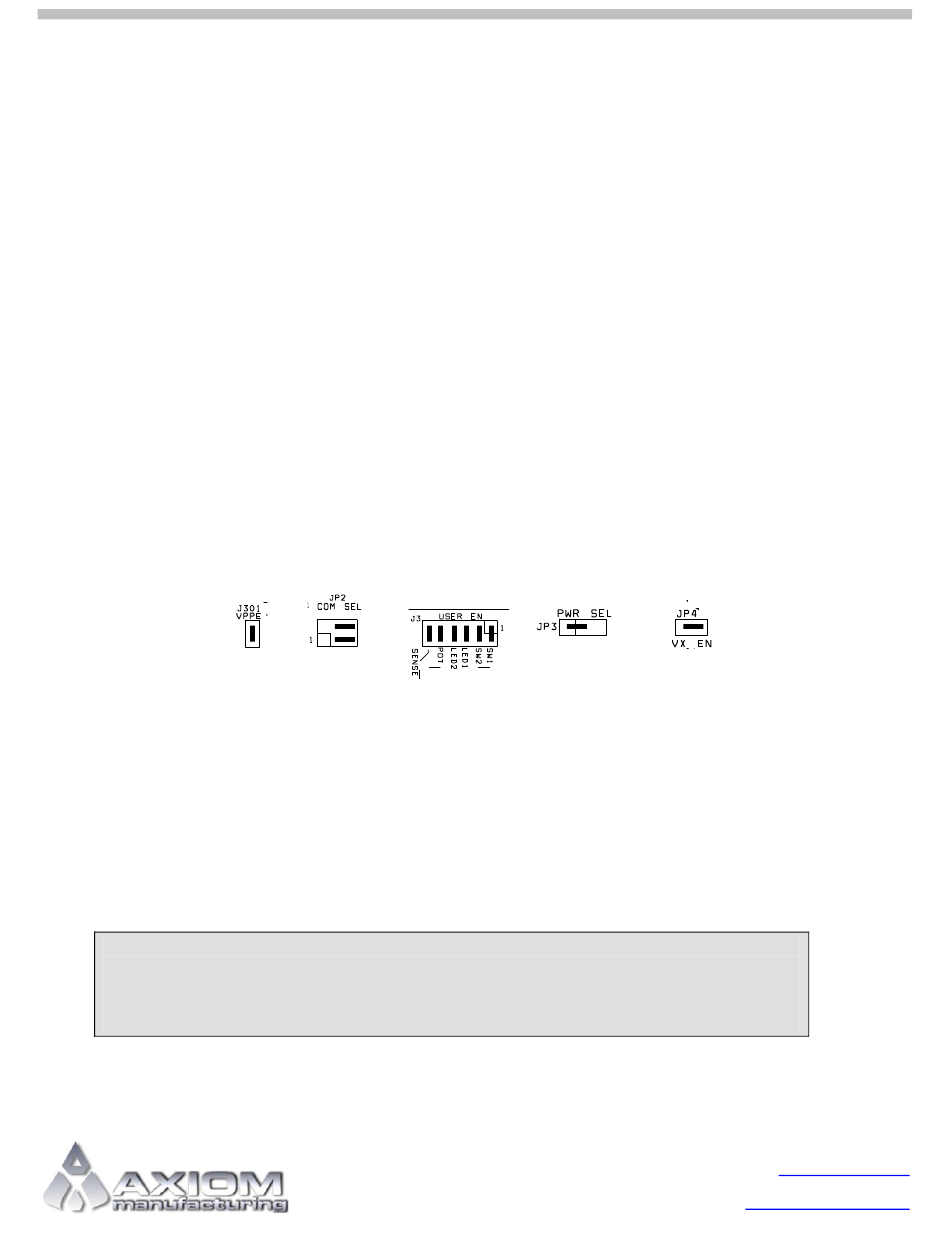

Figure 1: DEMO9RS08KB12 Default Option Settings

Install CodeWarrior Development Studio

The DEMO9RS08KB12 ships with the latest version of CodeWarrior Development Studio for Microcontrollers
Special Edition. CodeWarrior Development Studio is a complete Integrated Development Environment (IDE) that
provides a highly visual and automated framework to accelerate the development of the most complex embedded
applications.
NOTE:
CodeWarrior Development Studios must be properly installed before attempting to connect
the target board to the host PC. Otherwise, the necessary USB drivers will not be availa-
ble and the host PC will not recognize the board.
