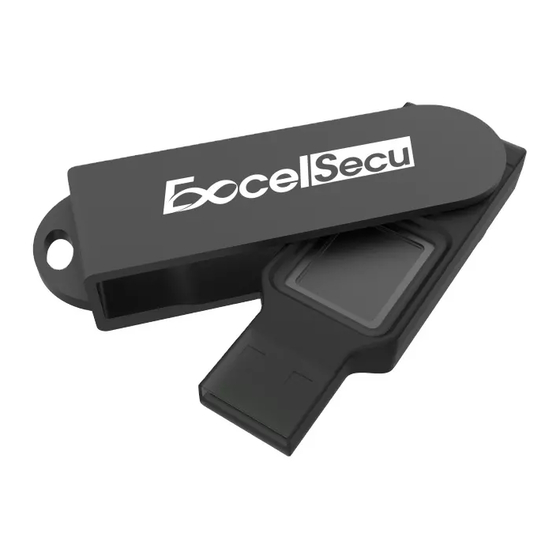

eSecu FIDO2 Fingerprint Key
User Manual
(V2.5)
Excelsecu Data Technology Co., Ltd.
www.excelsecu.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eSecu FIDO2 and is the answer not in the manual?

Questions and answers

Related Manuals for Excelsecu Data Technology eSecu FIDO2

Summary of Contents for Excelsecu Data Technology eSecu FIDO2

  • Page 1 FIDO2 Fingerprint Key User Manual (V2.5) Excelsecu Data Technology Co., Ltd. www.excelsecu.com...
  • Page 2 CONFIDENTIAL information of Excelsecu Data Technology Co., Ltd. NO WARRANTIES OF ANY NATURE ARE EXTENDED BY THIS DOCUMENT. Any product and related material disclosed herein are only furnished pursuant and subject to the terms and conditions of a duly executed Program Product Licence or Agreement to purchase or lease equipment. The only warranties made by Excelsecu Technology, if any, with respect to the products described in this document are set forth in such Licence or Agreement.

  • Page 3: Table Of Contents

    Table of Contents Important Instructions ......................4 Product Overview ........................4 Product Picture.......................... 4 FIDO2 Fingerprint Key Management ..................5 4.1. eSecu FIDOManager ..................... 5 4.2. Windows Settings ......................5 4.3. Chrome Browser ......................8 The Basic Operation of FIDO2 Fingerprint Key ................ 11 5.1.

  • Page 4: Important Instructions

    FIDO2 Fingerprint Key is a hardware authenticator complying with FIDO2 standard and FIDO U2F standard, which is self-developed by Excelsecu. By using an eSecu FIDO2 Fingerprint Key, users are freed from having to remember and type passwords as well as less to worry about their account information stolen by phishing, hacking or viruses.

  • Page 5: Fido2 Fingerprint Key Management

    Flashing red light: Need to touch. Flashing green light: Fingerprint enroll/ Need to verify fingerprint. 4. FIDO2 Fingerprint Key Management Before using FIDO2 Fingerprint Key, fingerprint is always required to be enrolled via USB. Currently, there are three methods to manage FIDO2 Fingerprint Key: eSecu FIDOManager, Windows settings and Chrome Browser.
  • Page 6 2. Click Manage, and connect your key to the computer according to the prompt. 3. You are able to manage fingerprint, PIN or reset your FIDO2 Fingerprint Key now. Fingerprint Enrollment Before you set up your fingerprint, you need to set a PIN. You are able to change the PIN if PIN is already set.
  • Page 7 Click Set up to enroll a fingerprint, and you are required to input the PIN. The enrollment process requires you to touch the fingerprint sensor 4 times. You are able to remove fingerprints if there is at least one enrolled. Reset Security Key Note: Resetting the key requires to be done within 10 seconds after powering up.

  • Page 8: Chrome Browser

    Follow the prompt windows to finish reset. 4.3. Chrome Browser Chrome Version 79 or above on Windows, Mac or Linux are able to manage eSecu FIDO2 security keys. Here we take Windows as an example. Note: if you are using Chrome on Windows 1903, each time you use the chrome to manage...
  • Page 9 it to your chrome file location, and run the following command as administrator: cd C:\Users\Weiyc\AppData\Local\Google\Chrome\Application chrome.exe --disable-features=WebAuthenticationUseNativeWinApi exit 2. This command will automatically open the chrome browser. Then go to chrome -> settings -> Privacy and security -> Security -> Manage security keys, or directly visit the link: chrome://settings/securityKeys, then you are able to manage PIN, sign-in data, fingerprints and reset.
  • Page 10 If you have resident credentials for passwordless login stored in authenticator, you are able to manage sign-in data by clicking Sign-in data. Manage fingerprints You can add and delete fingerprints saved on your security key by click Fingerprints. Note: before managing fingerprints, you need to set a PIN for your key. www.excelsecu.com...

  • Page 11: The Basic Operation Of Fido2 Fingerprint Key

    Reset security key Note: Resetting the key requires to be done within 10 seconds after powering up. If the following prompt shows up, reinsert your key and click reset again. 5. The Basic Operation of FIDO2 Fingerprint 5.1. Register (First Time Only) 1.

  • Page 12: How To Use Fido2 Fingerprint Key With Microsoft For Passwordless Login

    2. Enter your usual username and password (for U2F-enabled services). 3. Insert the registered FIDO2 Fingerprint Key to the computer’s USB port. 4. When prompted, authenticate with a simple touch of the fingerprint module to sign in. 6. How to use FIDO2 Fingerprint Key with Microsoft for passwordless login 6.1.
  • Page 13 You will be asked to verify your identity. After the verification is passed, enter the “Additional security options” page, and click “Set up a security key” under “Windows Hello and security keys”. Identify what type of key you have (USB or NFC) and click next. www.excelsecu.com...

  • Page 14: Sign In With Fido2 Fingerprint Key

    Insert your key into the USB port and touch your key to verify the fingerprint when the key flashes green light. Name your FIDO2 Fingerprint Key, and the registration is finished. 6.2. Sign in with FIDO2 Fingerprint Key Click “Sign in”. www.excelsecu.com...
  • Page 15 Click “Sign in with a security key”. Insert your key into the USB port and touch your key to verify the fingerprint when the key flashes green light. Sign in successfully. www.excelsecu.com...

  • Page 16: How To Use Fido2 Fingerprint Key With Google For 2-Step Verification

    7. How to use FIDO2 Fingerprint Key with Google for 2-Step Verification 7.1. Register the FIDO2 Fingerprint Key Register FIDO2 Fingerprint Key with your Google account to make it become the second authentication factor. Log in to the website: https://www.google.com/ and click Login in the top right corner.
  • Page 17 You will be asked to log in again. Click ADD SECURITY KEY. Click NEXT to continue. www.excelsecu.com...
  • Page 18 You will be prompted to insert your FIDO2 Fingerprint Key into a USB port. When the red light of the key is flashing, it means you are required to touch the key. Press the fingerprint module on FIDO2 Fingerprint Key. Rename the FIDO2 Fingerprint Key, click DONE to finish.

  • Page 19: Sign In With Fido2 Fingerprint Key

    10. The FIDO2 Fingerprint Key becomes the default second authentication factor of your account. You will be asked to use it to complete 2-Step Verification when sign in to Google in the future. 7.2. Sign in with FIDO2 Fingerprint Key Log in to the website: https://www.google.com/ and click Login in the top right corner.
  • Page 20 You will be prompted to insert your FIDO2 Fingerprint Key into a USB port. When the red light of the key is flashing, press the fingerprint module on FIDO2 Fingerprint Key. Click Next to login. Note: www.excelsecu.com...

  • Page 21: Faq

    ⚫ By default, “Don’t ask again on this computer” is checked. After checking the box, the next login will skip the two-step verification and log in directly with the user name and password. ⚫ You can undo trusted devices in settings to restore the use of two-step verification. Click “Revoke All”...

  • Page 22: Does This Fido2 Fingerprint Key Have Nfc Capabilities

    8.5. What applications support FIDO2 Fingerprint Key? Answer: The applications support FIDO® U2F/FIDO2 include but not limited to: Google, Microsoft, Facebook, Dropbox, GitHub, Salesforce, Dashlane, etc. 9. Product Specs Product eSecu FIDO2 Fingerprint Key (FD210) System Windows, macOS, Linux Browser Edge, Chrome, Firefox, Opera, Safari...
