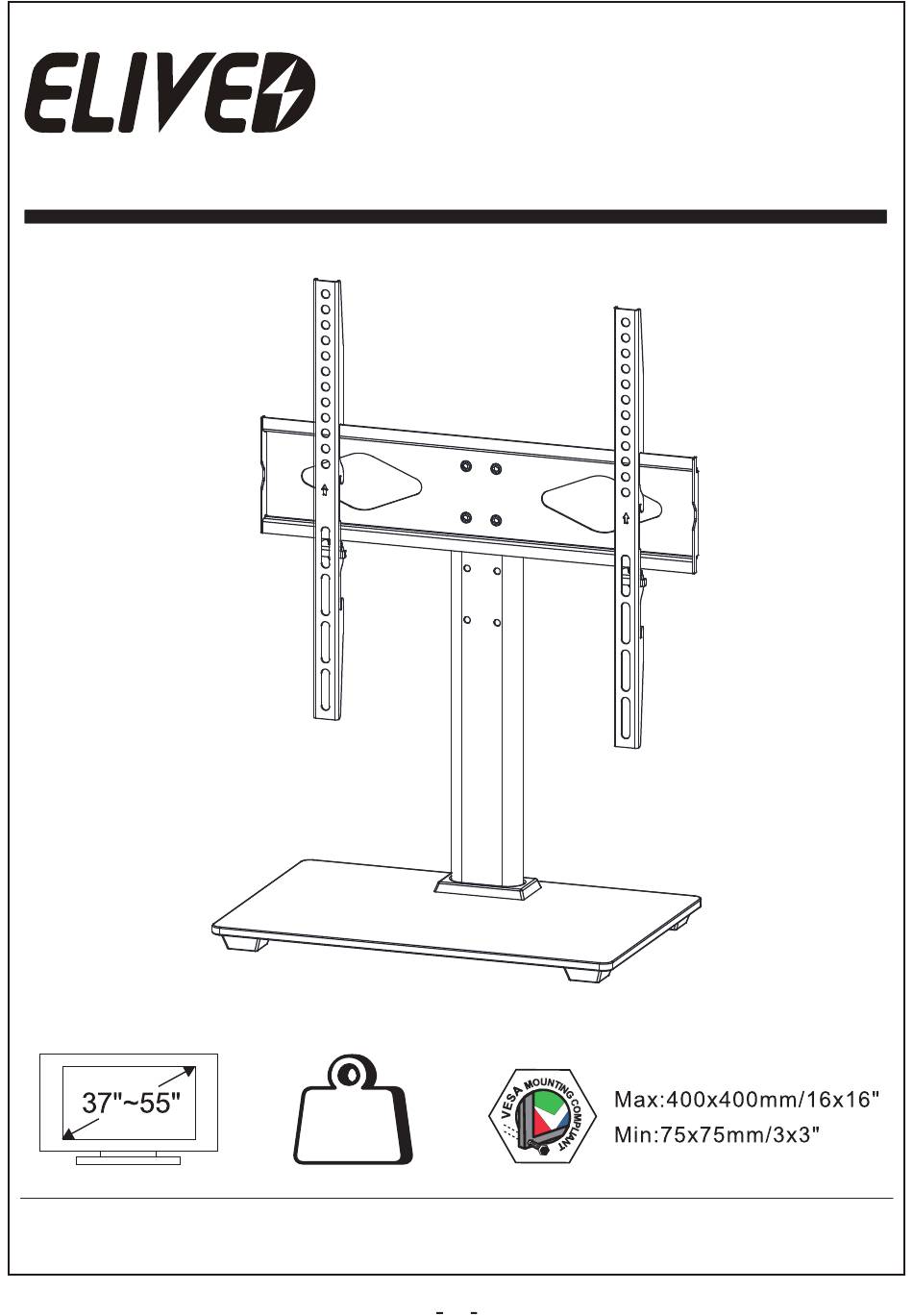

- Page 1 YD4001 INSTALLATION INSTRUCTION Max: 40KG (88LBS) If you have any questions, please contact us. （V2）...
- Page 2 Safety Caution ● Incorrect installation may result in product damage or body injury. ELIVED shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
- Page 3 Tempered Glass Base...
- Page 4 STEP 1 Connecting the Support Pillar ① to Tempered Glass Base ③ Attach foot pads (W) on the bottom of the tempered ③ glass base at the corners. ③ Put tempered glass base on the table. Put steel gasket (R), paper gasket (R) and M6X25 ③...
- Page 5 STEP 2 ④ ① Connecting TV plate to support pillar by using M6x40 bolts (S), washers (T) and nuts (Q). Please see above figures.
- Page 6 STEP 3 STEP 4 Choose the appropriate quantity spacers for your TV. May be 0~4pcs. Alternate spacers setup below:...
- Page 7 STEP 5...
- Page 8 Product dimension: 433mm MAX:400mm MIN:75mm 400mm...
