Clean DOZ30P Operation Manual

DOZ30P tester
Operation
Manual
Professional Dissolved Ozone Meter
Instruction Manual
Thank you for selecting Clean products.
Before using the meter, relevant person must read and understand the contents
of this operation manual. Operation Manual should be kept accessible within
the person who use the meters.
DOZ30P tester body
CS6932 sensor
1.5VAAA battery *1
Electrode electrolyte-(ESDOZ6932 30mL )
Replacement membrane cap*2- (MS6932CAP)
Instruction Manual

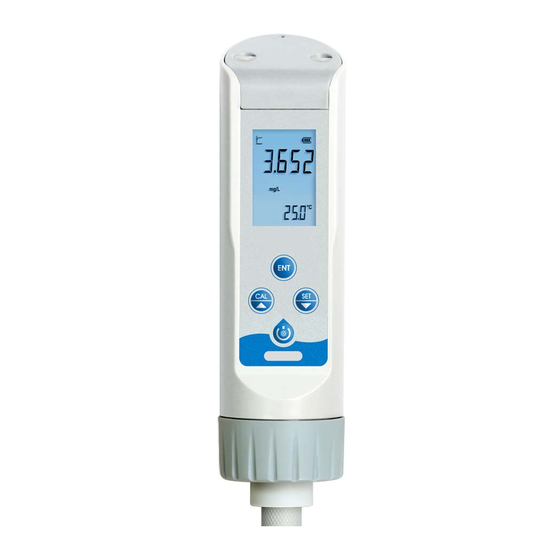

DOZ30P
Dissolved Ozone Meter
2. Precautions
Dissolved Ozone Meter
Immersion
depth:
≤50mm
Please wipe up the electorde with clean tissue or cloth before using.
Do not throw or beat ,squash or twist the tester deliberately.
Do not expose to the direct sunlight or
put in high humidity or high temperature environment .
3. Configuration and LCD Introduction
Set up
Data stabilized
Low battery indicator
Measurement mode
Auto Lock function
Auto Lock after data stabilized
Measuring value
ppm,mV - measuring mode, unit
www.cleaninst.com
Customer Service: CS@cleaninst.com
-3-
TABLE OF CONTENTS
1. Product Overview ····························································
2. Precautions
····································································
3 Configuration and LCD Introduction
4. Key Panel
·········································································
5.
Battery and electrode installation
6. Before measurement ·······················································
7. Sample measurement
····················································
8. Set up ···············································································
9. Specification
···································································
10. Package
·········································································
11. General Information
1.Product Overview
The measurement range of DOZ30P is up to 20.00 ppm. It can selectively measure
dissolved ozone and is not easily disturbed by other substances in dirty water.
-2-
4. Key panel
Key instruction
Short press: Short press means release the key once after pressing.
(If there is no mark out below, default it as Short press)
Long press: Long press means press the key for 3 seconds and then release it
Hold: Hold means not release the key and accelerate after a certain time. Not release the key
until the value is set as needed.
Long press to Power ON/OFF
Short press to ON/OFF backlight
Escape key when in mV mode and setting up
Long press to enter into mV mode
Increment values or scroll through the next options available
Data setting
Decrement values or scroll through the next options available
Confirm key
Press to unlock in Auto lock mode
5. Battery and Electrode installation
Unscrew the screw cap by following the
arrow direction, slightly unplug the
electrode, install the battery(pay attention
to the anode and cathode of the
electrode).
Then install back the electrode and the
screw cap.
Low battery prompt is at the top of the
screen when battery power is low.( You can
refer to the LCD INTRODUCTION). Please
change the same model battery.
-4-
·····················
···································
··················································
