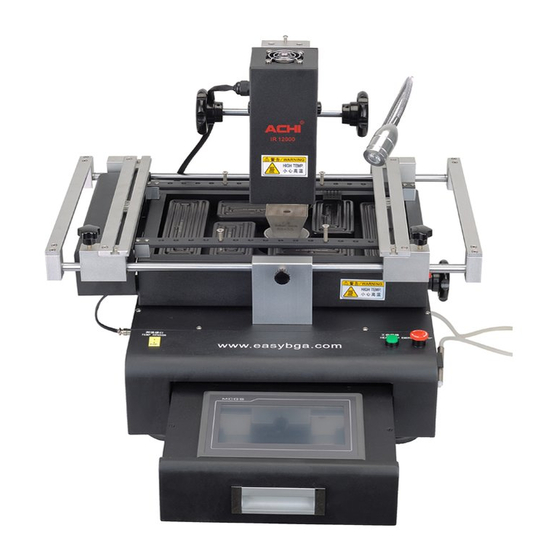

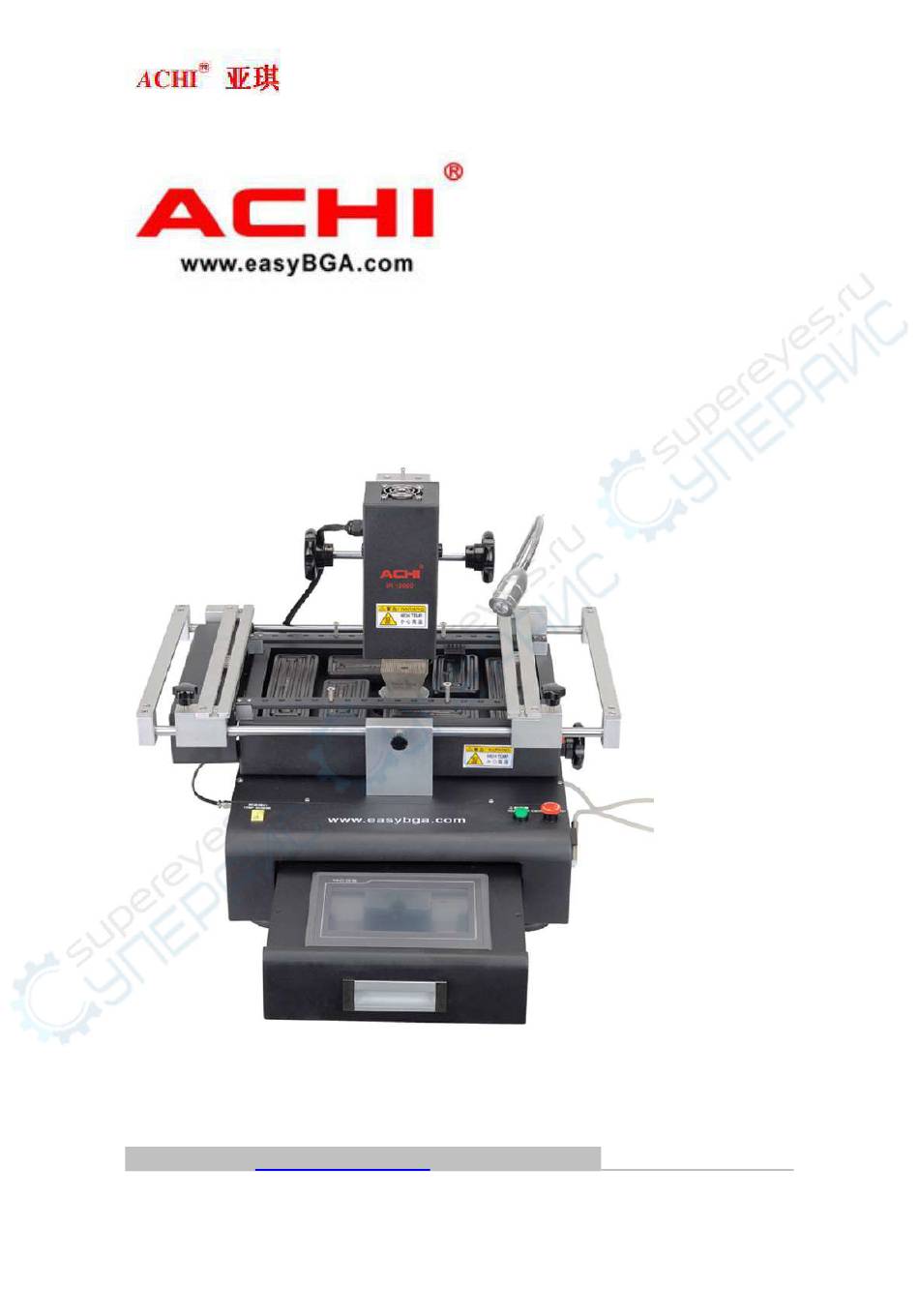

- Page 1 IR12000 ACHI IR12000 BGA Rework Station power requirement: Use a smaller power supply voltage fluctuation...
- Page 2 Voltage fluctuations: 220V±10 ACHI IR 12000 specifications and structures ACHI IR12000 TECHNICAL SPECIFICATIONS Price US$ contact us please Total Power 3650W Heating Zone 3 zones,top,bottom and preheating Upper heater Ceramic ELSTEIN RFS/80 400 Ceramic(Made in Germany,CE Passed) Upper heater consumption IR 400 W Upper heater size 80 mm ×...
- Page 4 Number Name Functions Use ways limit the lowest position of the Limit bar Rotate to the right place upper heating Top heater cooling fan Top heater cooling Adjust the handle up and Adjust the upper zone of the Rotating the handle down position up and down LED Head light...
- Page 5 Tension adjustment knob Rotate the knob and after ACHI IR12000 main features 1. ACHI IR12000 Top heater uses ELSTEIN RFS/80 400 Ceramic (Made in Germany,CE Passed) .The max temperature could up to 750°C.
- Page 6 Various shield cover and component slot get repaired much easier. 3. ACHI IR12000 was packaged with 6pcs rework support jig.There are 6pcs Screw holes in left and right sides,and 34pcs in the front and back sides,which could help to fix the...
- Page 7 4. Embedded Industrial PC, Drawer design 7” high definition touch screen interface, PLC control, and instant profile analysis function. Real time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary. 5. Three temperature areas(Top IR Heater,Bottom Hot air Heater and Preheating IR Plates) can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas.
- Page 8 6. There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA.Curve analysis, setting and adjustment are all accessible via Touch Screen. Three heating areas adopts independent PID calculation to control heating process to enable more accurate and precise temperature control.
- Page 9 8. It uses High technology of closedloop Temperature control and automatic temperature adjustment system,with PLC and temperature module to enable precision temperature control of ±2 deg C.External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile. 9.
- Page 10 12. Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding,voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop,so that the machine will not age after heated up. 13.
- Page 11 14. ACHI IR12000 can be connected to computer or notebook with USB interface to ungrade the Machine software. Installation of ACHI IR12000 BGA rework station. In order to the safety use, please make sure below: 1. Away from flammable and explosive materials.
- Page 12 10. Note that the repair station not to press or run over other electrical equipment or power lines or communication cable , and it may cause device malfunction or cause fire or electric shock. ACHI IR12000 touch screen use: Operation steps: 1. Power on to turn on the ACHI IR12000 BGA rework station...
- Page 13 2. The touch screen shows interface as below, you can select your target language .
- Page 14 3. Choose English, turn up below interface:...
- Page 15 4.After input password, below interface shows:...
- Page 16 5. Click it shows the target temperature, ramp up slope and time of the three independent temperature zones of current profile . The ramp up time is calculated by Seconds. Each three temperature zones can be set 8 ramp up temperature segments and 8 constant temperature segments.But for IR heating machine,3 ramp up and 3 constant temp segments are enough.
- Page 17 6.Click and Click to run the current selected temperature profile.
- Page 18 7.Users can certify and save the parameters according to their own different needs .ACHI IR 12000 can store massive profiles and users can select any one to use at any time easily. Which saves much time. How to select profile? 1.Click...
- Page 19 to finish the selection, to main interface to and run the selected profile. How to certify the parameters? 1.After click the to enter into the below interface: You can change the current parameters to your own setting as below. After certify the...
- Page 20 parameter, touch . After certifying all the parameters of the three temperature zones, then click to store the profile. After save the profile, you can name the profile by touch and input the name then . Also you can save it by touching to save the current profile certified.
- Page 21 The parameters already set before the machine is shipped out from factory, users are no need to change. ACHI IR12000 can monitor the whirling speed of the cooling fan for top infrared and bottom hot air heater. And the minimum whirling speed can be set. If the fan stop working or less than the minimum setting value, and the actual temperature of top and bottom heater is more than 300 degrees, the machine will stop heating immediately..
- Page 22 Time Constant Infrared Temp Infrared Rate Time Constant ACHI IR12000 Other cautions: 1.Pow er on the infrared BGA rew ork station to check w hether b ottom hot air nozzle are with cold b lowing . If not, DO NOT touch START b utton to av oid...
- Page 23 2.Diff erent BGA rew orking need diff erent temperature p rofile.The m aximum ℃ of each temperature segm ent cannot exce ed 300 If it is lead f ree soldering , users can set temp erature profile according to the BGA solder b all soldering temperature.
