Summary of Contents for ACHI IR-PRO-SC

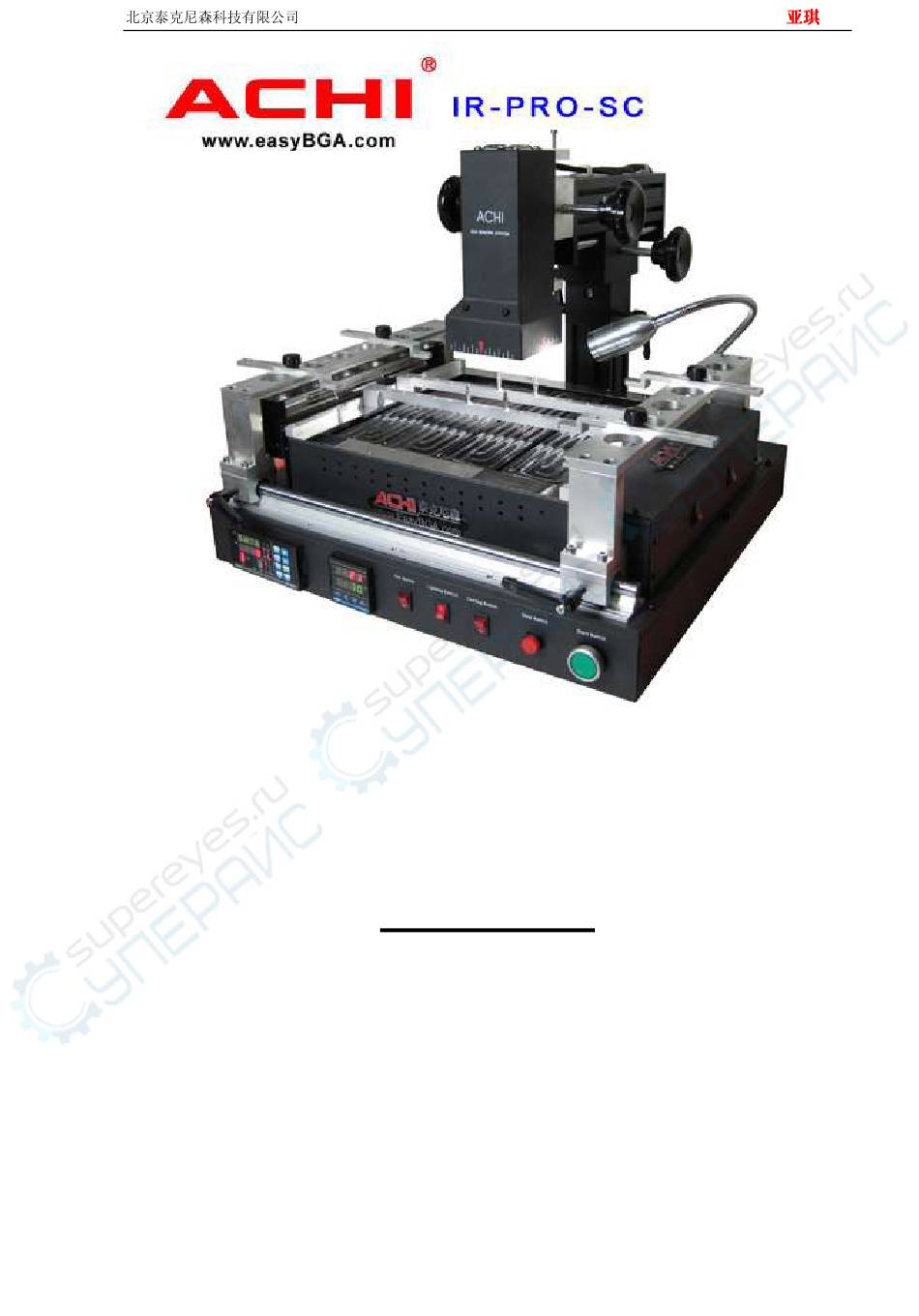

- Page 1 ® ACHI BGA Rework Station User Manual Beijing TECHNICAN CO.,Ltd.
- Page 2 II. Operation Safety III.The operation and conservation condition of products Our contact information product guarantee and so on The parameters of IR-PRO-SC BGA Rework Station hardware description and Self-help install Set Bottom Temperature Controller Programmer/Controller General Description BGA Rework operation steps...
- Page 3 ® ACHI Brief introduction to company Beijing TECHNICAN Science and Technology Co.,Ltd. is a manufacturing enterprise specializes in BGA manual Reworks equipment research,development and production . is our company's registered brand.Based on the principles of ® ACHI/ producting high-quality and cost-effective welding equipment,our company has...
- Page 4 ® ACHI Safety Instrouctions .Electrical safety Make sure the supply power voltage accord with the standards---- 220V-250V/50hz alternating current before installing. To avoid possible electric shock caused serious damage, please disconnect the power cord from the outlet temporary before moving machines .
- Page 5 ® ACHI Contact us Add: Room 8009, 1 Xicaochang Road Haidian District Beijing 100080 The People's Republic Of China Sales Support: 86-10-82853468 (Chinese Speaking) Technology Support: 86-10-82851031(Chinese Speaking) QQ 448764790 759577566 easybga@gmail.com URL. http://www.EasyBGA.com product guarantee and so on Service Statement: Enjoy warranty maintenance service for three years,in which the service in the first year is free.And the transport costs arise from maintenance should be paid by the...
- Page 6 ® ACHI The parameters of BGA Rework Station IR-PRO Basic Parameters IR / Heating Upper Dark Bottom Dimension L 475mm h h h : : : : h h h + + + + ...
-
Page 7: Hardware Description
® ACHI Hardware description IR-PRO-SC BGA Rework Station is composed of upper part of Heating ® ACHI Components / Bottom Preheat Module / PCB Table / Temperature Control Parts ! Temperature control Table is control the upper and lower heating ,Can Simultaneously heated or First preheat ,then the upper part of heating. - Page 8 ® ACHI switch selector for Bottom Heater Module PCB Table ) L [ H G S R O H I R U 6 K D S H G % R D U G ) L [ H G S R O H I R U 6 K D S H G % R D U G...
- Page 9 ® ACHI Set Bottom Temperature Controller Display window of actual temperature. Display window of setting temperature. Press the button of Bottom temperature control instrumentation for 1 seconds,then window to show SU. window to show current setting temperature, And the adjustable number flashes.
- Page 10 ® ACHI Programmer/Controller General Description The programmable controller contains an in-built setpoint generator in addition to the controller function. This setpoint generator can produce a temperature/time profile with 10*16 segments (0 9 10 Sets of Curves). When the program is running, the current setpoint from the setpoint generator is fed to the control algorithm.
- Page 11 ® ACHI The LED indicator is lit during program control (PV Display) Indicates the Process/Measured value It is lit when the Setting Value(SV) is being displayed on the lower display (SV/MV/TIME display) TIME It indicates the Setting Value(SV), Manipulating Value(MV), or Time(TIME) (The display content can be changed by the ‘DISP/SELECT’...
- Page 12 ® ACHI Program Parameter List 61 0 Q H P R Q L F 3 D U D P H W H U $ G M X V W D E O H 5 D Q J H 5 D P S 5 D W H ...
- Page 13 ® ACHI Rework Operation Steps Be all set Fixed motherboard Shift sensor sensor press close to BGA chip Adjust the height of heating head with adjustment knob Prompt BGA chip in the middle of heating head heating head away from BGA chip≥2CM...
- Page 14 ® ACHI Start heating Select the appropriate temperature program segment, then press the start switch. In the operation can press the Emergency stop switch, stop operating After the program runs, automatic Alarm , and automatically cut 8 SECONDS off the heating power, this time you can check the following solder ball is...
- Page 15 ® ACHI Heating completed Cooling Fan Moving Heating head and Sensor ,open the Upper fan and Switch Remove motherboard Clear insulating tape BGA Rework Station Cooled ,Then close Total Power Warning If BGA Rework Station NO Cooling Do not close the Power !
- Page 16 Installed the equipment in stable work platform to use where the air mobility should be small as possible .Avoid it closing to air conditioners, fans and the other outlet. IR-PRO-SC Rework Station sensor Direct contact with motherboard So Temperature ®...
- Page 17 ® ACHI 1/The meaning of“ Hb”: “Hb” means the max heating temperature of the upper heating. We set the max temperature at 230°C according to the max temperatrue of lead-free Reweork and other technical reasons. The data needn’t to be changed.
- Page 18 ® ACHI 3/ Please check Rework station surrounding environment, as far as possible away from the air outlet and other sources. Do not open upper fan in the welding process, Just remember that: The max tempertature of lead rework is approximately 183...
