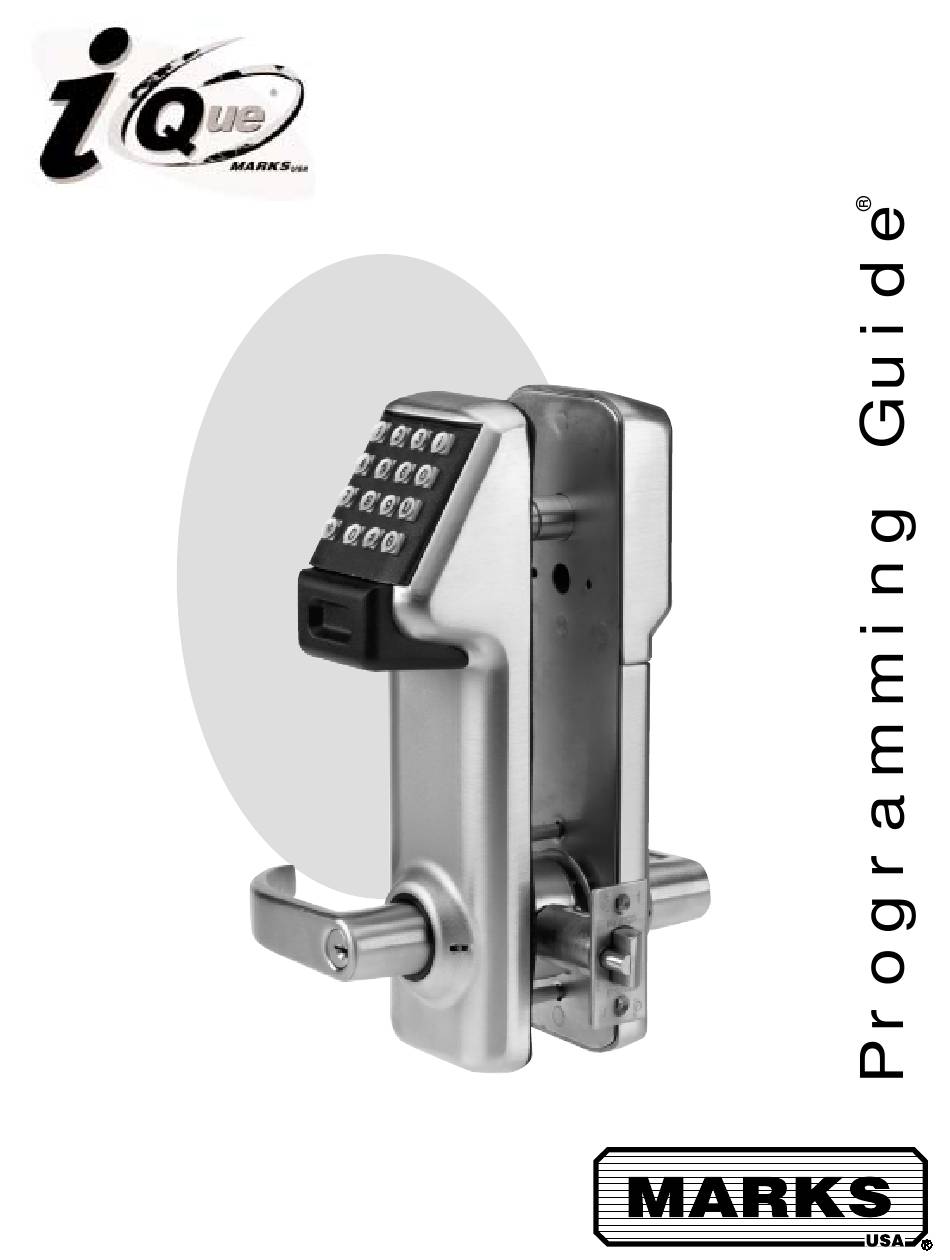

- Page 1 IQ PROX Series For use with IQ KP* only...
- Page 2 Please take the time to read it thoroughly and follow the instructions carefully so that your experience will be positive and trouble free. Marks USA would like to thank you for selecting the i-Que series for your access control needs.
-
Page 3: Table Of Contents
Index ............. . inside back cover For Technical Support Marks USA, 5300 New Horizons Blvd., Amityville, NY 11701 LIVE TECH REP 8 am to 8 pm EST... -
Page 4: Before You Start
BEFORE YOU START! IMPORTANT DEFINITIONS 1. PROX CARD: A credit card size card with a unique embedded electronic code based on 26 and 37 bit HID format. 2. FACTORY CODE: is 9991234, and is used to initialize the lock for a new installation or full reset. This code must be entered to set the LOCK ID and the GREAT GRAND MASTER (GGM). -
Page 5: Initialize Lock
1. INITIALIZE LOCK Initializing the lock with a unique 6 digit code assigns a LOCK ID number to each specific lock. Using keypad, enter the FACTORY CODE (9991234), the # key, and the 6 digit LOCK ID (usually starting with 000001), and finally, the # key. Factory Code 6 digit Lock ID Example:... -
Page 6: Adding & Deleting User Codes . Function 01
GROUPS In order to organize the management of individual Users, they can be put into 98 different GROUPS. Users in the same GROUP will have the same access rights. Users in different GROUPS can have varied access rights from other GROUPS. Each GROUP is assigned a 2 digit GROUP number from 02 to 99. All Users must be assigned to a GROUP. -
Page 7: Section 2 Lock Configuration
Section 2 Lock Configuration Function 32: PROX Only Entry Min. Group Number 02 The PROX Only mode allows management to grant Users the right to gain access by presenting the PROX card only. It also allows PIN Only access when codes are used. PROX Only Mode PROGRAM ✳... -
Page 8: Set Access Level
Function 11: Set Access Level Min. Group Number 03 Access can be denied to Users in Groups lower then the Group number entered. This function cannot deny access to Groups 03 (Master), 02 (Grand Master), or 01(Great Grand Master). To allow all Groups access the Group level setting must be set to “99”. PROGRAM PROX ✳... -
Page 9: Manual Passage Mode
Function 30: Manual Passage Mode Min. Group Number 03 This function puts the lock in an unlocked state, granting free access (no code required) to all Users, until lock is returned to the locked state. Closed - Locked - Default PROGRAM PROX ✳... -
Page 10: Panic Alarm
Function 38: Panic Alarm Min. Group Number 03 This function is intended to be wired to an alarm panel or siren. When enabled, any User can enter 911✳, and the lock will close a contact thus setting off the alarm system. Disabled - Default PROGRAM PROX... -
Page 11: Section 3 Scheduling
Section 3 Scheduling Programming the Schedule Functions The scheduled functions will allow you to customize your lock and grant/deny access to your Users by times and day/days of the week. The time and date should be set first before programming any schedules. If the time and date are incorrect in the lock then the schedules will not function correctly. -
Page 12: Set Date
Function 13: Set Date Min. Group Number 02 The date must be set prior to setting any holidays or scheduling. This function will set the Month, Day, Year and day of the week. There are 2 formats available: Standard (default) (MM DD YY) or European (DD MM YY). PROGRAM PROX ✳... -
Page 13: User Schedule
Function 04: User Schedule Min. Group Number 03 The User schedule gives additional access rights to a specific User. Time entered in military time format. (HHMM). ✳ ✳ PROGRAM HHMM HHMM PROX ✳ ✳ ✳ Day Code ✳ INSTRUCTION (Open Time) (Close Time) The UID is the User ID of the User to be scheduled. -
Page 14: Holiday Maintenance
Function 09: Holiday Maintenance Min. Group Number 03 Setting holidays will override all set schedules and block access to Users in Groups 10 - 99 during these periods. NOTE: Dates are set by month/day format. The i-Que does not track the year of the holiday, so holidays that occur on different dates each year will have to be manually adjusted each year. -
Page 15: Section 4 Software Interface
Section 4 Software Interface Function 15: Download Audit Trail Min. Group Number 05 This function downloads the locks history of events to the I-DAT. For more information on the I-DAT and software see the I-DAT software manual. PROGRAM “RECEIVED” PROX ✳... -
Page 16: Battery Information
Battery Information THE I-QUE IS SHIPPED WITH 4 AA ALKALINE BATTERIES. The life span of the batteries has been tested in two different ways. The first test was performed to see how many operations could be performed repeatedly before a failure. The test averaged 150 thousand operations. The second test was performed over time for normal operations. -
Page 17: Secretary's Button
Connection Diagram Secretaries Button, (Orange and Black) Panic Alarm (Green and Black) This can be wired to a Momentary Normally hard wired to an alarm device Open (NO) switch When pressed, lock will When function 38 is enabled (see page 8) on open for the set amount of time. -
Page 18: Glossary
Glossary Access Code Numeric or alphanumeric data which when correctly entered into a keypad, allows authorized entry into a controlled area without causing an alarm condition. Access Control The control of persons, vehicles and materials through entrance and exit of a protected area utilizing hardware systems specialized to control and monitor the movement into, out of, or within the protected area. -
Page 19: Index
INDEX Keypad Information ........1 Access, Deny/Restore Groups. - Page 20 Visit us on the web at: for information on additional product lines, templates and manuals. Distributed by: For IQ Tech Support Call: 1-800-526-0233 LIVE TECH SUPPORT 8am to 8pm EST Mon - Fri On Line Tech Support 24/7 at www.marksusa.com Email: ique@marksusa.com IP101-IQKP*.0604...
