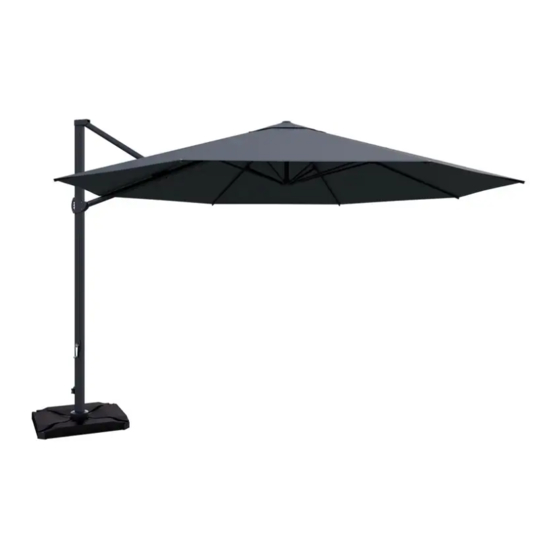

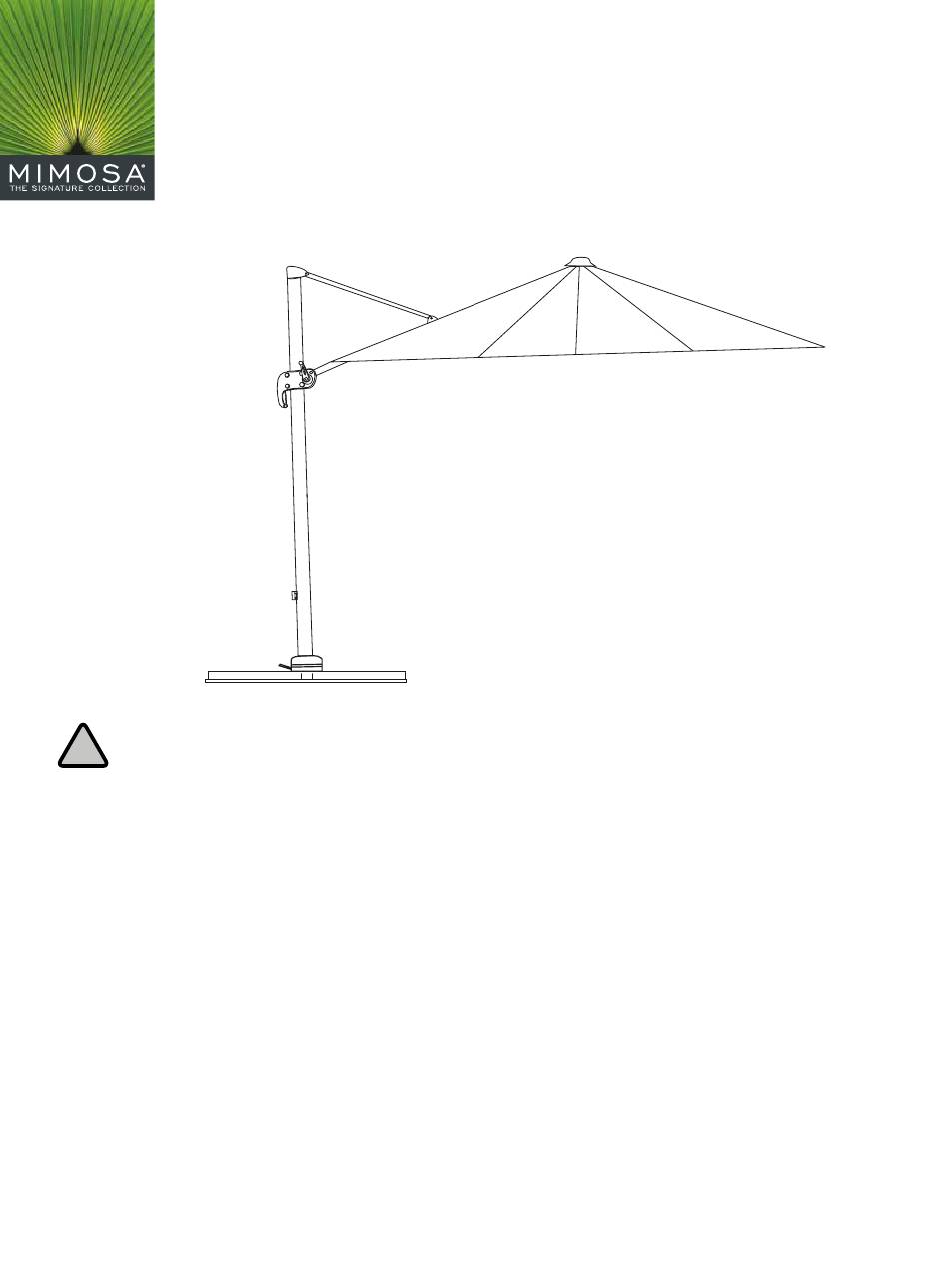

3.5M CANTILEVER UMBRELLA
Please carefully read the below warnings and instructions.
!
Save the instructions for future reference.
1.Please carefully read all instructions before assembly and use
2.Please separate and identify all parts, ensuring that you have all parts listed
3.To avoid damaging your umbrella, it is recommended that you assemble it on
a clean, protected surface
4.Washers must be used where indicated during the assembly process
5.Loosely tighten the nuts and then securely tighten when all are in position.
Be careful not to over tighten the nuts during assembly.
Attention:
The cross base must be weighed down with concrete pavers to secure the
umbrella. Non permanent structure. Do not use in extreme weather conditions
including heavy rain or high winds.
Assembly Instructions
Item No. 3191772
5-1
Advertisement
Table of Contents
Related Manuals for Mimosa 3191772
Summary of Contents for Mimosa 3191772
- Page 1 3.5M CANTILEVER UMBRELLA Assembly Instructions Item No. 3191772 Please carefully read the below warnings and instructions. Save the instructions for future reference. 1.Please carefully read all instructions before assembly and use 2.Please separate and identify all parts, ensuring that you have all parts listed 3.To avoid damaging your umbrella, it is recommended that you assemble it on...
- Page 2 3.5M CANTILEVER UMBRELLA Assembly Instructions PARTS AND HARDWARE LIST CODE PARTS CODE PARTS Plastic Cone Metal Cross Base Metal Cross Base Umbrella frame & Canopy crank 360°Swivel System Umbrella Base Screw with plastic cap Allen Key (M10) Screw Washer Umbrella Cover Stay Pole...
- Page 3 Assembling Instruction Fix the 360°swivel system(C) with the metal cross base(A+B). Then fix the umbrella base(D) with 360°swivel system(C) by screw(E). Place the plastic cone (F) onto umbrella base (D). Place the umbrella frame & canopy (G) onto the umbrella base pole (D). Fix the screw with plastic cap (I) in place so that the pole is tightly secured to the base...
- Page 4 Operating Instruction Squeeze the handle and push it in the upwards direction towards the top of the umbrella pole until it locks into place. Open the umbrella by rotating the crank. To adjust the angle of the umbrella, slide the handle down the pole.
- Page 5 Operating Instruction When your umbrella is not in use, cover the umbrella with the protective cover included to protect from weather conditions as shown below. Ｌ Ｋ...
