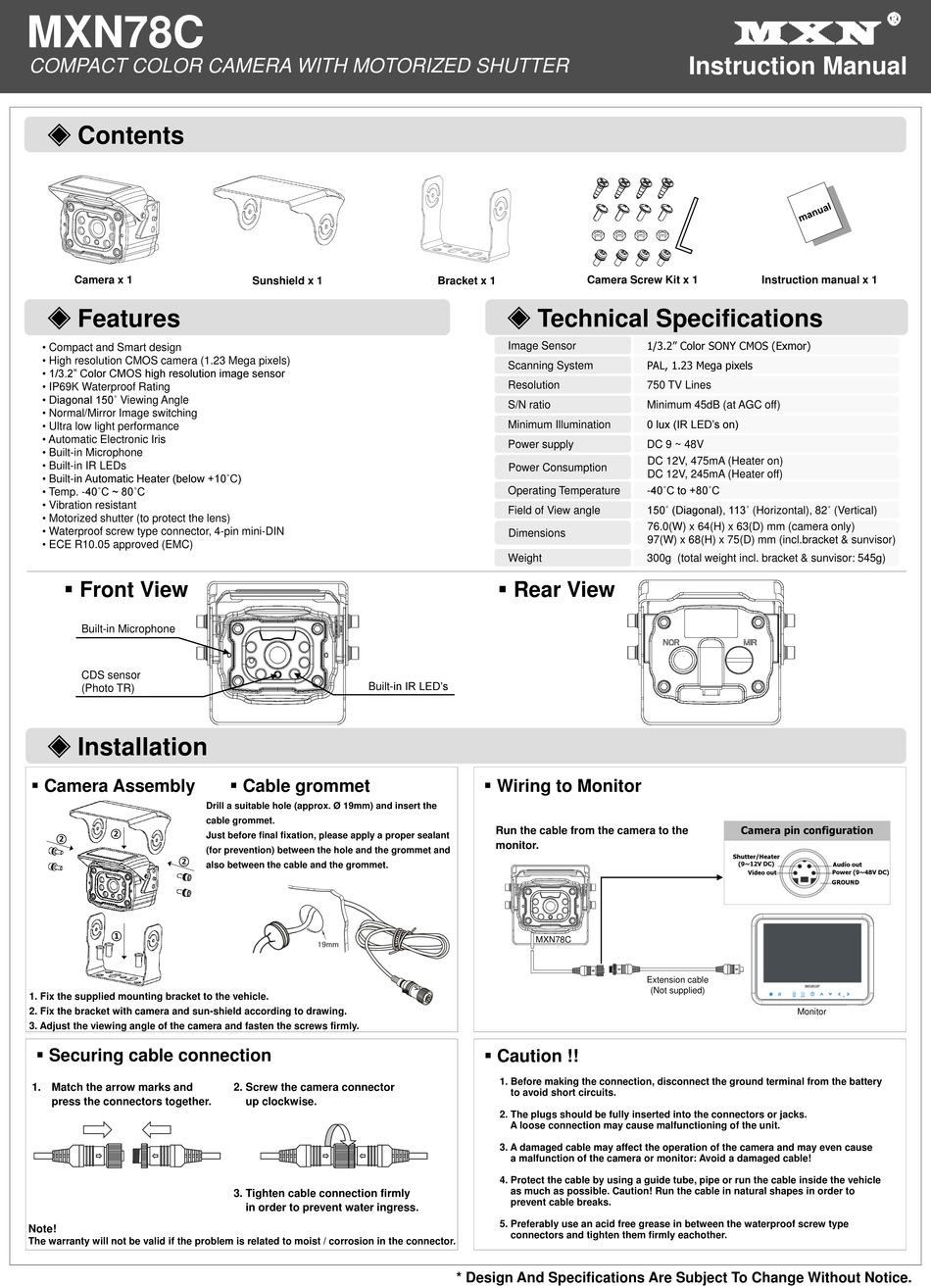

MXN MXN78C Instruction Manual

MXN78C
COMPACT COLOR CAMERA WITH MOTORIZED SHUTTER
◈ Contents
Camera x 1
◈ Features
• Compact and Smart design
• High resolution CMOS camera (1.23 Mega pixels)
• 1/3.2" Color CMOS high resolution image sensor
• IP69K Waterproof Rating
• Diagonal 150˚ Viewing Angle
• Normal/Mirror Image switching
• Ultra low light performance
• Automatic Electronic Iris
• Built-in Microphone
• Built-in IR LEDs
• Built-in Automatic Heater (below +10˚C)
• Temp. -40˚C ~ 80˚C
• Vibration resistant
• Motorized shutter (to protect the lens)
• Waterproof screw type connector, 4-pin mini-DIN
• ECE R10.05 approved (EMC)
 Front View
Built-in Microphone
CDS sensor
(Photo TR)
◈ Installation
 Camera Assembly
②
②
②
①
1. Fix the supplied mounting bracket to the vehicle.
2. Fix the bracket with camera and sun-shield according to drawing.
3. Adjust the viewing angle of the camera and fasten the screws firmly.
 Securing cable connection
1. Match the arrow marks and
press the connectors together.
Note!
The warranty will not be valid if the problem is related to moist / corrosion in the connector.
Sunshield x 1
Built-in IR LED's
 Cable grommet
Drill a suitable hole (approx. Ø 19mm) and insert the
cable grommet.
Just before final fixation, please apply a proper sealant
(for prevention) between the hole and the grommet and
also between the cable and the grommet.
2. Screw the camera connector
up clockwise.
3. Tighten cable connection firmly
in order to prevent water ingress.
Camera Screw Kit x 1
Bracket x 1
◈ Technical Specifications
Image Sensor
Scanning System
Resolution
S/N ratio
Minimum Illumination
Power supply
Power Consumption
Operating Temperature
Field of View angle
Dimensions
Weight
 Rear View
 Wiring to Monitor
Run the cable from the camera to the
monitor.
MXN78C
 Caution !!
1. Before making the connection, disconnect the ground terminal from the battery
to avoid short circuits.
2. The plugs should be fully inserted into the connectors or jacks.
A loose connection may cause malfunctioning of the unit.
3. A damaged cable may affect the operation of the camera and may even cause
a malfunction of the camera or monitor: Avoid a damaged cable!
4. Protect the cable by using a guide tube, pipe or run the cable inside the vehicle
as much as possible. Caution! Run the cable in natural shapes in order to
prevent cable breaks.
5. Preferably use an acid free grease in between the waterproof screw type
connectors and tighten them firmly eachother.
* Design And Specifications Are Subject To Change Without Notice.
Instruction Manual
Instruction manual x 1
1/3.2" Color SONY CMOS (Exmor)
PAL, 1.23 Mega pixels
750 TV Lines
Minimum 45dB (at AGC off)
0 lux (IR LED's on)
DC 9 ~ 48V
DC 12V, 475mA (Heater on)
DC 12V, 245mA (Heater off)
-40˚C to +80˚C
150˚ (Diagonal), 113˚ (Horizontal), 82˚ (Vertical)
76.0(W) x 64(H) x 63(D) mm (camera only)
97(W) x 68(H) x 75(D) mm (incl.bracket & sunvisor)
300g (total weight incl. bracket & sunvisor: 545g)
Camera pin configuration
Shutter/Heater
(9~12V DC)
Video out
Extension cable
(Not supplied)
Monitor
Audio out
Power (9~48V DC)
GROUND
