Honeywell Home ADEMCO 5811 Initial Installation And Setup Manual

GENERAL INFORMATION

The 5811 is a single zone Door/Window Transmitter, compatible with alarm systems that support 5800 series wireless
devices. 5811 has a unique serial number permanently assigned during manufacture, which must be entered into the control
panel upon installation.

NOTES

Refer to the panel's installation instructions for programming details.
•
During programming of the control unit, 5811 transmitters should be treated as "RF" (i.e. supervised RF) Type.
•

MOUNTING

Choose a mounting location for the 5811 where the device is stationary and the magnet is mounted to the moving part of the
door or window. To verify adequate signal strength, conduct the Go/No Go test (see control's instructions) on the 5811 before
mounting permanently.
1. Install the Battery by inserting one edge of the battery under one of the two plastic battery retainer clips, then pressing
down firmly to snap it beneath both clips; see figure 1.
2. Mount the 5811 using double-faced tape (supplied) by affixing it to the back of the unit and mounting the unit in place.
Use screws (optional) if desired; see figure 2. Mount the magnet (supplied) near the alignment marks on the case (see
Diagram).
Replacing an existing unit: The back-mounting plate must be replaced when replacing the 5811. Use
standard installation practices when removing the unit to avoid any damage to the mounting surface.
3. Engage the case tabs (see figure 2), then rotate the housing to close. Engage the latch with firm pressure to close and
lock.

BATTERY REMOVAL

1. Open the housing by inserting a flat blade screwdriver into latch and twisting gently.
2. Remove the old battery cell using a small flat screwdriver into the latch and gently twisting it until the cover becomes
removable (see figure 3).
1
BATTERY
(+ SIDE UP)
REED
SWITCH
MAGNET
ALIGNMENT
MARKS
A
INSERT BATTERY
EDGE UNDER ONE CLIP
B PRESS DOWN FIRMLY TO
SNAP BATTERY UNDER
BOTH CLIPS

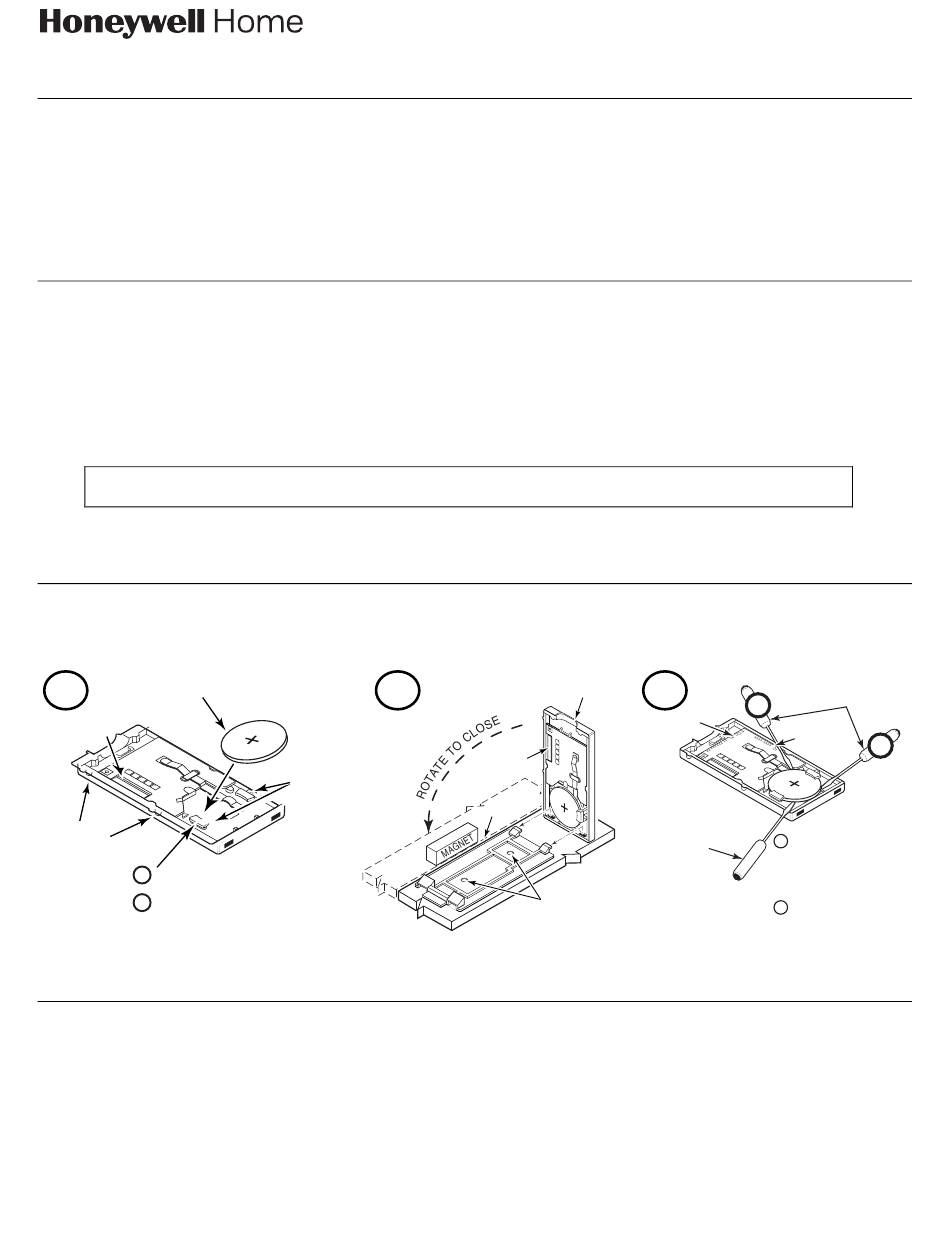

Figure 1. Battery Installation

SPECIFICATIONS

Dimensions:
Operating Conditions:
Replacement Battery:
Installation and Setup Guide
2
BATTERY
RETAINER
CLIPS
Figure 2. Mounting
2-1/8" (55mm) x 1-3/16" (30mm) x 1/4" (7mm)
23° F (-5° C) to 120° F (50° C)
Relative Humidity 95%, (non-condensing)
Panasonic/Sener CR2032 and Duracell DL2032
One Zone Door/Window Transmitter
3
LATCH
REED
MAX GAP
3/4"
CASE
TABS
MOUNTING
HOLES
ADEMCO 5811
SCREWDRIVER
(NO)
X
FCC ID: #
IC: #
SCREWDRIVER
PLACE TIP OF FLAT SCREW
A
(CORRECT)
DRIVER BETWEEN EDGE OF
BATTERY AND PLASTIC CASE
AS SHOWN. POSITIONING
SCREWDRIVER AT ANY OTHER
CORNER MAY CAUSE DAMAGE
TO DEVICE.
B CAREFULLY PRY UP WHILE
TWISTING TO REMOVE BATTERY.
Figure 3. Battery Removal
X
5811-006-V1
