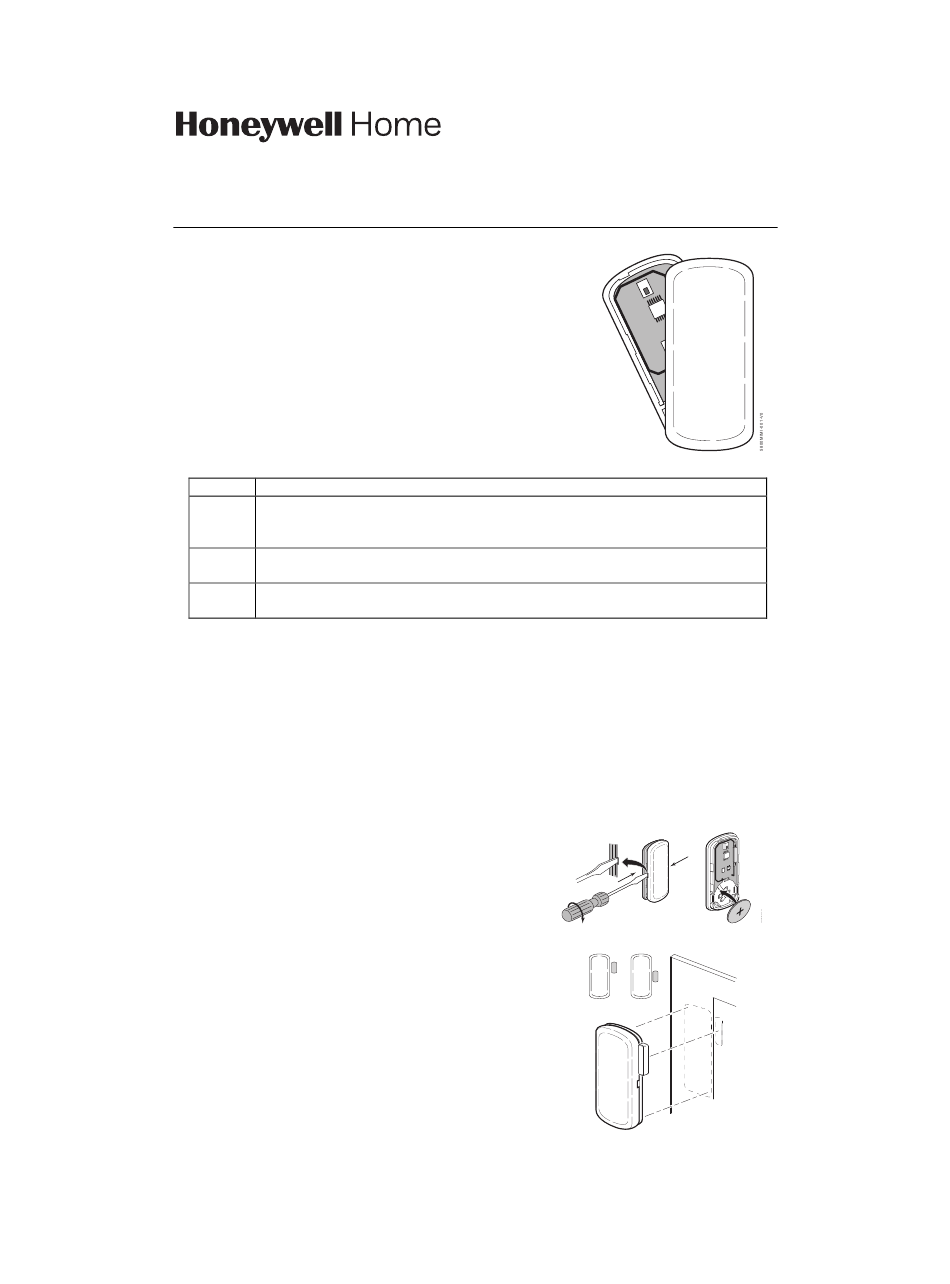

Honeywell Home 5800MINI Installation & Setup Manual

Installation & Setup Guide

FEATURES

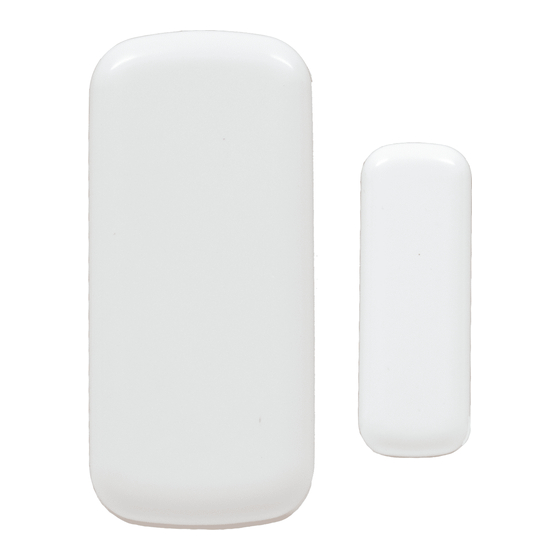

• Single zone Door/Window Transmitter
• Compatible with alarm systems that support 5800 series
wireless devices
• Built-in unique serial number which must be enrolled into
the control panel
• Refer to the control panel's installation instructions for
Programming details.

LED Indicators

LED Meaning
Lights when the magnet is within proper range of the 5800MINI (1 inch
Blue max). LED is active for 15 minutes after battery is first installed or when the
cover is removed.
Flashes when the 5800MINI transmits. LED is active for 15 minutes after
Green
battery is first installed or when cover is removed.
Upon low battery condition, flashes once about every five seconds for two
Red
minutes after a transmission.

MOUNTING

• Choose a mounting location where the device is stationary and the magnet is
mounted to the moving part of the door or window.
• Verify adequate signal strength by using the control panel's Go/No Go test (see
control's instructions) before mounting permanently.
• Avoid mounting in areas where it will be exposed to moisture or where the operating
temperature of 32 to 120ºF (0 to 50ºC) will be exceeded.
• Keep the 5800MINI and magnet away from metal or metallic surfaces such as foil
wallpaper.
• Avoid mounting the 5800MINI in areas with a large quantity of metal or electrical
wiring, such as a furnace or utility room.
1. Install the Battery
a. Open the cover.
b. Install the battery with "+ + + + " side up.
c. Replace the cover.
The blue and green LEDs will be active for 15
minutes. To reactivate, remove the cover.
2. Mount the 5800MINI & Magnet
a. Mount the 5800MINI on the frame of the
protected door or window using double-faced
tape (supplied).
b. Mount the magnet (supplied) on the protected
door or opening portion of the protected
window. Check that the blue LED lights when
the door or window is closed.
5800MINI
1- Zone Door/Window
Transmitter
5800MIMI-002-V0
X
CORRECT INCORRECT
5800MIMI-008-V1
