Operation Manual
Woodturning Lathe
61591
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for WilTec 61591
Summary of Contents for WilTec 61591

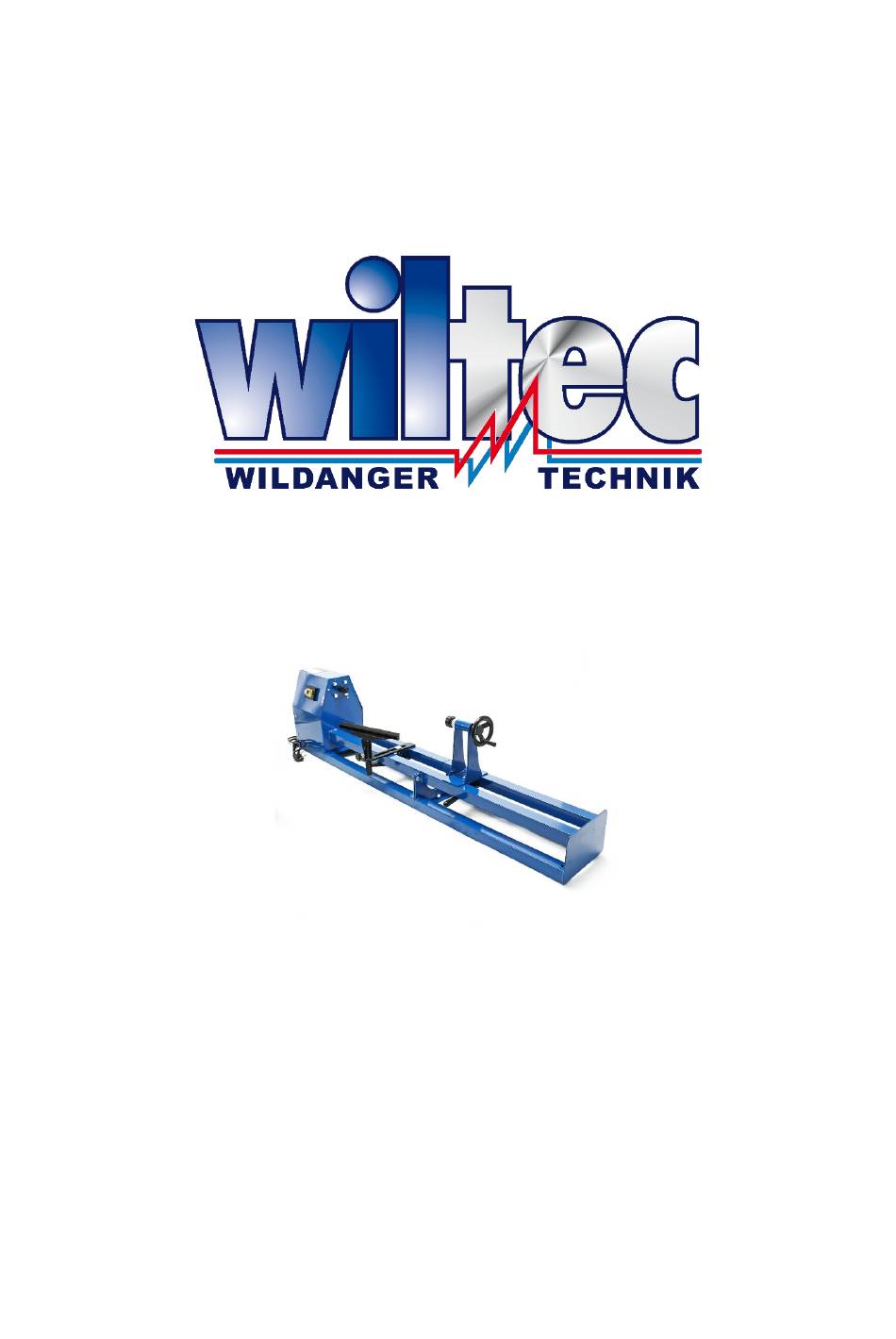

- Page 1 Operation Manual Woodturning Lathe 61591 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.
- Page 2 All rights re- served. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
- Page 3 If you should lend the device to another person, also hand over these operating/safety instruc- tions. We are not liable for accidents or damage caused by non-compliance with these instruc- tions and the safety instructions. © by WilTec Wildanger Technik GmbH Item 61591 Page 3 http://www.WilTec.de...
- Page 4 Please note that our devices are not designed for commercial, technical or industrial use. We do not supply any warranty if the device is used in commercial, craft or industrial enterprises as well as in equivalent activities. © by WilTec Wildanger Technik GmbH Item 61591 Page 4 http://www.WilTec.de...
- Page 5 Adapt your mode of operation to the device. • Do not overload the device. • Have the device checked if necessary. • Switch the device off when it is not in use. © by WilTec Wildanger Technik GmbH Item 61591 Page 5 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 6 After setting the optimum clamping pressure using the handwheel, the counter bracket spindle must be secured with the lock nut. Adjusting the tool rest • The height of the tool rest can be adjusted after releasing the locking handle. © by WilTec Wildanger Technik GmbH Item 61591 Page 6 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 7 (for small knots, carefully select the contact pressure of the turning iron). • Always check by hand that the wood to be turned is firmly placed. Warning: Pull the mains plug! © by WilTec Wildanger Technik GmbH Item 61591 Page 7 http://www.WilTec.de http://www.aoyue.eu 2021-1...
- Page 8 Reduce the clamping pressure on the counter bracket hand wheel. • Only set high speeds for final and fine treatment of the workpieces. Maintenance There are no other parts to be serviced inside the unit. © by WilTec Wildanger Technik GmbH Item 61591 Page 8 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 9 Store the device and its equipment in a dark, dry and frost-free area. The optimum storage temperature is between 5 ℃ and 30 ℃. Keep the power tool in its original packaging. © by WilTec Wildanger Technik GmbH Item 61591 Page 9 http://www.WilTec.de...
- Page 10 Support bar Screw Flat washer Pole Cord clip Back cover Adjusting bar Cord sleeve Engine Bolt Elastic washer Switch board Flat washer Screw Drive centre Micro switch © by WilTec Wildanger Technik GmbH Item 61591 Page 10 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 11 This logo indicates that this electric equipment must not be disposed with the domestic waste. The company WilTec Technik GmbH has been registered in the German registry EAR under the WEEE- registration number DE45283704. Disposal of used electrical and electronic appliances...
