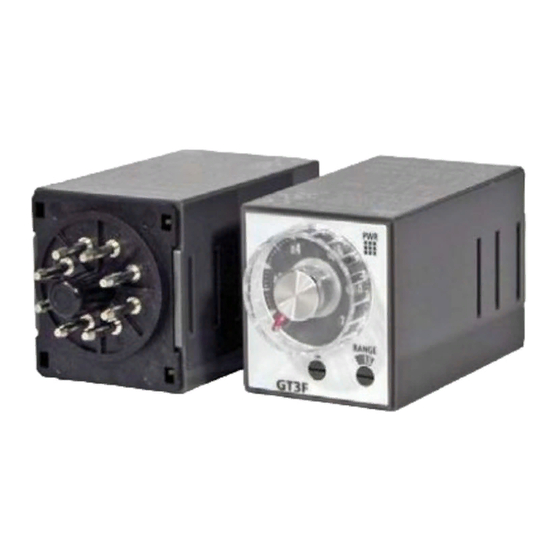

IDEC GT3W Series Instructions Manual

GT3W Series
Key features of the GT3W series include:
• Sequential start, sequential interval, on-delay, recycler,
and interval ON timing functions
• 2 time settings in one timer
• 8 selectable operation modes on each model
• Mountable in sockets or fl ush panel
• Power and output status indicating LEDs
• Time ranges up to 300 hours
UL, c-UL Listed
File No. E55996
General Specifi cations
Operation System
Operation Type
Time Range
Pollution Degree
Over Voltage Category
Rated Operational Voltage
Voltage Tolerance
Disengaging Value of Input Voltage
Range of Ambient Operating Temperature
Range of Ambient Storage
and Transport Temperature
Range of Relative Humidity
Atmospheric Pressure
Reset Time
Repeat Error
Voltage Error
Temperature Error
Setting Error
Insulation Resistance
Dielectric Strength
Vibration Resistance
Shock Resistance
Degree of Protection
Power Consumption
(Approx.)
Mounting Position
Dimensions
Weight (Approx.)
* For the value of the error against a preset time, whichever the largest applies.
834
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
GT3W Series — Dual Time Range Timers
Solid state CMOS Circuit
Multi-Mode
1: 0.1sec to 6 hours, 3: 0.1sec to 300 hours
2 (IE60664-1)
III (IE60664-1)
AF20 100-240V AC(50/60Hz)
AD24 24V AC(50/60Hz)/24V DC
D12 12V DC
AF20 85-264V AC(50/60Hz)
AD24 20.4-26.4V AC(50/60Hz)/21.6-26.4V DC
D12 10.8-13.2V DC
Rated Voltage x10% minimum
-10 to +50ºC (without freezing)
-30 to +75ºC (without freezing)
35 to 85%RH (without condensation)
80kPa to 110kPa (Operating), 70kPa to 110kPa (Transport)
60msec maximum
±0.2%, ±10msec*
±0.2%, ±10msec*
±0.6%, ±10msec*
±10% maximum
100MΩ minimum (500V DC)
Between power and output terminals: 2000V AC, 1 minute
Between contacts of different poles: 2000V AC, 1 minute
Between contacts of the same pole:750V AC, 1 minute
10 to 55Hz amplitude 0.75mm
Operating extremes: 98m/sec
Damage limits: 490m/sec
3 times in each of 3 axes
IP40 (enclosure), IP20 (socket) (IEC60529)
100V AC/60Hz 2.3VA
AF20
200V AC/60Hz 4.6VA
AD24 (AC/DC) 1.8VA/0.9W
Free
40Hx 36W x 70 mm
72g
2 hours in each of 3 axes
(approx.10G)
2
(approx. 50G)
2
www.idec.com
Contact Ratings
Allowable Contact Power 960VA/120W
Allowable Voltage 250V AC/150V DC
Allowable Current 5A
Maximum permissible
1800 cycles per hour
operating frequency
1/8HP, 240V AC
3A, 240V AC (Resistive)
Rated Load
5A, 120V AC/30V DC
(Resistive)
Conditional Short Circuit Fuse 5A, 250V
100,000 op. minimum
Electrical
(Resistive)
Life
Mechanical 20,000,000 op. minimum
Timers
