2-Sided Clear Acrylic Poster Stand, 67"h with 5-Pocket
ASSEMBLY INSTRUCTIONS

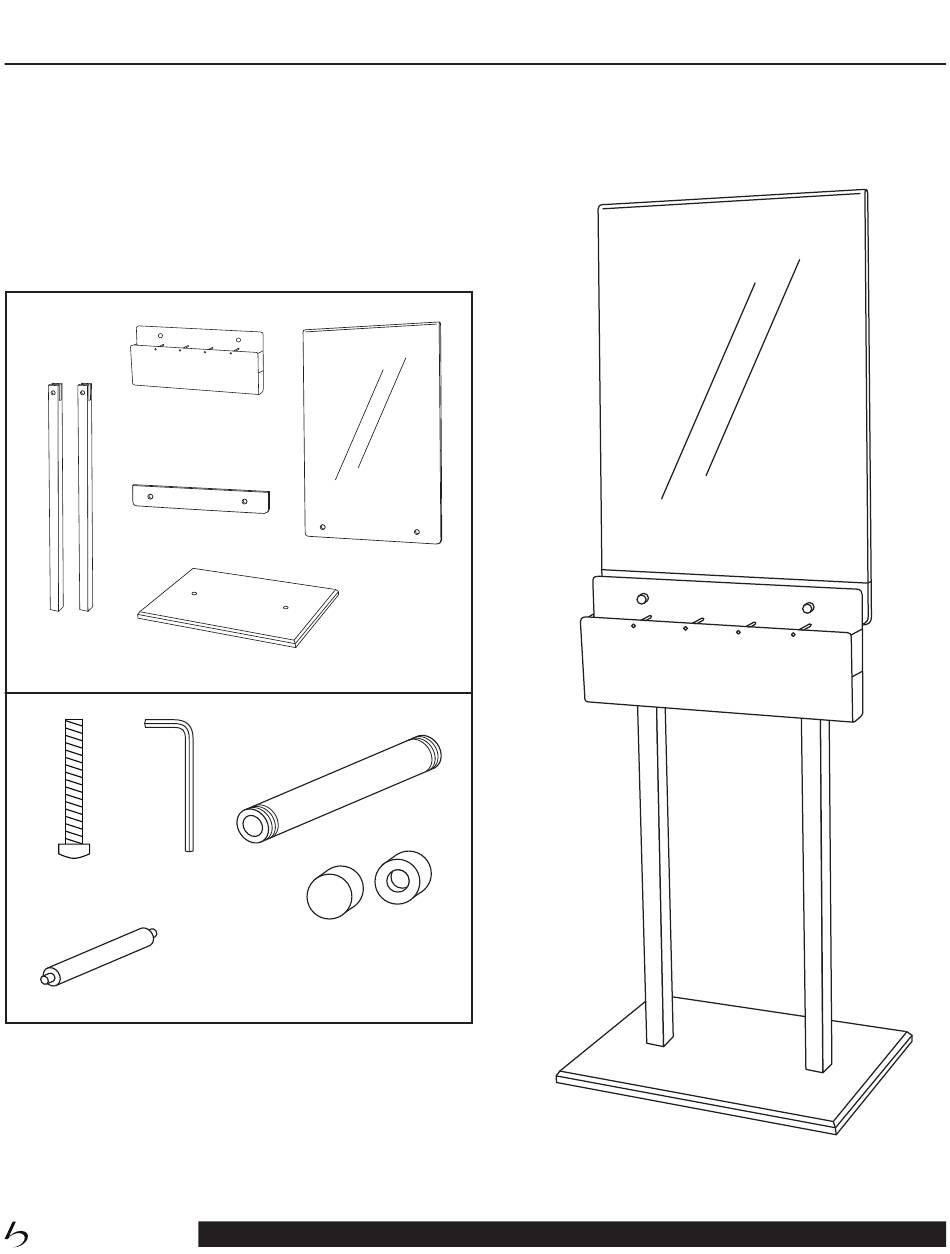

Parts & Hardware
Prior to assembly, please be sure all of the parts and hardware are present.
If you are missing any hardware, please call immediately.
Acrylic 5-Pocket
Literature Holder
Acrylic Spacer Panel
(2) Acrylic Legs
(2) Hex Bolts
Hex Wrench
(4) Acrylic Removable Pegs
(For Literature Holder)
M.F. BLOUIN
Merchandising Solution
Acrylic Sign Holder
Acrylic Base
(2) Threaded Rods
(4) Lock Knobs
710 Main St. Rollinsford, NH 03869 • 1-800-394-1632 • www.mfblouin.com • info@mfblouin.com
Product No. D019740P5
Page-1
Advertisement
Table of Contents
Related Manuals for M.F. Blouin D019740P5
Summary of Contents for M.F. Blouin D019740P5
- Page 1 2-Sided Clear Acrylic Poster Stand, 67"h with 5-Pocket ASSEMBLY INSTRUCTIONS Product No. D019740P5 Parts & Hardware Prior to assembly, please be sure all of the parts and hardware are present. If you are missing any hardware, please call immediately. Acrylic 5-Pocket...
- Page 2 2-Sided Clear Acrylic Poster Stand, 67"h with 5-Pocket ASSEMBLY INSTRUCTIONS Product No. D019740P5 Tighten legs keeping slots aligned Step 1: Attach the acrylic legs to base unit using the supplied hex bolts & hex wrench - Position each leg keeping them square to the base.
- Page 3 2-Sided Clear Acrylic Poster Stand, 67"h with 5-Pocket ASSEMBLY INSTRUCTIONS Product No. D019740P5 Step 2: After removing the poster holder & spacer panel from its packaging, peel off the protective film and insert the spacer panel between the two sides...
- Page 4 2-Sided Clear Acrylic Poster Stand, 67"h with 5-Pocket ASSEMBLY INSTRUCTIONS Product No. D019740P5 Step 4: Align the two holes in the back of the 5-pocket literature holder with the holes in the legs/sign holder. Insert the threaded rods through the holes and tighten the lock knobs over each end.
