RioOutdoors 4F-SH Installation Instructions Manual

4x4 floating single header raftered pergola kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WARNING: If the information in these instructions is not followed exactly, weakening or failure of the erected
structure may result causing property damage, personal injury, or loss of life.
All brackets designed and sold by RioOutdoors.com are to be used for building pergolas only and are not to be used for
other structure construction purposes.

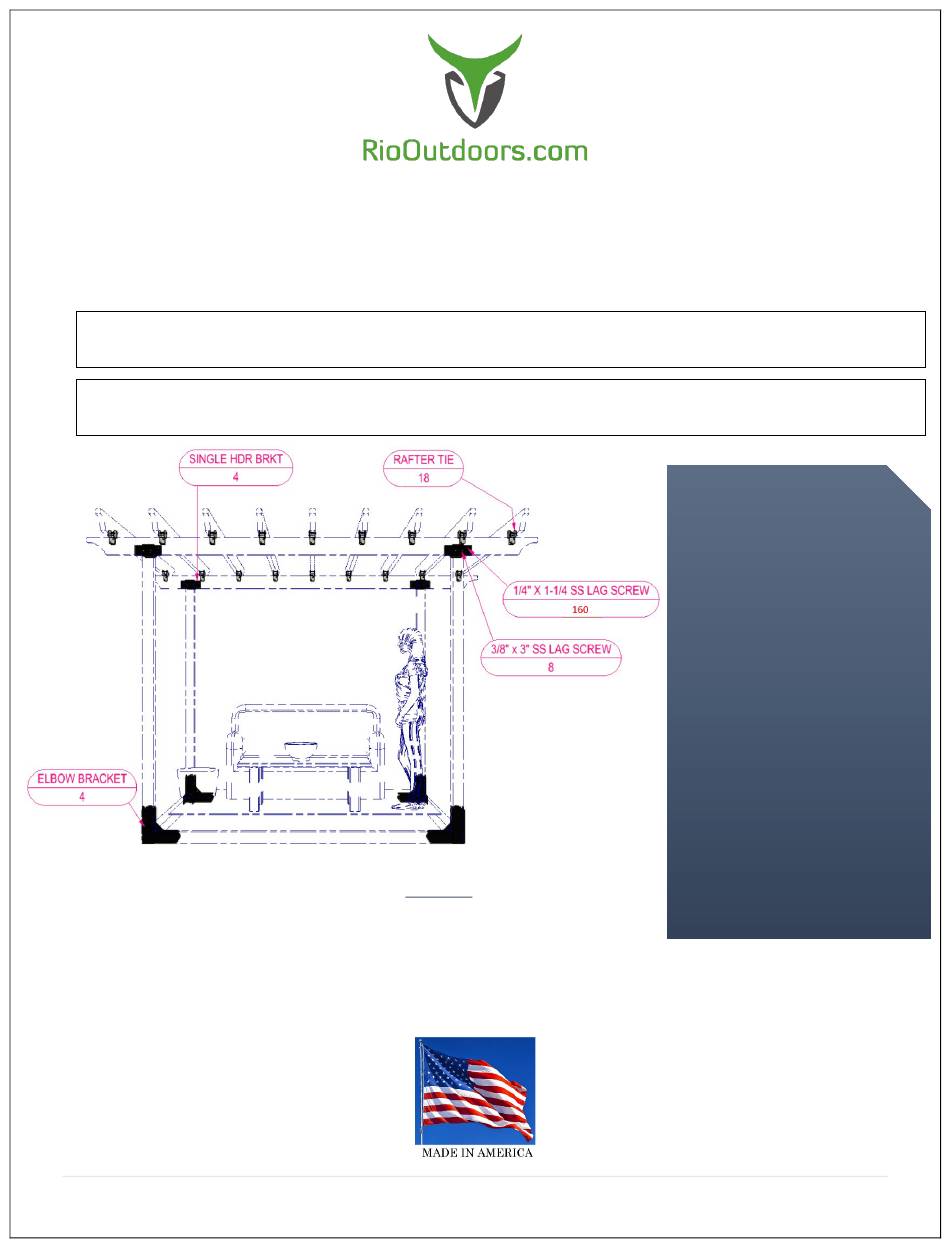

Figure 1: Items included in the kit, (
Items not included in this kit: wood, tools, some hardware.
1 |
P a g e
Installation Instructions
4x4 Floating Single Header Raftered Pergola Kit
Pergola Kits
������������������������ ���� �������� ���� ����
������������������������ ���� ����
4F-SH
).
•
Thoughtfully engineered
Brackets eliminate all wood-
joinery skills requirements.
•
Skills required: leveling
ground, drilling pilot
holes, and driving lag
screws into lumber.
•
Easy lift and place U-
channels eliminate need
for lifting equipment.
Super-easy assembly
work.
•
Self-aligning design
squares up structure
automatically.
•
Estimated Assembly
Time is less than 2 hours
(not including deck).
