Restoration Hardware FT-118 Quick Start Manual

Advertisement

Quick Links

nd
2
Stacker w/Spout
FT-118B
21"l x 6"w x 24.75"h
199 lbs
Fountain Basin
FT-118C
22.75"l x 22"w x 21"h
405 lbs
Pump Kit Parts List
500 pump (1)
Egglite (1)
#10 rubber stopper (1)
Approx. 12" length of 5/8" non-kink black tubing (1)
Approx. 14.5" length of 5/8" i.d. clear tubing (2)
Approx. 4" length of 5/8" i.d. clear tubing (1)
½" CPVC Elbow
Approx 2" length of ½" i.d. copper pipe
5/8"x5/8"x5/8" Tee Connector (1)
38" length of 3/8" i.d. galvanized steel pipe (2)
Hose clamps (8) Note – Hose clamps can be used as flow restrictor
Wedges (4)
10oz tube of silicone (1)
Plumber putty (1)
Copper Spiller (1)
Some assembly may already be done

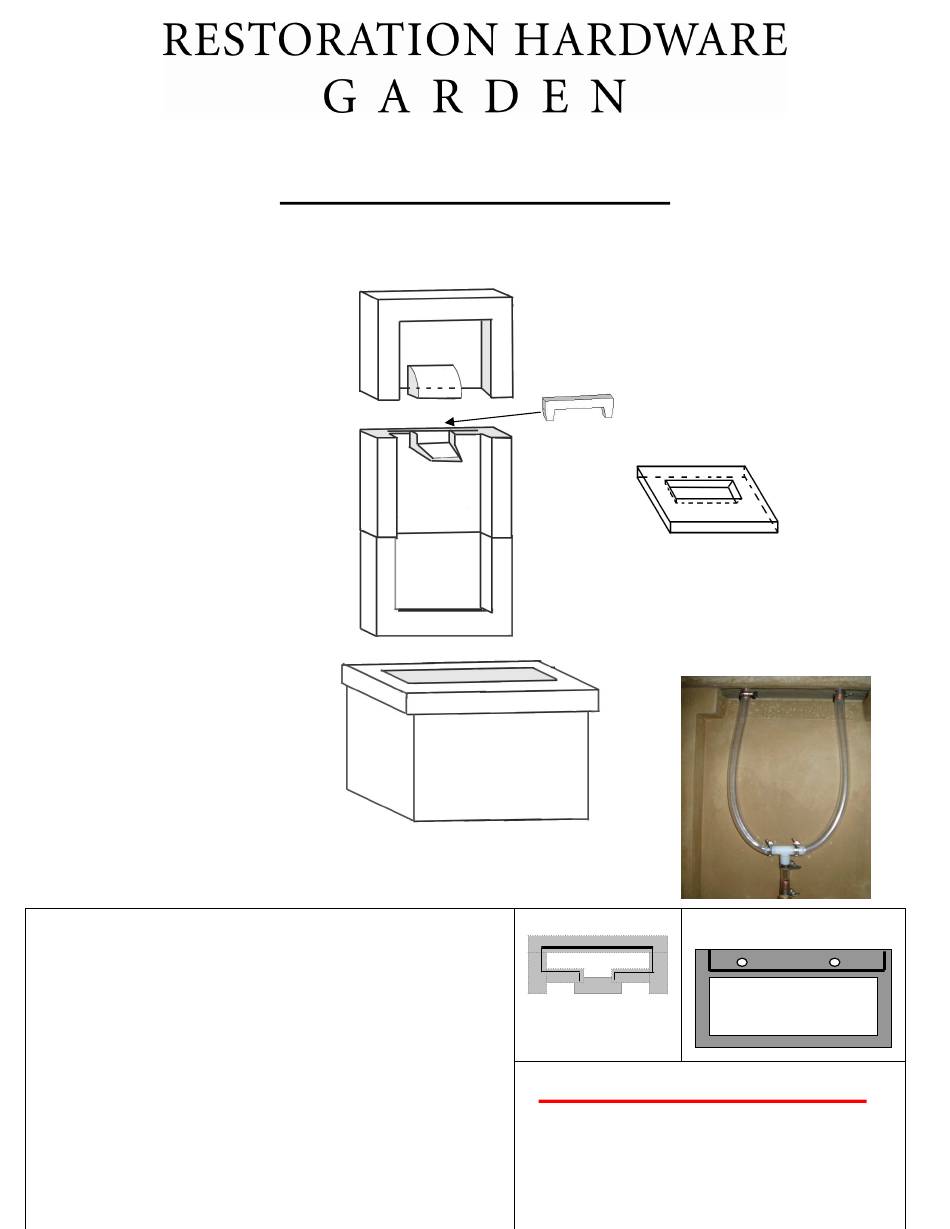

FT-118 Moderne Fountain
(5 pieces)
COMPONENTS AND PARTS LIST
Revised February 10, 2009
Fountain Top
FT-118A
21"l x 6.25"w x 14.25"h
124 lbs
Spiller Stop
FT-118E
12"l x 1.25"w x 2"h
1 lbs
Ftn Disc for Basin
FT-118D
16.25"l x 12.25"w x 1.25"h
18 lbs
Top View of FT-118B
Black Line Represents
silicone application for
FT-118B
Warning – Risk of Fire
DO NOT OPERATE EGGLITE
UNLESS LIGHT IS COMPLETELY
SUBMERSED IN WATER!
Use Egglite only in accordance with
manufacturer's instructions
Hose Assembly
Top View of FT-118C
Black Line Represents
silicone application for
FT-118C
